RIEGLER 5/3-Wegeventil, man. 90° Hebel, G 1/2, Mitte entl., Federrück.
Typennummer: 514.142
RIEGLER & Co. KG in Bad Urach ist ein angesehenes Unternehmen, das für seine innovativen Ansätze, erstklassige Produktqualität und engagierte Kundenbetreuung geschätzt wird. Seit mehr als 80 Jahren hat sich dieses Familienunternehmen zu einem führenden Anbieter von Komponenten für Druckluft- und Pneumatik sowie individuellen Systemlösungen entwickelt.
5/3-way valve, man. 90° lever, G 1/2, mid-position exhausted, spring ret., op. pressure vacuum to 10 bar, op. temp. -10°C to 60°C
| Temperaturbereich min. | -10 °C |
| Temperaturbereich max. | 60 °C |
| Medium | Gefilterte Druckluft mit oder ohne Ölung. Wenn geölt, dann kontinuierlich. |
| Dichtmaterial | NBR |
| Serie | Ventile Reihe 70 |
| Feder | Sonderstahl |
| Ventilkörper | Aluminium |
| Betriebsdruck | Vakuum bis 10 bar |
| Funktion | 5/3 |
| Betätigung | Mitte entlüftet, Federrückstellung |
| Symbol | 15 |
| REACH SVHC1 Stoff Name | Blei |
| CAS-Nr. SVHC 1 | 7439-92-1 |
| Anschluss | G 1/2 |
| Kolben | Aluminium vernickelt |
| RoHS Werkstoff-Hinweis | RoHS konform |
| Durchfluss | 3200 Nl/min |
| Durchfluss | 4600 Nl/min |
| RoHS Richtlinie | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Artikel der Richtlinie | Artikel 4, Absatz 1, Anhang 3 |
| Ausnahme | 6b |
| REACH Info | enthält SVHC Stoff |
| Anteil SVHC SCIP | >= 1,0% w/w und < 10,0% w/w |
| Anteil SVHC Stoff in SCIP | >= 0,1 % in w/w |
| Materialkennung | AA-6026 |
| Durchflusswertmessung 1 | Durchfluss bei 6 bar und ˆ†p 0,5 bar |
| Durchflusswertmessung 2 | Durchfluss bei 6 bar und ˆ†p 1,0 bar |
| Klassenname | PLUS |
Varianten / Alternativen
| Produkt | Einzelpreis | ||
|---|---|---|---|
![[106463] RIEGLER 3/2-Wegeventil, man. 90° Hebel bistabil G 1/2](/web/image/product.template/175520/image_128/%5B106463%5D%20RIEGLER%203-2-Wegeventil%2C%20man.%2090%C2%B0%20Hebel%20bistabil%20G%201-2?unique=f875b32)
|
Typennummer: 514.106 |
163,11 € | |
![[106461] RIEGLER 3/2-Wegeventil, man. 90° Hebel bistabil G 1/4](/web/image/product.template/175518/image_128/%5B106461%5D%20RIEGLER%203-2-Wegeventil%2C%20man.%2090%C2%B0%20Hebel%20bistabil%20G%201-4?unique=69e2cb2)
|
Typennummer: 514.104 |
75,67 € | |
![[106459] RIEGLER 3/2-Wegeventil, man. 90° Hebel bistabil G 1/8](/web/image/product.template/175516/image_128/%5B106459%5D%20RIEGLER%203-2-Wegeventil%2C%20man.%2090%C2%B0%20Hebel%20bistabil%20G%201-8?unique=e05ada7)
|
Typennummer: 514.102 |
44,78 € | |
![[106462] RIEGLER 3/2-Wegeventil, man. 90° Hebel monostabil G 1/2](/web/image/product.template/175519/image_128/%5B106462%5D%20RIEGLER%203-2-Wegeventil%2C%20man.%2090%C2%B0%20Hebel%20monostabil%20G%201-2?unique=af0df5a)
|
Typennummer: 514.105 |
163,11 € | |
![[106460] RIEGLER 3/2-Wegeventil, man. 90° Hebel monostabil G 1/4](/web/image/product.template/175517/image_128/%5B106460%5D%20RIEGLER%203-2-Wegeventil%2C%20man.%2090%C2%B0%20Hebel%20monostabil%20G%201-4?unique=058fd65)
|
Typennummer: 514.103 |
75,67 € | |
![[106458] RIEGLER 3/2-Wegeventil, man. 90° Hebel monostabil G 1/8](/web/image/product.template/175515/image_128/%5B106458%5D%20RIEGLER%203-2-Wegeventil%2C%20man.%2090%C2%B0%20Hebel%20monostabil%20G%201-8?unique=3c82d8d)
|
Typennummer: 514.101 |
44,78 € | |
![[106469] RIEGLER 5/2-Wegeventil, man. 90° Hebel bistabil G 1/2](/web/image/product.template/175526/image_128/%5B106469%5D%20RIEGLER%205-2-Wegeventil%2C%20man.%2090%C2%B0%20Hebel%20bistabil%20G%201-2?unique=38aacc6)
|
Typennummer: 514.116 |
184,22 € | |
![[106467] RIEGLER 5/2-Wegeventil, man. 90° Hebel bistabil G 1/4](/web/image/product.template/175524/image_128/%5B106467%5D%20RIEGLER%205-2-Wegeventil%2C%20man.%2090%C2%B0%20Hebel%20bistabil%20G%201-4?unique=90d6a12)
|
Typennummer: 514.114 |
83,38 € | |
![[106465] RIEGLER 5/2-Wegeventil, man. 90° Hebel bistabil G 1/8](/web/image/product.template/175522/image_128/%5B106465%5D%20RIEGLER%205-2-Wegeventil%2C%20man.%2090%C2%B0%20Hebel%20bistabil%20G%201-8?unique=48ab4d1)
|
Typennummer: 514.112 |
48,84 € | |
![[106468] RIEGLER 5/2-Wegeventil, man. 90° Hebel monostabil G 1/2](/web/image/product.template/175525/image_128/%5B106468%5D%20RIEGLER%205-2-Wegeventil%2C%20man.%2090%C2%B0%20Hebel%20monostabil%20G%201-2?unique=0ee17cd)
|
Typennummer: 514.115 |
184,22 € | |
![[106466] RIEGLER 5/2-Wegeventil, man. 90° Hebel monostabil G 1/4](/web/image/product.template/175523/image_128/%5B106466%5D%20RIEGLER%205-2-Wegeventil%2C%20man.%2090%C2%B0%20Hebel%20monostabil%20G%201-4?unique=c4a4149)
|
Typennummer: 514.113 |
83,38 € | |
![[106464] RIEGLER 5/2-Wegeventil, man. 90° Hebel monostabil G 1/8](/web/image/product.template/175521/image_128/%5B106464%5D%20RIEGLER%205-2-Wegeventil%2C%20man.%2090%C2%B0%20Hebel%20monostabil%20G%201-8?unique=3f20f5f)
|
Typennummer: 514.111 |
48,84 € | |
![[106484] RIEGLER 5/3-Wegeventil, man. 90° Hebel, G 1/2, Mitte bel., Federrück.](/web/image/product.template/175541/image_128/%5B106484%5D%20RIEGLER%205-3-Wegeventil%2C%20man.%2090%C2%B0%20Hebel%2C%20G%201-2%2C%20Mitte%20bel.%2C%20Federr%C3%BCck.?unique=9e16711)
|
Typennummer: 514.143 |
199,31 € | |
![[106487] RIEGLER 5/3-Wegeventil, man. 90° Hebel, G 1/2, Mitte belüftet, rastend](/web/image/product.template/175544/image_128/%5B106487%5D%20RIEGLER%205-3-Wegeventil%2C%20man.%2090%C2%B0%20Hebel%2C%20G%201-2%2C%20Mitte%20bel%C3%BCftet%2C%20rastend?unique=9f2839d)
|
Typennummer: 514.146 |
199,31 € | |

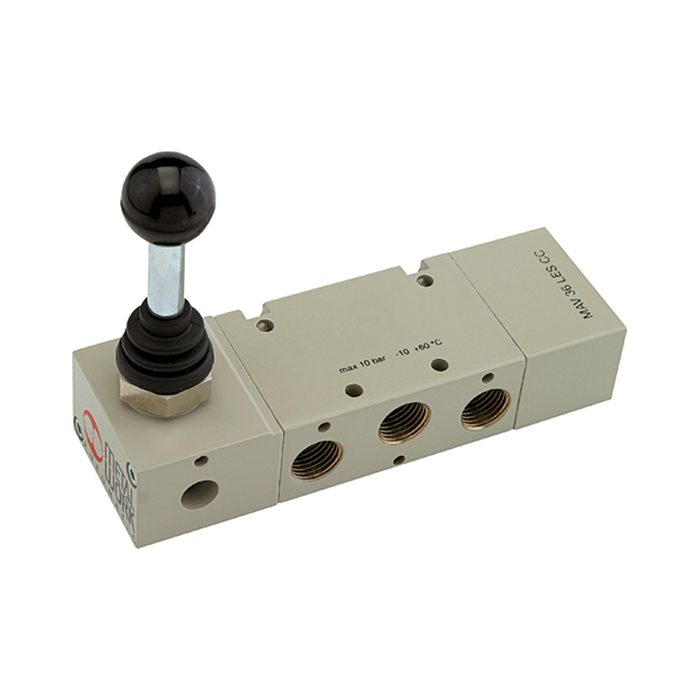

![[106486] RIEGLER 5/3-Wegeventil, man. 90° Hebel, G 1/2, Mitte entlüftet, rastend](/web/image/product.template/175543/image_128/%5B106486%5D%20RIEGLER%205-3-Wegeventil%2C%20man.%2090%C2%B0%20Hebel%2C%20G%201-2%2C%20Mitte%20entl%C3%BCftet%2C%20rastend?unique=d5d2768)
|
