Riegler Microfilter »FUTURA«, PC container, 0.01 µm, Size 2, G 3/8, Semi
Type number: FU 873
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Microfilter "FUTURA" w. PC container and protective cage, 0.01 µm, BG 2, G 3/8, PE 1.5 - 16 bar, temp. -10°C to 50°C, condensate drain HA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Series | FUTURA |
| Container | Polycarbonate container with protective cage |
| Filter element | Borosilicate glass fiber |
| Filter fineness | 0.01 µm |
| Dust separation | > 0.01 µm 99.999 % |
| Residual oil content | < 0.01 mg/m³ |
| Thread | G 3/8 |
| Condensate drain | semi-automatic |
| BG | 2 |
| A | 63 mm |
| B | 194.8 mm |
| C | 47.8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow_1 | 450 l/min |
| SCIP message number Supplier | 09a74225-599d-4dbb-b27b-c52456e265c2 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100175] Riegler Microfilter »FUTURA«, PC container, 0.01 µm, Size 1, G 1/4, Semi](/web/image/product.template/123233/image_128/%5B100175%5D%20Riegler%20Microfilter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%201-4%2C%20Semi?unique=e745399)
|
Type number: FU 871 |
100.53 € | |
![[100176] Riegler Microfilter »FUTURA«, PC container, 0.01 µm, Size 1, G 3/8, Semi](/web/image/product.template/123234/image_128/%5B100176%5D%20Riegler%20Microfilter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%203-8%2C%20Semi?unique=14b5e64)
|
Type number: FU 872 |
100.53 € | |
![[100184] Riegler Microfilter »FUTURA«, PC container, 0.01 µm, Size 2, G 1/2, Fully](/web/image/product.template/123242/image_128/%5B100184%5D%20Riegler%20Microfilter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%201-2%2C%20Fully?unique=fd33bb5)
|
Type number: FU 884 |
231.06 € | |
![[100178] Riegler Microfilter »FUTURA«, PC container, 0.01 µm, Size 2, G 1/2, Semi](/web/image/product.template/123236/image_128/%5B100178%5D%20Riegler%20Microfilter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%201-2%2C%20Semi?unique=163fdbc)
|
Type number: FU 874 |
179.59 € | |
![[100186] Riegler Microfilter »FUTURA«, PC container, 0.01 µm, Size 4, G 1, Fully](/web/image/product.template/123244/image_128/%5B100186%5D%20Riegler%20Microfilter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%204%2C%20G%201%2C%20Fully?unique=7424e9b)
|
Type number: FU 6181 |
303.81 € | |
![[100180] Riegler Microfilter »FUTURA«, PC container, 0.01 µm, Size 4, G 1, Semi](/web/image/product.template/123238/image_128/%5B100180%5D%20Riegler%20Microfilter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%204%2C%20G%201%2C%20Semi?unique=b58df9d)
|
Type number: FU 6171 |
245.84 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100043] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 2](/web/image/product.template/118205/image_128/%5B100043%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=0cf9221)
|
Type number: H 852 |
17.04 € | |
![[100044] Riegler Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118206/image_128/%5B100044%5D%20Riegler%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=7958db9)
|
Type number: WK 102 |
8.53 € | |
![[100045] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118207/image_128/%5B100045%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=fda8351)
|
Type number: KP 200 |
4.31 € | |
![[100136] Riegler Metal container incl. viewing tube, for »FUTURA«, Size 2](/web/image/product.template/123201/image_128/%5B100136%5D%20Riegler%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=e3684e2)
|
Type number: MF 12 |
63.82 € | |
![[100137] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, FUTURA, BG 2, Ablass: VA](/web/image/product.template/123202/image_128/%5B100137%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20FUTURA%2C%20BG%202%2C%20Ablass:%20VA?unique=da079a9)
|
Type number: BSF 12-A |
72.27 € | |
![[100171] Riegler Differential pressure display, for pre / microfilter](/web/image/product.template/123232/image_128/%5B100171%5D%20Riegler%20Differential%20pressure%20display%2C%20for%20pre%20-%20microfilter?unique=b438713)
|
Type number: DAF 1 |
29.18 € | |
![[100331] RIEGLER Wall console with connection thread G 3/8, for »FUTURA«, Size 2](/web/image/product.template/139765/image_128/%5B100331%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-8%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=c99debf)
|
Type number: WK 102-38 |
43.07 € | |
![[100332] RIEGLER Wall console with connection thread G 1/2, for »FUTURA«, Size 2](/web/image/product.template/139766/image_128/%5B100332%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-2%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=173a567)
|
Type number: WK 102-12 |
43.07 € | |
![[100333] RIEGLER Wall console with connection thread G 3/4, for »FUTURA«, Size 2](/web/image/product.template/139767/image_128/%5B100333%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-4%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=eba9566)
|
Type number: WK 102-34 |
43.07 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=afea987)
|
Type number: 655.6.900 |
36.96 € | |
![[152961] RIEGLER Automatic bleeder valve, usually closed (NC)](/web/image/product.template/212486/image_128/%5B152961%5D%20RIEGLER%20Automatic%20bleeder%20valve%2C%20usually%20closed%20%28NC%29?unique=65954f5)
|
Typennummer: 655.6.901 |
64.69 € | |

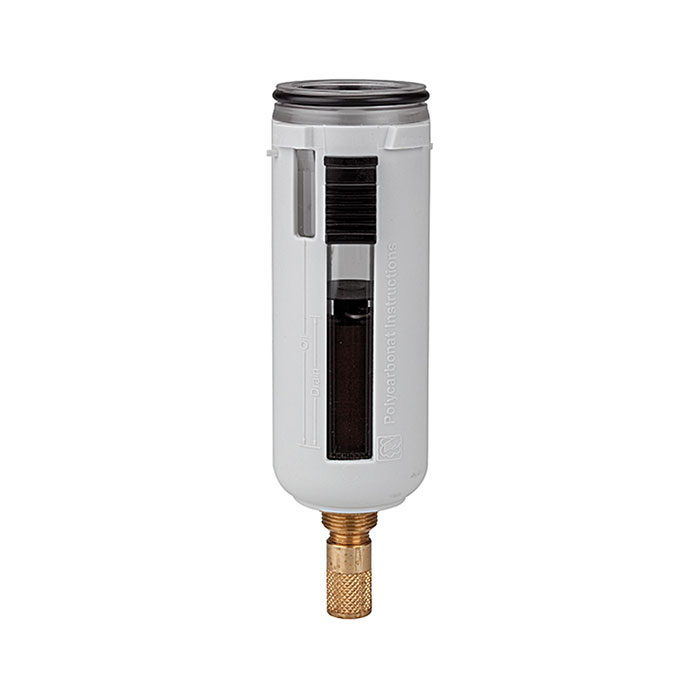

![[156475] RIEGLER Polycarbonate container, »FUTURA«, Size 2, Fully-automatic (NC)](/web/image/product.template/213290/image_128/%5B156475%5D%20RIEGLER%20Polycarbonate%20container%2C%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20Fully-automatic%20%28NC%29?unique=d1708f9)
|
Typennummer: BSF 12-NC-A |
58.13 € | |
![[156478] RIEGLER Metal container, for »FUTURA«, Size 2, Fully-automatic (NC)](/web/image/product.template/213293/image_128/%5B156478%5D%20RIEGLER%20Metal%20container%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20Fully-automatic%20%28NC%29?unique=6164f25)
|
Typennummer: MF 12-NC-A |
74.64 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

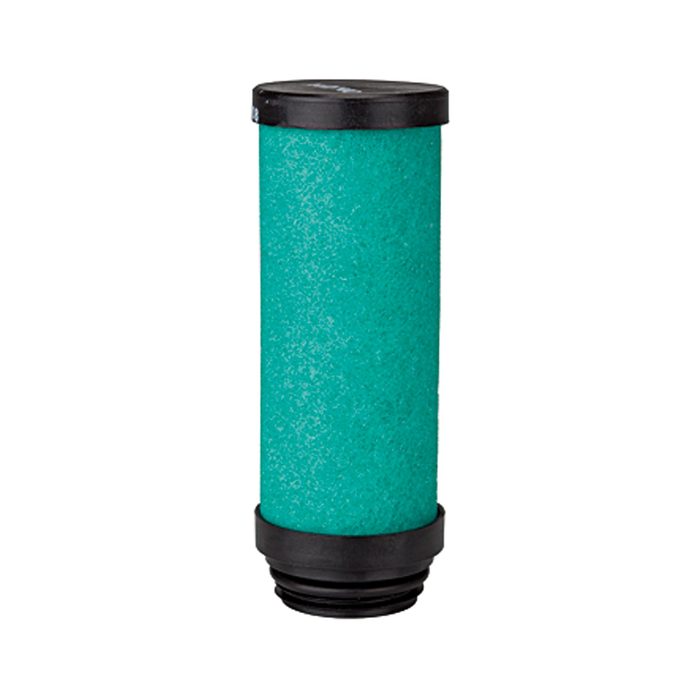

![[100189] Riegler Filter element 0.01 µm, Borosilicate-Aluminium](/web/image/product.template/123326/image_128/%5B100189%5D%20Riegler%20Filter%20element%200.01%20%C2%B5m%2C%20Borosilicate-Aluminium?unique=91d035c)
|
Type number: M 884/01 |
76.01 € | |

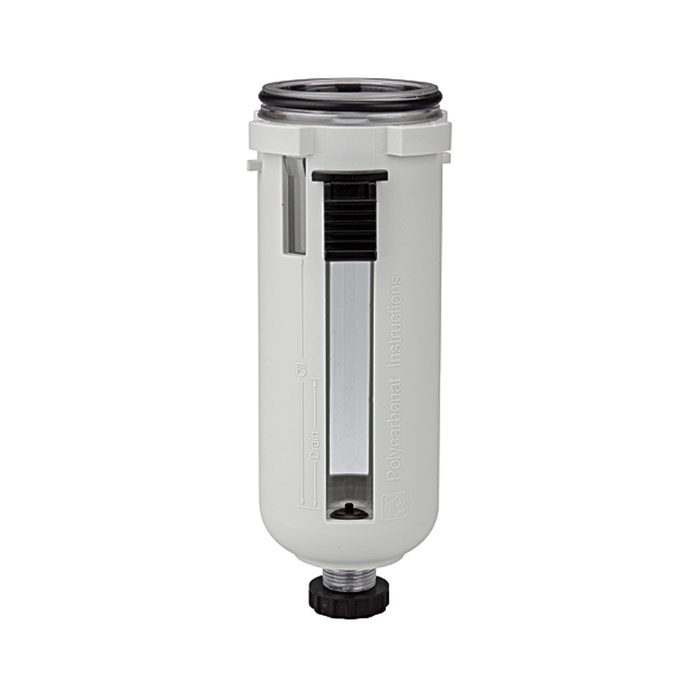

![[100135] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, FUTURA, BG 2, Ablass: HA](/web/image/product.template/123200/image_128/%5B100135%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20FUTURA%2C%20BG%202%2C%20Ablass:%20HA?unique=11ad7a3)
|
