Riegler Microfilter »FUTURA«, PC container, 0.01 µm, Size 4, G 1, Semi
Type number: FU 6171
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Microfilter "FUTURA" with PC container and protective cage, 0.01 µm, BG 4, G 1, PE 1.5 - 16 bar, temp. -10°C to 50°C, condensate drain HA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Series | FUTURA |
| Container | Polycarbonate container with protective cage |
| Filter element | Borosilicate glass fiber |
| Filter fineness | 0.01 µm |
| Dust separation | > 0.01 µm 99.999 % |
| Residual oil content | < 0.01 mg/m³ |
| Thread | G 1 |
| Flow_1 | 1500 l/min |
| Condensate drain | semi-automatic |
| BG | 4 |
| A | 85 mm |
| B | 252 mm |
| C | 63 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| SCIP message number Supplier | 23673a9b-afb3-483e-8aae-1a077acad838 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100175] Riegler Microfilter »FUTURA«, PC container, 0.01 µm, Size 1, G 1/4, Semi](/web/image/product.template/123233/image_128/%5B100175%5D%20Riegler%20Microfilter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%201-4%2C%20Semi?unique=e745399)
|
Type number: FU 871 |
100.53 € | |
![[100176] Riegler Microfilter »FUTURA«, PC container, 0.01 µm, Size 1, G 3/8, Semi](/web/image/product.template/123234/image_128/%5B100176%5D%20Riegler%20Microfilter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%203-8%2C%20Semi?unique=14b5e64)
|
Type number: FU 872 |
100.53 € | |
![[100184] Riegler Microfilter »FUTURA«, PC container, 0.01 µm, Size 2, G 1/2, Fully](/web/image/product.template/123242/image_128/%5B100184%5D%20Riegler%20Microfilter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%201-2%2C%20Fully?unique=fd33bb5)
|
Type number: FU 884 |
231.06 € | |
![[100178] Riegler Microfilter »FUTURA«, PC container, 0.01 µm, Size 2, G 1/2, Semi](/web/image/product.template/123236/image_128/%5B100178%5D%20Riegler%20Microfilter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%201-2%2C%20Semi?unique=163fdbc)
|
Type number: FU 874 |
179.59 € | |
![[100177] Riegler Microfilter »FUTURA«, PC container, 0.01 µm, Size 2, G 3/8, Semi](/web/image/product.template/123235/image_128/%5B100177%5D%20Riegler%20Microfilter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%203-8%2C%20Semi?unique=2fd1307)
|
Type number: FU 873 |
179.59 € | |

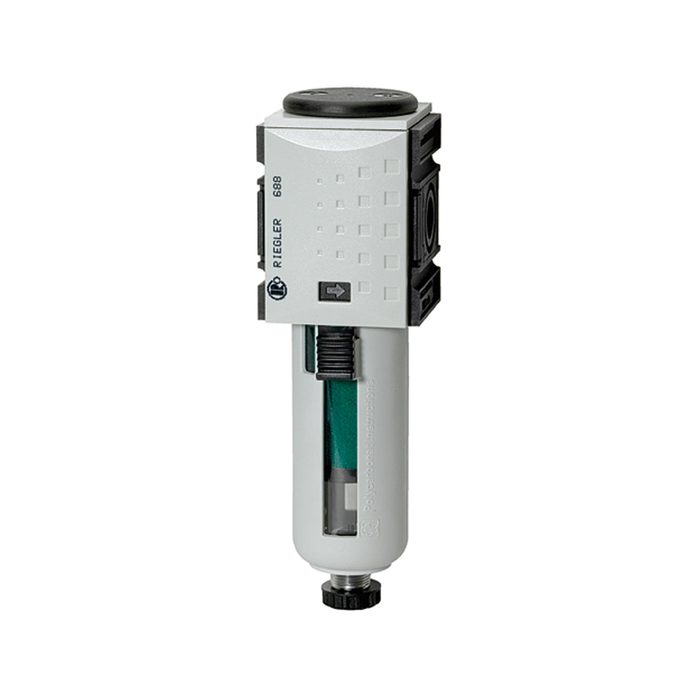

![[100186] Riegler Microfilter »FUTURA«, PC container, 0.01 µm, Size 4, G 1, Fully](/web/image/product.template/123244/image_128/%5B100186%5D%20Riegler%20Microfilter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%204%2C%20G%201%2C%20Fully?unique=7424e9b)
|
