Riegler Active charcoal filter »FUTURA« with PC container, Size 1, G 1/4
Type number: FU 891
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Activated carbon filter "FUTURA" with polycarbonate container and protective cage, 0.005 mg/m³, BG 1, G 1/4, PE 0 - 16 bar, temp. -10 °C to 50 °C
| Inlet pressure min. | 0 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | FUTURA |
| Container | Polycarbonate container with protective cage |
| Filter element | Activated carbon |
| Residual oil content | 0.005 mg/m³ |
| Thread | G 1/4 |
| BG | 1 |
| A | 52 mm |
| B | 157 mm |
| C | 34 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow 1 | 470 l/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100192] Riegler Active charcoal filter »FUTURA« with PC container, Size 1, G 3/8](/web/image/product.template/123329/image_128/%5B100192%5D%20Riegler%20Active%20charcoal%20filter%20%C2%BBFUTURA%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%203-8?unique=c457ca5)
|
Type number: FU 892 |
59.13 € | |

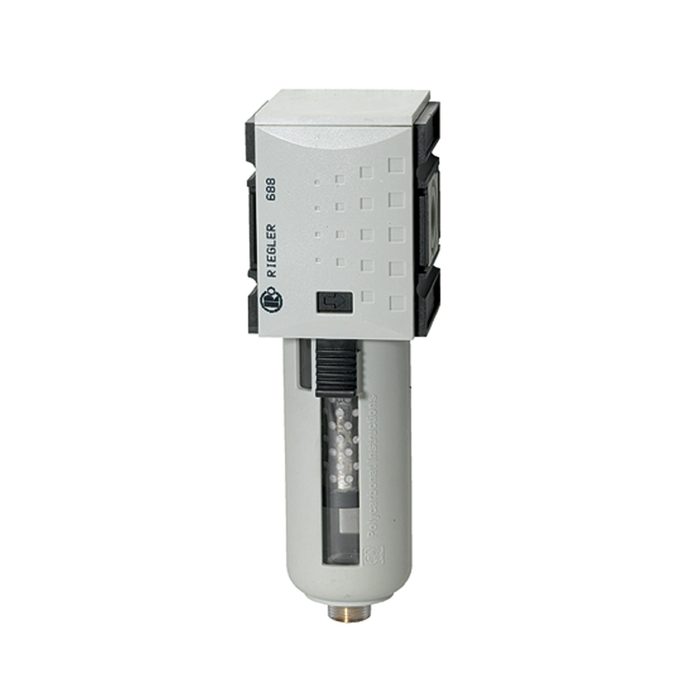

![[100194] Riegler Active charcoal filter »FUTURA« with PC container, Size 2, G 1/2](/web/image/product.template/123331/image_128/%5B100194%5D%20Riegler%20Active%20charcoal%20filter%20%C2%BBFUTURA%C2%AB%20with%20PC%20container%2C%20Size%202%2C%20G%201-2?unique=18a243f)
|
Type number: FU 894 |
109.52 € | |
![[100196] Riegler Active charcoal filter »FUTURA« with PC container, Size 4, G 1](/web/image/product.template/123246/image_128/%5B100196%5D%20Riegler%20Active%20charcoal%20filter%20%C2%BBFUTURA%C2%AB%20with%20PC%20container%2C%20Size%204%2C%20G%201?unique=e36a251)
|
Type number: FU 6191 |
145.75 € | |
![[100195] Riegler Active charcoal filter »FUTURA« with PC container, Size 4, G 3/4](/web/image/product.template/123245/image_128/%5B100195%5D%20Riegler%20Active%20charcoal%20filter%20%C2%BBFUTURA%C2%AB%20with%20PC%20container%2C%20Size%204%2C%20G%203-4?unique=7e83801)
|
Type number: FU 6190 |
145.75 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

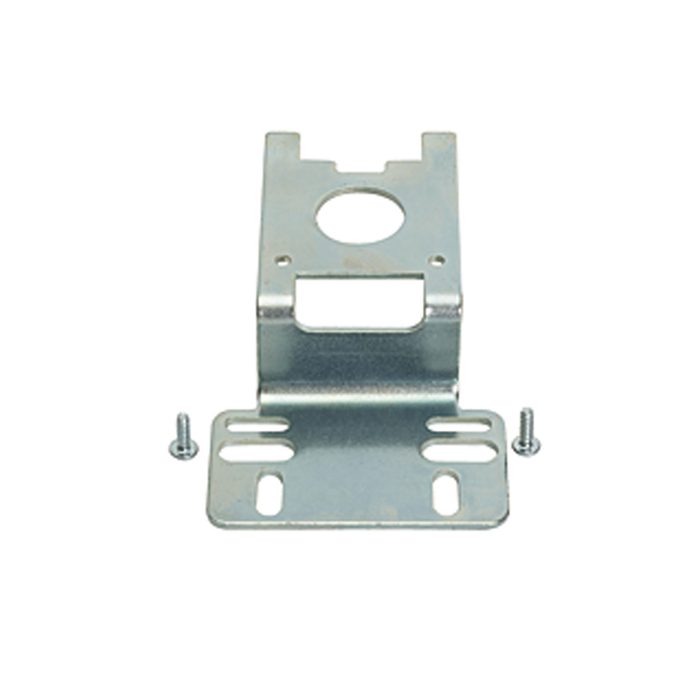

![[100038] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 1](/web/image/product.template/118200/image_128/%5B100038%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=dfecce7)
|
Type number: H 850 |
6.82 € | |

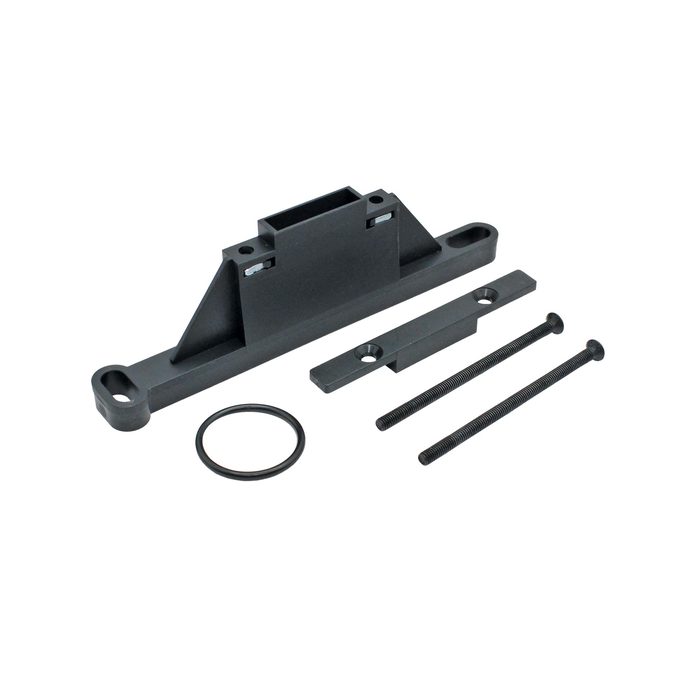

![[100039] RIEGLER Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118201/image_128/%5B100039%5D%20RIEGLER%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=13c9577)
|
Type number: WK 100 |
3.37 € | |

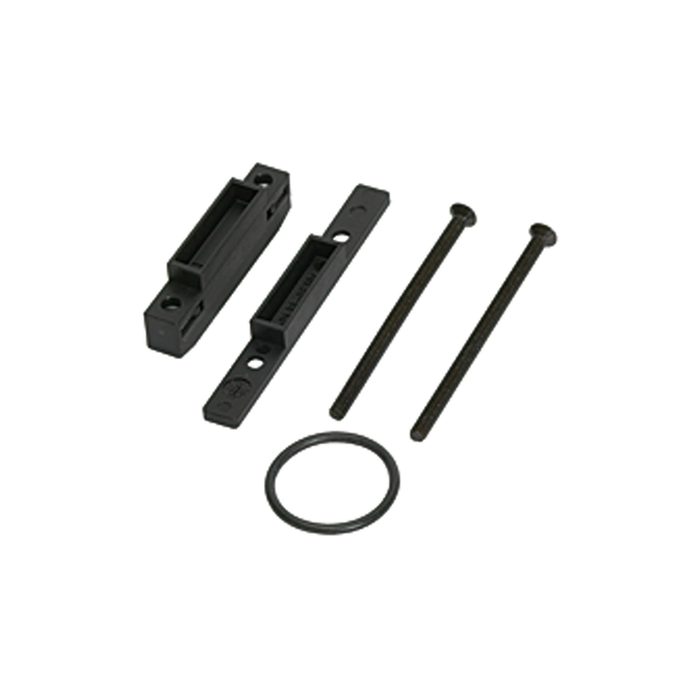

![[100040] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118202/image_128/%5B100040%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=55f9668)
|
Type number: KP 100 |
2.05 € | |
![[135851] RIEGLER Wall console with connection thread G 1/4, for »FUTURA«, Size 1](/web/image/product.template/206208/image_128/%5B135851%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-4%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=33d4e63)
|
Type number: WK 101-14 |
29.45 € | |
![[135852] RIEGLER Wall console with connection thread G 3/8, for »FUTURA«, Size 1](/web/image/product.template/206209/image_128/%5B135852%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-8%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=14539a5)
|
Type number: WK 101-38 |
29.45 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

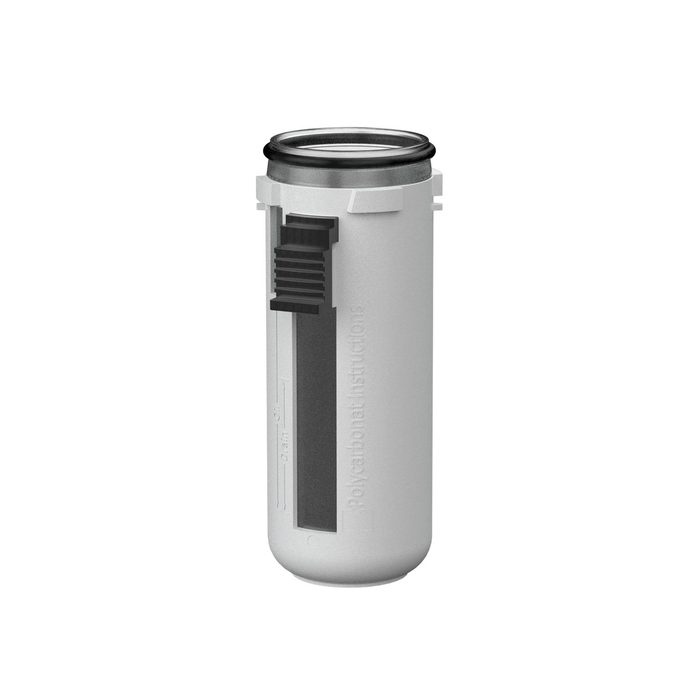

![[100197] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, BG 1, G 1/4, G 3/8](/web/image/product.template/123247/image_128/%5B100197%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20BG%201%2C%20G%201-4%2C%20G%203-8?unique=929ac2c)
|
Type number: BSA 14 |
8.09 € | |
