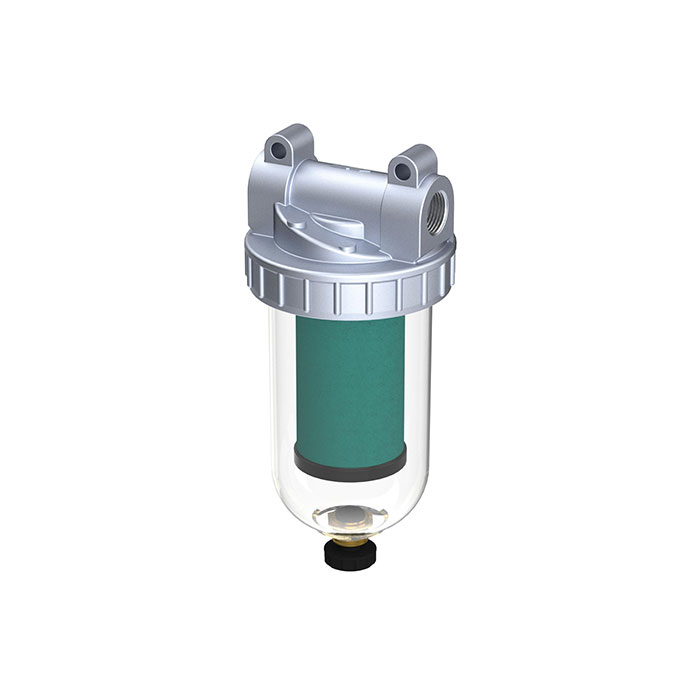

RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 2, G 3/8
Type number: 675 K-HA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Special "Standard" filter made of die-cast zinc, painted silver, for compressed air treatment - Type 675 K-HA
The RIEGLER special filter "Standard", with PC container, 0.01 µm, BG 2, G 3/8 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc, painted silver. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 720 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 0.01 µm, polycarbonate container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container |
| Filter fineness | 0.01 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 999.99 |
| Thread | G 3/8 |
| Flow rate | 720 l/min |
| Condensate drain | semi-automatic |
| DN | 10 |
| BG | 2 |
| A | 70 mm |
| C | 16 mm |
| D | 145.7 mm |
| H | 50 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100988] RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 1, G 1/4](/web/image/product.template/140424/image_128/%5B100988%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=2ea721e)
|
Type number: 673 K-HA |
44.61 € | |
![[100989] RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 1, G 3/8](/web/image/product.template/140425/image_128/%5B100989%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=49bd356)
|
Type number: 674 K-HA |
58.26 € | |
![[100991] RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 3, G 1/2](/web/image/product.template/140427/image_128/%5B100991%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%203%2C%20G%201-2?unique=68e0f12)
|
Type number: 685 K-HA |
86.92 € | |
![[100993] RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 4, G 1](/web/image/product.template/140429/image_128/%5B100993%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%204%2C%20G%201?unique=38613ce)
|
Type number: 696 K |
215.50 € | |
![[100992] RIEGLER Special filter »Standard«, PC container, 0.01 µm, Size 4, G 3/4](/web/image/product.template/140428/image_128/%5B100992%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%204%2C%20G%203-4?unique=2a07c67)
|
Type number: 695 K |
198.69 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100944] RIEGLER Protective cage, for series »Standard«, Size 2, G 3/8](/web/image/product.template/140380/image_128/%5B100944%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%202%2C%20G%203-8?unique=996854b)
|
Type number: SK 02 |
20.37 € | |
![[100947] RIEGLER Metal container, for filter regulator / filter »Standard«, Size 2](/web/image/product.template/140383/image_128/%5B100947%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=b9cc90f)
|
Type number: 650/11 |
26.33 € | |
![[100982] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140418/image_128/%5B100982%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=a463711)
|
Type number: H 801 |
4.80 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

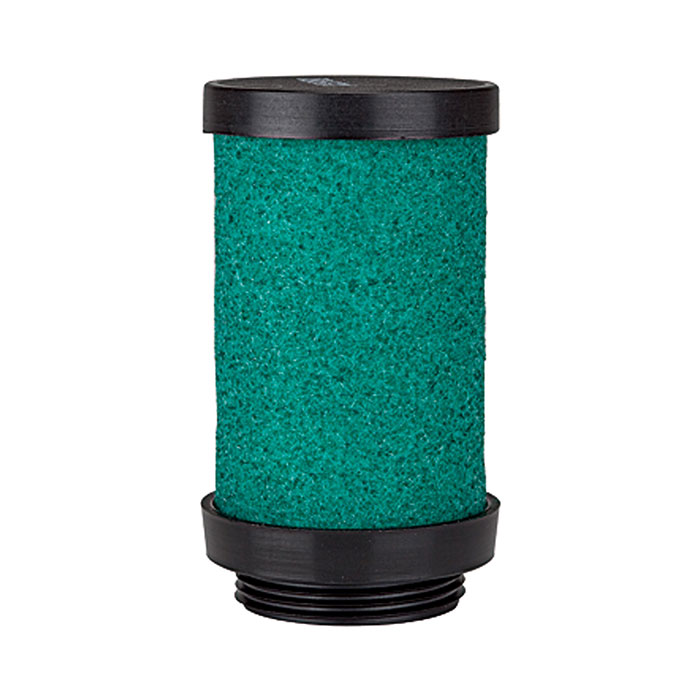

![[101007] RIEGLER Filter element 0.01 µm, Borosilicate-Aluminium](/web/image/product.template/140443/image_128/%5B101007%5D%20RIEGLER%20Filter%20element%200.01%20%C2%B5m%2C%20Borosilicate-Aluminium?unique=1aa21a8)
|
