Riegler Service station SAFETY »FUTURA«, Size 1, G 1/4
Type number: FU 1000
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER SAFETY "FUTURA" maintenance station made of PA66 GF60, for compressed air treatment, 2.5 bar - type FU 1000
The RIEGLER SAFETY "FUTURA" maintenance station, KH-AV-DR, BG 1, G 1/4, 2.5-8 bar combines a compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of PA66 GF60 with NBR seals. The control range extends from 2.5 bar to 8 bar with a maximum inlet pressure of 16 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. Filter fineness 5 µm. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 1/4 |
| Control range max. | 8 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 1 |
| A | 156 mm |
| B | 129 mm |
| C | 96 mm |
| Vent connection | Silencer (ball valve) |
| Theme shop | SAFETY |
| Class name | MAX |
| Flow 1 | 1900 l/min |
| Control range min. | 2.5 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100244] Riegler Service station SAFETY »FUTURA«, Size 1, G 3/8](/web/image/product.template/123291/image_128/%5B100244%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8?unique=61f589e)
|
Type number: FU 1001 |
107.15 € | |

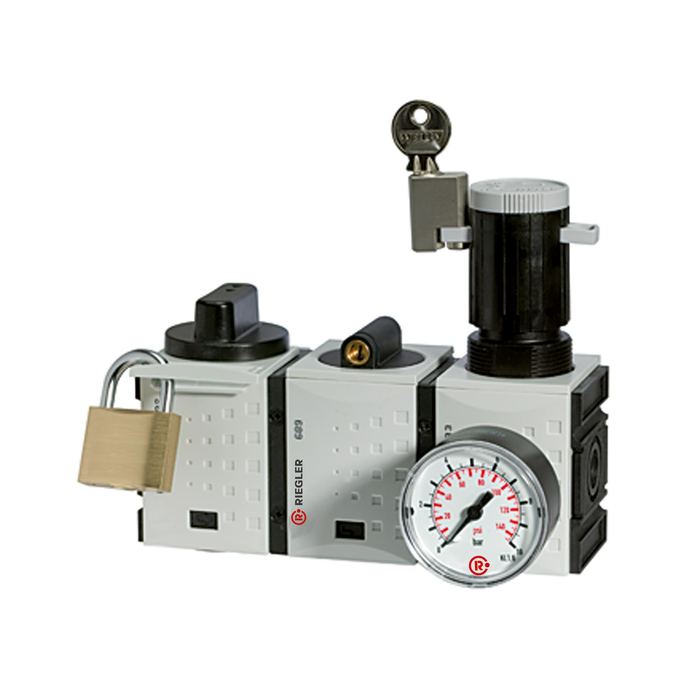

![[100246] Riegler Service station SAFETY »FUTURA«, Size 2, G 1/2](/web/image/product.template/123293/image_128/%5B100246%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2?unique=d6e1468)
|
Type number: FU 1003 |
146.29 € | |
![[100245] Riegler Service station SAFETY »FUTURA«, Size 2, G 3/8](/web/image/product.template/123292/image_128/%5B100245%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8?unique=adb76c4)
|
Type number: FU 1002 |
146.29 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

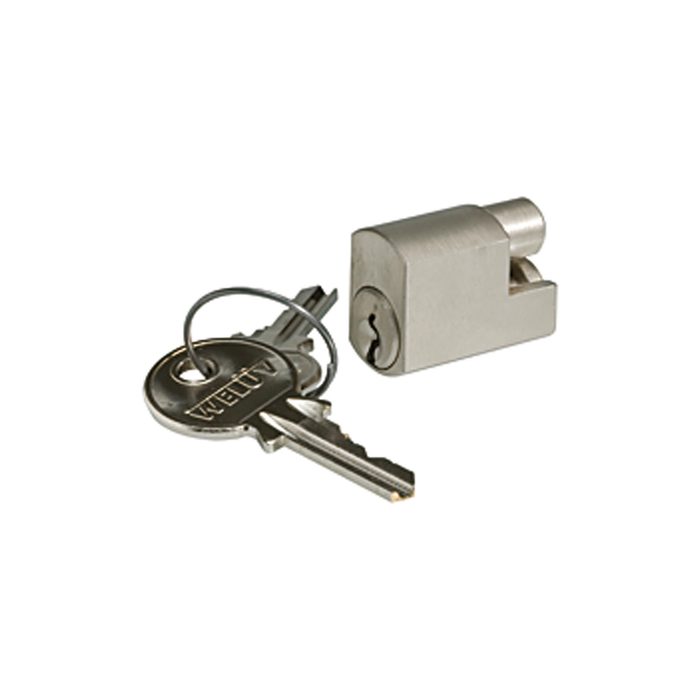

![[100037] Riegler Plug lock for »FUTURA«, made of nickel-plated brass](/web/image/product.template/118199/image_128/%5B100037%5D%20Riegler%20Plug%20lock%20for%20%C2%BBFUTURA%C2%AB%2C%20made%20of%20nickel-plated%20brass?unique=af749a9)
|
Type number: SS 32 |
43.95 € | |

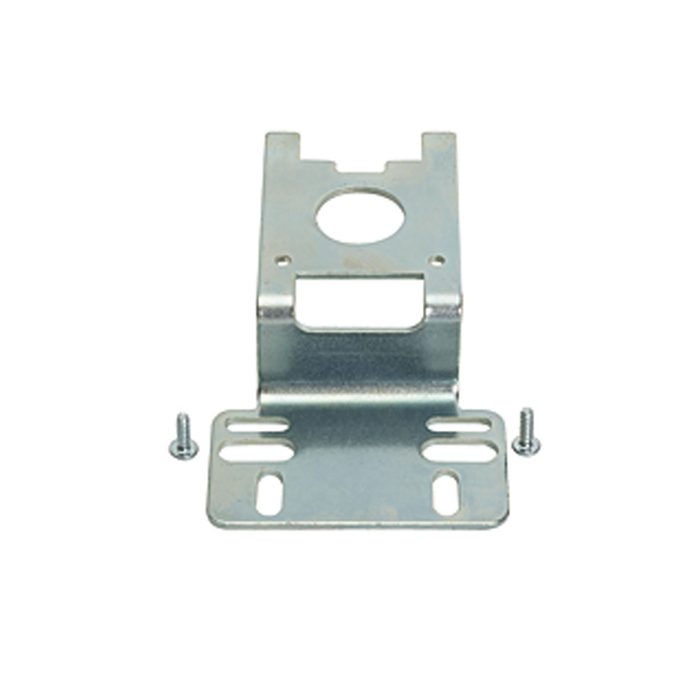

![[100038] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 1](/web/image/product.template/118200/image_128/%5B100038%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=680ee51)
|
Type number: H 850 |
6.82 € | |

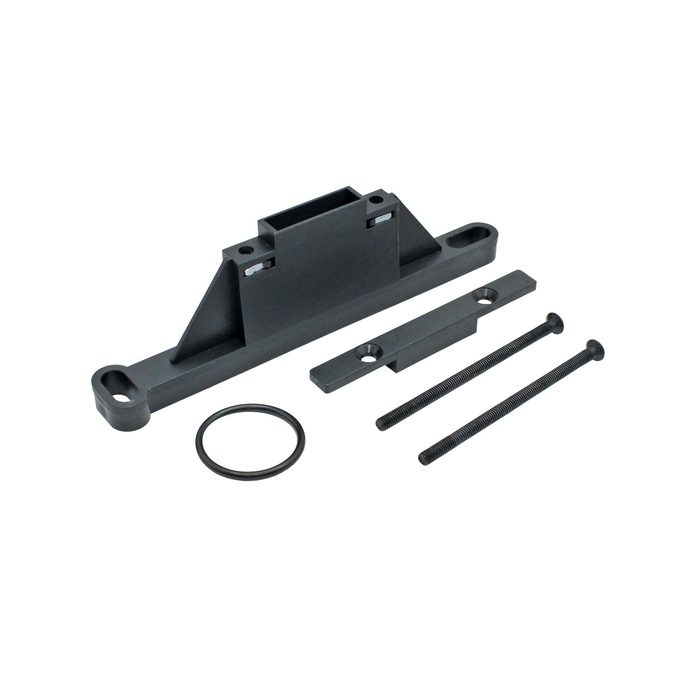

![[100039] RIEGLER Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118201/image_128/%5B100039%5D%20RIEGLER%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=4e0157a)
|
Type number: WK 100 |
3.37 € | |

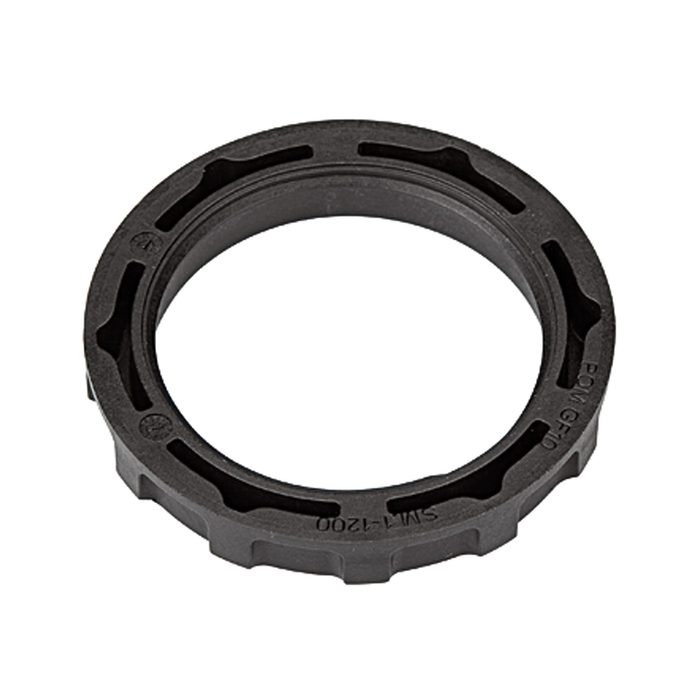

![[100041] Riegler Control panel nut M36x1.5, for »FUTURA«, Size 1, G 1/4 and G 3/8](/web/image/product.template/118203/image_128/%5B100041%5D%20Riegler%20Control%20panel%20nut%20M36x1.5%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=aba5f16)
|
Type number: FU 11-55 |
1.00 € | |

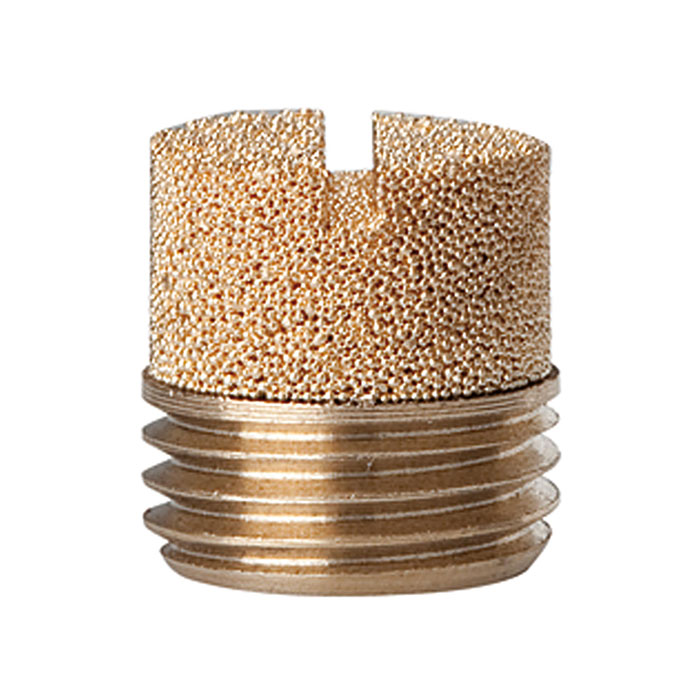

![[100289] RIEGLER Sintered bronze silencer, Slot, G 1/4](/web/image/product.template/139724/image_128/%5B100289%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%201-4?unique=d46c974)
|
Type number: 564-2 |
2.65 € | |
![[100290] RIEGLER Sintered bronze silencer, Brass thread / hexagonal, G 1/4, AF 15](/web/image/product.template/139725/image_128/%5B100290%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Brass%20thread%20-%20hexagonal%2C%20G%201-4%2C%20AF%2015?unique=de69b50)
|
Type number: 567-2/M |
3.13 € | |

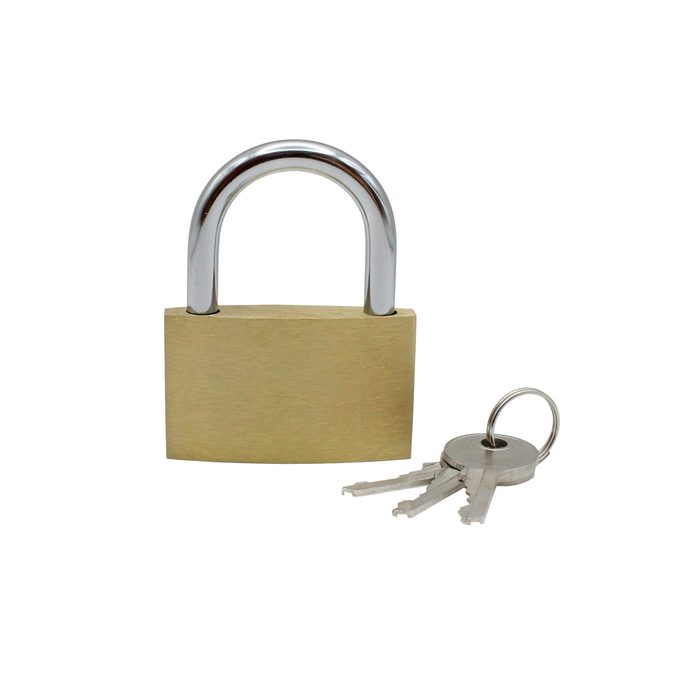

![[125520] RIEGLER Padlock brass 25 mm, shackle Ø 3.5 mm, incl. 3 keys](/web/image/product.template/281048/image_128/%5B125520%5D%20RIEGLER%20Padlock%20brass%2025%20mm%2C%20shackle%20%C3%98%203.5%20mm%2C%20incl.%203%20keys?unique=14bc8f3)
|
Type number: VS 36 |
5.84 € | |
![[135851] RIEGLER Wall console with connection thread G 1/4, for »FUTURA«, Size 1](/web/image/product.template/206208/image_128/%5B135851%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-4%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=a7dbcac)
|
Type number: WK 101-14 |
29.45 € | |
![[135852] RIEGLER Wall console with connection thread G 3/8, for »FUTURA«, Size 1](/web/image/product.template/206209/image_128/%5B135852%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-8%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=4fdec37)
|
Type number: WK 101-38 |
29.45 € | |

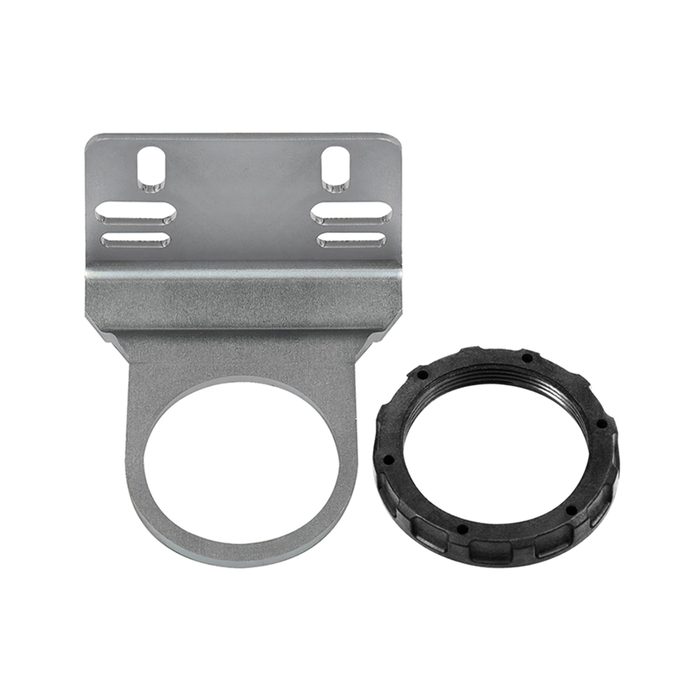

![[152945] RIEGLER Mounting bracket with control panel nut M36x1.5, »FUTURA«, Size 1](/web/image/product.template/212484/image_128/%5B152945%5D%20RIEGLER%20Mounting%20bracket%20with%20control%20panel%20nut%20M36x1.5%2C%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=4683405)
|
Typennummer: H 851 |
6.24 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100040] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118202/image_128/%5B100040%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=651b63d)
|
Type number: KP 100 |
2.05 € | |
![[101678] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169650/image_128/%5B101678%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=cda21d5)
|
Type number: 207-KD |
6.25 € | |
![[100042] Riegler Wear part set for »FUTURA«, size 1, G 1/4 and G 3/8](/web/image/product.template/118204/image_128/%5B100042%5D%20Riegler%20Wear%20part%20set%20for%20%C2%BBFUTURA%C2%AB%2C%20size%201%2C%20G%201-4%20and%20G%203-8?unique=a9a55f3)
|
Type number: 22.7010.4 |
7.76 € | |
