Riegler Service station SAFETY »FUTURA«, Size 2, G 3/8
Type number: FU 1302
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Wartungsstation SAFETY »FUTURA«, Kugelhahn-Anfahrventil-2-tlg.-Wartungseinheit, HA, BG 2, G 3/8, PE 2,5-16 bar, Regelb. 2,5-8 bar
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 3/8 |
| Flow 1 | 3500 l/min |
| Control range max. | 8 bar |
| Condensate drain | semi-automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 252 mm |
| B | 257 mm |
| C | 110 mm |
| Vent connection | Silencer (ball valve) |
| Theme shop | SAFETY |
| Class name | MAX |
| Control range min. | 2.5 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100267] Riegler Service station SAFETY »FUTURA«, Size 1, G 1/4](/web/image/product.template/123314/image_128/%5B100267%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4?unique=0061d4c)
|
Type number: FU 1400 |
184.77 € | |
![[100261] Riegler Service station SAFETY »FUTURA«, Size 1, G 1/4](/web/image/product.template/123308/image_128/%5B100261%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4?unique=3563227)
|
Type number: FU 1300 |
150.23 € | |
![[100262] Riegler Service station SAFETY »FUTURA«, Size 1, G 3/8](/web/image/product.template/123309/image_128/%5B100262%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8?unique=585b0a3)
|
Type number: FU 1301 |
150.23 € | |
![[100268] Riegler Service station SAFETY »FUTURA«, Size 1, G 3/8](/web/image/product.template/123315/image_128/%5B100268%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8?unique=0cbee3f)
|
Type number: FU 1401 |
184.77 € | |
![[100264] Riegler Service station SAFETY »FUTURA«, Size 2, G 1/2](/web/image/product.template/123311/image_128/%5B100264%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2?unique=46097cf)
|
Type number: FU 1303 |
227.66 € | |

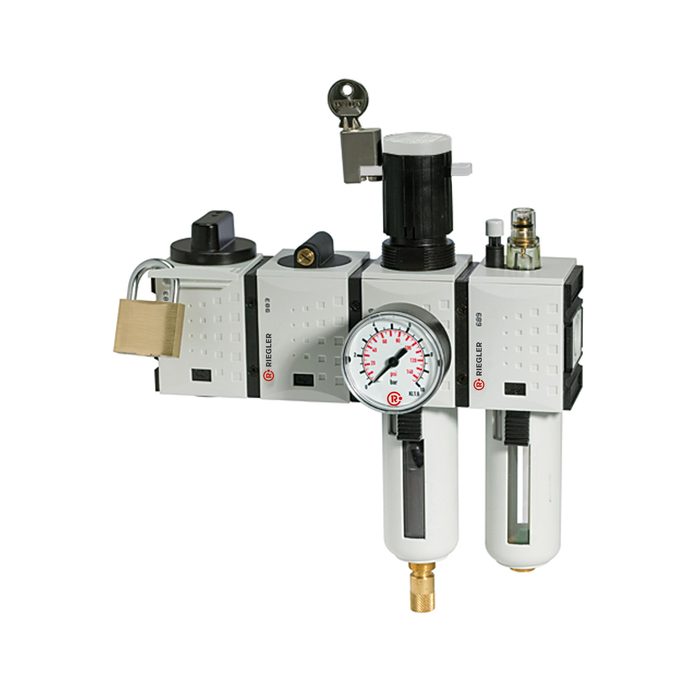

![[100266] Riegler Service station SAFETY »FUTURA«, Size 4, G 1](/web/image/product.template/123313/image_128/%5B100266%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%201?unique=cd2661d)
|
Type number: FU 1305 |
549.39 € | |
![[100265] Riegler Service station SAFETY »FUTURA«, Size 4, G 3/4](/web/image/product.template/123312/image_128/%5B100265%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%203-4?unique=0579a67)
|
Type number: FU 1304 |
549.39 € | |
![[100271] Riegler Service station SAFETY »FUTURA«, Size 4, G 3/4](/web/image/product.template/123318/image_128/%5B100271%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%203-4?unique=6285103)
|
Type number: FU 1404 |
589.23 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100045] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118207/image_128/%5B100045%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=207c7db)
|
Type number: KP 200 |
2.58 € | |
![[100214] Riegler Drip cap polycarbonate, »FUTURA« and »FUTURA-mini«, Size 0 - 4](/web/image/product.template/123261/image_128/%5B100214%5D%20Riegler%20Drip%20cap%20polycarbonate%2C%20%C2%BBFUTURA%C2%AB%20and%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200%20-%204?unique=f521042)
|
Type number: 901.7.990 |
6.71 € | |
![[100215] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, f. Nebelöler FUTURA BG 2](/web/image/product.template/123262/image_128/%5B100215%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20f.%20Nebel%C3%B6ler%20FUTURA%20BG%202?unique=8753301)
|
Type number: BSL 12 |
14.42 € | |
![[100135] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, FUTURA, BG 2, Ablass: HA](/web/image/product.template/123200/image_128/%5B100135%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20FUTURA%2C%20BG%202%2C%20Ablass:%20HA?unique=896ae3c)
|
Type number: BSF 12 |
10.33 € | |
![[101677] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/169649/image_128/%5B101677%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=3b4e24f)
|
Type number: 206-KD |
6.25 € | |
![[100047] Riegler Wear part set for »FUTURA«, size 2, G 3/8 and G 1/2](/web/image/product.template/118209/image_128/%5B100047%5D%20Riegler%20Wear%20part%20set%20for%20%C2%BBFUTURA%C2%AB%2C%20size%202%2C%20G%203-8%20and%20G%201-2?unique=56acbf3)
|
Type number: 22.7180.4 |
12.57 € | |
