Riegler Service station SAFETY »FUTURA«, Size 2, G 1/2
Type number: FU 1303
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER SAFETY "FUTURA" maintenance station made of PA66 GF60, for compressed air treatment, 2.5 bar - type FU 1303
The RIEGLER SAFETY "FUTURA" maintenance station, KH-AV-2-pcs.-WE, HA, BG 2, G 1/2 combines a compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of PA66 GF60 with NBR seals. The control range extends from 2.5 bar to 8 bar with a maximum inlet pressure of 16 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/2 - suitable for common industry standards. Suitable for compressed air, neutral gases. Filter fineness 5 µm. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 1/2 |
| Flow 1 | 3500 l/min |
| Control range max. | 8 bar |
| Condensate drain | semi-automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 252 mm |
| B | 257 mm |
| C | 110 mm |
| Vent connection | Silencer (ball valve) |
| Theme shop | SAFETY |
| Class name | MAX |
| Control range min. | 2.5 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100267] Riegler Service station SAFETY »FUTURA«, Size 1, G 1/4](/web/image/product.template/123314/image_128/%5B100267%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4?unique=e915263)
|
Type number: FU 1400 |
184.77 € | |
![[100261] Riegler Service station SAFETY »FUTURA«, Size 1, G 1/4](/web/image/product.template/123308/image_128/%5B100261%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4?unique=cdf5f25)
|
Type number: FU 1300 |
150.23 € | |
![[100262] Riegler Service station SAFETY »FUTURA«, Size 1, G 3/8](/web/image/product.template/123309/image_128/%5B100262%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8?unique=c1f0c45)
|
Type number: FU 1301 |
150.23 € | |

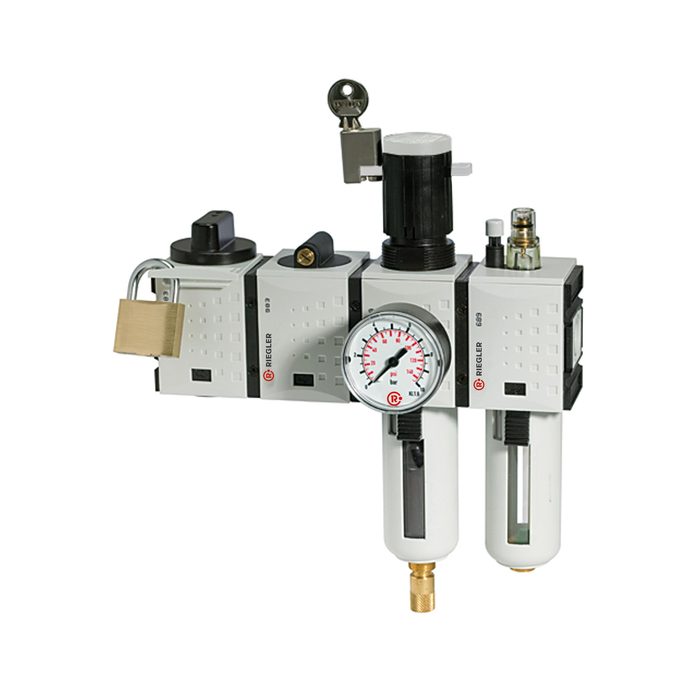

![[100268] Riegler Service station SAFETY »FUTURA«, Size 1, G 3/8](/web/image/product.template/123315/image_128/%5B100268%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8?unique=0eed88b)
|
