RIEGLER Microfilter »multifix-mini«, PC container, 0.01 µm, Size 0, G 1/4
Type number: FM 06 K-HA
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Microfilter "multifix-mini" with PC container, 0.01 µm, BG 0, G 1/4, PE max. 16 bar, med. ambient temp. max. 60 °C, condensate drain HA
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Series | multifix-mini |
| Container | Polycarbonate container |
| Filter element | Borosilicate POM |
| Filter fineness | 0.01 µm |
| Residual oil content | 0.01 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 999.99 |
| Thread | G 1/4 |
| Flow rate | 450 l/min |
| Condensate drain | semi-automatic |
| DN | 5 |
| BG | 0 |
| A | 40 mm |
| B | 138.1 mm |
| C | 12.3 mm |
| D | 125.8 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

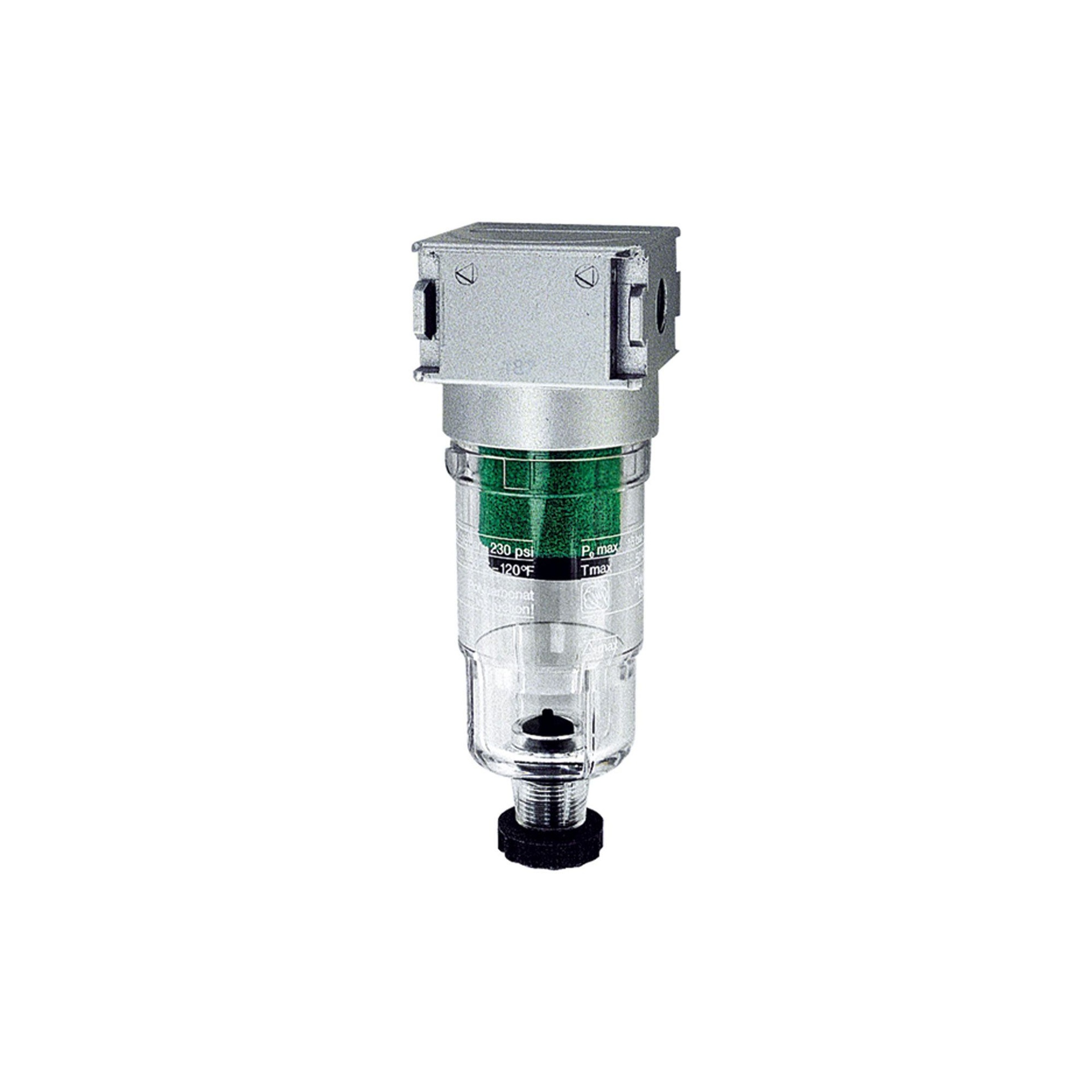

![[100372] RIEGLER Microfilter »multifix-mini«, PC container, 0.01 µm, Size 0, G 1/8](/web/image/product.template/139806/image_128/%5B100372%5D%20RIEGLER%20Microfilter%20%C2%BBmultifix-mini%C2%AB%2C%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%200%2C%20G%201-8?unique=f84f984)
|
Type number: FM 05 K-HA |
55.54 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

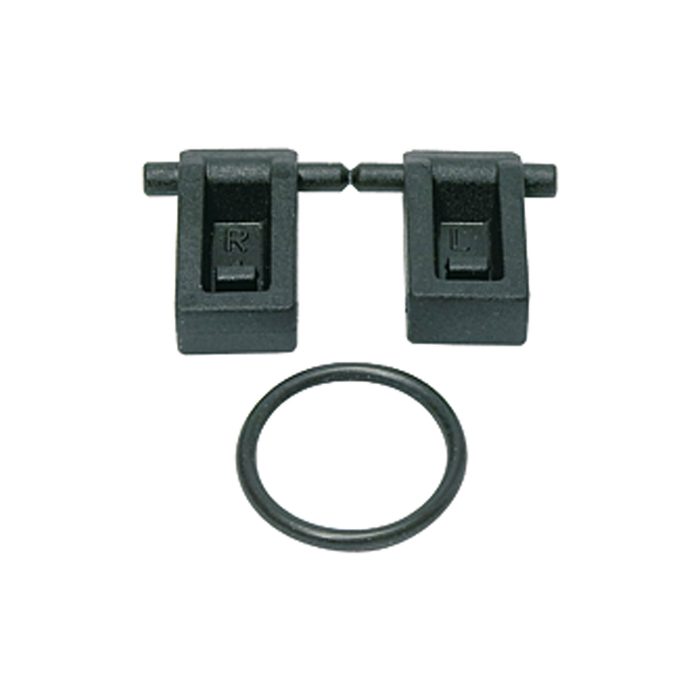

![[100346] RIEGLER Coupling package for blocking several components](/web/image/product.template/139780/image_128/%5B100346%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components?unique=00afb78)
|
Type number: KP 05 |
0.93 € | |

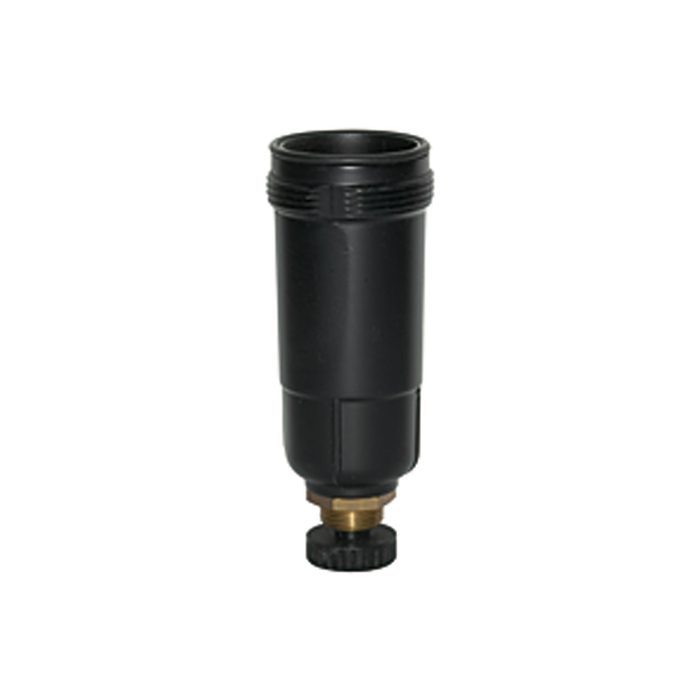

![[100359] RIEGLER Metal container, incl. NBR O-ring, with semi autom. bleeder valve](/web/image/product.template/139793/image_128/%5B100359%5D%20RIEGLER%20Metal%20container%2C%20incl.%20NBR%20O-ring%2C%20with%20semi%20autom.%20bleeder%20valve?unique=6e66c5f)
|
Type number: 641/11-HA |
21.96 € | |

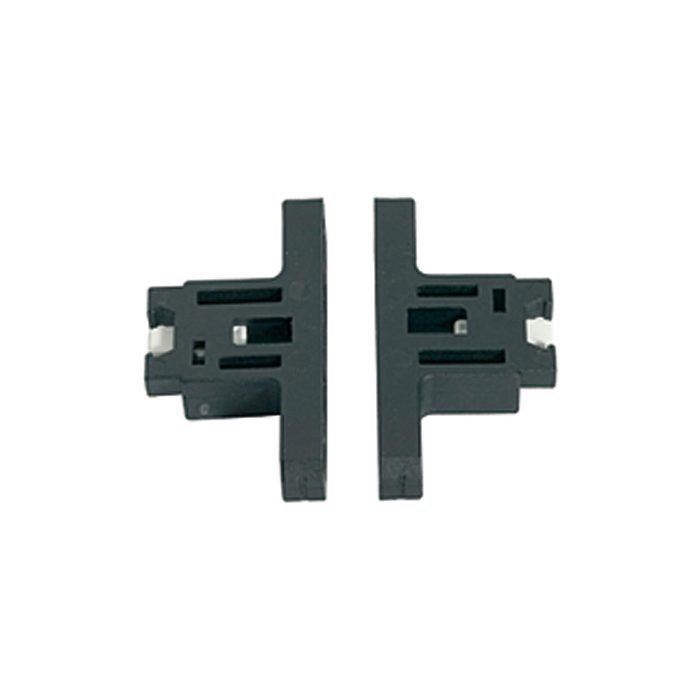

![[100367] RIEGLER Mounting set for »multifix-mini«](/web/image/product.template/139801/image_128/%5B100367%5D%20RIEGLER%20Mounting%20set%20for%20%C2%BBmultifix-mini%C2%AB?unique=0b55b1f)
|
Type number: ZW 05 |
4.03 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

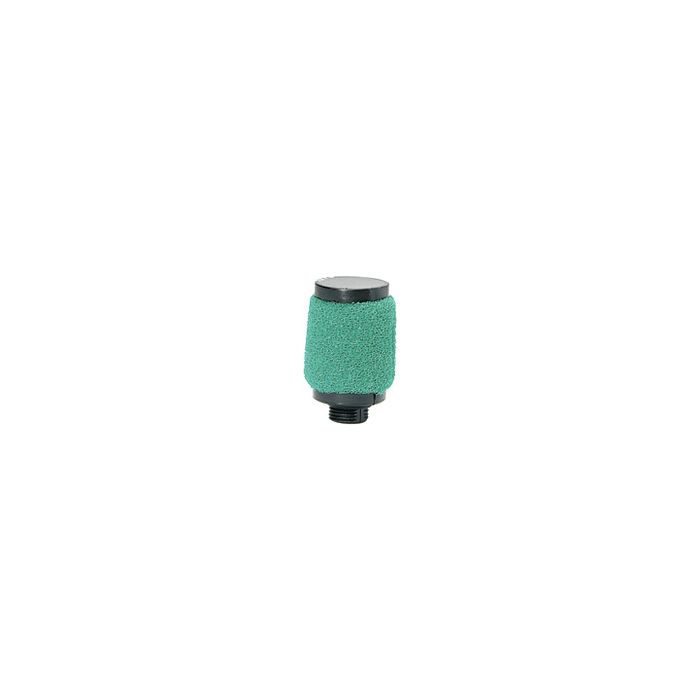

![[100382] RIEGLER Microfilter element 0.01 µm, Borosilicate-POM, for G 1/4](/web/image/product.template/139816/image_128/%5B100382%5D%20RIEGLER%20Microfilter%20element%200.01%20%C2%B5m%2C%20Borosilicate-POM%2C%20for%20G%201-4?unique=5f9b685)
|
Type number: M 23/60 |
49.40 € | |
