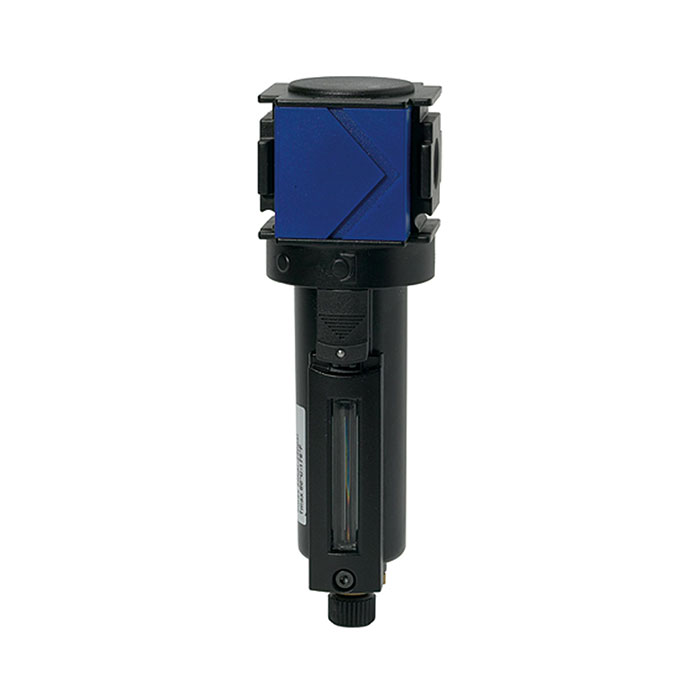

RIEGLER Microfilter »variobloc«, Metal container, 0.01 µm, Size 1, G 3/8
Type number: VM 23 M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Microfilter »variobloc«, Metal container incl. viewing tube, 0.01 µm, Size 1, G 3/8, Input pressure max. 20 bar, Temp. max. 80 °C
| Inlet pressure max. | 20 bar |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Filter fineness | 0.01 µm |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 80 °C |
| Efficiency | 999.99 |
| Air quality according to ISO 8573.1 | Class 1 dirt, class 1 oil |
| Thread | G 3/8 |
| Flow rate | 420 l/min |
| BG | 1 |
| A | 48 mm |
| B | 155 mm |
| C | 22 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125320] RIEGLER Microfilter »variobloc«, Metal container, 0.01 µm, Size 1, G 1/4](/web/image/product.template/202463/image_128/%5B125320%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Metal%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=150876c)
|
Type number: VM 22 M |
125.68 € | |
![[125324] RIEGLER Microfilter »variobloc«, Metal container, 0.01 µm, Size 2, G 1](/web/image/product.template/202467/image_128/%5B125324%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Metal%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%201?unique=150876c)
|
Type number: VM 26 M |
201.78 € | |
![[125322] RIEGLER Microfilter »variobloc«, Metal container, 0.01 µm, Size 2, G 1/2](/web/image/product.template/202465/image_128/%5B125322%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Metal%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%201-2?unique=87abff9)
|
Type number: VM 24 M |
174.72 € | |
![[125323] RIEGLER Microfilter »variobloc«, Metal container, 0.01 µm, Size 2, G 3/4](/web/image/product.template/202466/image_128/%5B125323%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Metal%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%203-4?unique=150876c)
|
Type number: VM 25 M |
157.25 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

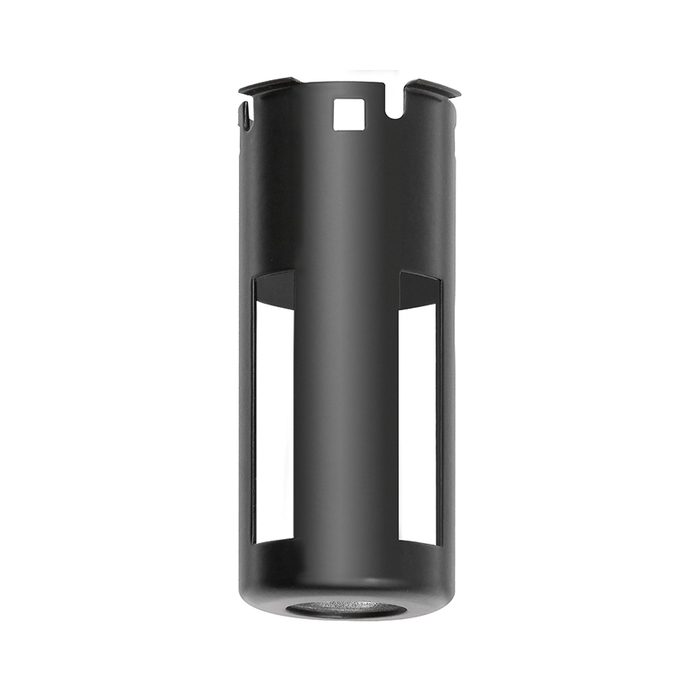

![[100666] RIEGLER Protective cage, for »variobloc«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140101/image_128/%5B100666%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=acd0d82)
|
Type number: VZ 531 |
14.48 € | |

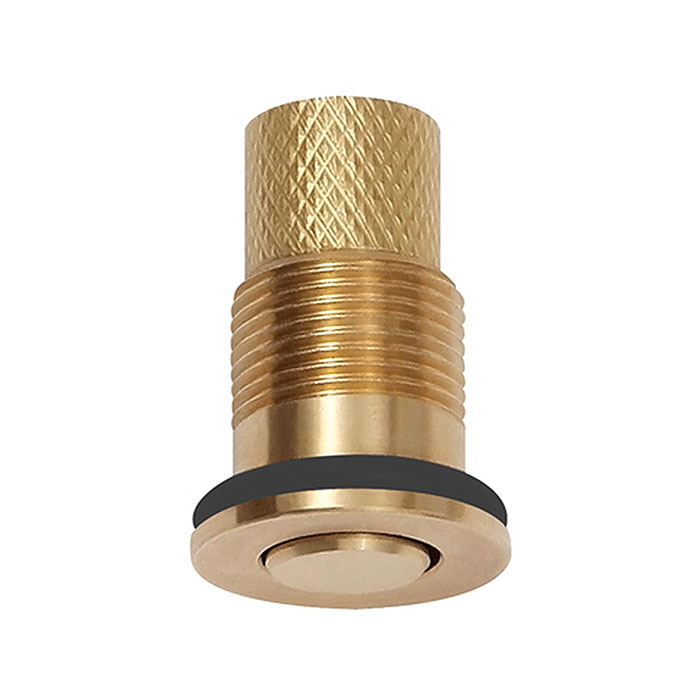

![[100676] RIEGLER Semi automated bleeder valve](/web/image/product.template/140111/image_128/%5B100676%5D%20RIEGLER%20Semi%20automated%20bleeder%20valve?unique=b59cc49)
|
Type number: VZ 751 |
9.63 € | |

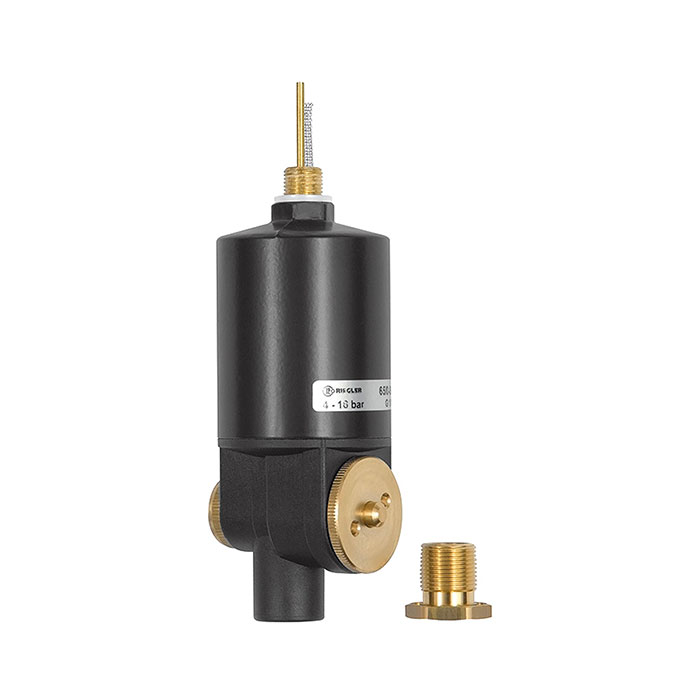

![[100677] RIEGLER Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1](/web/image/product.template/140112/image_128/%5B100677%5D%20RIEGLER%20Fully%20automated%20bleeder%20valve%20incl.%20adapter%20G%201-8%20i.%20x%20M14x1?unique=e28674d)
|
Type number: 65/0-N |
70.29 € | |

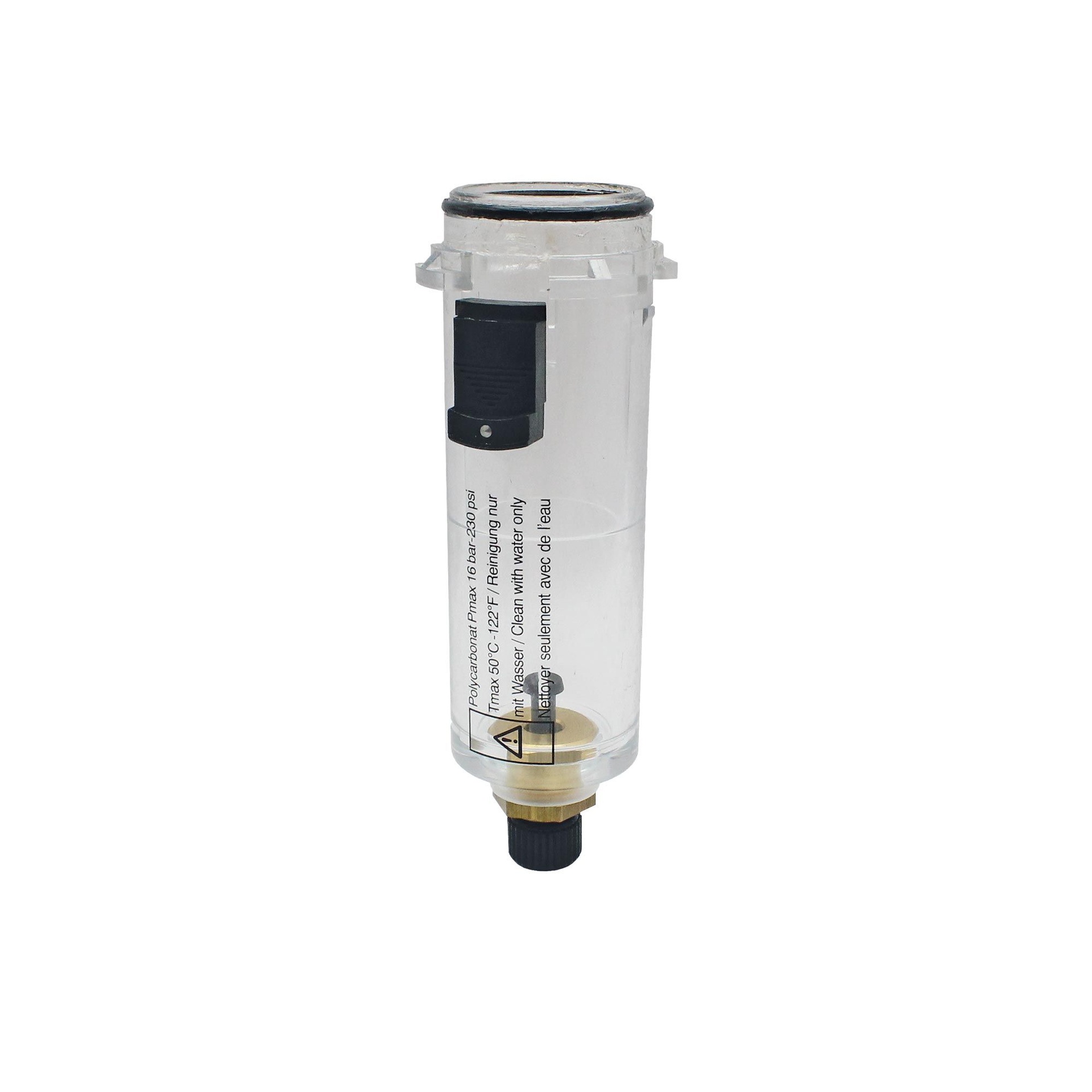

![[100688] RIEGLER Polycarbonate container with manual bleeder valve](/web/image/product.template/140123/image_128/%5B100688%5D%20RIEGLER%20Polycarbonate%20container%20with%20manual%20bleeder%20valve?unique=7debb53)
|
Type number: VZ 521 |
13.76 € | |
![[100748] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 1](/web/image/product.template/140184/image_128/%5B100748%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=be031dc)
|
Type number: VZ 718 |
9.32 € | |
![[100751] RIEGLER Compact connecting set, for »variobloc«, Size 1, G 3/8](/web/image/product.template/140187/image_128/%5B100751%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8?unique=b50011d)
|
Type number: VZ 102 |
9.97 € | |
![[100755] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 1, G 3/8](/web/image/product.template/140191/image_128/%5B100755%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8?unique=e421de1)
|
Type number: VZ 202 |
9.23 € | |
![[100761] RIEGLER Comfort connecting set, for »variobloc«, Size 1, G 3/8](/web/image/product.template/140197/image_128/%5B100761%5D%20RIEGLER%20Comfort%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8?unique=f6eb3b5)
|
Type number: VZ 402 |
28.19 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100668] RIEGLER Metal container incl. viewing tube, for »variobloc«, Size 1](/web/image/product.template/140103/image_128/%5B100668%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=0dc8e1a)
|
Type number: VZ 551 |
43.61 € | |
