RIEGLER Microfilter »multifix-mini«, Metal container, 0.01 µm, G 1/8
Type number: FM 05 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Microfilter "multifix-mini" made of die-cast zinc, for compressed air treatment, G 1/8 - type FM 05 M
The RIEGLER "multifix-mini" microfilter, metal container, 0.01 µm, BG 0, G 1/8 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/8 - suitable for common industry standards. The flow rate is 230 l/min (at P1 = 6 bar and pressure drop Δp = 0.1 bar). Filter fineness 0.01 µm, container made of metal container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Series | multifix-mini |
| Container | Metal container |
| Filter element | Borosilicate POM |
| Filter fineness | 0.01 µm |
| Residual oil content | 0.01 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 999.99 |
| Thread | G 1/8 |
| Flow rate | 230 l/min |
| Condensate drain | semi-automatic |
| DN | 5 |
| BG | 0 |
| A | 40 mm |
| B | 111.6 mm |
| C | 12.3 mm |
| D | 99.3 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

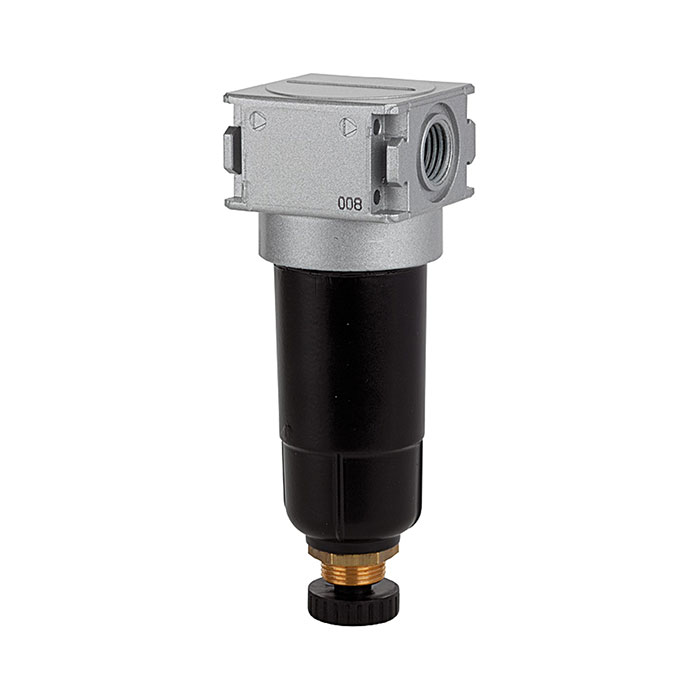

![[100375] RIEGLER Microfilter »multifix-mini«, Metal container, 0.01 µm, G 1/4](/web/image/product.template/139809/image_128/%5B100375%5D%20RIEGLER%20Microfilter%20%C2%BBmultifix-mini%C2%AB%2C%20Metal%20container%2C%200.01%20%C2%B5m%2C%20G%201-4?unique=4df8342)
|
Type number: FM 06 M |
77.83 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100346] RIEGLER Coupling package for blocking several components](/web/image/product.template/139780/image_128/%5B100346%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components?unique=f903cdf)
|
Type number: KP 05 |
0.92 € | |
![[100357] RIEGLER Polycarbonate container, incl. NBR O-ring 30x2](/web/image/product.template/139791/image_128/%5B100357%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20NBR%20O-ring%2030x2?unique=a319524)
|
Type number: 640/1-HA |
10.13 € | |
![[100367] RIEGLER Mounting set for »multifix-mini«](/web/image/product.template/139801/image_128/%5B100367%5D%20RIEGLER%20Mounting%20set%20for%20%C2%BBmultifix-mini%C2%AB?unique=9a12129)
|
Type number: ZW 05 |
4.03 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100359] RIEGLER Metal container, incl. NBR O-ring, with semi autom. bleeder valve](/web/image/product.template/139793/image_128/%5B100359%5D%20RIEGLER%20Metal%20container%2C%20incl.%20NBR%20O-ring%2C%20with%20semi%20autom.%20bleeder%20valve?unique=ee0b0b4)
|
Type number: 641/11-HA |
21.74 € | |

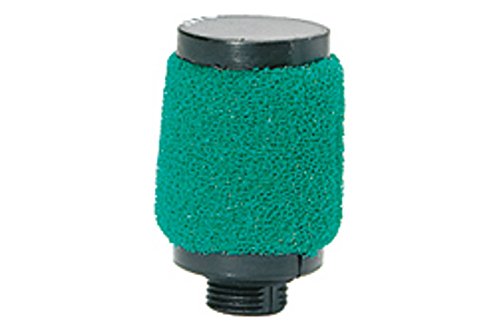

![[100381] RIEGLER Microfilter element 0.01 µm, Borosilicate-POM, for G 1/8](/web/image/product.template/139815/image_128/%5B100381%5D%20RIEGLER%20Microfilter%20element%200.01%20%C2%B5m%2C%20Borosilicate-POM%2C%20for%20G%201-8?unique=f792668)
|
