RIEGLER Active charcoal filter »multifix-mini«, PC container, G 1/8
Type number: FA 05 K
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Activated carbon filter "multifix-mini" with PC container, 0.005 mg/m³, BG 0, G 1/8, PE max. 16 bar, medium ambient temp. max. 60 °C
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | multifix-mini |
| Container | Polycarbonate container |
| Filter element | Activated carbon POM |
| Residual oil content | 0.005 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/8 |
| Flow rate | 310 l/min |
| DN | 5 |
| BG | 0 |
| A | 40 mm |
| B | 107.8 mm |
| C | 12.3 mm |
| D | 95.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

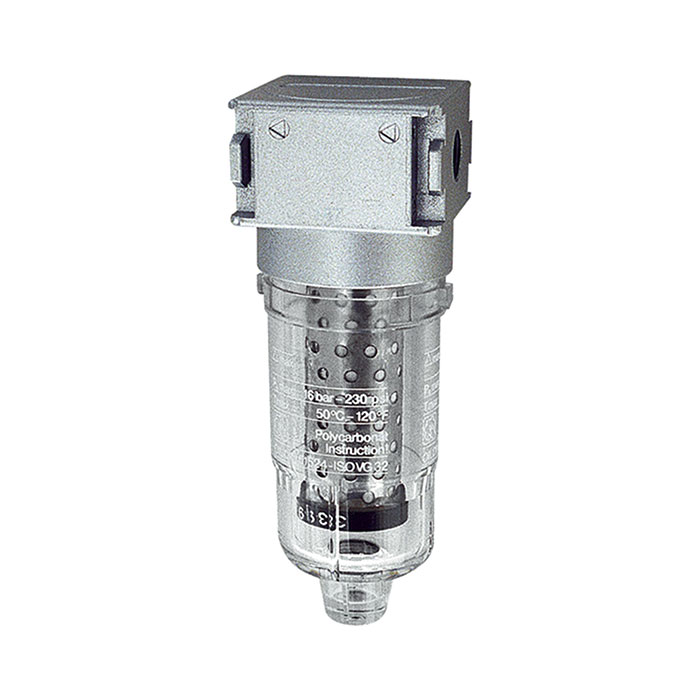

![[100377] RIEGLER Active charcoal filter »multifix-mini«, PC container, G 1/4](/web/image/product.template/139811/image_128/%5B100377%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBmultifix-mini%C2%AB%2C%20PC%20container%2C%20G%201-4?unique=386fe48)
|
Type number: FA 06 K |
58.83 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

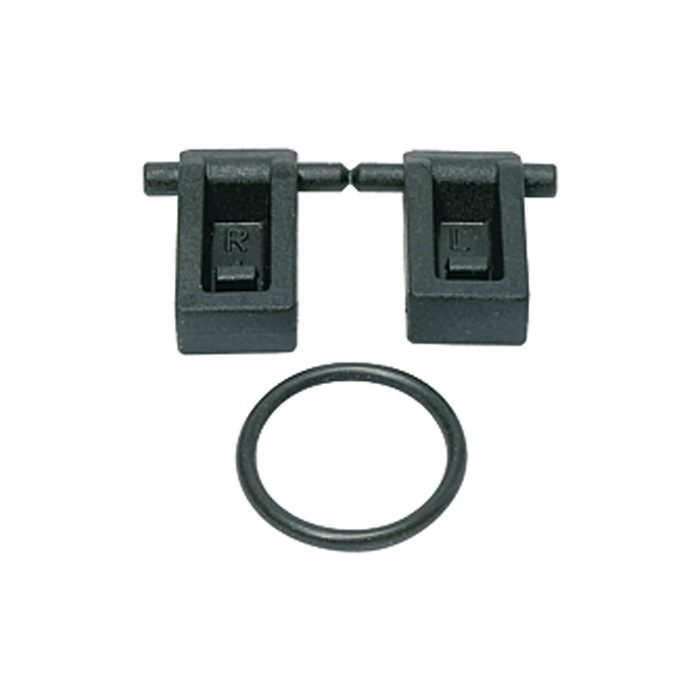

![[100346] RIEGLER Coupling package for blocking several components](/web/image/product.template/139780/image_128/%5B100346%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components?unique=faa9a49)
|
Type number: KP 05 |
0.92 € | |

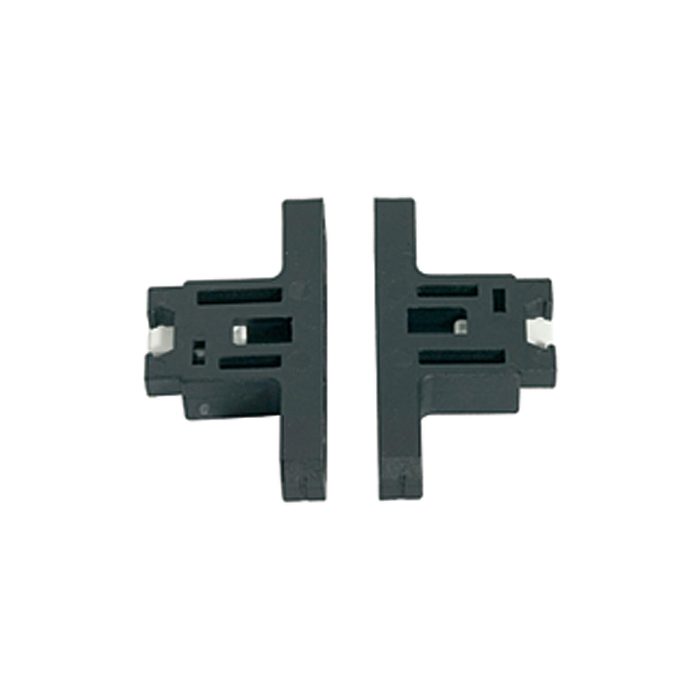

![[100367] RIEGLER Mounting set for »multifix-mini«](/web/image/product.template/139801/image_128/%5B100367%5D%20RIEGLER%20Mounting%20set%20for%20%C2%BBmultifix-mini%C2%AB?unique=a93d4f5)
|
Type number: ZW 05 |
4.03 € | |

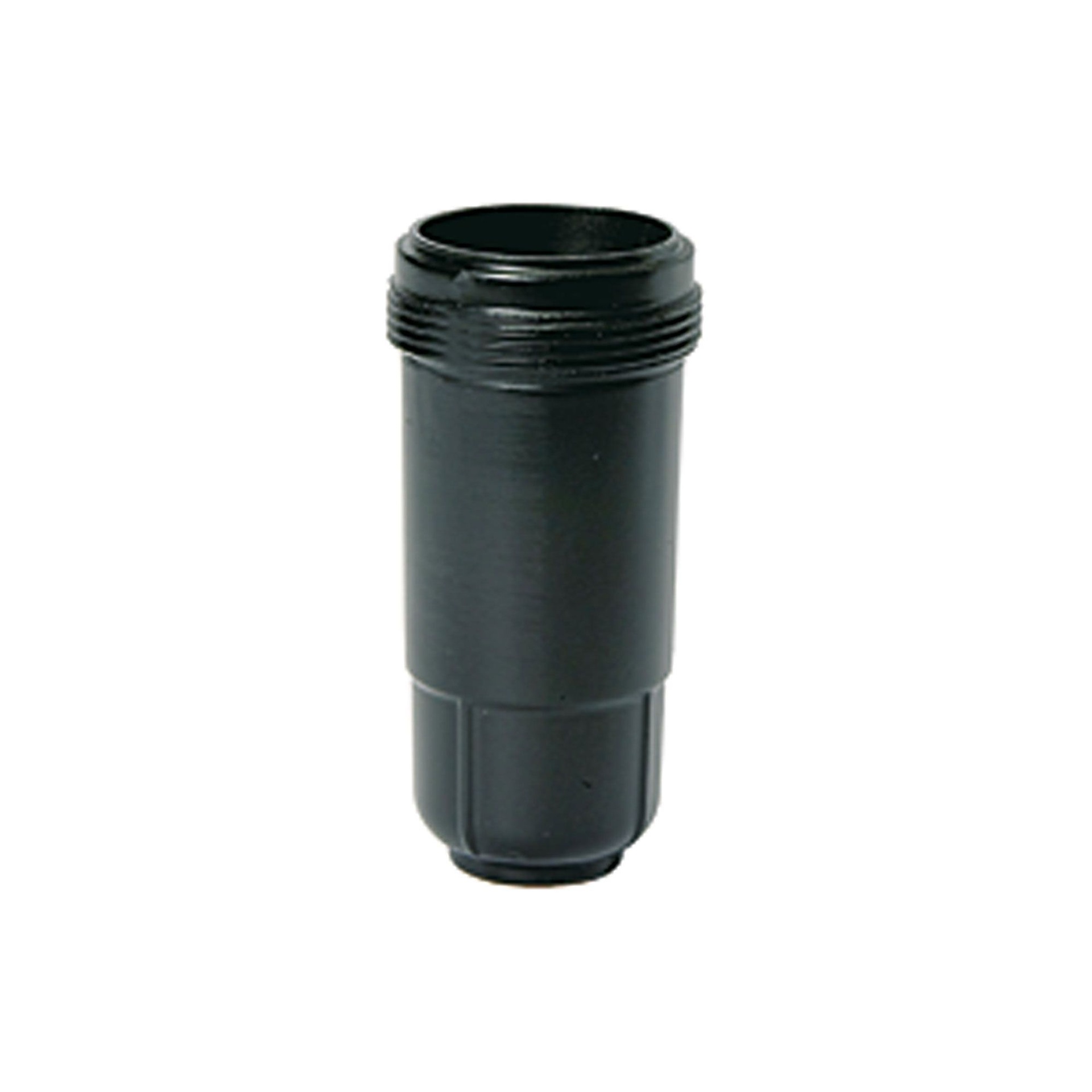

![[100391] RIEGLER Metal container incl. O-ring](/web/image/product.template/139825/image_128/%5B100391%5D%20RIEGLER%20Metal%20container%20incl.%20O-ring?unique=3031b4f)
|
Type number: 740/11 |
14.29 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

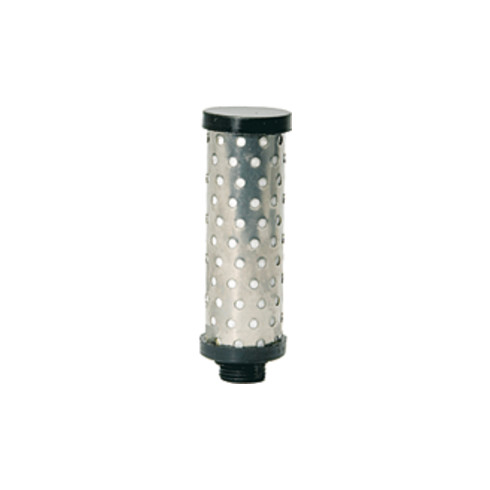

![[100384] RIEGLER Active charcoal filter element, Active charcoal-POM, for G 1/8](/web/image/product.template/139818/image_128/%5B100384%5D%20RIEGLER%20Active%20charcoal%20filter%20element%2C%20Active%20charcoal-POM%2C%20for%20G%201-8?unique=ccec8a6)
|
Type number: A 23/60 |
41.51 € | |

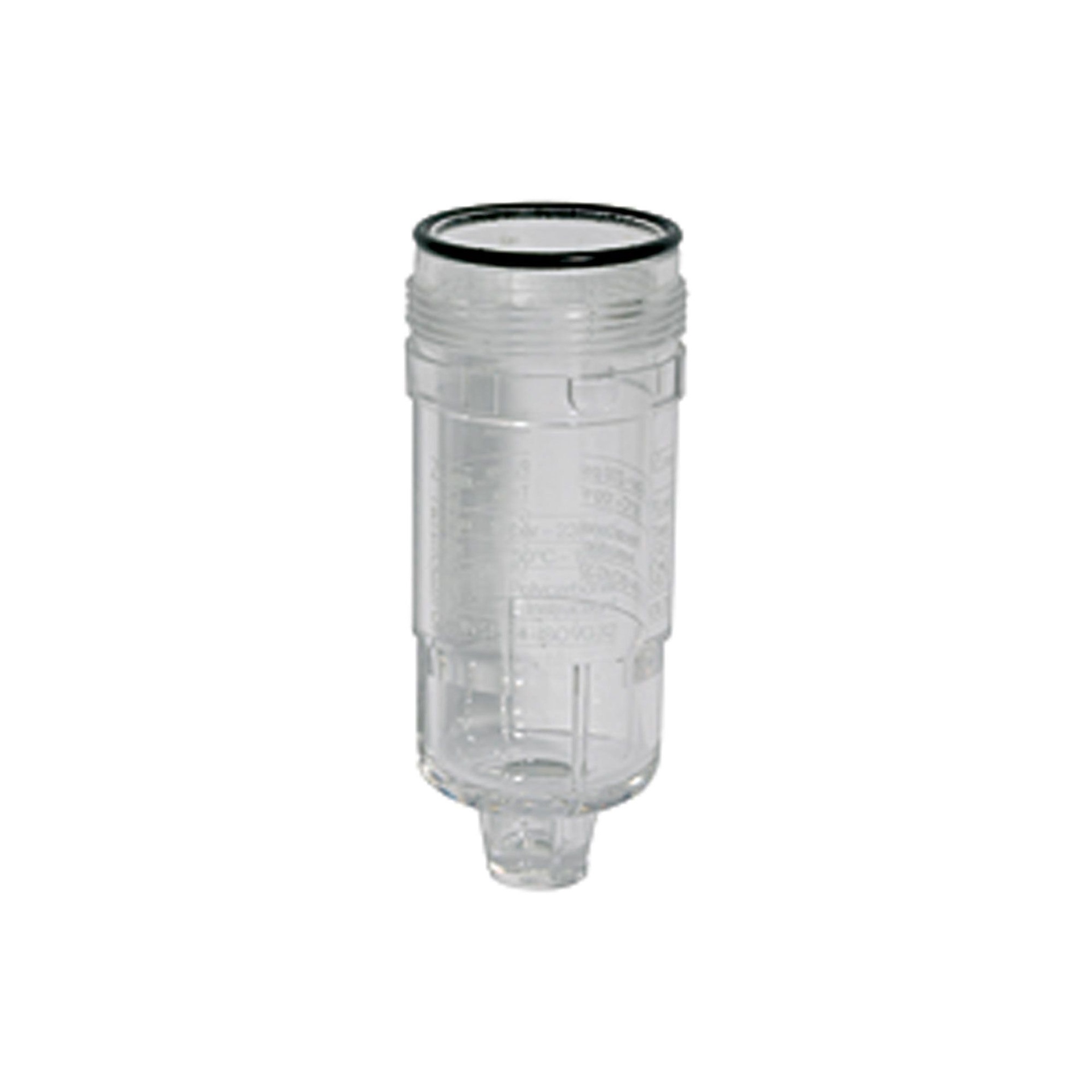

![[100383] RIEGLER Polycarbonate container incl. O-ring](/web/image/product.template/139817/image_128/%5B100383%5D%20RIEGLER%20Polycarbonate%20container%20incl.%20O-ring?unique=e70a37a)
|
Type number: 740/01 |
6.94 € | |
