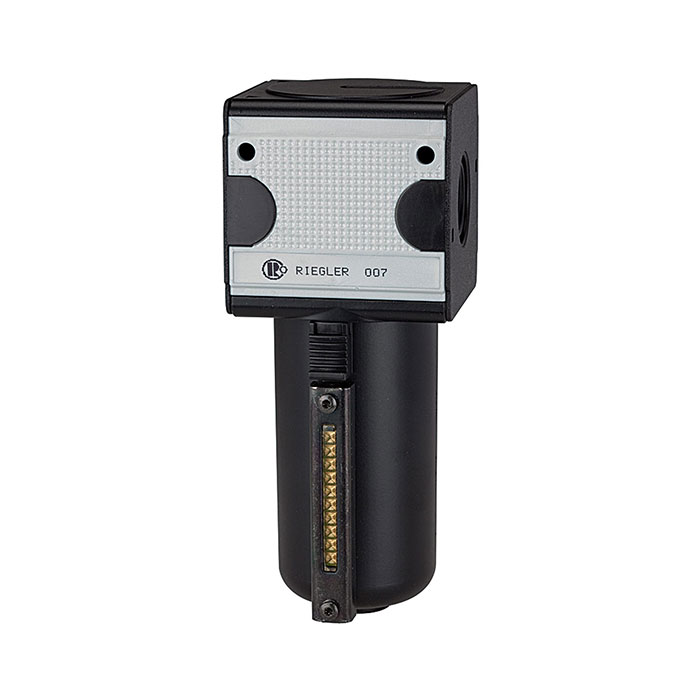

RIEGLER Active charcoal filter »multifix«, Metal container, Size 1, G 1/4
Type number: FA 11 M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Activated carbon filter "multifix" with metal container, 0.005 mg/m³, BG 1, G 1/4, PE max. 20 bar, ambient medium temperature max. 60 °C
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | multifix |
| Container | Metal container |
| Filter element | Activated carbon POM |
| Residual oil content | 0.005 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/4 |
| Flow rate | 380 l/min |
| DN | 6 |
| BG | 1 |
| A | 47.8 mm |
| B | 137 mm |
| C | 27 mm |
| D | 110 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100544] RIEGLER Active charcoal filter »multifix«, Metal container, Size 3, G 1/2](/web/image/product.template/139979/image_128/%5B100544%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%201-2?unique=baea3bf)
|
Type number: FA 33 M |
130.75 € | |
![[133152] RIEGLER Active charcoal filter »multifix«, Metal container, Size 4, G 1](/web/image/product.template/202802/image_128/%5B133152%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%201?unique=b56328f)
|
Type number: FA 45 M |
245.87 € | |

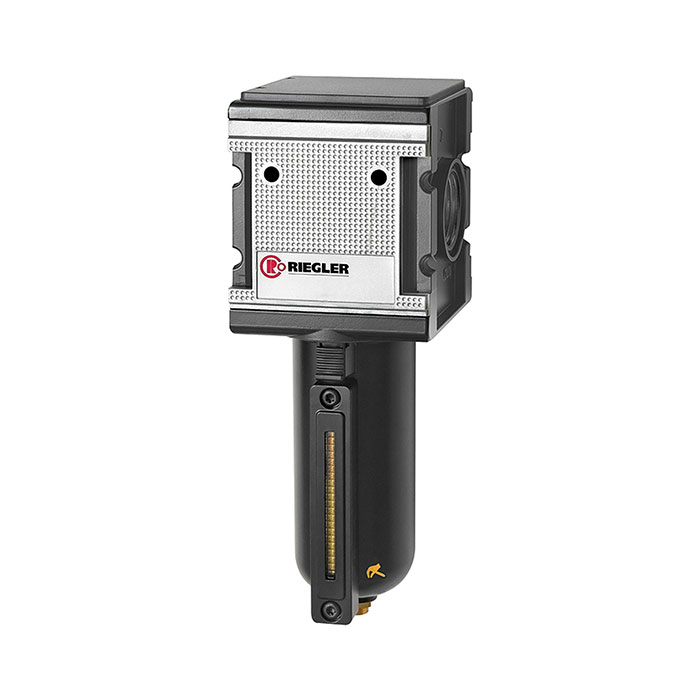

![[133151] RIEGLER Active charcoal filter »multifix«, Metal container, Size 4, G 3/4](/web/image/product.template/202801/image_128/%5B133151%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%203-4?unique=1903223)
|
Type number: FA 44 M |
245.87 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

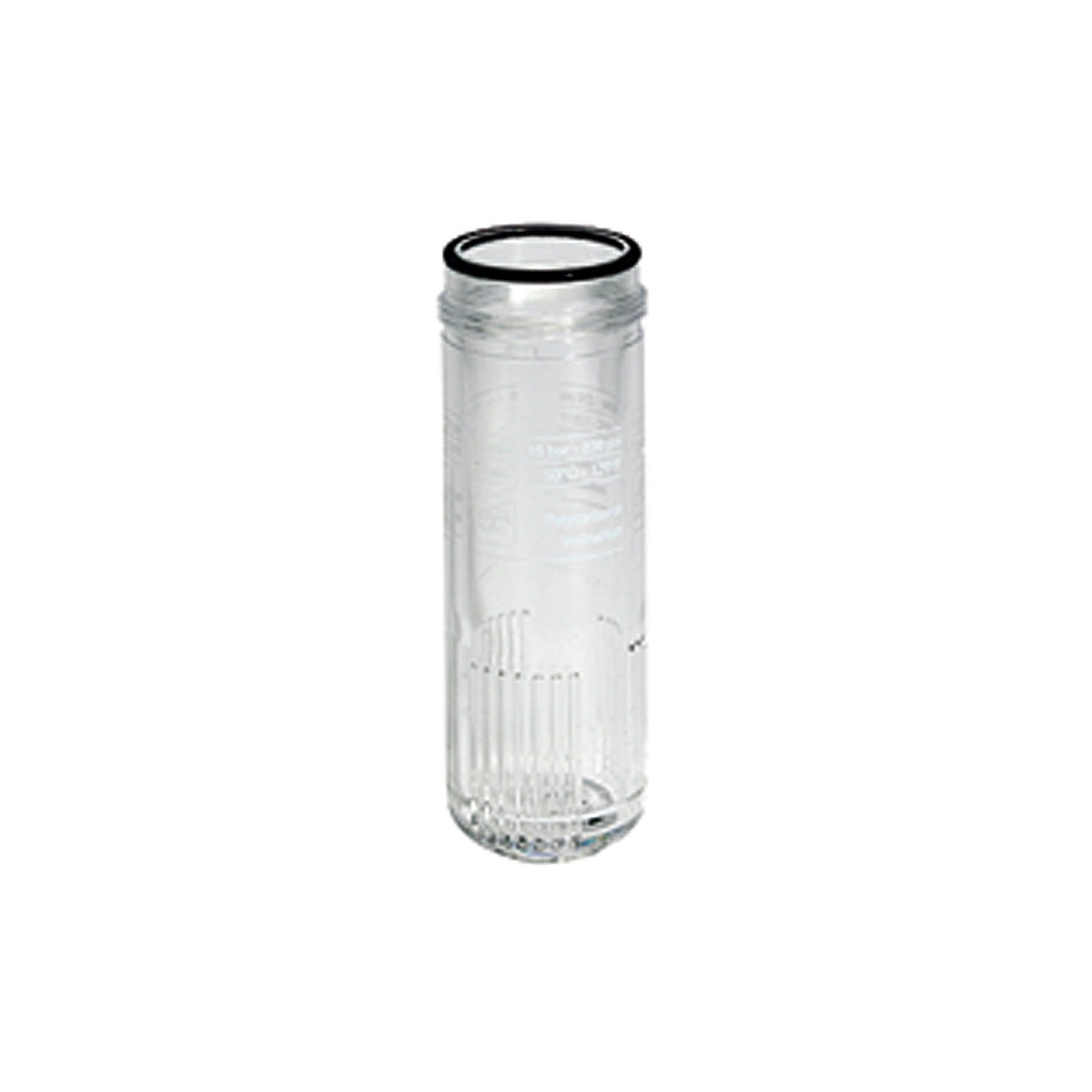

![[100385] RIEGLER Polycarbonate container incl. O-ring](/web/image/product.template/139819/image_128/%5B100385%5D%20RIEGLER%20Polycarbonate%20container%20incl.%20O-ring?unique=314f328)
|
Type number: KS 11 N |
7.34 € | |
![[100435] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 1, G 1/4, G 3/8](/web/image/product.template/139869/image_128/%5B100435%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%20G%203-8?unique=16fb606)
|
Type number: ZW 11 |
3.63 € | |
![[100436] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139870/image_128/%5B100436%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=562cc09)
|
Type number: KP 11 |
2.00 € | |
![[100501] RIEGLER Protective cage, for »multifix«, Size 1, G 1/4 and G 3/8](/web/image/product.template/139936/image_128/%5B100501%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=de75415)
|
Type number: SK 11 |
9.51 € | |

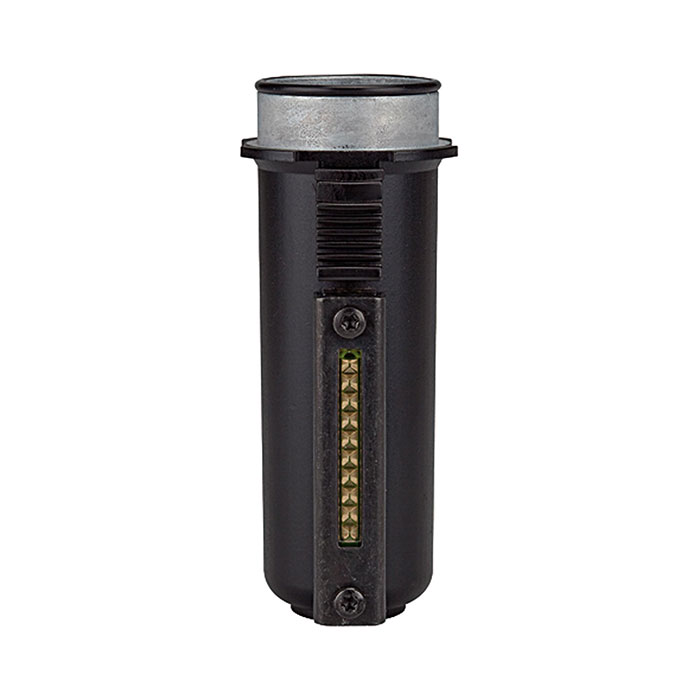

![[100547] RIEGLER Metal container with viewing tube, incl. O-ring, for »multifix«](/web/image/product.template/139982/image_128/%5B100547%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB?unique=64651d3)
|
Type number: MS 11 NS |
26.11 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

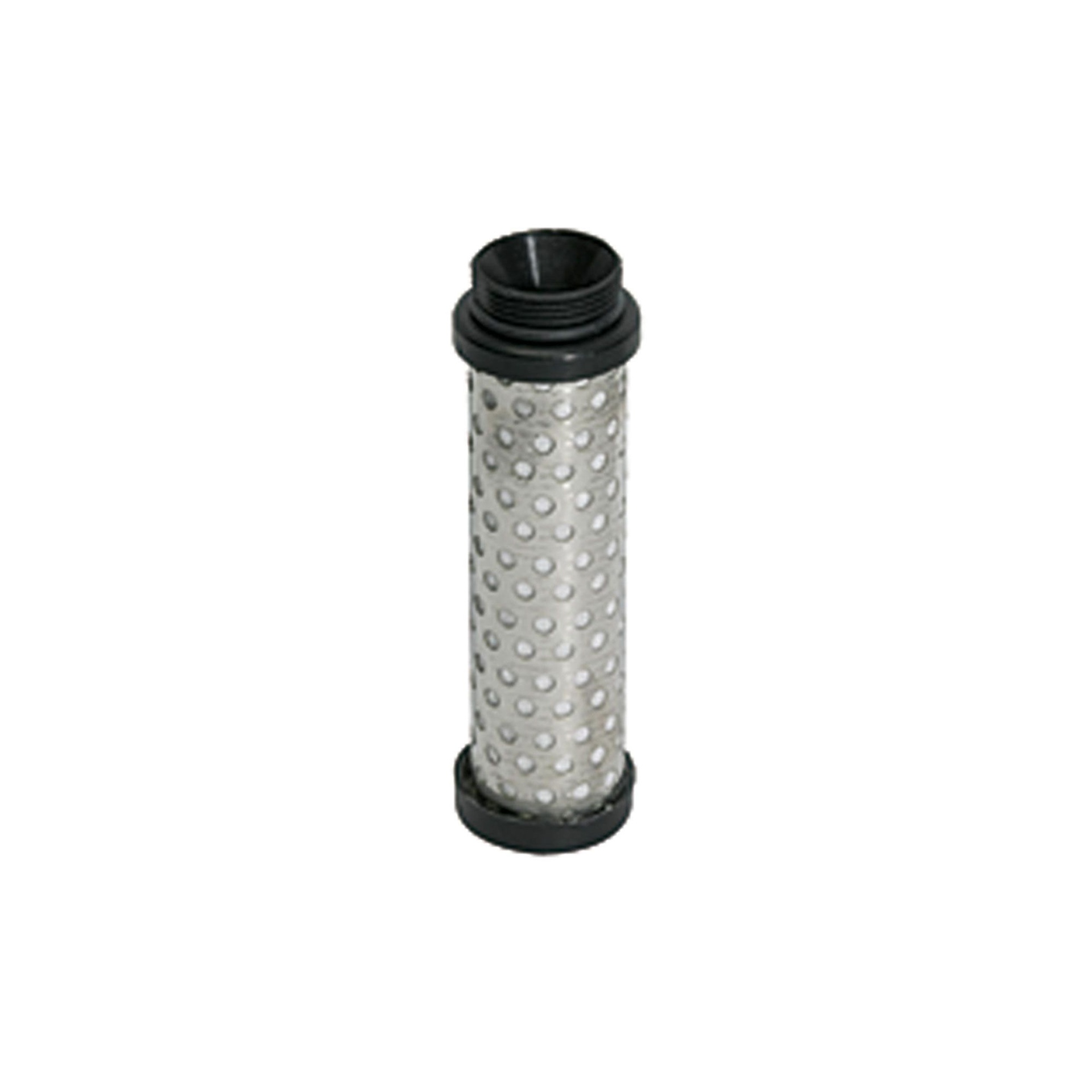

![[100386] RIEGLER Active charcoal filter element, Active charcoal-POM, for G 1/4](/web/image/product.template/139820/image_128/%5B100386%5D%20RIEGLER%20Active%20charcoal%20filter%20element%2C%20Active%20charcoal-POM%2C%20for%20G%201-4?unique=e9110fc)
|
Type number: A 23/80 |
43.16 € | |
