RIEGLER Service unit 2-part »multifix-mini«, Metal container, G 1/8
Type number: CL 05 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2-piece "multifix-mini" maintenance unit made of die-cast zinc, for compressed air preparation - type CL 05 M
The RIEGLER maintenance unit 2-piece "multifix-mini", with metal container, G 1/8 combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 12 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/8 - suitable for common industry standards. The flow rate is 700 l/min (at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, container made of metal container. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 12 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix-mini |
| Container | Metal container |
| Filter fineness | 5 µm |
| Dropper attachment | Zinc-glass-NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1/8 |
| Flow rate | 700 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 5 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 0 |
| A | 80 mm |
| B | 162 mm |
| C | 63 mm |
| D | 99 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

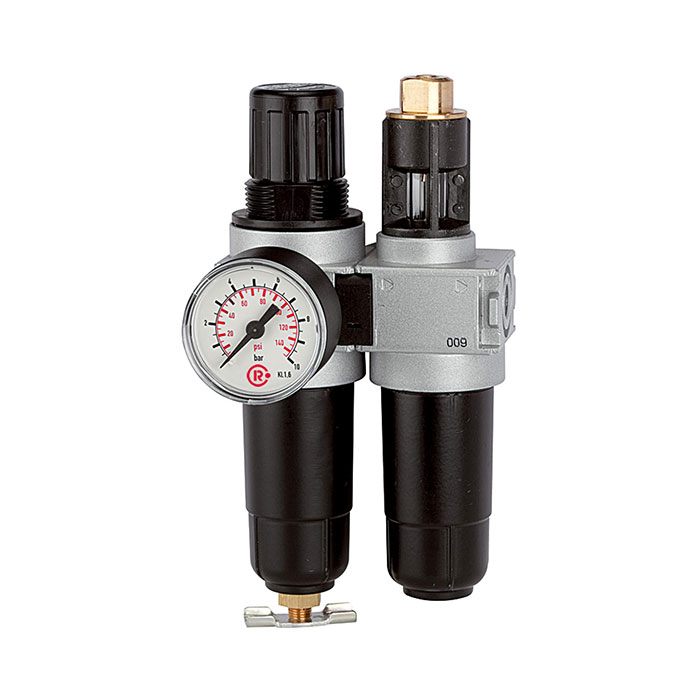

![[100397] RIEGLER Service unit 2-part »multifix-mini«, Metal container, G 1/4](/web/image/product.template/139831/image_128/%5B100397%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix-mini%C2%AB%2C%20Metal%20container%2C%20G%201-4?unique=15b7acd)
|
Type number: CL 06 M |
92.69 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100392] RIEGLER Drip cap polyamide PA, Thread M24x1.5](/web/image/product.template/139826/image_128/%5B100392%5D%20RIEGLER%20Drip%20cap%20polyamide%20PA%2C%20Thread%20M24x1.5?unique=c54de14)
|
Type number: 1233.7.990 |
9.48 € | |
![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=e5c17b9)
|
Type number: 611.6.905 |
9.46 € | |

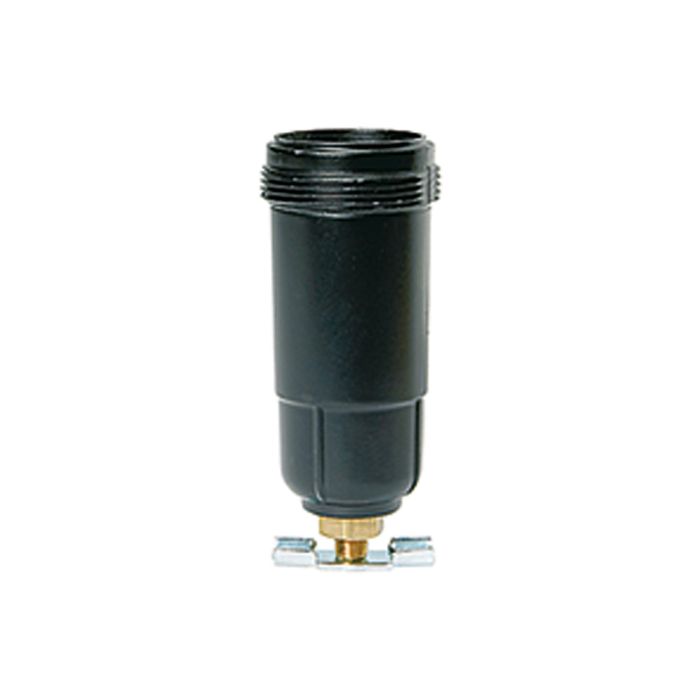

![[100358] RIEGLER Metal container, incl. NBR O-ring 30x2](/web/image/product.template/139792/image_128/%5B100358%5D%20RIEGLER%20Metal%20container%2C%20incl.%20NBR%20O-ring%2030x2?unique=c8eae38)
|
Type number: 640/11 |
16.90 € | |
![[100391] RIEGLER Metal container incl. O-ring](/web/image/product.template/139825/image_128/%5B100391%5D%20RIEGLER%20Metal%20container%20incl.%20O-ring?unique=18f9863)
|
Type number: 740/11 |
14.29 € | |
![[101534] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 16 bar/230 psi](/web/image/product.template/169508/image_128/%5B101534%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%2016%20bar-230%20psi?unique=694b4a6)
|
Type number: 110.47-KD |
6.10 € | |

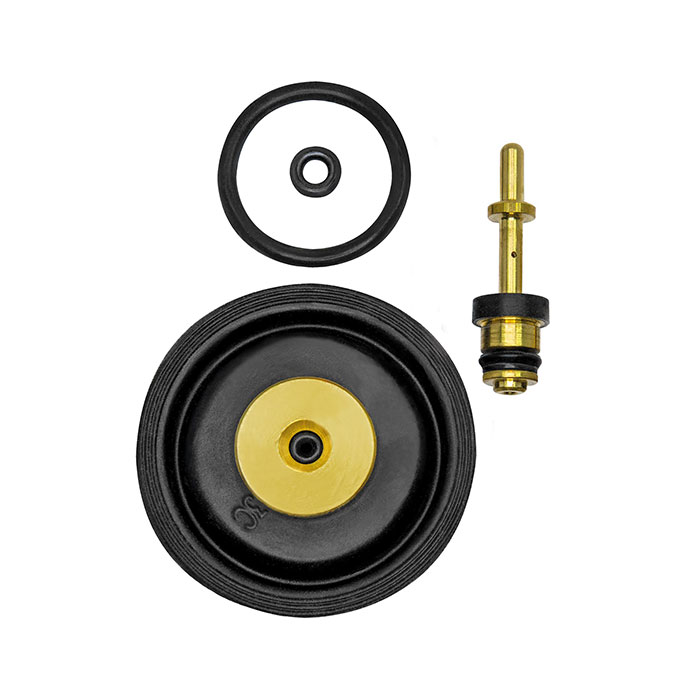

![[100347] RIEGLER Wear part set, for »multifix-mini«, Size 0, G 1/8 and G 1/4](/web/image/product.template/139781/image_128/%5B100347%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20%C2%BBmultifix-mini%C2%AB%2C%20Size%200%2C%20G%201-8%20and%20G%201-4?unique=fb621c7)
|
Type number: 22.1805.4 |
15.04 € | |
