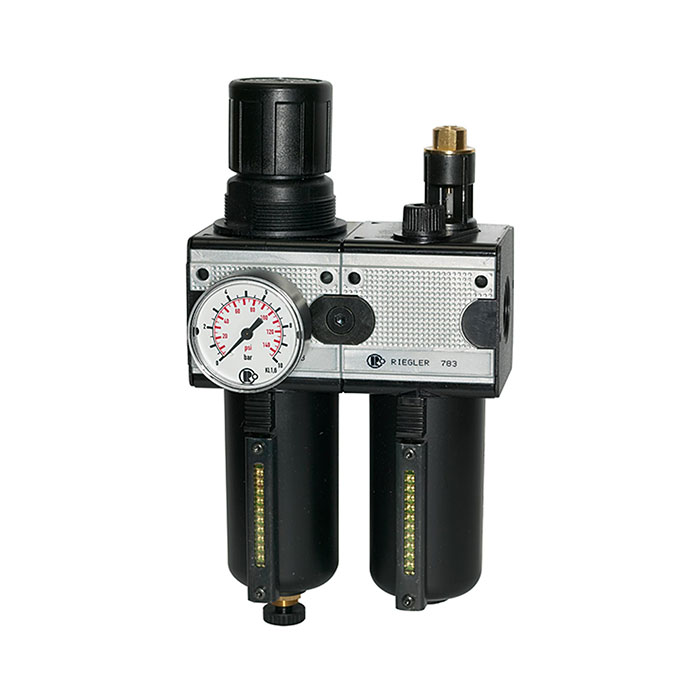

RIEGLER Service unit 2-part »multifix«, Metal container, Size 3, G 3/4
Type number: CL 34 M-SR
EAN: 4047322125437
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2-piece "multifix" maintenance unit, metal tank and sight tube, BG 3, G 3/4, max. inlet pressure 20 bar, control range 0.5 - 10 bar
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p </sub>= 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Filter fineness | 5 µm |
| Dropper attachment | Zinc-glass-NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 3/4 |
| Flow rate | 5800 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 20 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 3 |
| A | 134.8 mm |
| B | 248.2 mm |
| C | 99 mm |
| D | 149.2 mm |
| Class name | PLUS |
