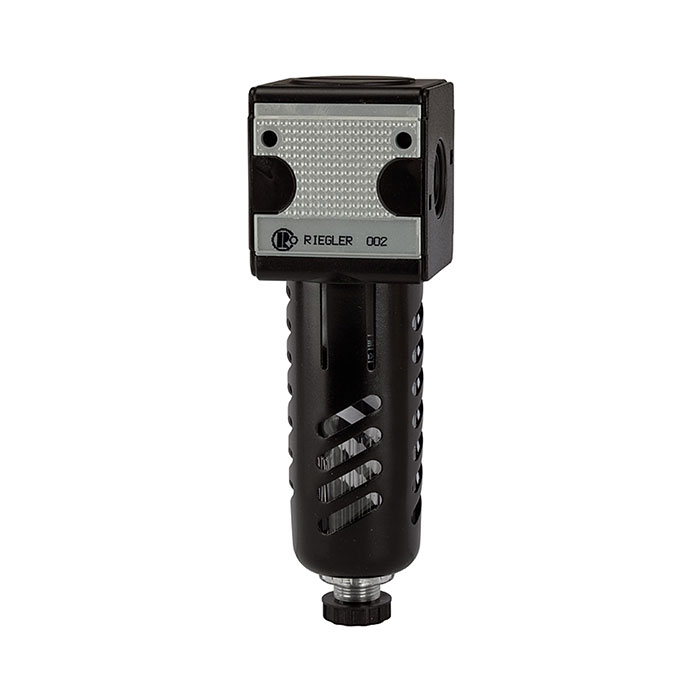

RIEGLER Filter »multifix«, PC container, Protective cage, Size 3, G 1/2
Type number: F 33 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter "multifix" made of die-cast zinc, for compressed air treatment, G 1/2 - type F 33 S
The RIEGLER "multifix" filter, PC container, protective cage, 5 µm, BG 3, G 1/2, HA removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 5850 l/min (at P1= 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, polycarbonate container with protective cage. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Flow rate measurement | with P<sub>1 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/2 |
| Flow rate | 5850 l/min |
| Condensate drain | semi-automatic |
| DN | 15 |
| BG | 3 |
| A | 68.8 mm |
| B | 181.8 mm |
| C | 34.5 mm |
| D | 147.3 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100517] RIEGLER Filter »multifix«, PC container, Protective cage, Size 1, G 1/4](/web/image/product.template/139952/image_128/%5B100517%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-4?unique=bdffe00)
|
Type number: F 11 S |
33.94 € | |
![[100518] RIEGLER Filter »multifix«, PC container, Protective cage, Size 1, G 3/8](/web/image/product.template/139953/image_128/%5B100518%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8?unique=e7291e8)
|
Type number: F 12 S |
33.94 € | |
![[100520] RIEGLER Filter »multifix«, PC container, Protective cage, Size 3, G 3/4](/web/image/product.template/139955/image_128/%5B100520%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%203%2C%20G%203-4?unique=71ea464)
|
Type number: F 34 S |
54.88 € | |
![[133112] RIEGLER Filter »multifix«, PC container, Protective cage, Size 4, G 1](/web/image/product.template/202762/image_128/%5B133112%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%204%2C%20G%201?unique=ddb795a)
|
Type number: F 45 S |
112.53 € | |
![[133111] RIEGLER Filter »multifix«, PC container, Protective cage, Size 4, G 3/4](/web/image/product.template/202761/image_128/%5B133111%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%204%2C%20G%203-4?unique=d19c8d4)
|
Type number: F 44 S |
112.53 € | |
![[100521] RIEGLER Filter »multifix«, PC container, Protective cage, Size 5, G 1](/web/image/product.template/139956/image_128/%5B100521%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%205%2C%20G%201?unique=a6a4a03)
|
Type number: F 55 S |
144.72 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=51620c9)
|
Type number: 655.6.900 |
36.35 € | |
![[100441] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139875/image_128/%5B100441%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=bb48b09)
|
Type number: ZW 33 |
5.00 € | |
![[100442] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139876/image_128/%5B100442%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=455ebc1)
|
Type number: KP 33 |
2.01 € | |
![[100502] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139937/image_128/%5B100502%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=ba6afb4)
|
Type number: MS 33 FS |
34.69 € | |
![[100503] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139938/image_128/%5B100503%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=d764499)
|
Type number: MS 33 FS-A |
74.97 € | |

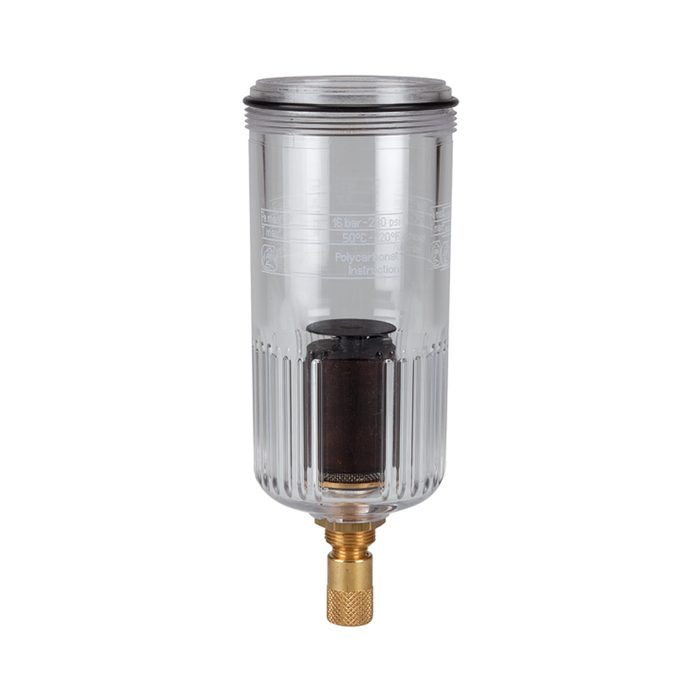

![[100505] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139940/image_128/%5B100505%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=a4acad0)
|
Type number: KS 33 F-A |
45.98 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

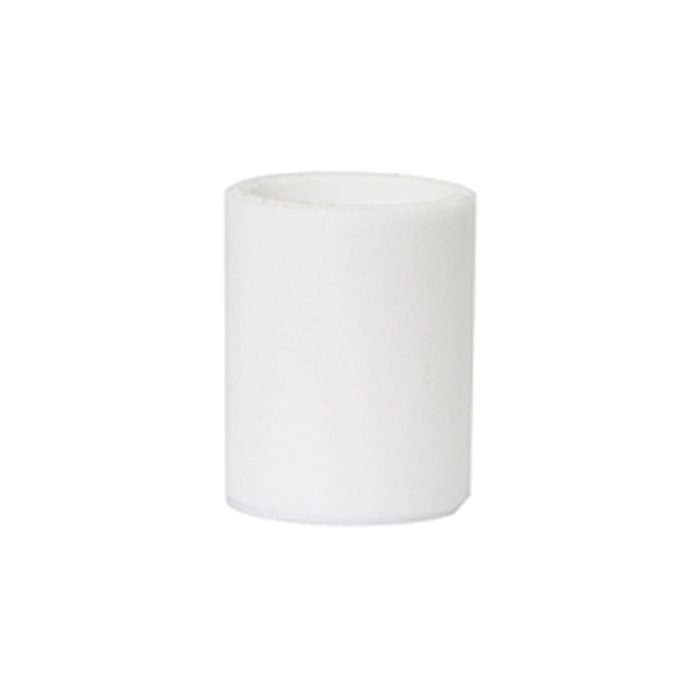

![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=7d4a628)
|
