RIEGLER Filter »multifix«, PC container, Protective cage, Size 4, G 1
Type number: F 45 S
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter "multifix" with PC container and protective cage, 5 µm, BG 4, G 1, PE max. 16 bar, max. ambient temp. 60 °C, drain valve: HA
| Inlet pressure max. | 16 bar |
| Housing | Die-cast aluminum |
| Flow rate measurement | with P<sub>1 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 |
| Flow rate | 8000 l/min |
| Condensate drain | semi-automatic |
| DN | 25 |
| BG | 4 |
| A | 85 mm |
| B | 243 mm |
| C | 53 mm |
| D | 190 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100517] RIEGLER Filter »multifix«, PC container, Protective cage, Size 1, G 1/4](/web/image/product.template/139952/image_128/%5B100517%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-4?unique=47dae86)
|
Type number: F 11 S |
33.94 € | |
![[100518] RIEGLER Filter »multifix«, PC container, Protective cage, Size 1, G 3/8](/web/image/product.template/139953/image_128/%5B100518%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8?unique=c459915)
|
Type number: F 12 S |
33.94 € | |
![[100519] RIEGLER Filter »multifix«, PC container, Protective cage, Size 3, G 1/2](/web/image/product.template/139954/image_128/%5B100519%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%203%2C%20G%201-2?unique=d456a27)
|
Type number: F 33 S |
54.88 € | |
![[100520] RIEGLER Filter »multifix«, PC container, Protective cage, Size 3, G 3/4](/web/image/product.template/139955/image_128/%5B100520%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%203%2C%20G%203-4?unique=e5d1f3b)
|
Type number: F 34 S |
54.88 € | |

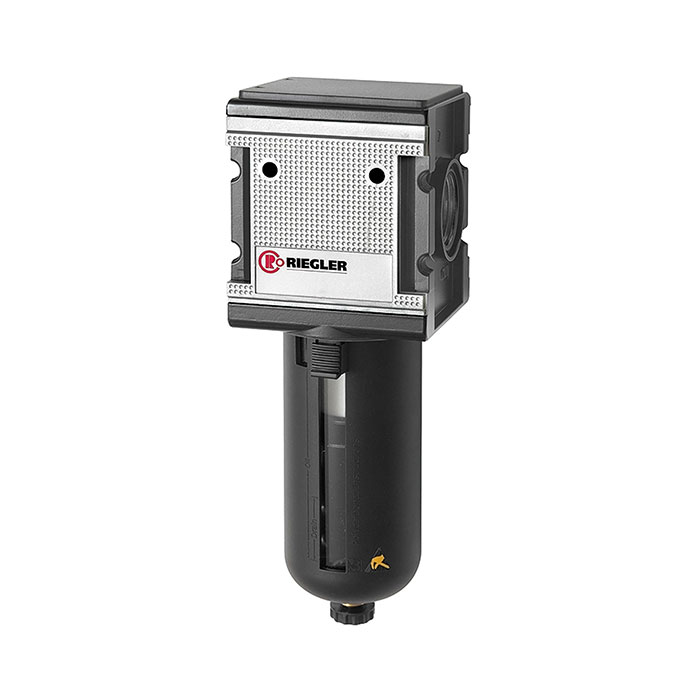

![[133111] RIEGLER Filter »multifix«, PC container, Protective cage, Size 4, G 3/4](/web/image/product.template/202761/image_128/%5B133111%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%204%2C%20G%203-4?unique=08ac615)
|
Type number: F 44 S |
114.39 € | |

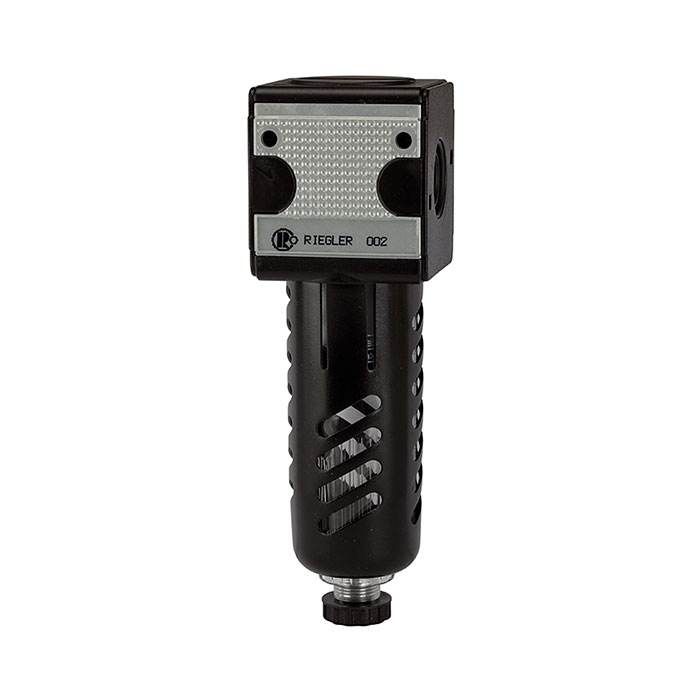

![[100521] RIEGLER Filter »multifix«, PC container, Protective cage, Size 5, G 1](/web/image/product.template/139956/image_128/%5B100521%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%205%2C%20G%201?unique=cba20e8)
|
Type number: F 55 S |
144.73 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=1b40a6e)
|
Type number: 655.6.900 |
36.96 € | |

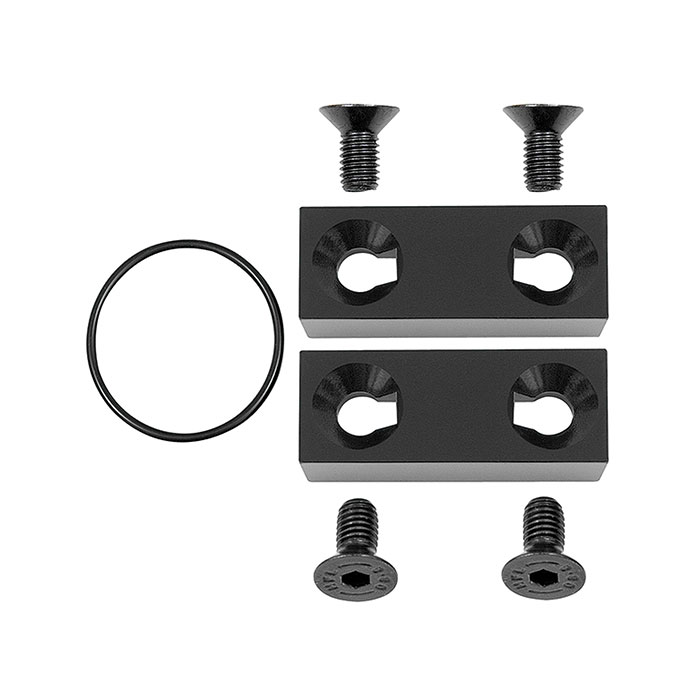

![[135857] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/206213/image_128/%5B135857%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=8672077)
|
Type number: KP 45 |
7.87 € | |

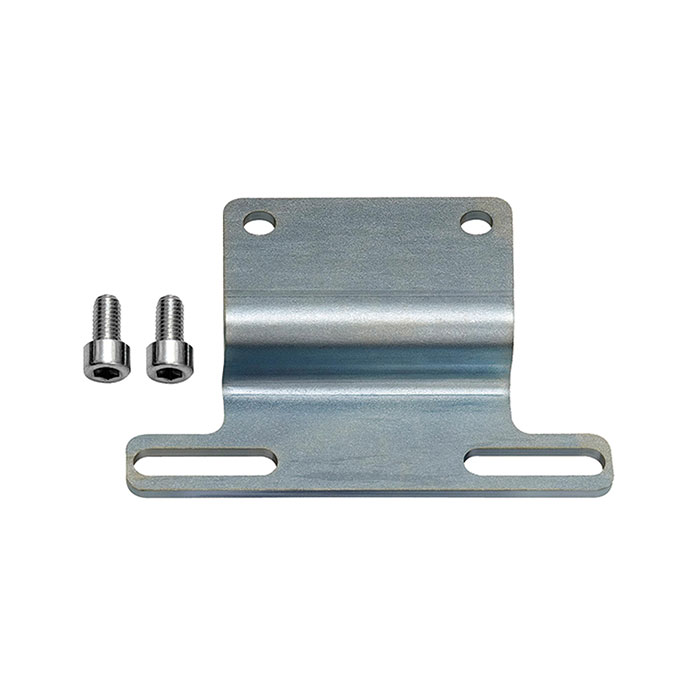

![[135858] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 4, G 3/4 and G 1](/web/image/product.template/206214/image_128/%5B135858%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%203-4%20and%20G%201?unique=723947b)
|
Type number: ZW 45 |
13.19 € | |

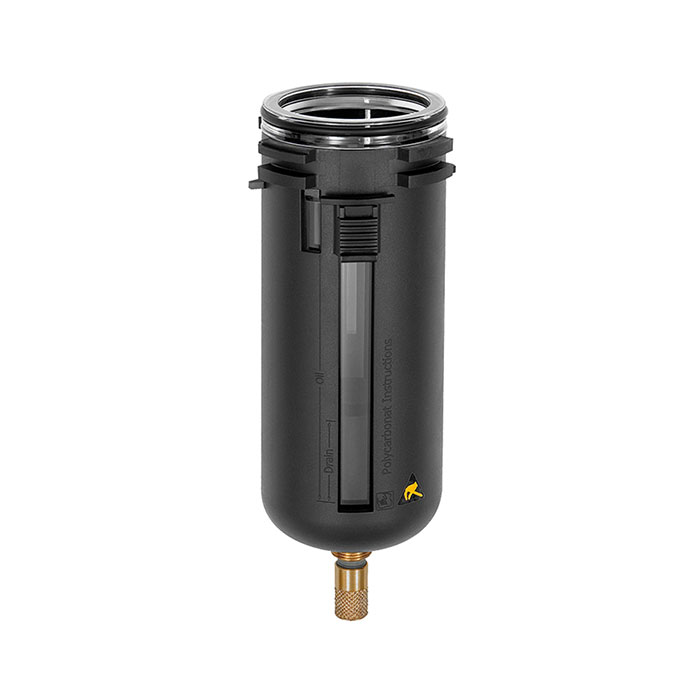

![[135860] RIEGLER Polycarbonate container with protective cage, fully automated](/web/image/product.template/206216/image_128/%5B135860%5D%20RIEGLER%20Polycarbonate%20container%20with%20protective%20cage%2C%20fully%20automated?unique=b9853e9)
|
Type number: KSS 45 F-A |
56.08 € | |

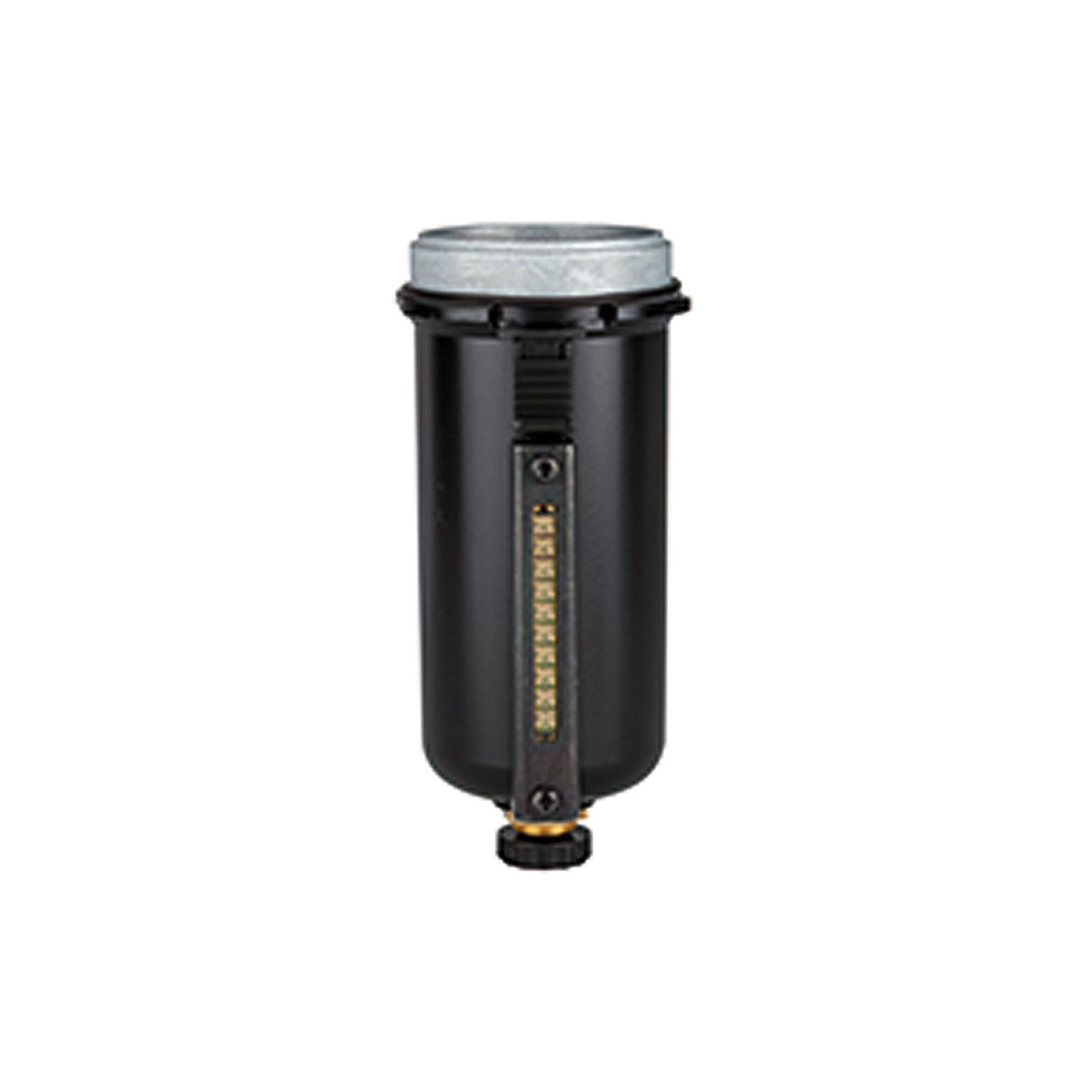

![[135861] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/206217/image_128/%5B135861%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=c6effdd)
|
Type number: MS 45 FS |
44.98 € | |

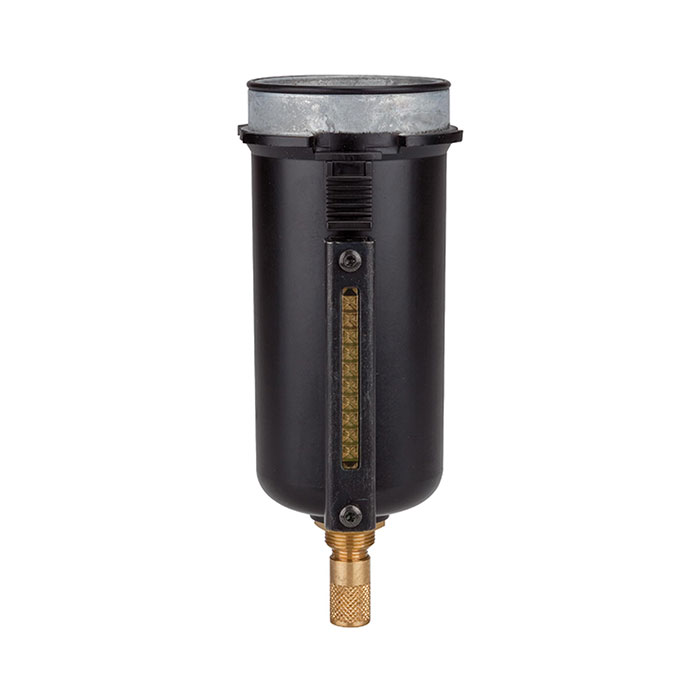

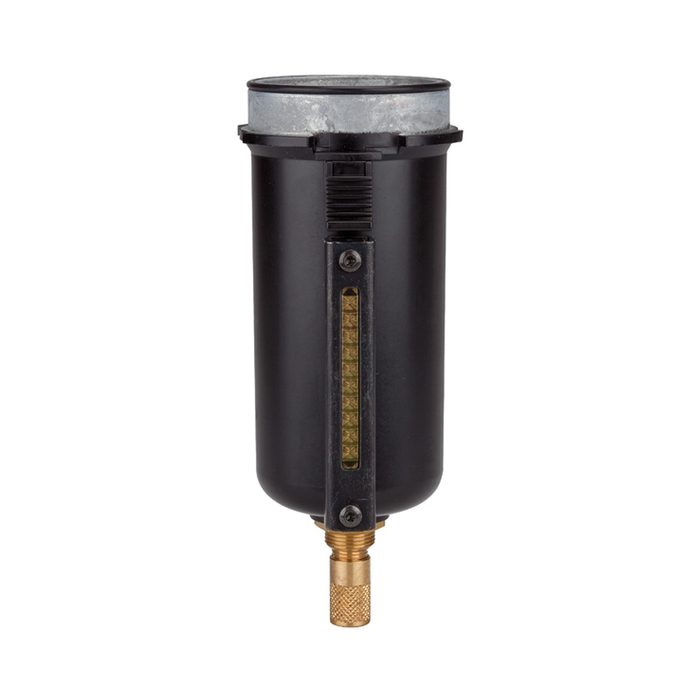

![[135862] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/206218/image_128/%5B135862%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=986f9af)
|
Type number: MS 45 FS-A |
84.61 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

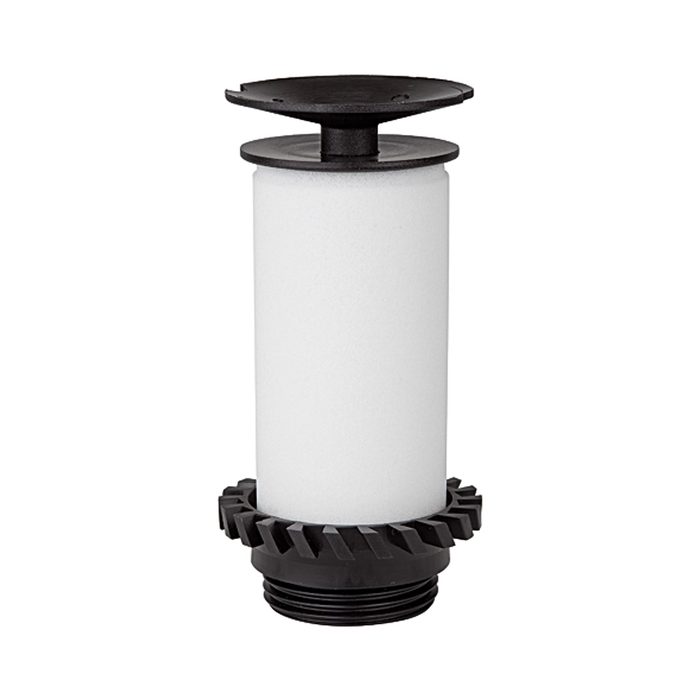

![[100144] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123337/image_128/%5B100144%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=cc20e55)
|
Type number: 6141.6.905 |
41.25 € | |

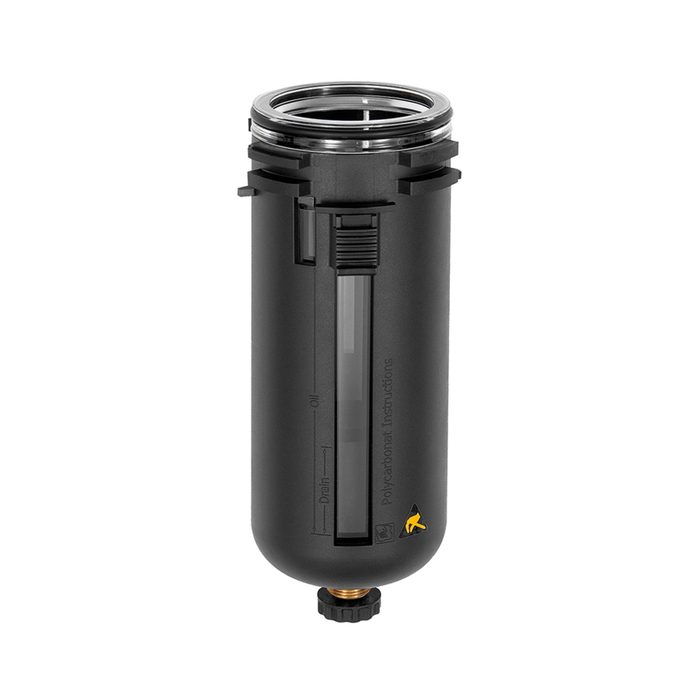

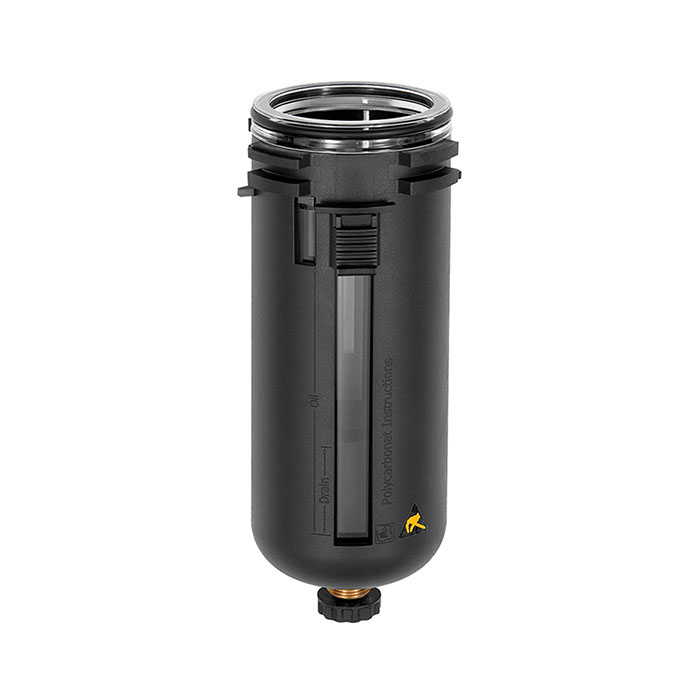

![[135859] RIEGLER Polycarbonate container with protective cage, semi-automated](/web/image/product.template/206215/image_128/%5B135859%5D%20RIEGLER%20Polycarbonate%20container%20with%20protective%20cage%2C%20semi-automated?unique=fab7c11)
|
Type number: KSS 45 F-HA |
15.84 € | |
