RIEGLER Microfilter »multifix« with PC container, 0.01 µm, Size 1, G 1/4
Type number: FM 11 K-HA
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Microfilter »multifix« with PC container, 0.01 µm, Size 1, G 1/4, Input pressure max. 16 bar, Medium / ambient temp. max. 60 °C
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Series | multifix |
| Container | Polycarbonate container |
| Filter element | Borosilicate POM |
| Filter fineness | 0.01 µm |
| Residual oil content | 0.01 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 999.99 |
| Thread | G 1/4 |
| Flow rate | 280 l/min |
| Condensate drain | semi-automatic |
| DN | 6 |
| BG | 1 |
| A | 47.8 mm |
| B | 152.1 mm |
| C | 27 mm |
| D | 125.1 mm |
| Description of the | Microfilter with polycarbonate container |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

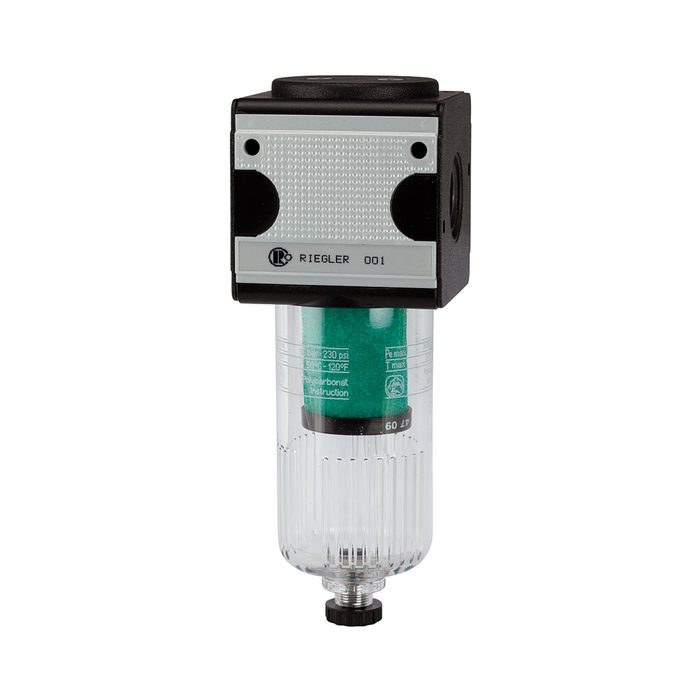

![[100534] RIEGLER Microfilter »multifix« with PC container, 0.01 µm, Size 3, G 1/2](/web/image/product.template/139969/image_128/%5B100534%5D%20RIEGLER%20Microfilter%20%C2%BBmultifix%C2%AB%20with%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%203%2C%20G%201-2?unique=0f9c868)
|
Type number: FM 33 K-HA |
118.68 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100188] Riegler Filter element 0.01 µm, Borosilicate-POM](/web/image/product.template/123325/image_128/%5B100188%5D%20Riegler%20Filter%20element%200.01%20%C2%B5m%2C%20Borosilicate-POM?unique=c92b25b)
|
Type number: M 23/41 |
67.56 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=fdaeaef)
|
Type number: 655.6.900 |
36.96 € | |
![[100435] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 1, G 1/4, G 3/8](/web/image/product.template/139869/image_128/%5B100435%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%20G%203-8?unique=5ba636d)
|
Type number: ZW 11 |
3.63 € | |
![[100436] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139870/image_128/%5B100436%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=0c53d56)
|
Type number: KP 11 |
2.00 € | |
![[100498] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139933/image_128/%5B100498%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=ba838e7)
|
Type number: MS 11 FS |
27.48 € | |
![[100501] RIEGLER Protective cage, for »multifix«, Size 1, G 1/4 and G 3/8](/web/image/product.template/139936/image_128/%5B100501%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=51fef31)
|
Type number: SK 11 |
9.51 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100187] Riegler Filter element 0.01 µm, Borosilicate-POM](/web/image/product.template/123324/image_128/%5B100187%5D%20Riegler%20Filter%20element%200.01%20%C2%B5m%2C%20Borosilicate-POM?unique=14756ff)
|
Type number: M 23/70 |
70.96 € | |
![[100500] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139935/image_128/%5B100500%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=aead516)
|
Type number: KS 11 F-HA |
13.16 € | |
