RIEGLER Microfilter »multifix« with PC container, 0.01 µm, Size 3, G 1/2
Type number: FM 33 K-HA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Microfilter "multifix" made of die-cast zinc, for compressed air treatment, G 1/2 - type FM 33 K-HA
The RIEGLER "multifix" microfilter, with PC container, 0.01 µm, BG 3, G 1/2 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 720 l/min (at P1 = 6 bar and pressure drop Δp = 0.1 bar). Filter fineness 0.01 µm, tank made of polycarbonate container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Series | multifix |
| Container | Polycarbonate container |
| Filter element | Borosilicate POM |
| Filter fineness | 0.01 µm |
| Residual oil content | 0.01 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 999.99 |
| Thread | G 1/2 |
| Flow rate | 720 l/min |
| Condensate drain | semi-automatic |
| DN | 15 |
| BG | 3 |
| A | 68.8 mm |
| B | 185.8 mm |
| C | 38.5 mm |
| D | 147.3 mm |
| Description of the | Microfilter with polycarbonate container |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

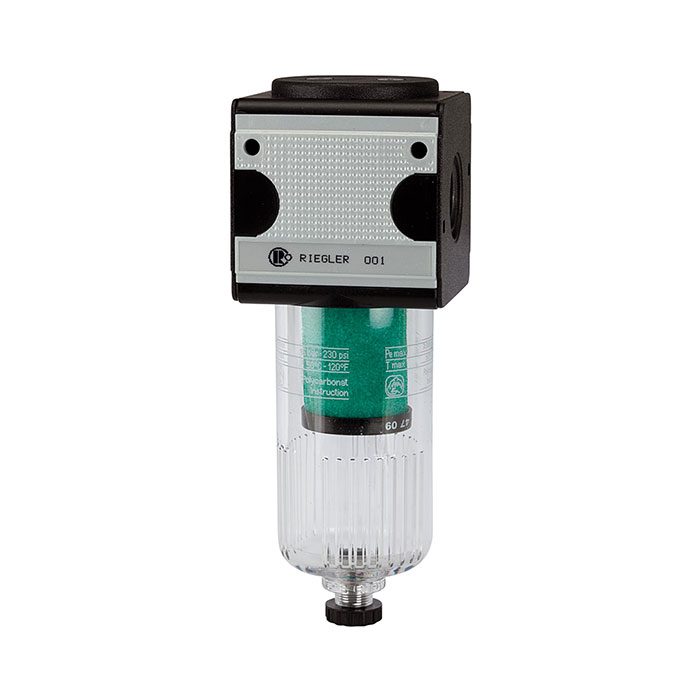

![[100533] RIEGLER Microfilter »multifix« with PC container, 0.01 µm, Size 1, G 1/4](/web/image/product.template/139968/image_128/%5B100533%5D%20RIEGLER%20Microfilter%20%C2%BBmultifix%C2%AB%20with%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=e8e8d4c)
|
Type number: FM 11 K-HA |
72.59 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100171] Riegler Differential pressure display, for pre / microfilter](/web/image/product.template/123232/image_128/%5B100171%5D%20Riegler%20Differential%20pressure%20display%2C%20for%20pre%20-%20microfilter?unique=7e94e6f)
|
Type number: DAF 1 |
17.50 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=51620c9)
|
Type number: 655.6.900 |
36.35 € | |

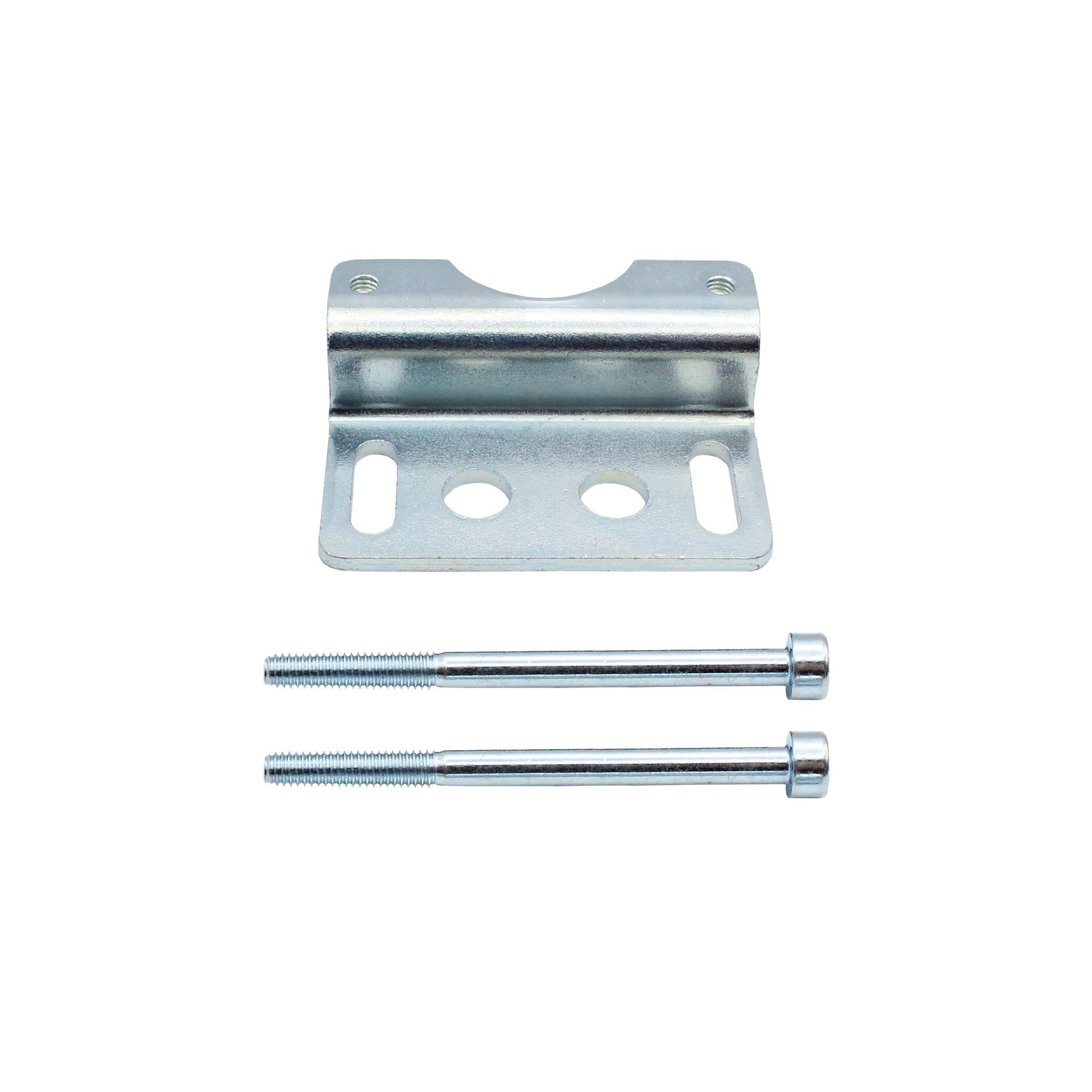

![[100441] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139875/image_128/%5B100441%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=bb48b09)
|
Type number: ZW 33 |
5.00 € | |

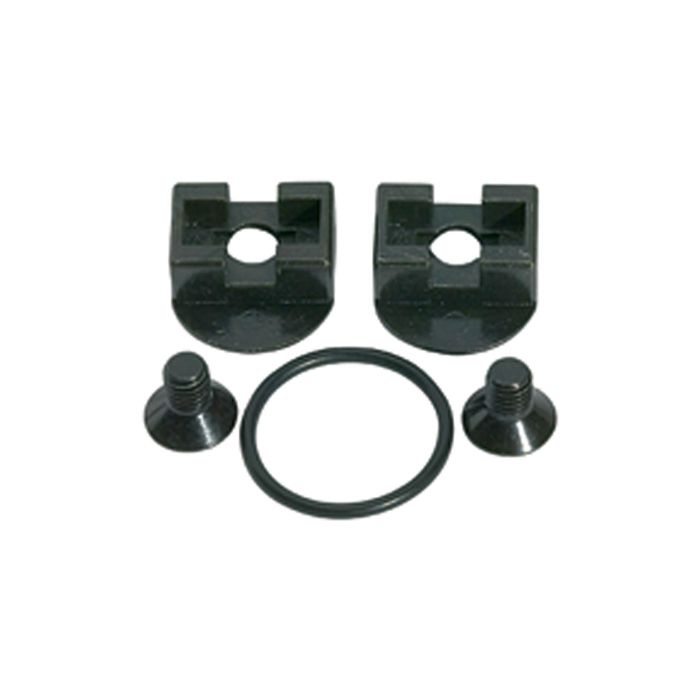

![[100442] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139876/image_128/%5B100442%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=455ebc1)
|
Type number: KP 33 |
2.01 € | |
![[100502] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139937/image_128/%5B100502%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=ba6afb4)
|
Type number: MS 33 FS |
34.69 € | |
![[100506] RIEGLER Protective cage, for »multifix«, Size 3 and Size 5](/web/image/product.template/139941/image_128/%5B100506%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%20and%20Size%205?unique=6674fee)
|
Type number: SK 33 |
10.91 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

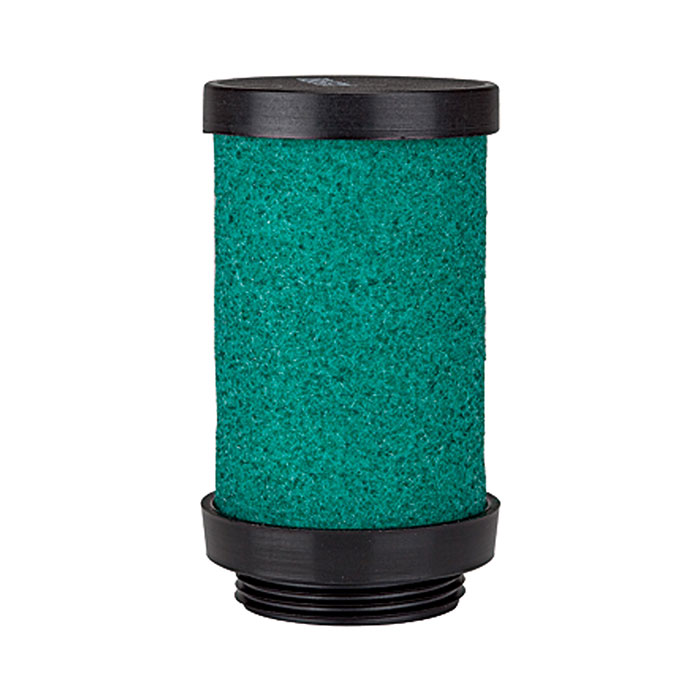

![[100546] RIEGLER Filter element 0.01 µm, Borosilicate-Aluminium, incl. O-ring](/web/image/product.template/139981/image_128/%5B100546%5D%20RIEGLER%20Filter%20element%200.01%20%C2%B5m%2C%20Borosilicate-Aluminium%2C%20incl.%20O-ring?unique=f910370)
|
Type number: M 38/60 |
58.83 € | |

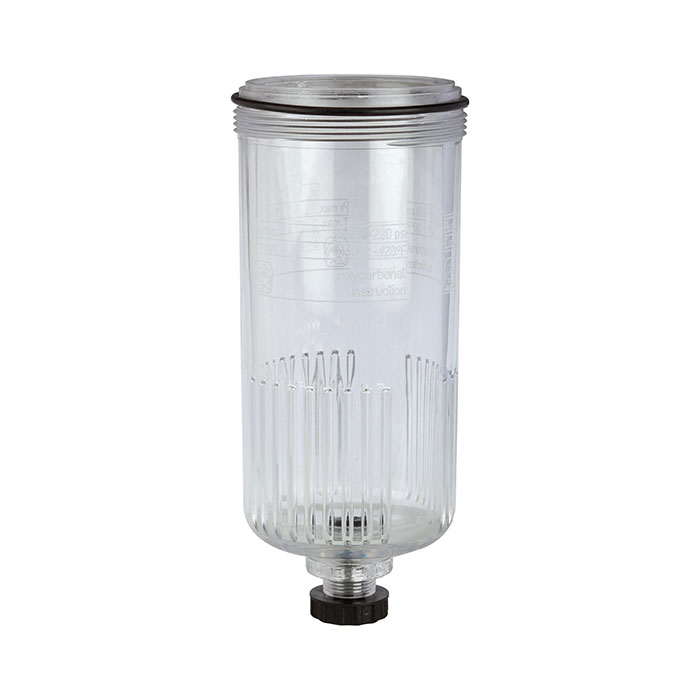

![[100504] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139939/image_128/%5B100504%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=fd18cfd)
|
