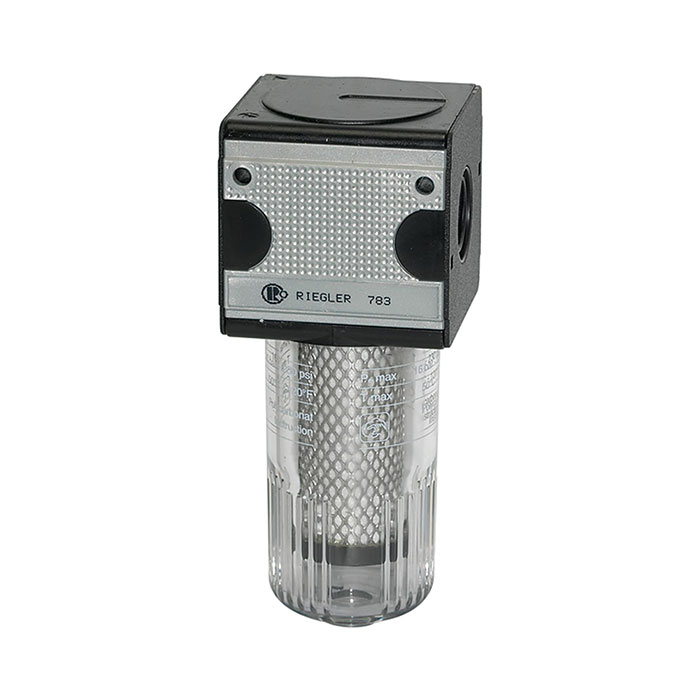

RIEGLER Active charcoal filter »multifix«, PC container, Size 1, G 1/4
Type number: FA 11 K
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Activated carbon filter "multifix" made of die-cast zinc, for compressed air treatment, G 1/4 - type FA 11 K
The RIEGLER activated carbon filter "multifix", with PC container, BG 1, G 1/4 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 380 l/min (at P1 = 6 bar and pressure drop Δp = 0.2 bar). Tank made of polycarbonate container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | multifix |
| Container | Polycarbonate container |
| Filter element | Activated carbon POM |
| Residual oil content | 0.005 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/4 |
| Flow rate | 380 l/min |
| DN | 6 |
| BG | 1 |
| A | 47.8 mm |
| B | 136.8 mm |
| C | 27 mm |
| D | 109.8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b-I |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100540] RIEGLER Active charcoal filter »multifix«, PC container, Size 3, G 1/2](/web/image/product.template/139975/image_128/%5B100540%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Size%203%2C%20G%201-2?unique=6fb4e96)
|
Type number: FA 33 K |
118.67 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

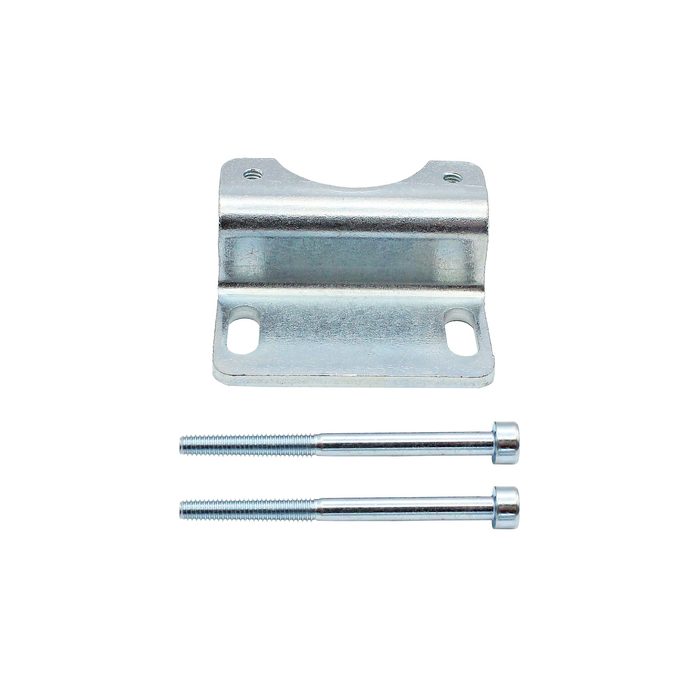

![[100435] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 1, G 1/4, G 3/8](/web/image/product.template/139869/image_128/%5B100435%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%20G%203-8?unique=454bf2b)
|
Type number: ZW 11 |
3.63 € | |

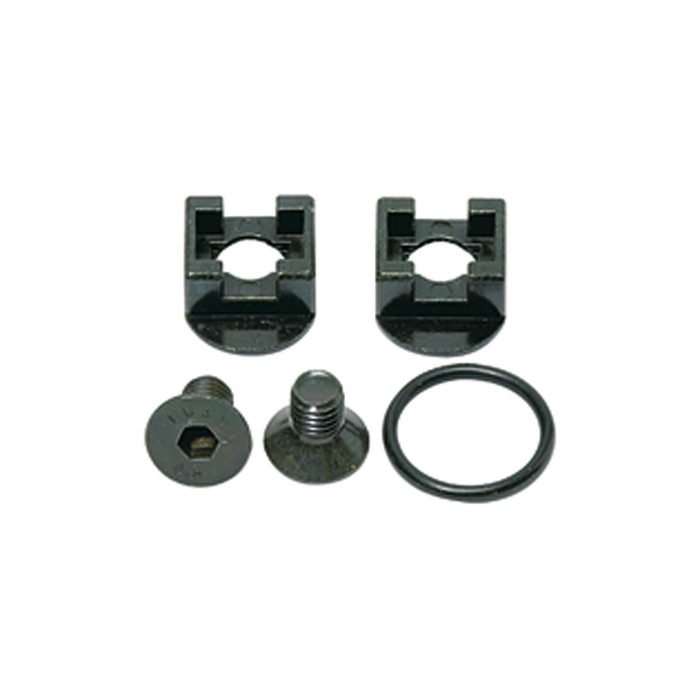

![[100436] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139870/image_128/%5B100436%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=bc0b68c)
|
Type number: KP 11 |
1.96 € | |

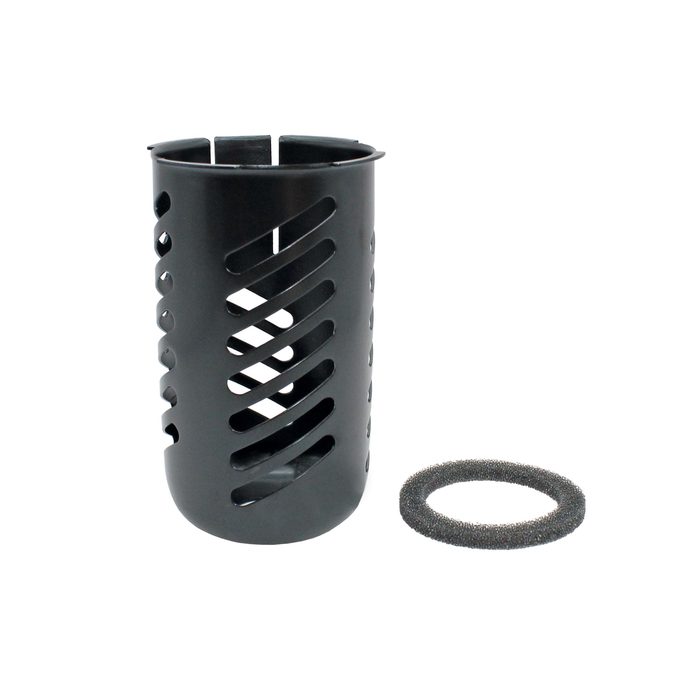

![[100501] RIEGLER Protective cage, for »multifix«, Size 1, G 1/4 and G 3/8](/web/image/product.template/139936/image_128/%5B100501%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=253bd70)
|
Type number: SK 11 |
9.51 € | |

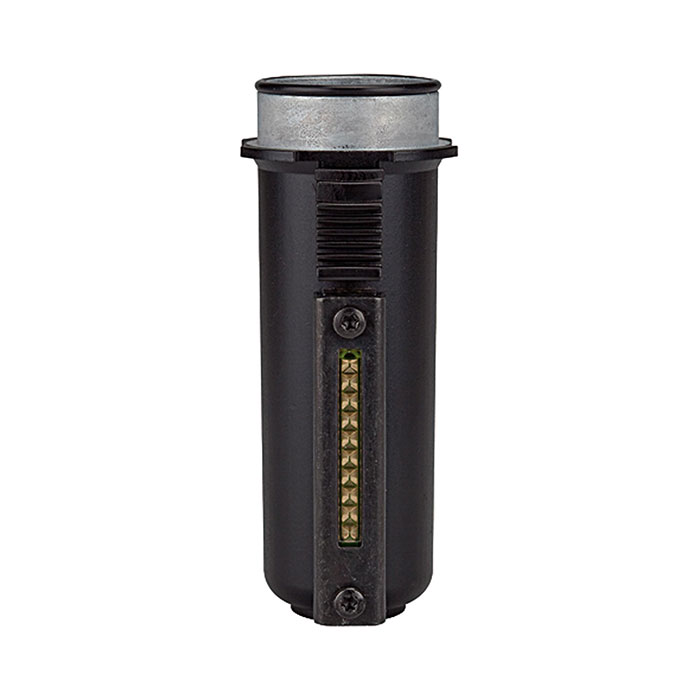

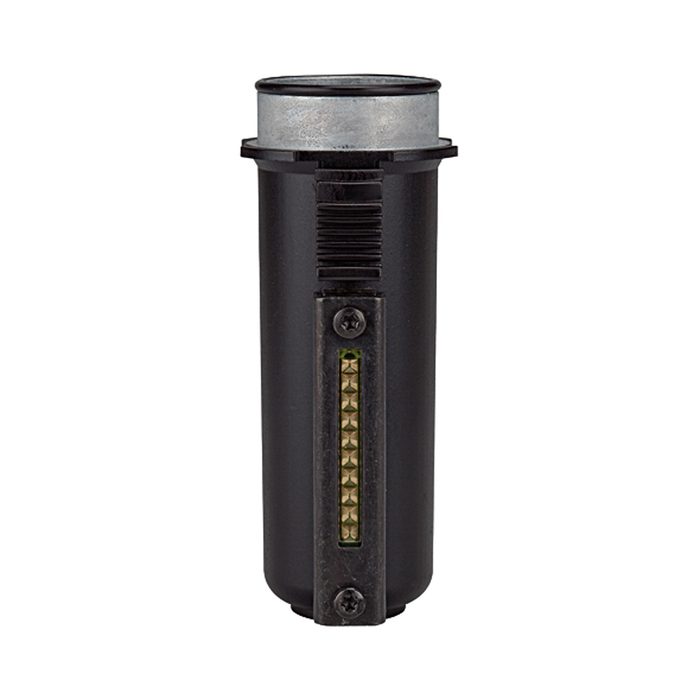

![[100547] RIEGLER Metal container with viewing tube, incl. O-ring, for »multifix«](/web/image/product.template/139982/image_128/%5B100547%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB?unique=6a32c63)
|
Type number: MS 11 NS |
26.10 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

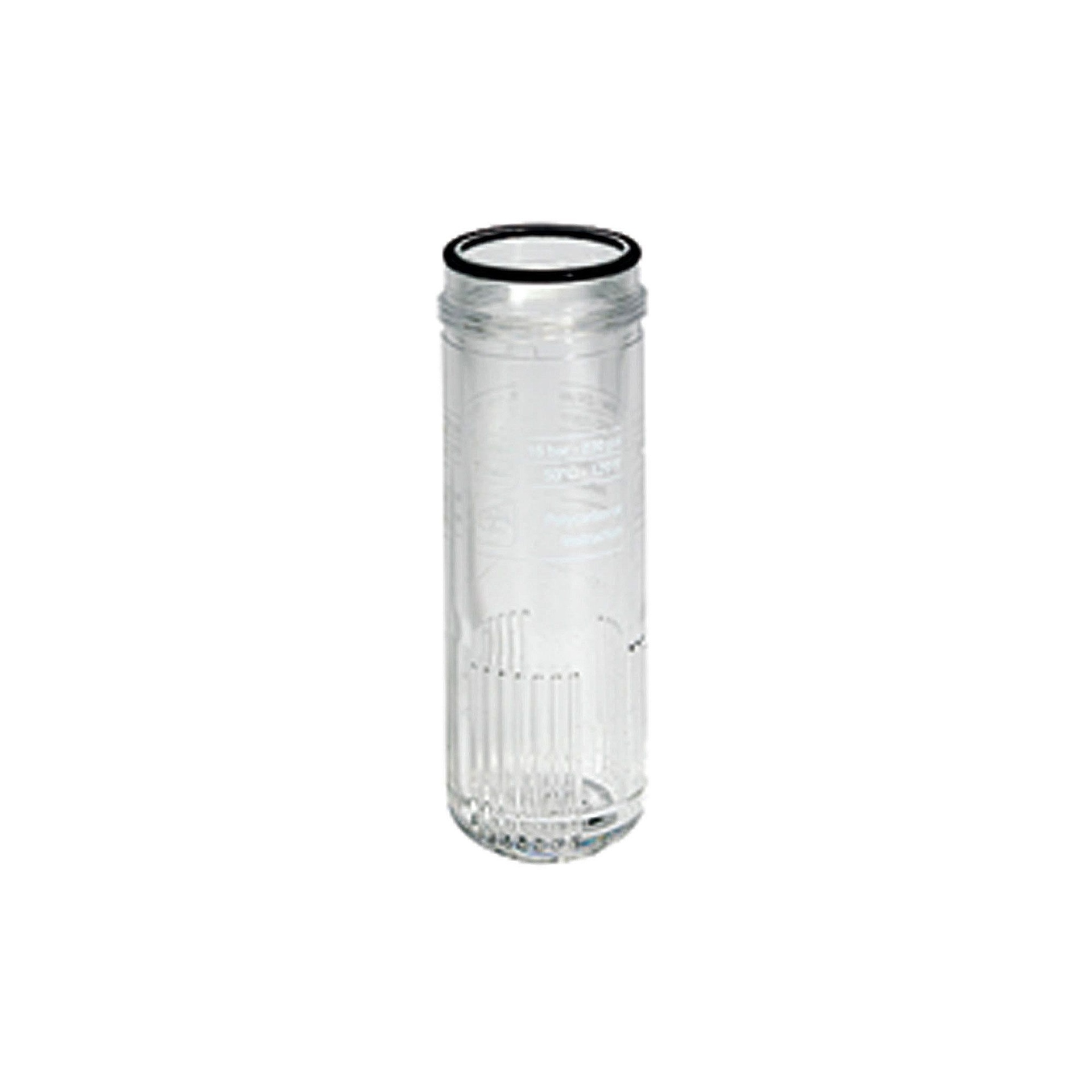

![[100385] RIEGLER Polycarbonate container incl. O-ring](/web/image/product.template/139819/image_128/%5B100385%5D%20RIEGLER%20Polycarbonate%20container%20incl.%20O-ring?unique=3bc6629)
|
Type number: KS 11 N |
7.22 € | |
