RIEGLER Active charcoal filter »multifix«, PC container, Size 3, G 1/2
Type number: FA 33 K
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Activated carbon filter "multifix" made of die-cast zinc, for compressed air treatment, G 1/2 - type FA 33 K
The RIEGLER activated carbon filter "multifix", with PC container, BG 3, G 1/2 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 1500 l/min (at P1 = 6 bar and pressure drop Δp = 0.2 bar). Tank made of polycarbonate container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | multifix |
| Container | Polycarbonate container |
| Filter element | Activated carbon POM |
| Residual oil content | 0.005 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/2 |
| Flow rate | 1500 l/min |
| DN | 15 |
| BG | 3 |
| A | 68.8 mm |
| B | 166.6 mm |
| C | 34.5 mm |
| D | 132.1 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100539] RIEGLER Active charcoal filter »multifix«, PC container, Size 1, G 1/4](/web/image/product.template/139974/image_128/%5B100539%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Size%201%2C%20G%201-4?unique=58a7ddd)
|
Type number: FA 11 K |
72.59 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

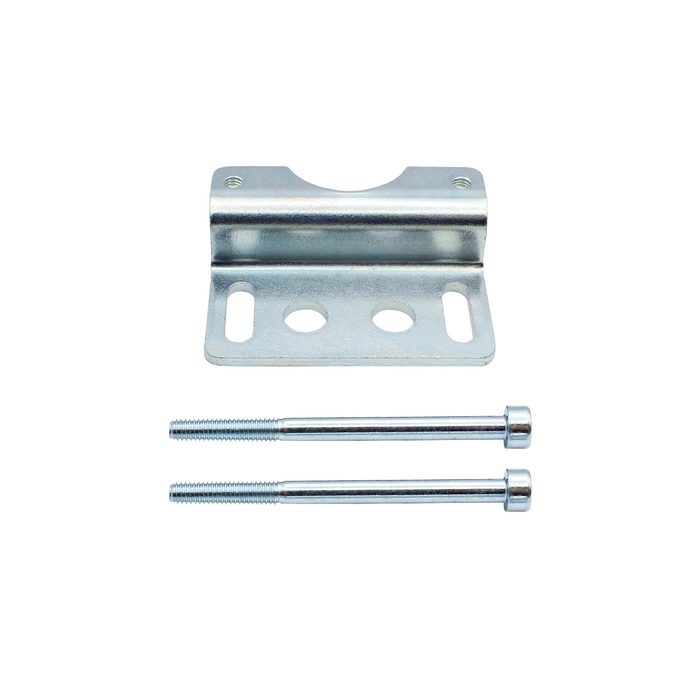

![[100441] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139875/image_128/%5B100441%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=bb48b09)
|
Type number: ZW 33 |
5.00 € | |

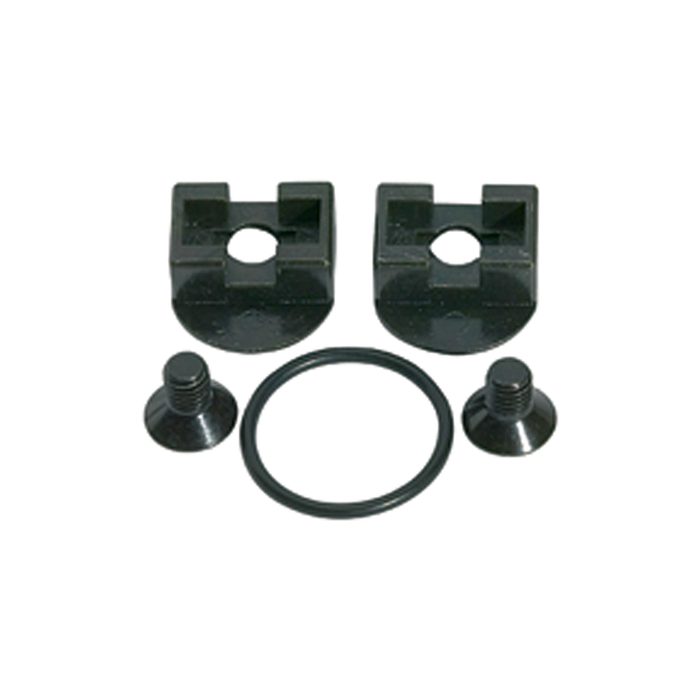

![[100442] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139876/image_128/%5B100442%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=455ebc1)
|
Type number: KP 33 |
2.01 € | |

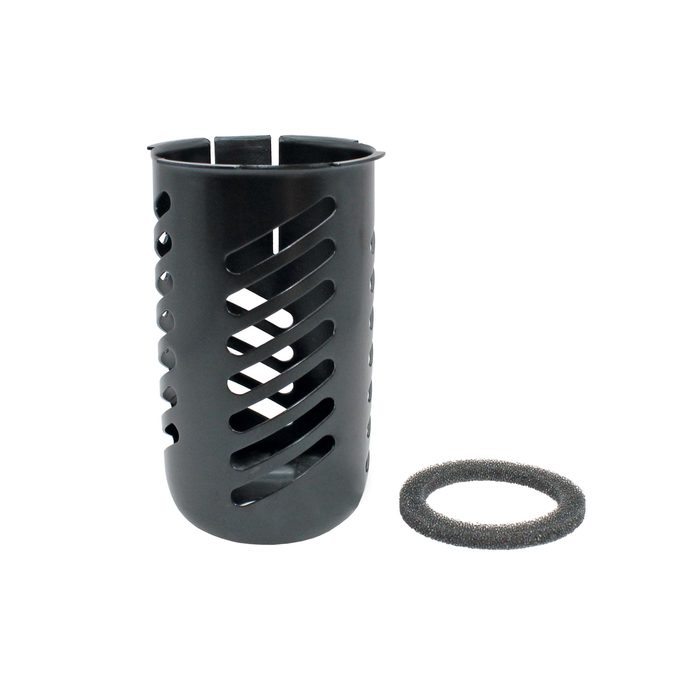

![[100506] RIEGLER Protective cage, for »multifix«, Size 3 and Size 5](/web/image/product.template/139941/image_128/%5B100506%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%20and%20Size%205?unique=6674fee)
|
Type number: SK 33 |
10.91 € | |

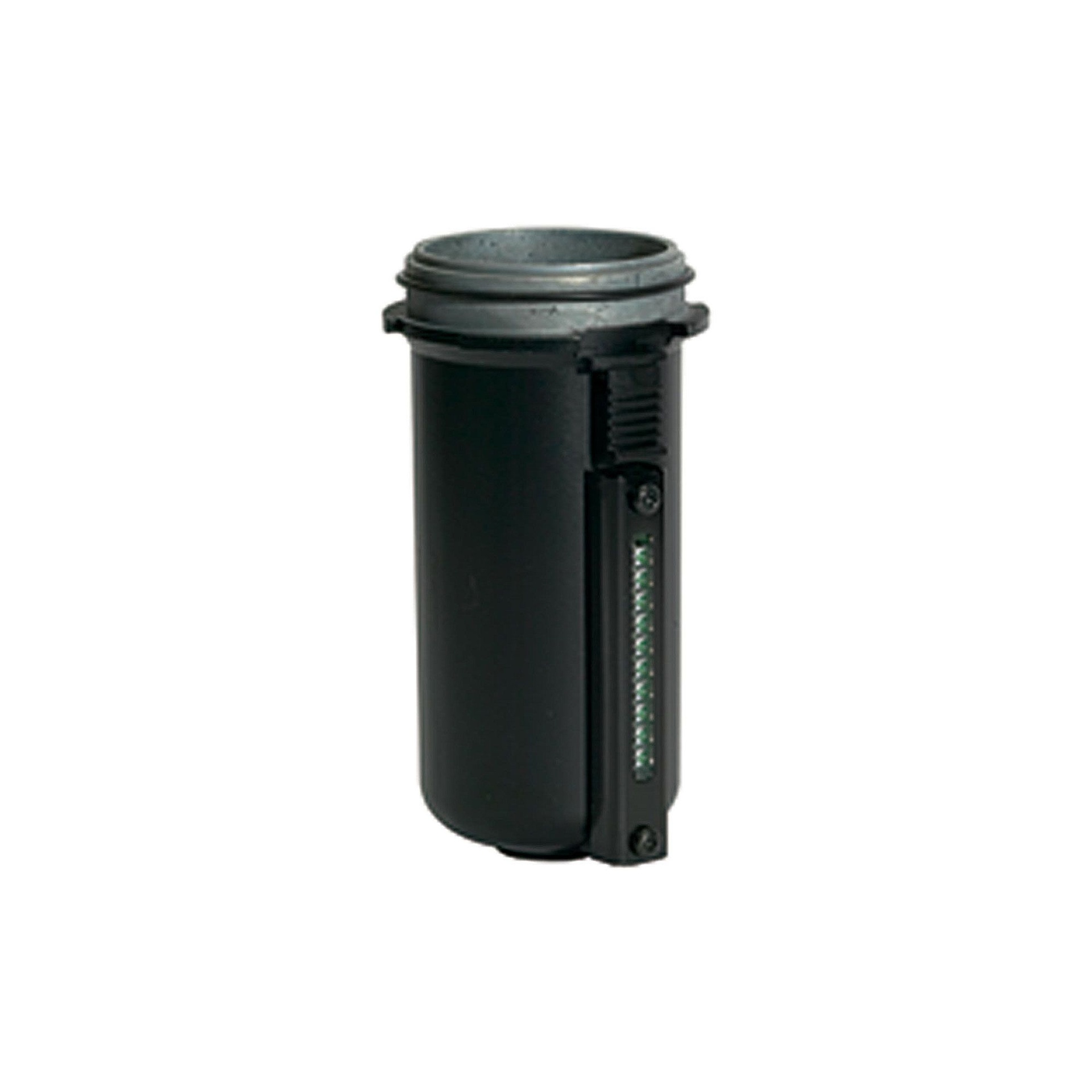

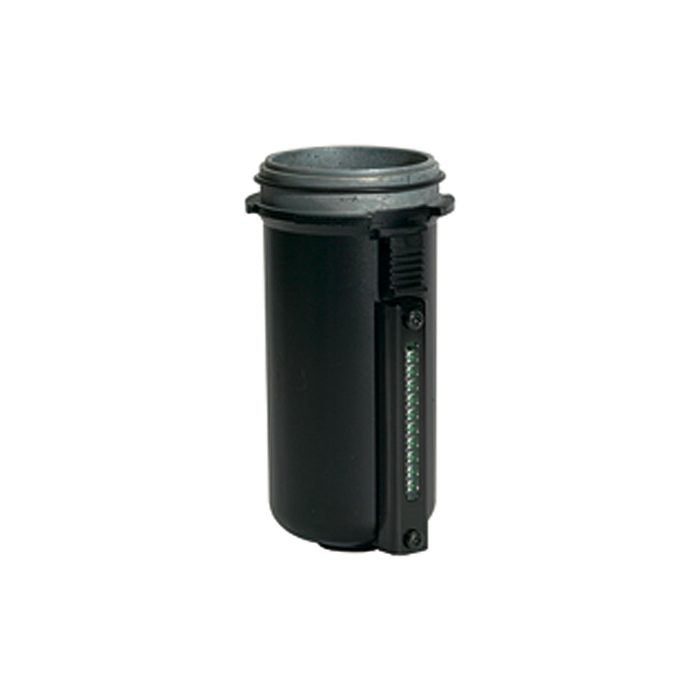

![[100549] RIEGLER Metal container with viewing tube, incl. O-ring, for »multifix«](/web/image/product.template/139984/image_128/%5B100549%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB?unique=8b77141)
|
Type number: MS 33 NS |
32.64 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

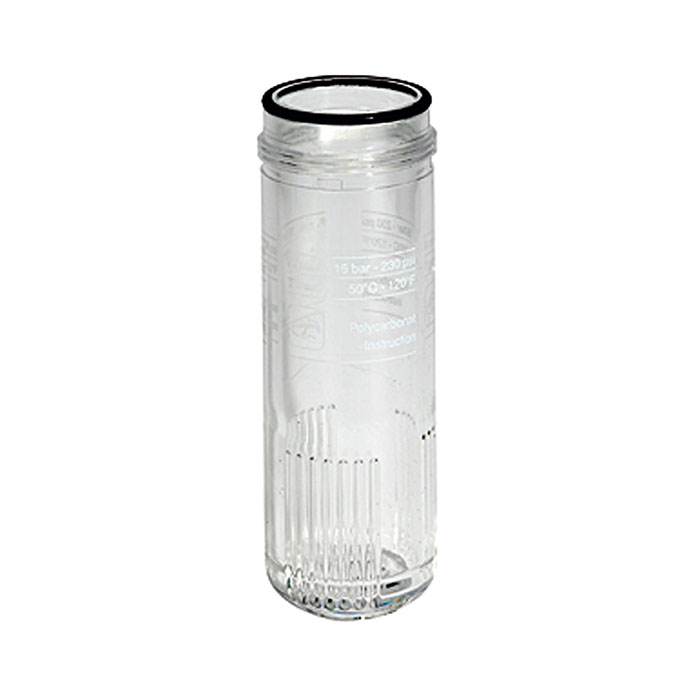

![[100548] RIEGLER Polycarbonate container, incl. O-ring, for »multifix«, Size 3+5](/web/image/product.template/139983/image_128/%5B100548%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%2B5?unique=1dfd592)
|
