RIEGLER Active charcoal filter »multifix«, Metal container, Size 3, G 1/2
Type number: FA 33 M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Activated carbon filter "multifix" with metal container, 0.005 mg/m³, BG 3, G 1/2, PE max. 20 bar, ambient medium temperature max. 60 °C
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | multifix |
| Container | Metal container |
| Filter element | Activated carbon POM |
| Residual oil content | 0.005 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/2 |
| Flow rate | 1500 l/min |
| DN | 15 |
| BG | 3 |
| A | 68.8 mm |
| B | 168.2 mm |
| C | 34.5 mm |
| D | 133.7 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

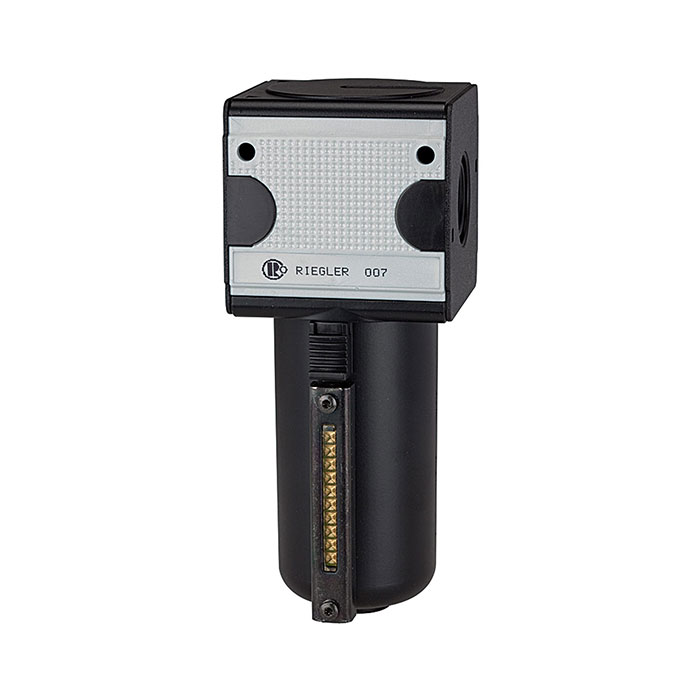

![[100543] RIEGLER Active charcoal filter »multifix«, Metal container, Size 1, G 1/4](/web/image/product.template/139978/image_128/%5B100543%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%201-4?unique=71936ef)
|
Type number: FA 11 M |
90.12 € | |

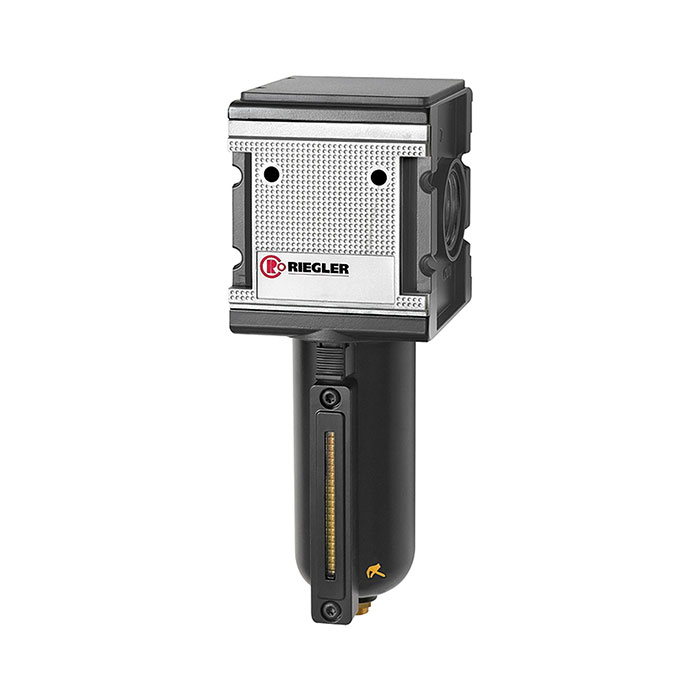

![[133152] RIEGLER Active charcoal filter »multifix«, Metal container, Size 4, G 1](/web/image/product.template/202802/image_128/%5B133152%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%201?unique=b56328f)
|
Type number: FA 45 M |
245.87 € | |
![[133151] RIEGLER Active charcoal filter »multifix«, Metal container, Size 4, G 3/4](/web/image/product.template/202801/image_128/%5B133151%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%203-4?unique=1903223)
|
Type number: FA 44 M |
245.87 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

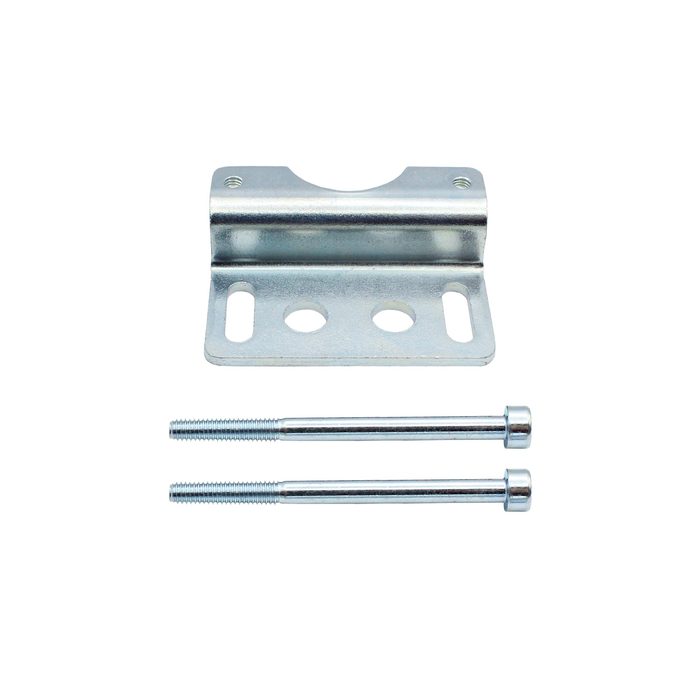

![[100441] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139875/image_128/%5B100441%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=ef67427)
|
Type number: ZW 33 |
5.00 € | |

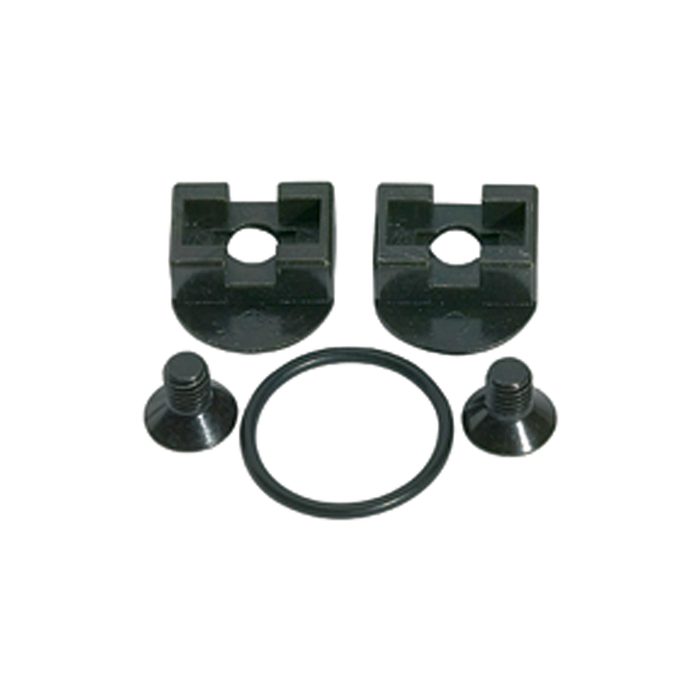

![[100442] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139876/image_128/%5B100442%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=d7d2b14)
|
Type number: KP 33 |
2.02 € | |

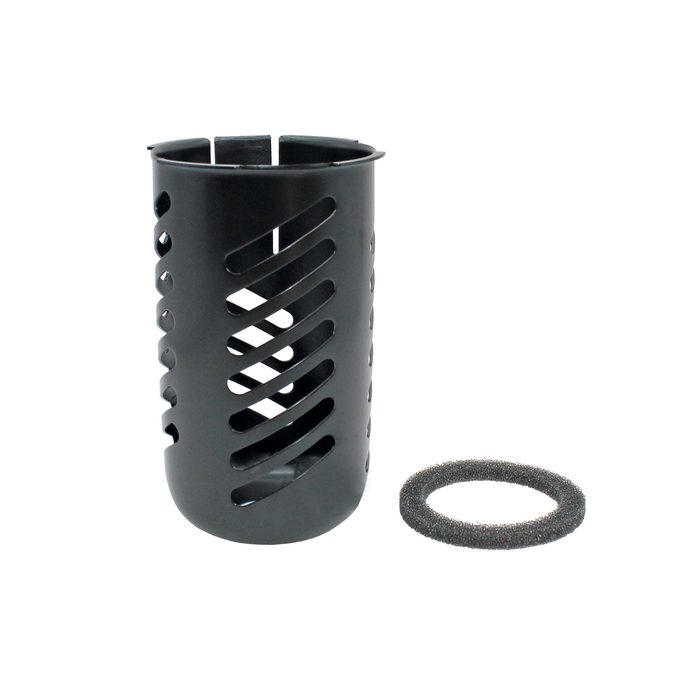

![[100506] RIEGLER Protective cage, for »multifix«, Size 3 and Size 5](/web/image/product.template/139941/image_128/%5B100506%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%20and%20Size%205?unique=4fbfb45)
|
Type number: SK 33 |
10.91 € | |

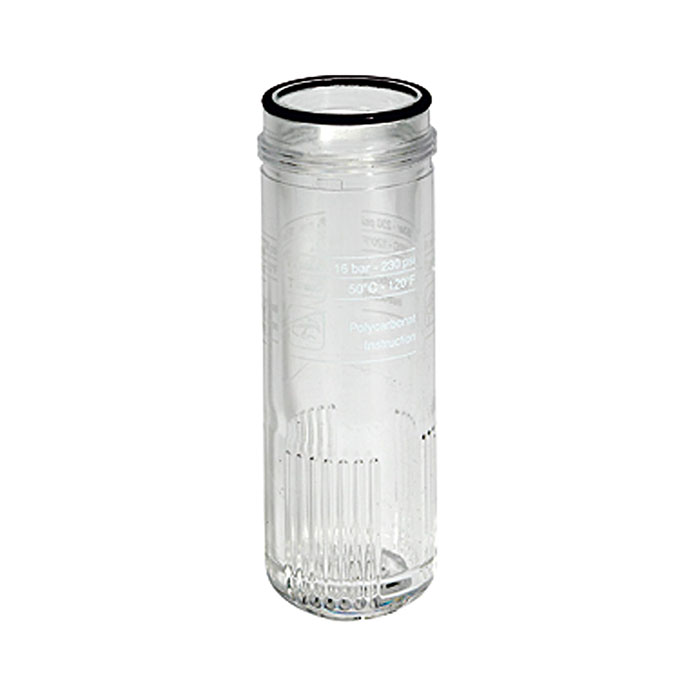

![[100548] RIEGLER Polycarbonate container, incl. O-ring, for »multifix«, Size 3+5](/web/image/product.template/139983/image_128/%5B100548%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%2B5?unique=0d7eeea)
|
Type number: KS 33 N |
12.30 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

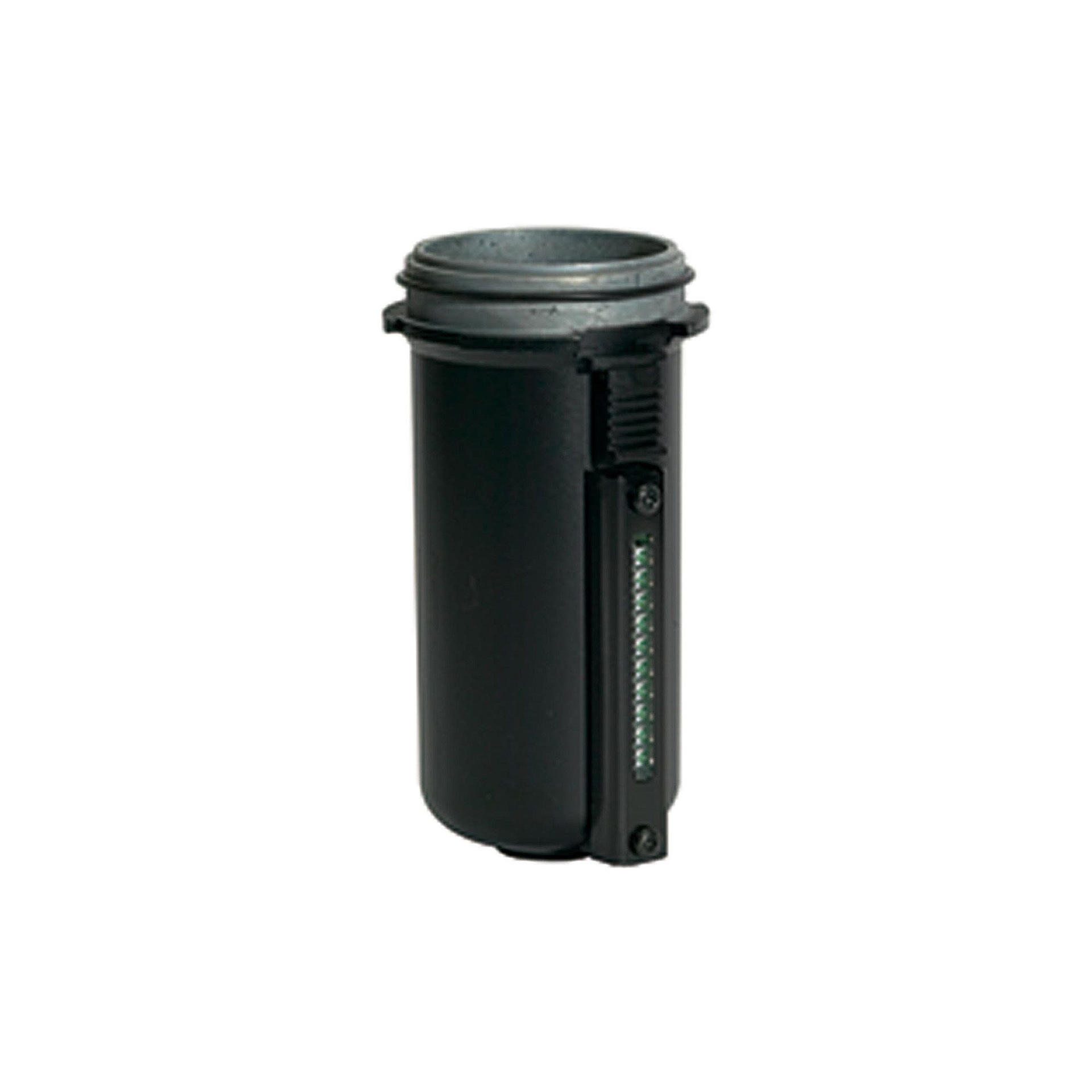

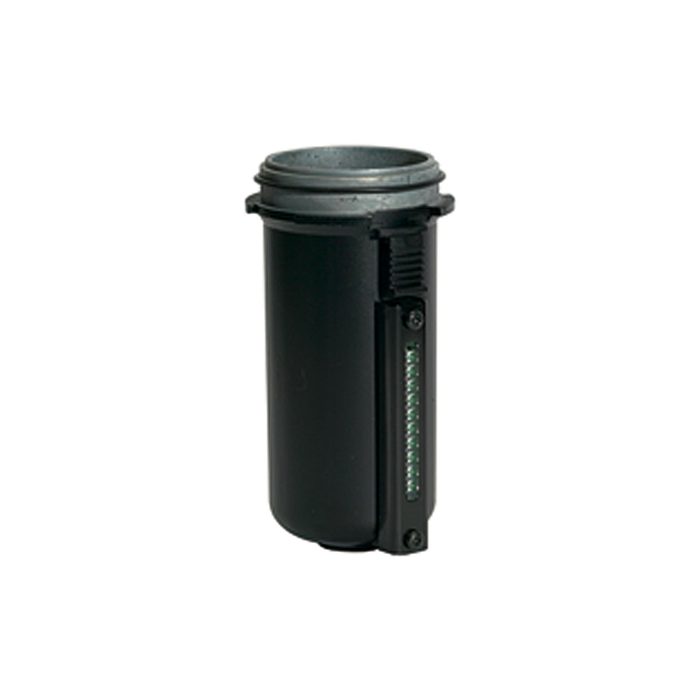

![[100549] RIEGLER Metal container with viewing tube, incl. O-ring, for »multifix«](/web/image/product.template/139984/image_128/%5B100549%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB?unique=ad93392)
|
Type number: MS 33 NS |
32.64 € | |
