RIEGLER Service station SAFETY »multifix«, Size 1, G 1/4
Type number: WS 1001
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

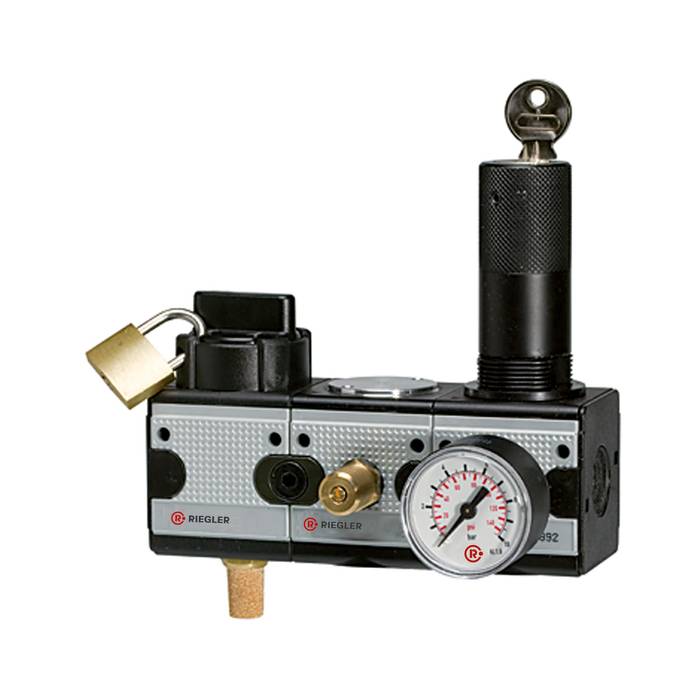

RIEGLER SAFETY "multifix" maintenance station made of die-cast zinc, for compressed air treatment - type WS 1001
The RIEGLER SAFETY "multifix" maintenance station, KH-AV-DR, BG1, G 1/4, 2-10 bar combines a compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast zinc with NBR seals. The control range extends from 2 bar to 10 bar with a maximum inlet pressure of 16 bar. The temperature range is between -10 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Suitable for compressed air. The flow rate is 1000 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure min. | 2 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Spring cover | POM |
| Thread | G 1/4 |
| Flow rate | 1000 l/min |
| Control range min. | 2 bar |
| Control range max. | 10 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 1 |
| A | 128 mm |
| B | 137.8 mm |
| C | 94 mm |
| Vent connection | Silencer (ball valve) |
| Theme shop | SAFETY |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100597] RIEGLER Service station SAFETY »multifix«, Size 3, G 1/2](/web/image/product.template/140032/image_128/%5B100597%5D%20RIEGLER%20Service%20station%20SAFETY%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2?unique=b4c9ac6)
|
Type number: WS 1002 |
236.05 € | |
![[100598] RIEGLER Service station SAFETY »multifix«, Size 5, G 1](/web/image/product.template/140033/image_128/%5B100598%5D%20RIEGLER%20Service%20station%20SAFETY%20%C2%BBmultifix%C2%AB%2C%20Size%205%2C%20G%201?unique=ea8c09a)
|
Type number: WS 1003 |
494.18 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

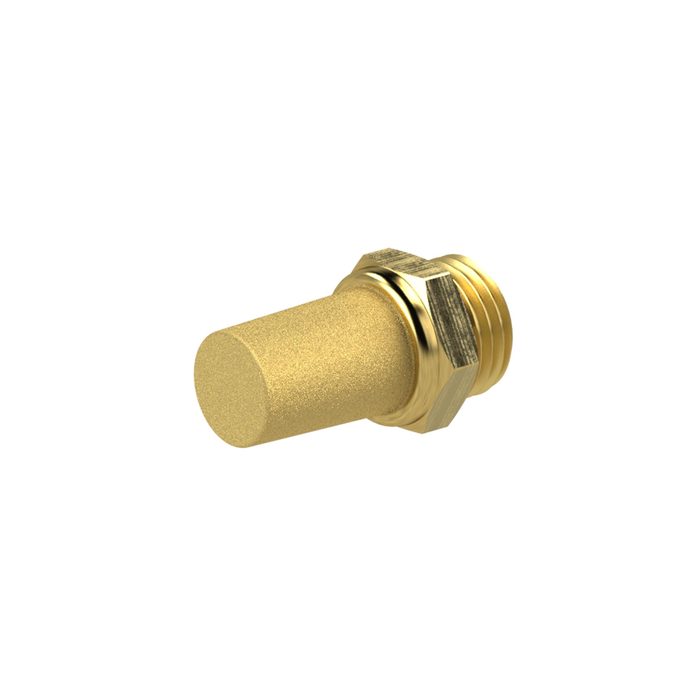

![[100290] RIEGLER Sintered bronze silencer, Brass thread / hexagonal, G 1/4, AF 15](/web/image/product.template/139725/image_128/%5B100290%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Brass%20thread%20-%20hexagonal%2C%20G%201-4%2C%20AF%2015?unique=de69b50)
|
Type number: 567-2/M |
3.13 € | |
![[100344] RIEGLER Mounting bracket with nut M30x1.5](/web/image/product.template/139778/image_128/%5B100344%5D%20RIEGLER%20Mounting%20bracket%20with%20nut%20M30x1.5?unique=44287a2)
|
Type number: MV 30 |
5.03 € | |
![[100345] RIEGLER Control panel nut M30x1.5, for »multifix-mini« and »multifix«](/web/image/product.template/139779/image_128/%5B100345%5D%20RIEGLER%20Control%20panel%20nut%20M30x1.5%2C%20for%20%C2%BBmultifix-mini%C2%AB%20and%20%C2%BBmultifix%C2%AB?unique=ec32dbb)
|
Type number: R 11-55 |
1.63 € | |

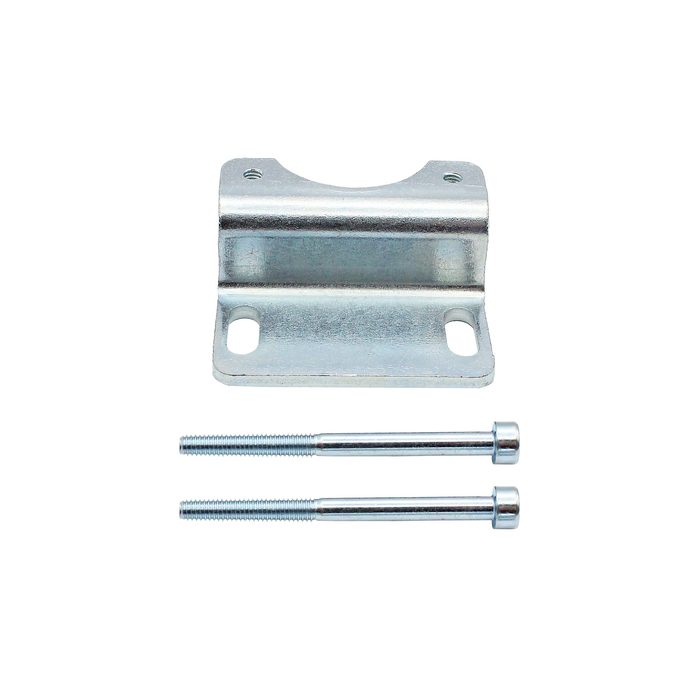

![[100435] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 1, G 1/4, G 3/8](/web/image/product.template/139869/image_128/%5B100435%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%20G%203-8?unique=425c0e3)
|
Type number: ZW 11 |
3.63 € | |

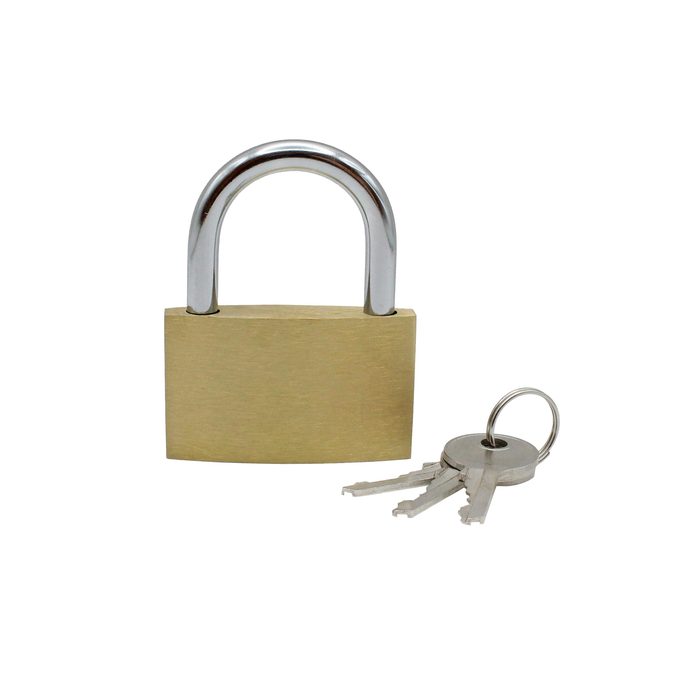

![[125520] RIEGLER Padlock brass 25 mm, shackle Ø 3.5 mm, incl. 3 keys](/web/image/product.template/281048/image_128/%5B125520%5D%20RIEGLER%20Padlock%20brass%2025%20mm%2C%20shackle%20%C3%98%203.5%20mm%2C%20incl.%203%20keys?unique=14bc8f3)
|
Type number: VS 36 |
5.84 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

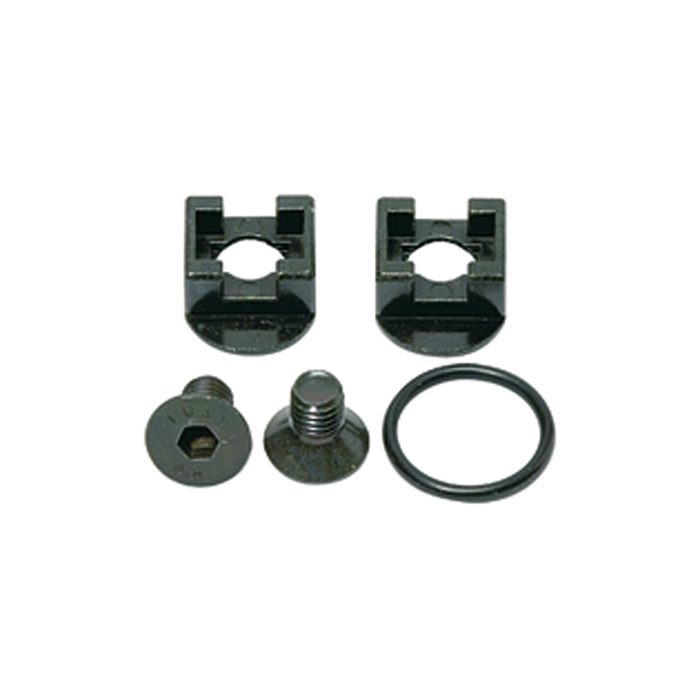

![[100436] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139870/image_128/%5B100436%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=5c851c1)
|
