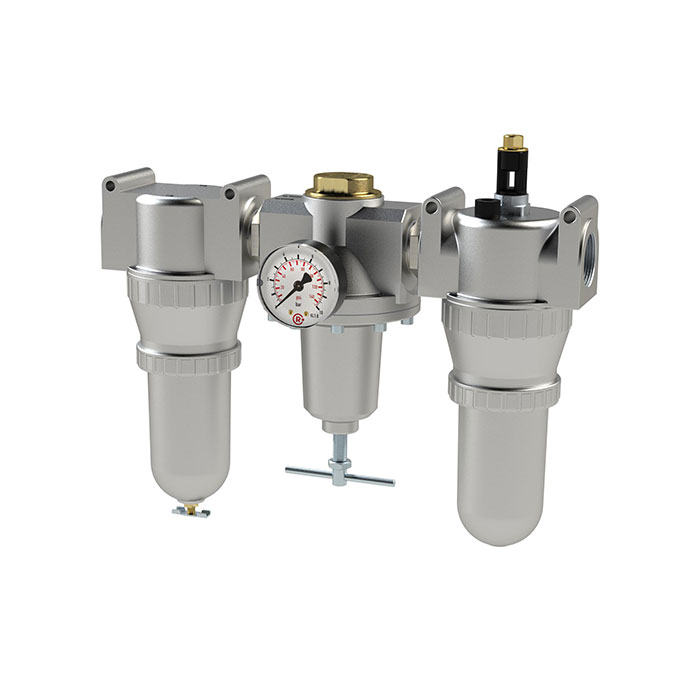

RIEGLER Service unit 3-part »Standard«, Metal container, Size 4, G 1 1/4
Type number: 850 F/M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-piece "Standard" maintenance unit made of die-cast zinc / aluminum, painted silver - Type 850 F/M
The RIEGLER maintenance unit 3-piece "Standard", metal container, BG 4, G 1 1/4 combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast zinc / aluminum, painted silver with NBR seals. The control range extends from 0.5 bar to 16 bar with a maximum inlet pressure of 25 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 1/4 - suitable for common industry standards. The flow rate is 5000 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, container made of metal container. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc / aluminum, painted silver |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Filter fineness | 40 µm |
| Dropper attachment | Zinc-glass-NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 1/4 |
| Flow rate | 5000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 16 bar |
| Condensate drain | manually |
| DN | 25 |
| Pressure gauge Ø | 63 mm |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 25 bar |
| BG | 4 |
| A | 395 mm |
| B | 316 mm |
| C | 70 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[129495] RIEGLER 3-piece "Standard" maintenance unit with metal container, BG 2, G 3/8](/web/image/product.template/267880/image_128/%5B129495%5D%20RIEGLER%203-piece%20%22Standard%22%20maintenance%20unit%20with%20metal%20container%2C%20BG%202%2C%20G%203-8?unique=07cad26)
|
Type number: 850 B/M.2 |
157.13 € | |
![[101080] RIEGLER Service unit 3-part »Standard«, Metal container, Size 1, G 1/4](/web/image/product.template/140516/image_128/%5B101080%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%201-4?unique=6938a5a)
|
Type number: 845 B/M |
119.82 € | |
![[101081] RIEGLER Service unit 3-part »Standard«, Metal container, Size 1, G 3/8](/web/image/product.template/140517/image_128/%5B101081%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%203-8?unique=60f3ab5)
|
Type number: 847 K/M |
119.82 € | |
![[101085] RIEGLER Service unit 3-part »Standard«, Metal container, Size 3, G 1](/web/image/product.template/140521/image_128/%5B101085%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%201?unique=f943520)
|
Type number: 850 E/M |
328.30 € | |
![[101083] RIEGLER Service unit 3-part »Standard«, Metal container, Size 3, G 1/2](/web/image/product.template/140519/image_128/%5B101083%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%201-2?unique=73ad8e1)
|
Type number: 850 C/M |
182.39 € | |

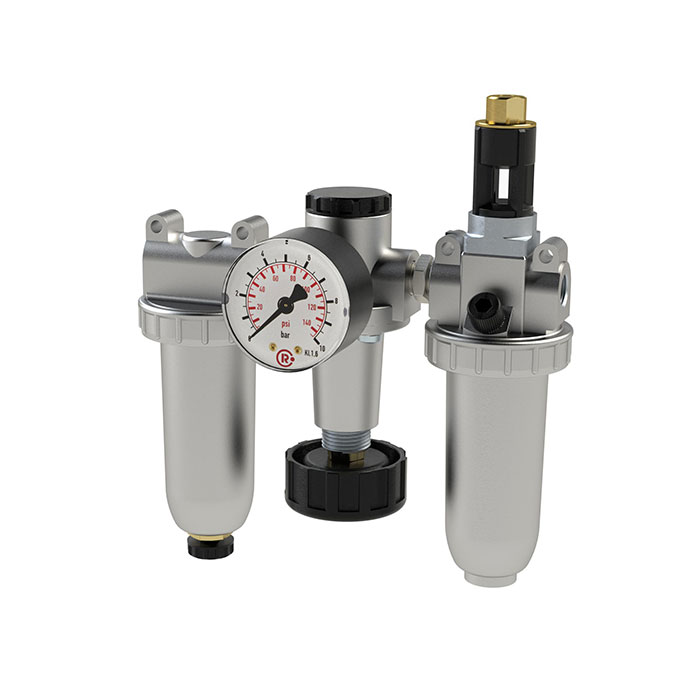

![[101084] RIEGLER Service unit 3-part »Standard«, Metal container, Size 3, G 3/4](/web/image/product.template/140520/image_128/%5B101084%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%203-4?unique=aadf138)
|
