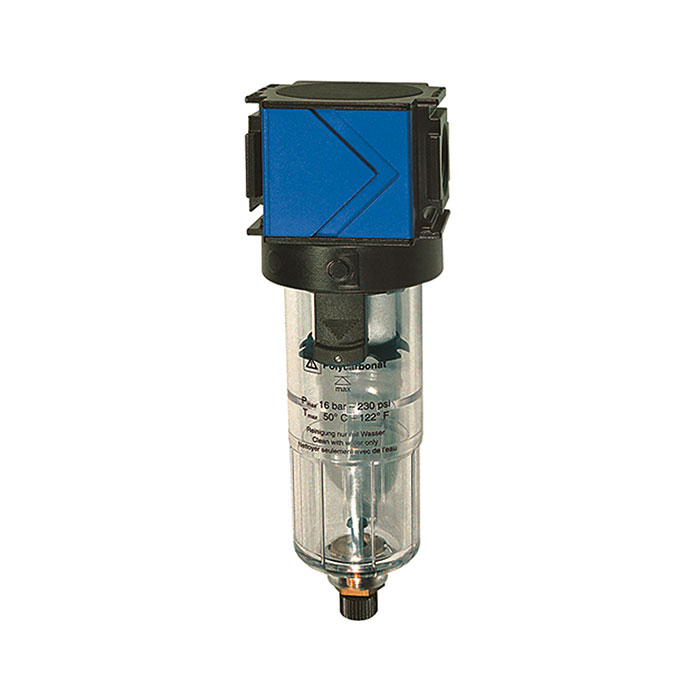

RIEGLER Filter »variobloc« with PC container, Size 2, G 1
Type number: VF 26
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter "variobloc" made of die-cast zinc, for compressed air treatment, G 1 - type VF 26
The RIEGLER "variobloc" filter, with polycarbonate container, BG 2, G 1 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 16 bar. Connection thread G 1 - suitable for common industry standards. The flow rate is 3500 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, polycarbonate container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Polycarbonate container |
| Filter fineness | 40 µm |
| Medium temperature max. | 50 °C |
| Ambient temperature max. | 50 °C |
| Thread | G 1 |
| Flow rate | 3500 l/min |
| Condensate drain | manually |
| BG | 2 |
| A | 124 mm |
| B | 202 mm |
| C | 26 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100678] RIEGLER Filter »variobloc« with PC container, Size 1, G 1/4](/web/image/product.template/140113/image_128/%5B100678%5D%20RIEGLER%20Filter%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%201-4?unique=23064b7)
|
Type number: VF 22 |
45.22 € | |
![[100679] RIEGLER Filter »variobloc« with PC container, Size 1, G 3/8](/web/image/product.template/140114/image_128/%5B100679%5D%20RIEGLER%20Filter%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%203-8?unique=23064b7)
|
Type number: VF 23 |
33.93 € | |
![[100680] RIEGLER Filter »variobloc« with PC container, Size 2, G 1/2](/web/image/product.template/140115/image_128/%5B100680%5D%20RIEGLER%20Filter%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%202%2C%20G%201-2?unique=23064b7)
|
Type number: VF 24 |
54.26 € | |
![[100681] RIEGLER Filter »variobloc« with PC container, Size 2, G 3/4](/web/image/product.template/140116/image_128/%5B100681%5D%20RIEGLER%20Filter%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%202%2C%20G%203-4?unique=23064b7)
|
Type number: VF 25 |
54.26 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100665] RIEGLER PC container, Automatic bleeder valve (integrated design)](/web/image/product.template/140100/image_128/%5B100665%5D%20RIEGLER%20PC%20container%2C%20Automatic%20bleeder%20valve%20%28integrated%20design%29?unique=a3b5b5d)
|
Type number: VZ 512 |
45.41 € | |
![[100667] RIEGLER Protective cage, for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140102/image_128/%5B100667%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=78fbe75)
|
Type number: VZ 532 |
18.14 € | |
![[100669] RIEGLER Metal container incl. viewing tube, for »variobloc«, Size 2](/web/image/product.template/140104/image_128/%5B100669%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=9b2682b)
|
Type number: VZ 552 |
55.97 € | |

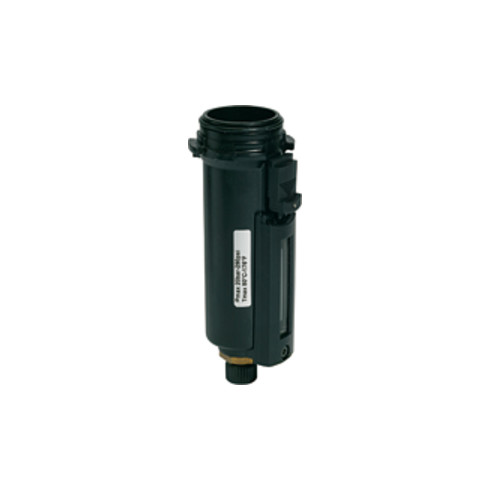

![[100671] RIEGLER Metal container incl. viewing tube, Automatic bleeder valve](/web/image/product.template/140106/image_128/%5B100671%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20Automatic%20bleeder%20valve?unique=7d744b2)
|
Type number: VZ 562 |
78.12 € | |

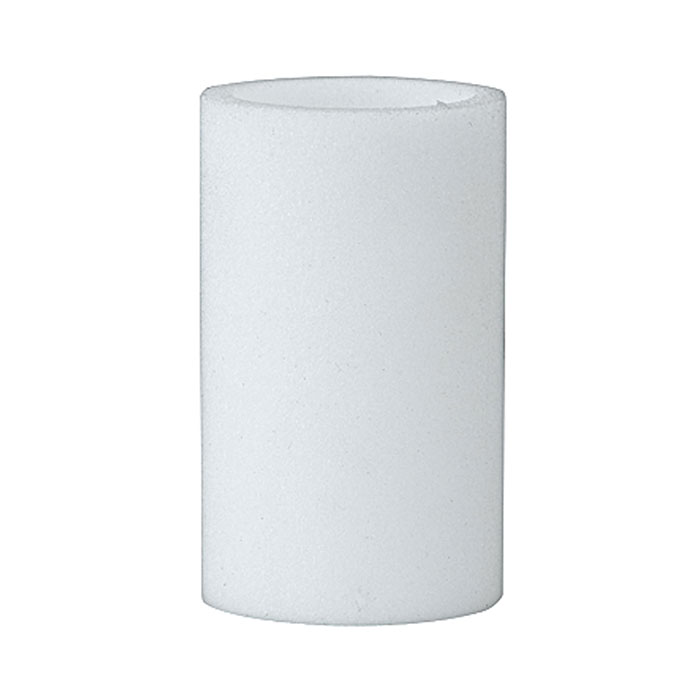

![[100675] RIEGLER Filter element 5 µm, PE sintered](/web/image/product.template/140110/image_128/%5B100675%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20PE%20sintered?unique=d593c11)
|
Type number: VZ 742/5 |
10.39 € | |
![[100676] RIEGLER Semi automated bleeder valve](/web/image/product.template/140111/image_128/%5B100676%5D%20RIEGLER%20Semi%20automated%20bleeder%20valve?unique=dcf29f9)
|
Type number: VZ 751 |
9.47 € | |
![[100677] RIEGLER Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1](/web/image/product.template/140112/image_128/%5B100677%5D%20RIEGLER%20Fully%20automated%20bleeder%20valve%20incl.%20adapter%20G%201-8%20i.%20x%20M14x1?unique=a964118)
|
Type number: 65/0-N |
69.63 € | |
![[100749] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 2](/web/image/product.template/140185/image_128/%5B100749%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=676cb8d)
|
Type number: VZ 719 |
13.77 € | |
![[100753] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 3/4 and G 1](/web/image/product.template/140189/image_128/%5B100753%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=93c00a8)
|
Type number: VZ 104 |
13.99 € | |
![[100757] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 2](/web/image/product.template/140193/image_128/%5B100757%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=3488e8b)
|
Type number: VZ 204 |
23.10 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100762] RIEGLER Connection plate set to upgrade equipment from G 3/4 to G 1](/web/image/product.template/140198/image_128/%5B100762%5D%20RIEGLER%20Connection%20plate%20set%20to%20upgrade%20equipment%20from%20G%203-4%20to%20G%201?unique=5fa0240)
|
Type number: VZ 500 |
29.85 € | |
![[100673] RIEGLER Filter element 40 µm, PE sintered](/web/image/product.template/140108/image_128/%5B100673%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20PE%20sintered?unique=7fcae44)
|
Type number: VZ 742 |
5.24 € | |
![[100663] RIEGLER Polycarbonate container with manual bleeder valve](/web/image/product.template/140098/image_128/%5B100663%5D%20RIEGLER%20Polycarbonate%20container%20with%20manual%20bleeder%20valve?unique=9e1cc0d)
|
Type number: VZ 502 |
18.60 € | |
