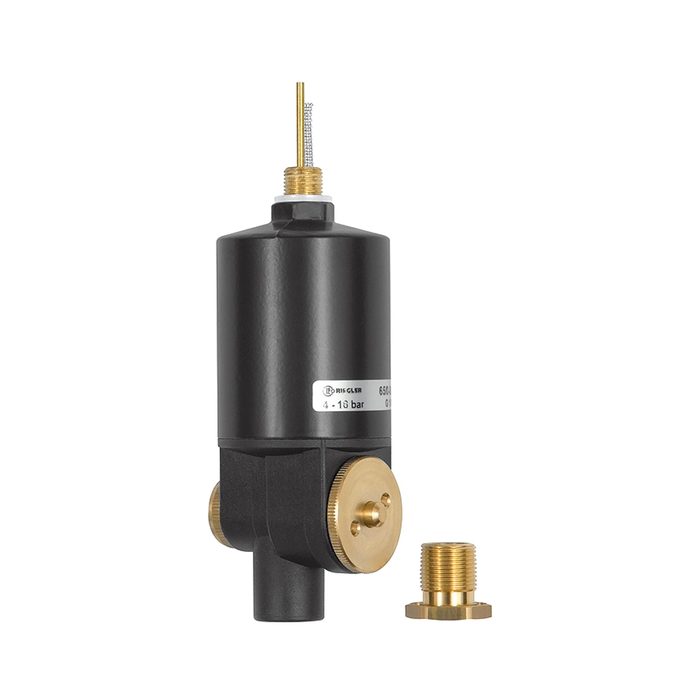

RIEGLER Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1
Type number: 65/0-N
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Fully automatic drain valve made of plastic (PA), for compressed air treatment, max. 12 bar - Type 65/0-N
The RIEGLER fully automatic drain valve incl. adapter G 1/8 i. x M14x1 is a high-quality accessory from the RIEGLER range. The housing is made of plastic (PA). The operating pressure range is 4 bar to 12 bar. The operating temperature is between 0 °C and 90 °C. Suitable for condensate (emulsion). Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Medium | Condensate (emulsion) |
| Housing | Plastic (PA) |
| Operating pressure min. | 4 bar |
| Max. operating pressure | 12 bar |
| Container connection | G 1/8 external |
| Thread drain side | G 1/4 inside |
| Installation position | Filter container mounted €" vertical ± 10% |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 90 °C |
| Bonnet | Brass |
| DN | 4 |
| A | 46.5 mm |
| B | 109 mm |
| C | 83 mm |
| D | 26 mm |
| Description of the | Fully automatic drain valve |
