RIEGLER Microfilter »variobloc« with PC container, 0.01 µm, Size 1, G 1/4
Type number: VM 22
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Microfilter »variobloc« with PC container, 0.01 µm, Size 1, G 1/4, Input pressure max. 16 bar, Medium / ambient temp. max. 50 °C
| Inlet pressure max. | 16 bar |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Series | variobloc |
| Container | Polycarbonate container |
| Filter fineness | 0.01 µm |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 50 °C |
| Efficiency | 999.99 |
| Air quality according to ISO 8573.1 | Class 1 dirt, class 1 oil |
| Thread | G 1/4 |
| Flow rate | 370 l/min |
| BG | 1 |
| A | 48 mm |
| B | 155 mm |
| C | 22 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100684] RIEGLER Microfilter »variobloc« with PC container, 0.01 µm, Size 1, G 3/8](/web/image/product.template/140119/image_128/%5B100684%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=376aa5f)
|
Type number: VM 23 |
91.04 € | |
![[100687] RIEGLER Microfilter »variobloc« with PC container, 0.01 µm, Size 2, G 1](/web/image/product.template/140122/image_128/%5B100687%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%201?unique=150876c)
|
Type number: VM 26 |
166.79 € | |
![[100685] RIEGLER Microfilter »variobloc« with PC container, 0.01 µm, Size 2, G 1/2](/web/image/product.template/140120/image_128/%5B100685%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%201-2?unique=ab3ec67)
|
Type number: VM 24 |
131.57 € | |
![[100686] RIEGLER Microfilter »variobloc« with PC container, 0.01 µm, Size 2, G 3/4](/web/image/product.template/140121/image_128/%5B100686%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%203-4?unique=150876c)
|
Type number: VM 25 |
78.94 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100666] RIEGLER Protective cage, for »variobloc«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140101/image_128/%5B100666%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=b0f5820)
|
Type number: VZ 531 |
14.48 € | |
![[100668] RIEGLER Metal container incl. viewing tube, for »variobloc«, Size 1](/web/image/product.template/140103/image_128/%5B100668%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=60eb231)
|
Type number: VZ 551 |
43.61 € | |

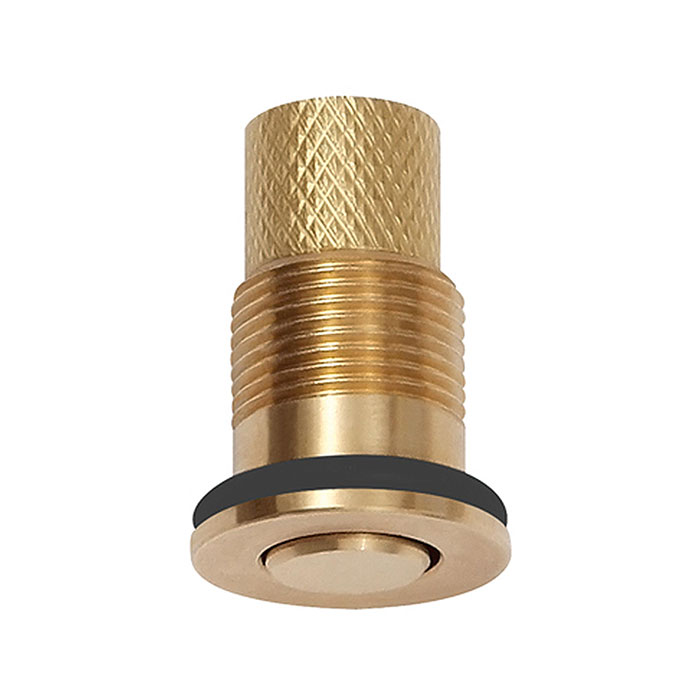

![[100676] RIEGLER Semi automated bleeder valve](/web/image/product.template/140111/image_128/%5B100676%5D%20RIEGLER%20Semi%20automated%20bleeder%20valve?unique=1f333cf)
|
Type number: VZ 751 |
9.63 € | |

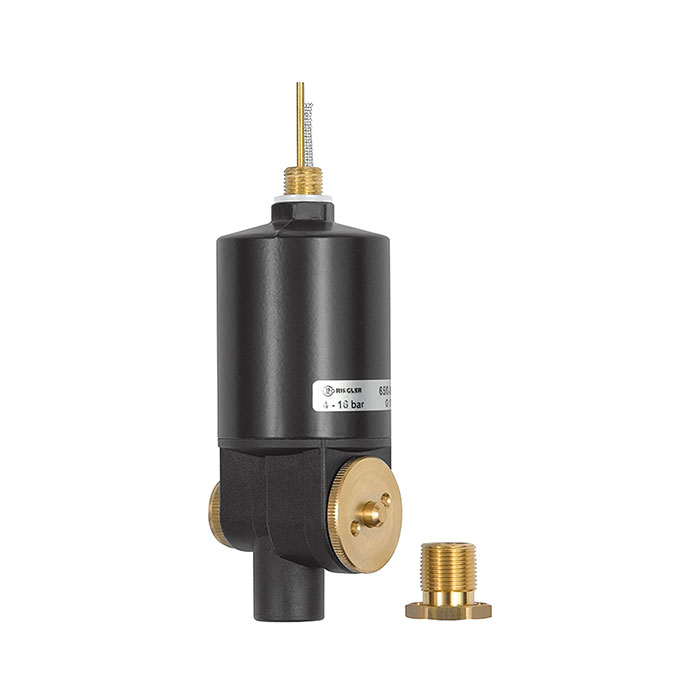

![[100677] RIEGLER Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1](/web/image/product.template/140112/image_128/%5B100677%5D%20RIEGLER%20Fully%20automated%20bleeder%20valve%20incl.%20adapter%20G%201-8%20i.%20x%20M14x1?unique=7ecb4ee)
|
Type number: 65/0-N |
70.29 € | |
![[100748] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 1](/web/image/product.template/140184/image_128/%5B100748%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=15e14d5)
|
Type number: VZ 718 |
9.32 € | |
![[100750] RIEGLER Compact connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140186/image_128/%5B100750%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=7c96132)
|
Type number: VZ 101 |
9.31 € | |
![[100754] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 1, G 1/4](/web/image/product.template/140190/image_128/%5B100754%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=0788327)
|
Type number: VZ 201 |
9.52 € | |

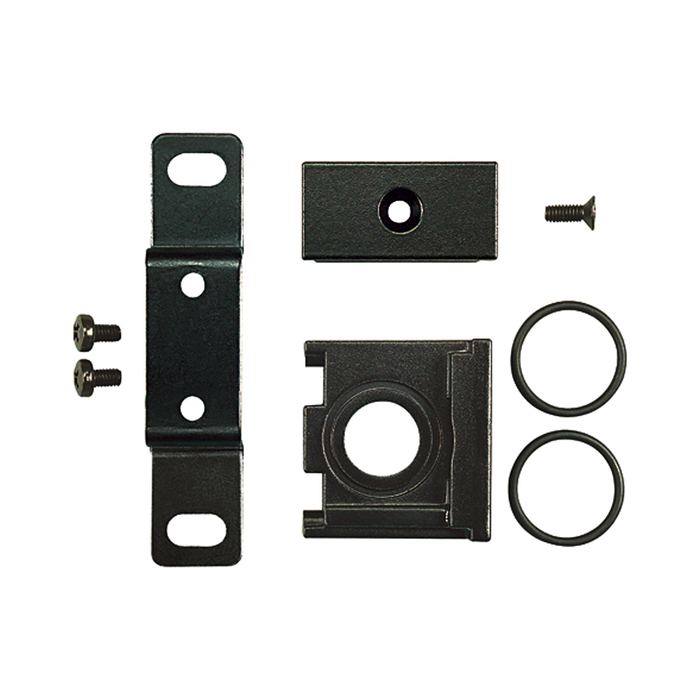

![[100760] RIEGLER Comfort connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140196/image_128/%5B100760%5D%20RIEGLER%20Comfort%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=d3b5c4d)
|
Type number: VZ 401 |
27.87 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

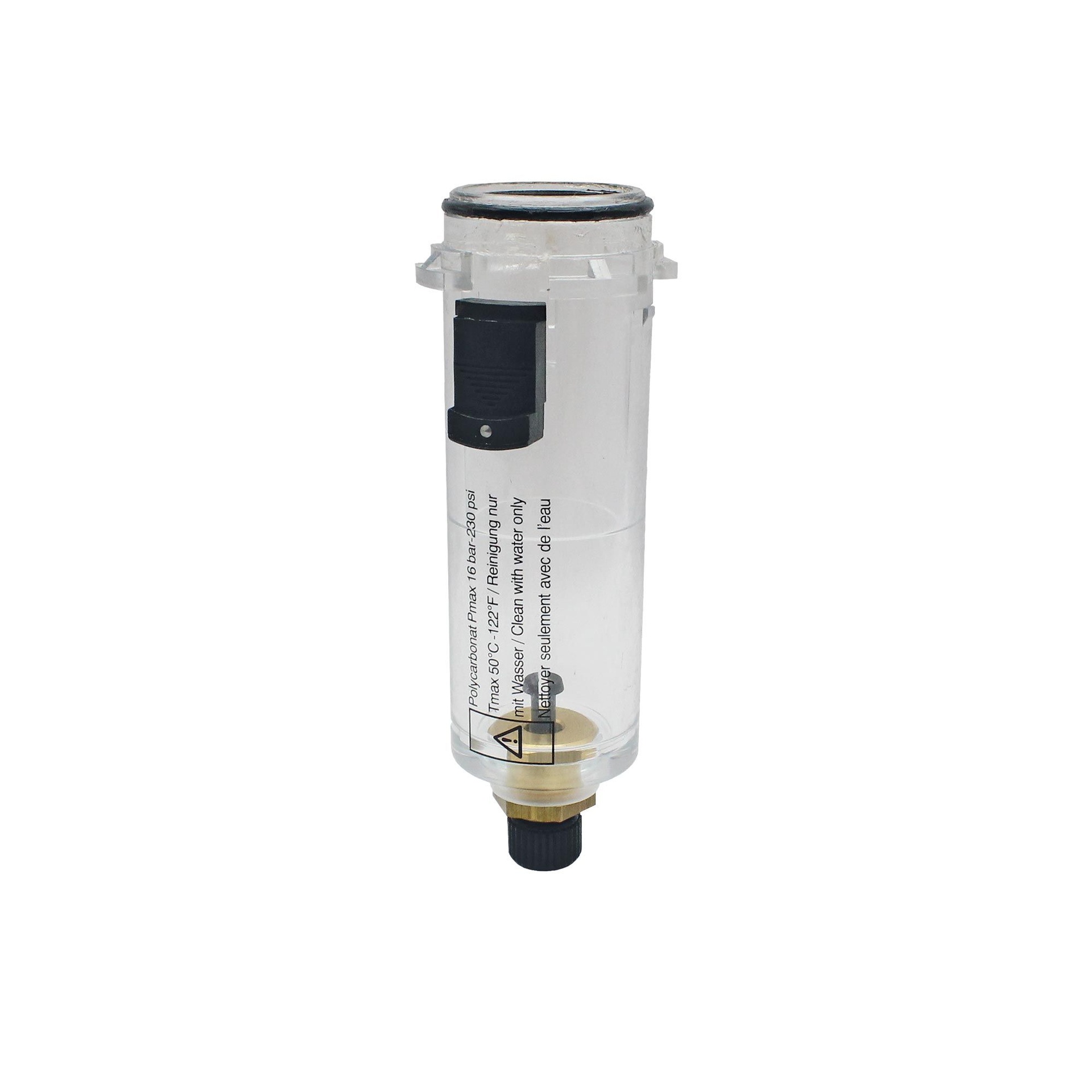

![[100688] RIEGLER Polycarbonate container with manual bleeder valve](/web/image/product.template/140123/image_128/%5B100688%5D%20RIEGLER%20Polycarbonate%20container%20with%20manual%20bleeder%20valve?unique=dbbd908)
|
Type number: VZ 521 |
13.76 € | |
