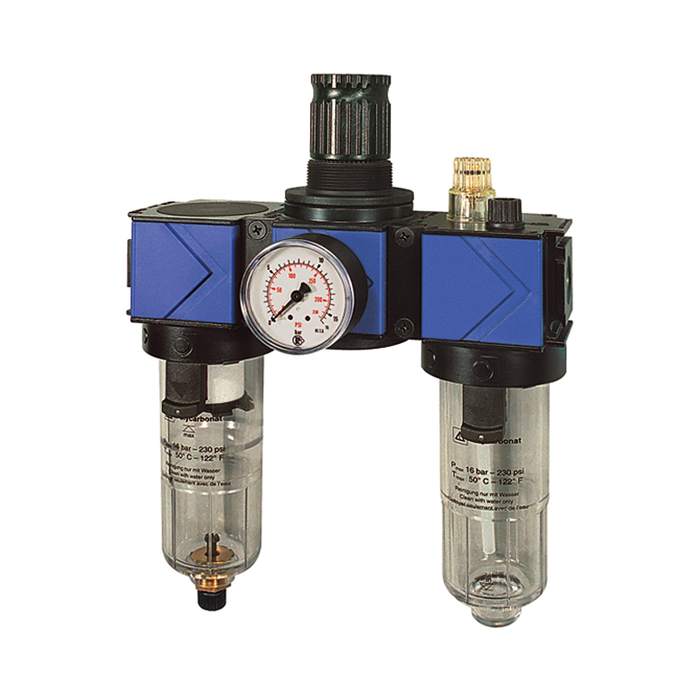

RIEGLER Service unit 3-part »variobloc« with PC container, Size 2, G 1
Type number: VW 16
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-piece "variobloc" maintenance unit made of die-cast zinc, for compressed air preparation - type VW 16
The RIEGLER maintenance unit 3-piece "variobloc", with PC container, BG 2, G 1 combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. Connection thread G 1 - suitable for common industry standards. The flow rate is 5000 l/min (at P1 = 10 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, tank made of polycarbonate container. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Polycarbonate container |
| Filter fineness | 40 µm |
| Dropper attachment | PA |
| Medium temperature max. | 50 °C |
| Ambient temperature max. | 50 °C |
| Spring cover | POM |
| Thread | G 1 |
| Flow rate | 5000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 264 mm |
| B | 274 mm |
| C | 98 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100712] RIEGLER Service unit 3-part »variobloc« with PC container, Size 1, G 1/4](/web/image/product.template/140148/image_128/%5B100712%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%201-4?unique=cb31a53)
|
Type number: VW 12 |
213.20 € | |
![[100713] RIEGLER Service unit 3-part »variobloc« with PC container, Size 1, G 3/8](/web/image/product.template/140149/image_128/%5B100713%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%203-8?unique=7dc1a5f)
|
Type number: VW 13 |
202.54 € | |
![[100714] RIEGLER Service unit 3-part »variobloc« with PC container, Size 2, G 1/2](/web/image/product.template/140150/image_128/%5B100714%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%202%2C%20G%201-2?unique=cb31a53)
|
Type number: VW 14 |
197.91 € | |
![[100715] RIEGLER Service unit 3-part »variobloc« with PC container, Size 2, G 3/4](/web/image/product.template/140151/image_128/%5B100715%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%202%2C%20G%203-4?unique=cb31a53)
|
Type number: VW 15 |
164.92 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100753] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 3/4 and G 1](/web/image/product.template/140189/image_128/%5B100753%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=65ecbe7)
|
Type number: VZ 104 |
13.99 € | |
![[100762] RIEGLER Connection plate set to upgrade equipment from G 3/4 to G 1](/web/image/product.template/140198/image_128/%5B100762%5D%20RIEGLER%20Connection%20plate%20set%20to%20upgrade%20equipment%20from%20G%203-4%20to%20G%201?unique=de61510)
|
Type number: VZ 500 |
29.85 € | |
![[100709] RIEGLER Drip cap made of plastic, for mist oiler »variobloc«, Size 2](/web/image/product.template/140145/image_128/%5B100709%5D%20RIEGLER%20Drip%20cap%20made%20of%20plastic%2C%20for%20mist%20oiler%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=93b62ab)
|
Type number: VZ 722 |
10.13 € | |
![[100673] RIEGLER Filter element 40 µm, PE sintered](/web/image/product.template/140108/image_128/%5B100673%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20PE%20sintered?unique=8ee5c34)
|
Type number: VZ 742 |
5.24 € | |
![[118831] RIEGLER Handwheel "variobloc" BG 2 for pressure and filter regulator](/web/image/product.template/280939/image_128/%5B118831%5D%20RIEGLER%20Handwheel%20%22variobloc%22%20BG%202%20for%20pressure%20and%20filter%20regulator?unique=9e22771)
|
Type number: 443.3.94 |
2.34 € | |
![[100698] RIEGLER Polycarbonate container](/web/image/product.template/140133/image_128/%5B100698%5D%20RIEGLER%20Polycarbonate%20container?unique=28c77ad)
|
Type number: VZ 602 |
17.27 € | |
![[100663] RIEGLER Polycarbonate container with manual bleeder valve](/web/image/product.template/140098/image_128/%5B100663%5D%20RIEGLER%20Polycarbonate%20container%20with%20manual%20bleeder%20valve?unique=4b2f666)
|
Type number: VZ 502 |
18.60 € | |

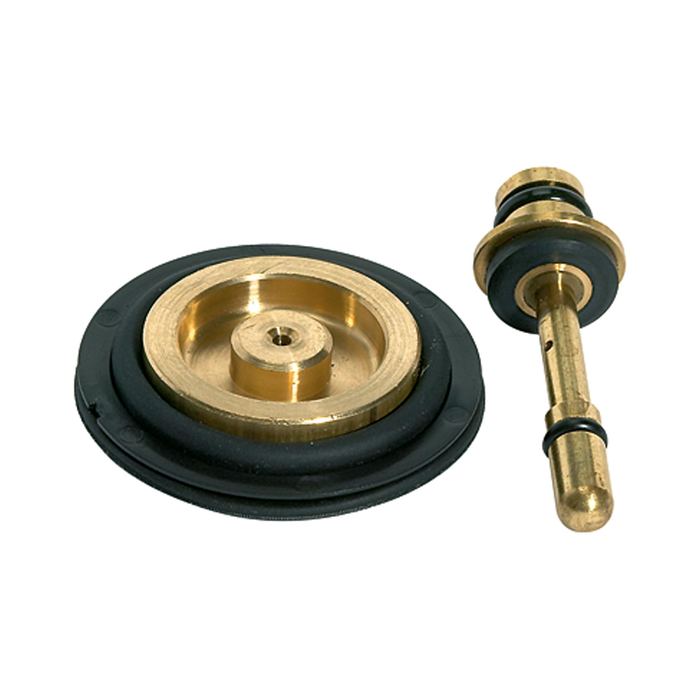

![[100650] RIEGLER Wear part set for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140085/image_128/%5B100650%5D%20RIEGLER%20Wear%20part%20set%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=486d5ca)
|
