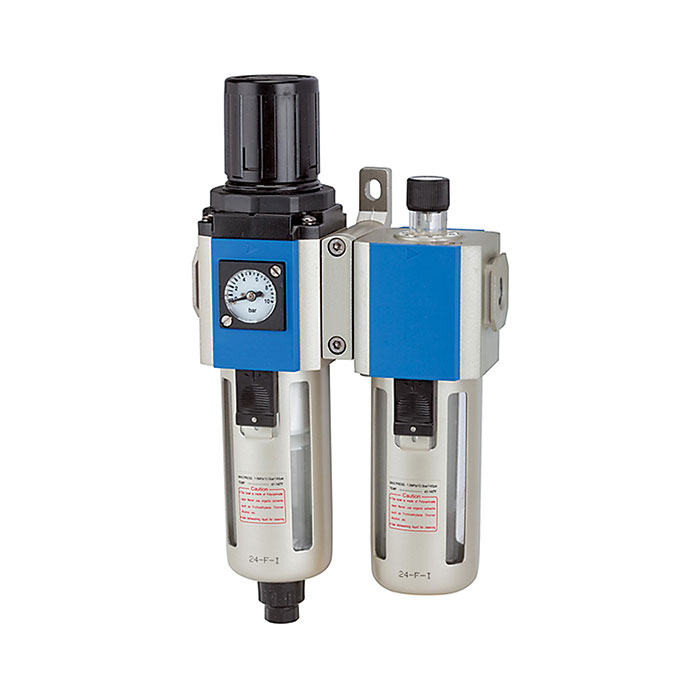

RIEGLER Service unit 2-part »G«, PC container, 5 µm, Size 300, G 3/8
Type number: GCL 12 A
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Maintenance unit 2-piece "G" made of die-cast aluminum, for compressed air preparation - type GCL 12 A
The RIEGLER maintenance unit, 2-piece "G", PC-treated, BG 300, G 3/8, 1.5-9 bar, VA combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast aluminum with NBR seals. The control range extends from 1.5 bar to 9 bar with a maximum inlet pressure of 10 bar. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 1350 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, polycarbonate container with protective cage. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 10 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | G |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Dropper attachment | Brass/POM |
| Medium temperature max. | 70 °C |
| Ambient temperature max. | 70 °C |
| Spring cover | POM |
| Thread | G 3/8 |
| Flow rate | 1350 l/min |
| Control range min. | 1.5 bar |
| Control range max. | 9 bar |
| Condensate drain | fully automatic |
| BG | 300 |
| A | 115 mm |
| B | 225.5 mm |
| C | 82.5 mm |
| D | 143 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

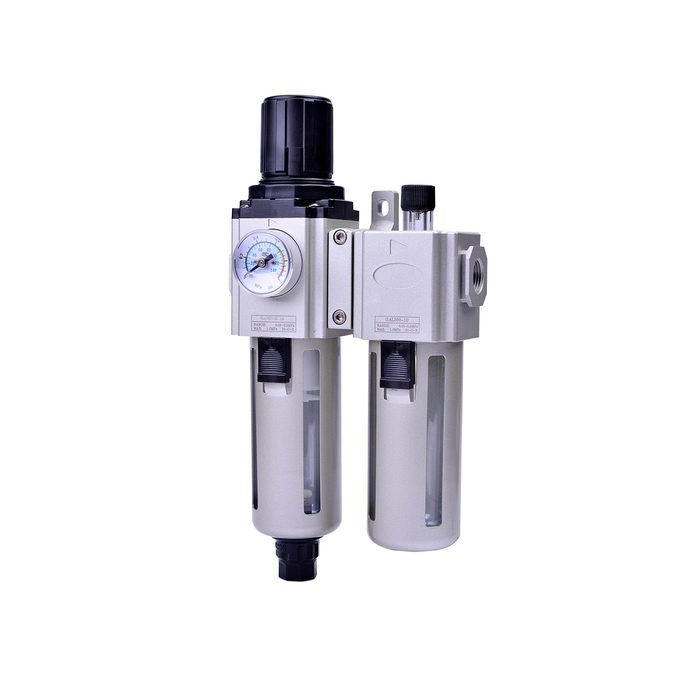

![[178497] RIEGLER Service unit 2-part »GA«, PC container, 5 µm, Size 300, G 3/8](/web/image/product.template/216387/image_128/%5B178497%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%205%20%C2%B5m%2C%20Size%20300%2C%20G%203-8?unique=7cb62b4)
|
Typennummer: GACL 12 A |
101.86 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

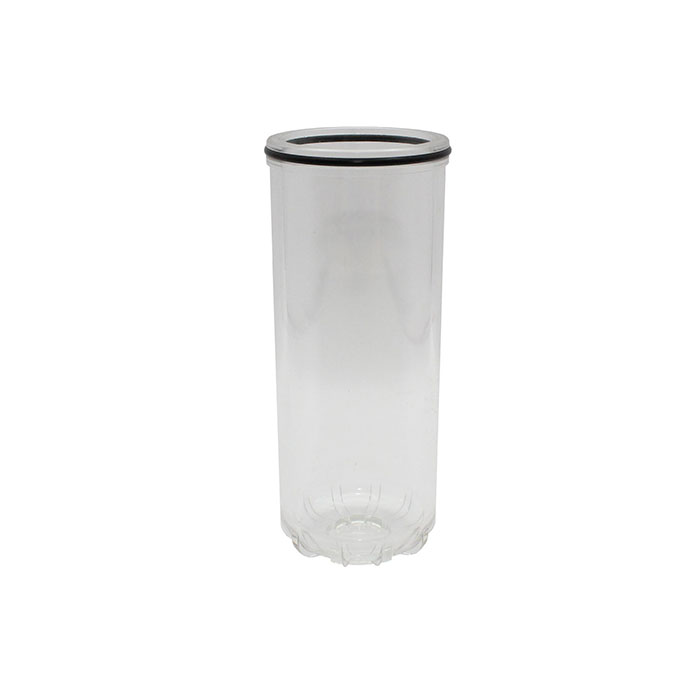

![[116442] RIEGLER Polycarbonate container, for mist oiler »G«, Size 300](/web/image/product.template/201173/image_128/%5B116442%5D%20RIEGLER%20Polycarbonate%20container%2C%20for%20mist%20oiler%20%C2%BBG%C2%AB%2C%20Size%20300?unique=d6ed0f4)
|
Type number: GL 11 200 |
3.28 € | |

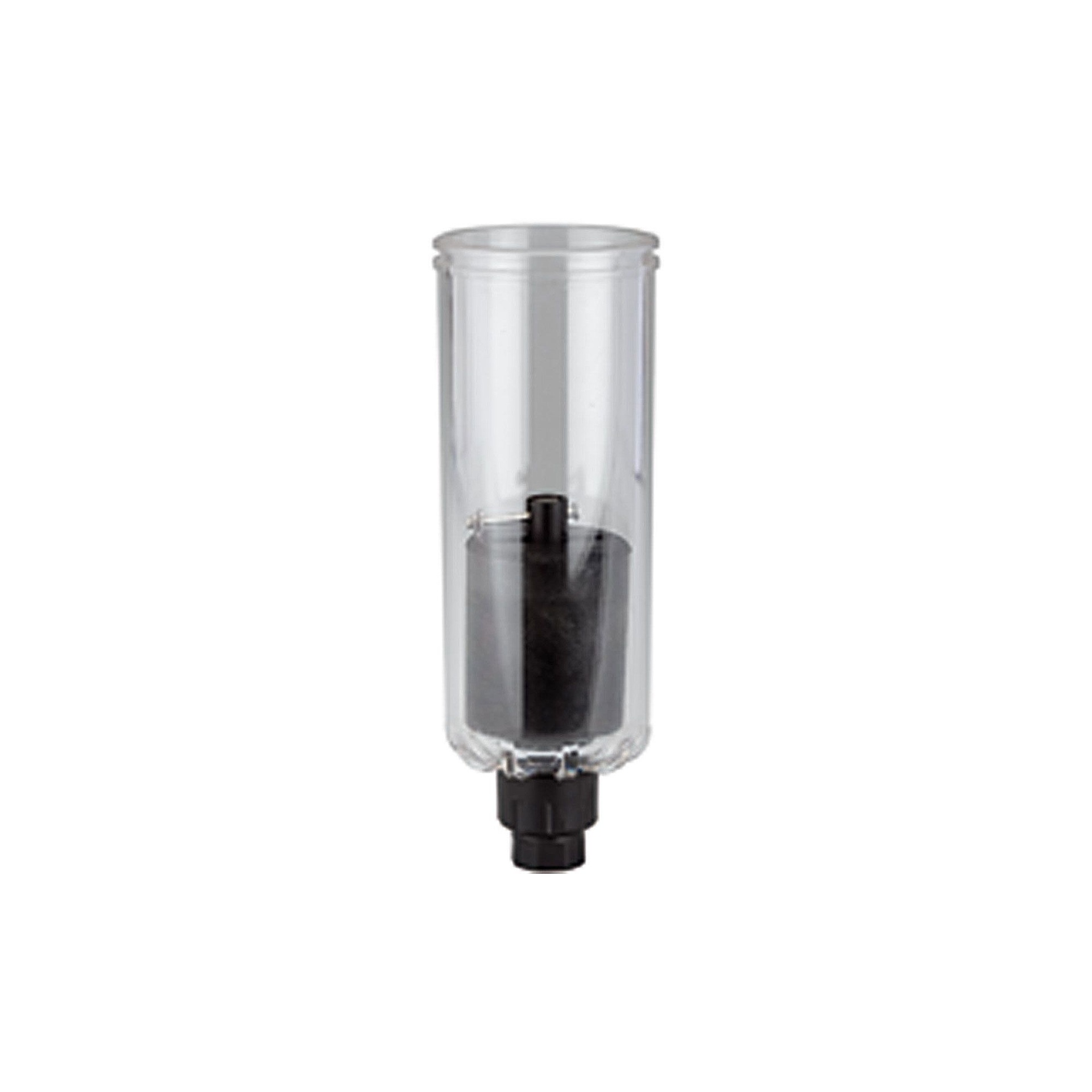

![[116394] RIEGLER Polycarbonate container with fully automated bleeder valve](/web/image/product.template/201125/image_128/%5B116394%5D%20RIEGLER%20Polycarbonate%20container%20with%20fully%20automated%20bleeder%20valve?unique=50a1582)
|
