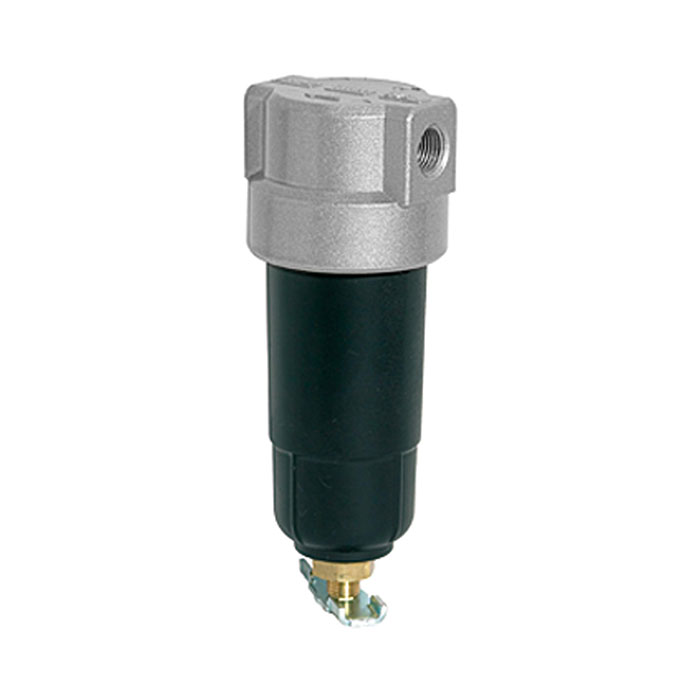

RIEGLER Filter »Standard-mini« with metal container, 8 µm, Size 0, G 1/4
Type number: 640.107 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Standard-mini" filter with metal bowl, 8 µm, BG 0, G 1/4, PE max. 25 bar, ambient medium temperature max. 60 °C
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard mini |
| Container | Metal container |
| Filter fineness | 8 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/4 |
| Flow rate | 800 l/min |
| Condensate drain | manually |
| DN | 5 |
| BG | 0 |
| A | 40 mm |
| B | 108.5 mm |
| C | 10 mm |
| D | 98.5 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

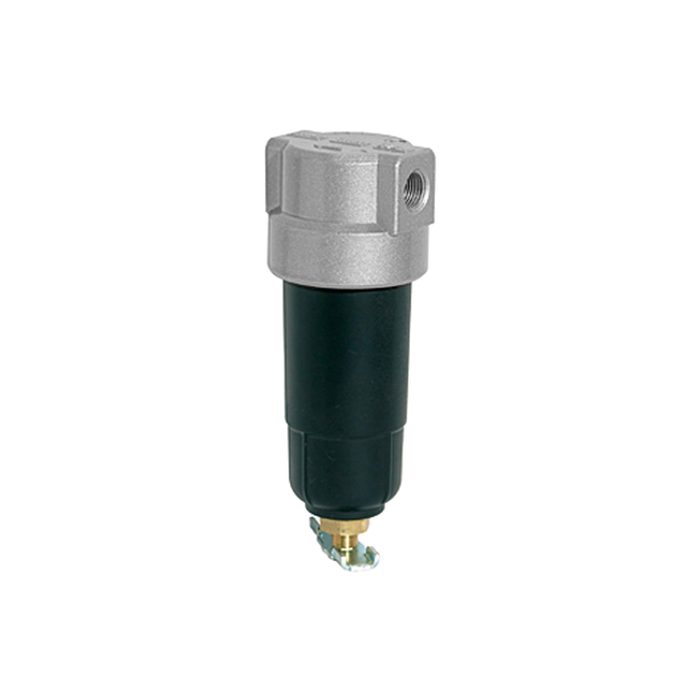

![[100788] RIEGLER Filter »Standard-mini« with metal container, 8 µm, Size 0, G 1/8](/web/image/product.template/140224/image_128/%5B100788%5D%20RIEGLER%20Filter%20%C2%BBStandard-mini%C2%AB%20with%20metal%20container%2C%208%20%C2%B5m%2C%20Size%200%2C%20G%201-8?unique=f0d6d3d)
|
Type number: 640.106 M |
23.90 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

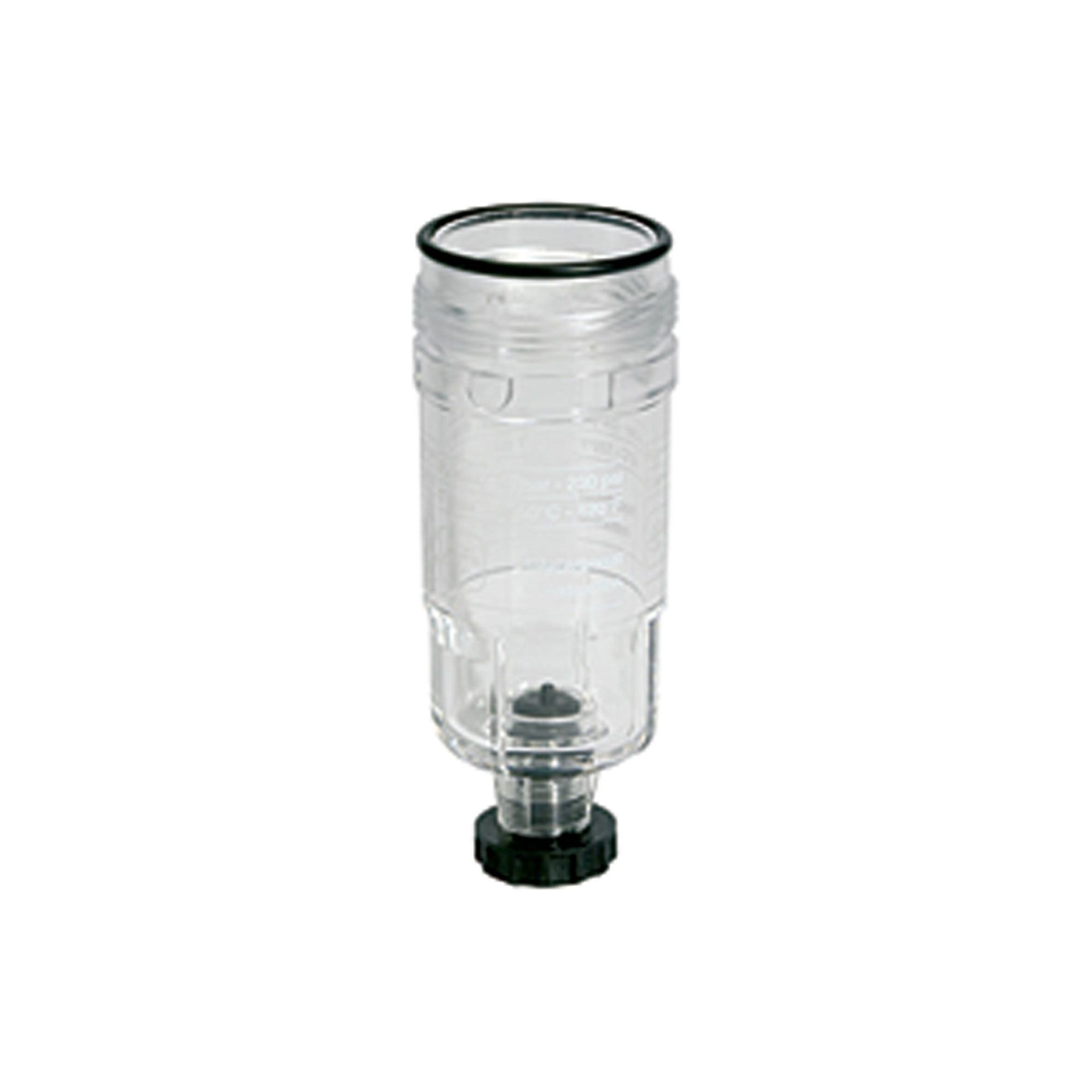

![[100357] RIEGLER Polycarbonate container, incl. NBR O-ring 30x2](/web/image/product.template/139791/image_128/%5B100357%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20NBR%20O-ring%2030x2?unique=0cb0ae7)
|
Type number: 640/1-HA |
10.13 € | |

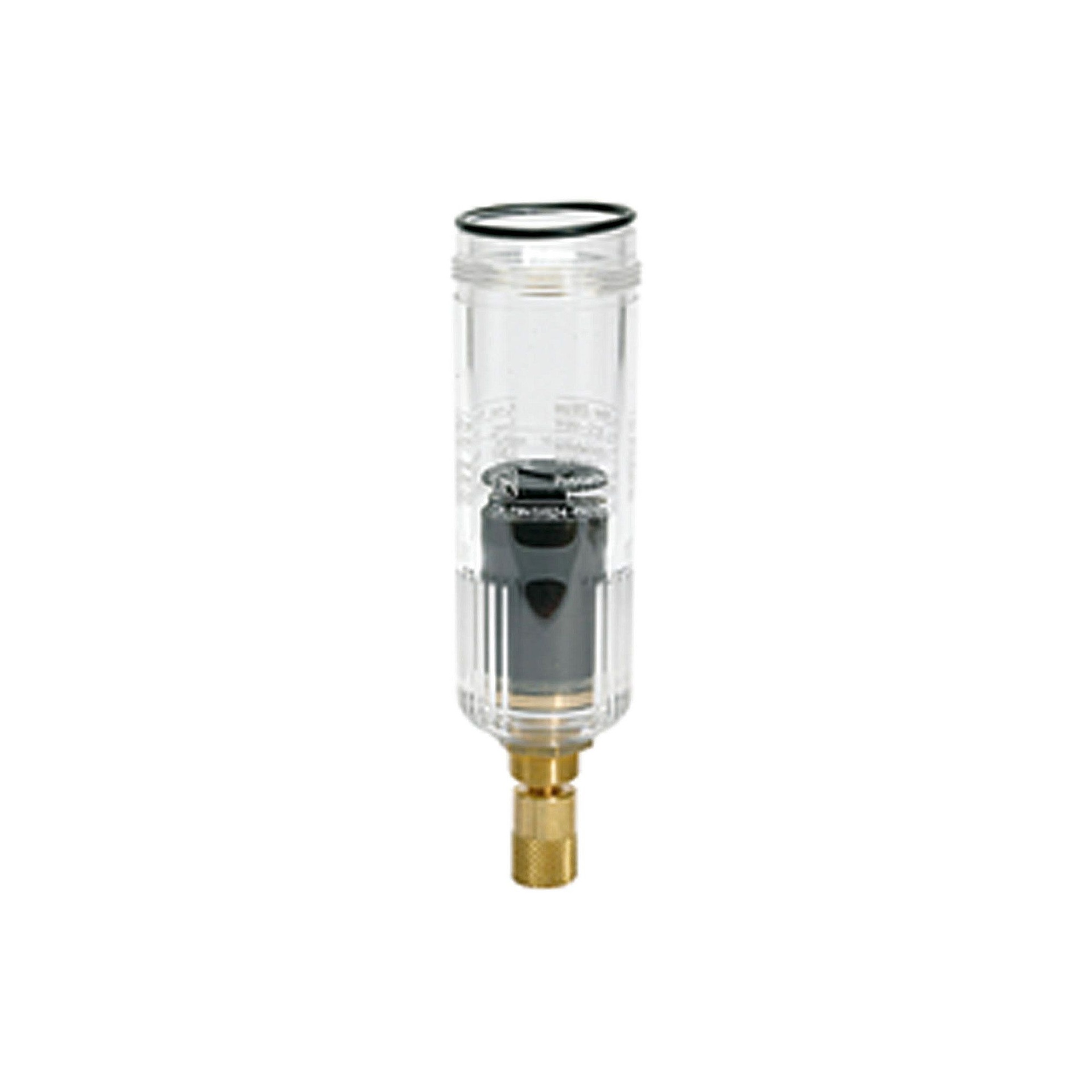

![[100361] RIEGLER Polycarbonate container, incl. O-ring, fully autom. bleeder valve](/web/image/product.template/139795/image_128/%5B100361%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20fully%20autom.%20bleeder%20valve?unique=991b8e5)
|
Type number: KS 11 F-A |
43.65 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=ce1aa1d)
|
Type number: 655.6.900 |
36.35 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=809425d)
|
Type number: 611.6.905 |
9.46 € | |

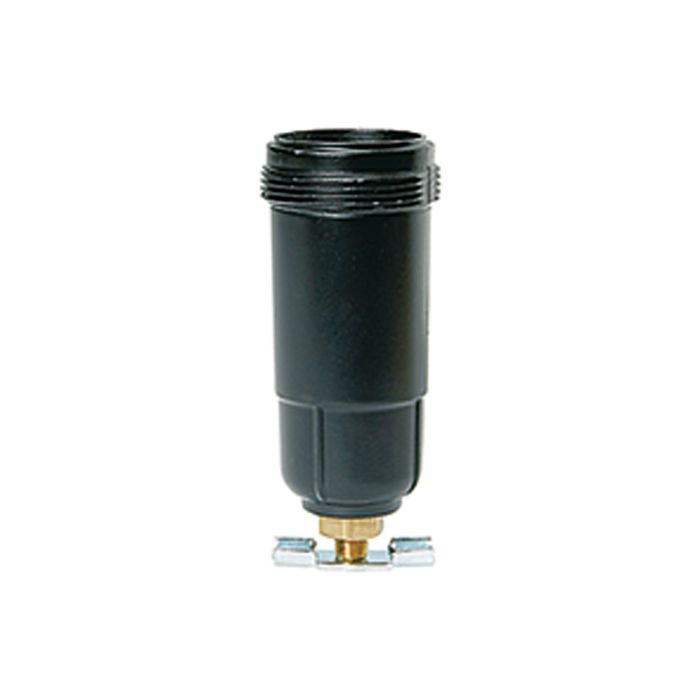

![[100358] RIEGLER Metal container, incl. NBR O-ring 30x2](/web/image/product.template/139792/image_128/%5B100358%5D%20RIEGLER%20Metal%20container%2C%20incl.%20NBR%20O-ring%2030x2?unique=0e212e0)
|
Type number: 640/11 |
16.90 € | |
