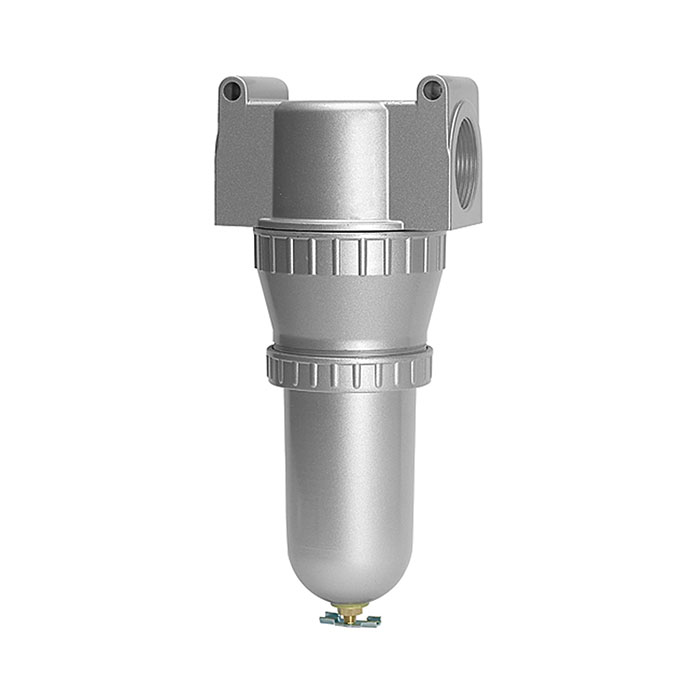

RIEGLER Filter »Standard« with metal container, 60 µm, Size 5, G 2
Type number: 650 H/M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Standard" filter with metal bowl, 60 µm, BG 5, G 2, PE max. 25 bar, max. ambient temperature 60 °C, drain valve: manual
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Flow rate measurement | with P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Filter fineness | 60 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 2 |
| Flow rate | 30000 l/min |
| Condensate drain | manually |
| DN | 55 |
| BG | 5 |
| A | 148 mm |
| C | 41 mm |
| D | 397 mm |
| H | 120 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[129494] RIEGLER Filter »Standard«, mit Metallbehälter, 5 µm, BG 2, G 3/8](/web/image/product.template/268072/image_128/%5B129494%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20mit%20Metallbeh%C3%A4lter%2C%205%20%C2%B5m%2C%20BG%202%2C%20G%203-8?unique=cf4f3ce)
|
Type number: 650 B/M.2 |
46.02 € | |
![[100979] RIEGLER Filter »Standard« with metal container, 40 µm, Size 4, G 1 1/2](/web/image/product.template/140415/image_128/%5B100979%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20with%20metal%20container%2C%2040%20%C2%B5m%2C%20Size%204%2C%20G%201%201-2?unique=f1a2fba)
|
Type number: 650 G/M |
171.38 € | |
![[100978] RIEGLER Filter »Standard« with metal container, 40 µm, Size 4, G 1 1/4](/web/image/product.template/140414/image_128/%5B100978%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20with%20metal%20container%2C%2040%20%C2%B5m%2C%20Size%204%2C%20G%201%201-4?unique=5fe11b5)
|
Type number: 650 F/M |
198.83 € | |
![[100972] RIEGLER Filter »Standard« with metal container, 5 µm, Size 1, G 1/4](/web/image/product.template/140408/image_128/%5B100972%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20with%20metal%20container%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=d8bf141)
|
Type number: 640.116 M |
25.72 € | |
![[100973] RIEGLER Filter »Standard« with metal container, 5 µm, Size 1, G 3/8](/web/image/product.template/140409/image_128/%5B100973%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20with%20metal%20container%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=fee5b24)
|
Type number: 640.126 M |
25.72 € | |
![[100977] RIEGLER Filter »Standard« with metal container, 5 µm, Size 3, G 1](/web/image/product.template/140413/image_128/%5B100977%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20with%20metal%20container%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201?unique=11531d3)
|
Type number: 650 E/M |
96.82 € | |
![[100975] RIEGLER Filter »Standard« with metal container, 5 µm, Size 3, G 1/2](/web/image/product.template/140411/image_128/%5B100975%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20with%20metal%20container%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201-2?unique=ff61cc2)
|
Type number: 650 C/M |
47.06 € | |
![[100976] RIEGLER Filter »Standard« with metal container, 5 µm, Size 3, G 3/4](/web/image/product.template/140412/image_128/%5B100976%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20with%20metal%20container%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%203-4?unique=193c1cd)
|
Type number: 650 D/M |
96.82 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=7114555)
|
Type number: 655.6.900 |
36.96 € | |

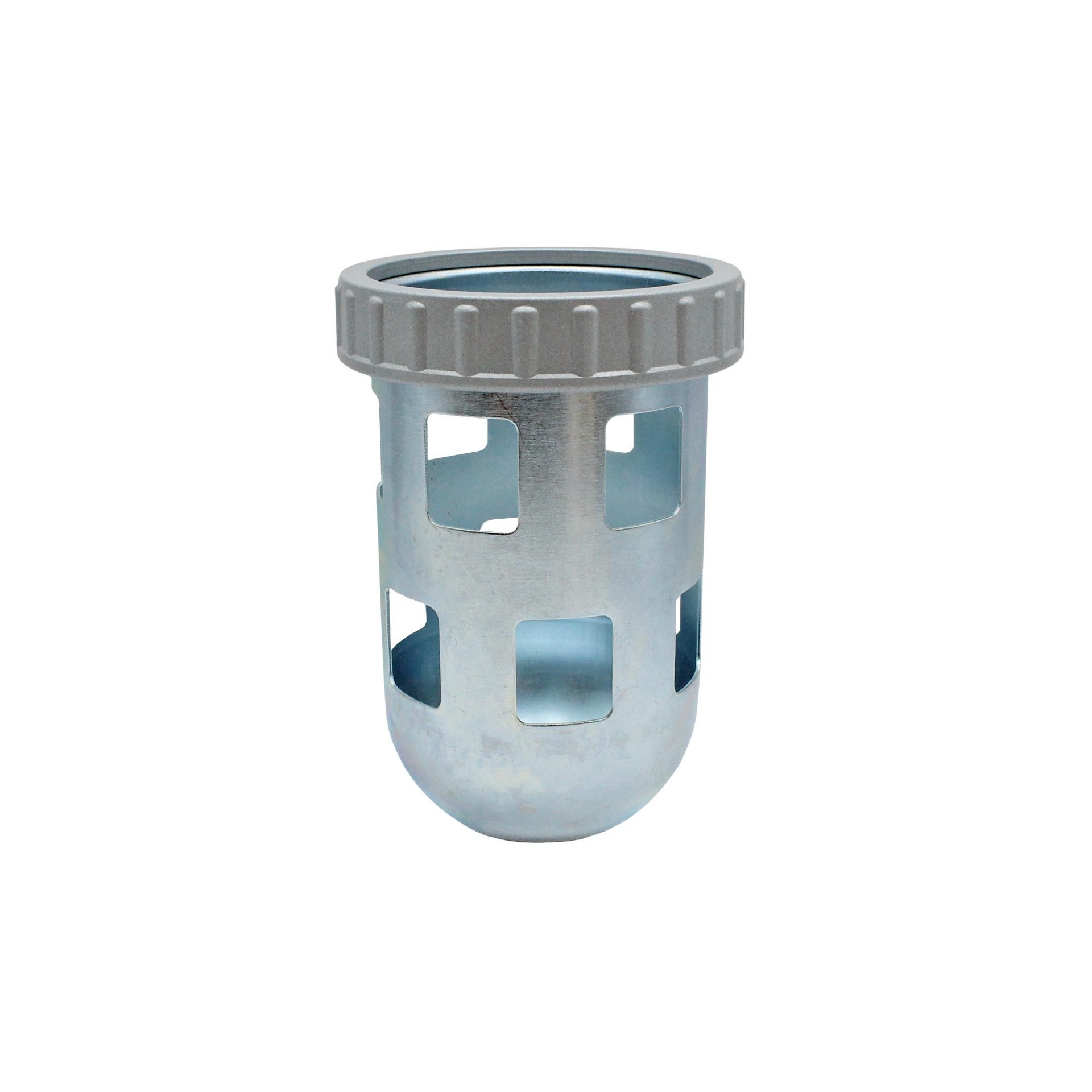

![[100949] RIEGLER Protective cage, for series »Standard«, Size 3, G 1/2](/web/image/product.template/140385/image_128/%5B100949%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20G%201-2?unique=745896c)
|
Type number: SK 03 |
24.20 € | |

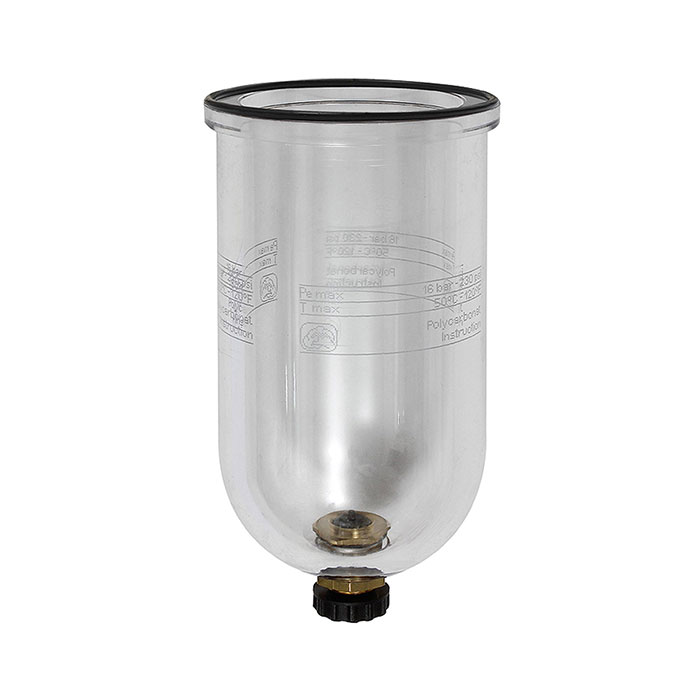

![[100950] RIEGLER Polycarbonate container, for filter regulator / filter »Standard«](/web/image/product.template/140386/image_128/%5B100950%5D%20RIEGLER%20Polycarbonate%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB?unique=bc0ca0c)
|
Type number: 650/2-HA |
18.75 € | |

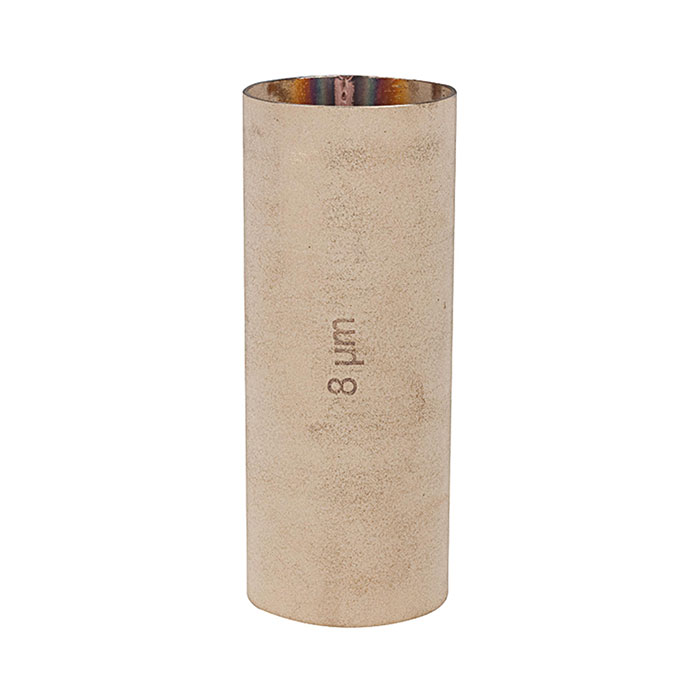

![[100986] RIEGLER Filter element 8 µm, Sintered bronze, filter »Standard«, Size 5](/web/image/product.template/140422/image_128/%5B100986%5D%20RIEGLER%20Filter%20element%208%20%C2%B5m%2C%20Sintered%20bronze%2C%20filter%20%C2%BBStandard%C2%AB%2C%20Size%205?unique=605b644)
|
Type number: 658.6.908 |
385.24 € | |

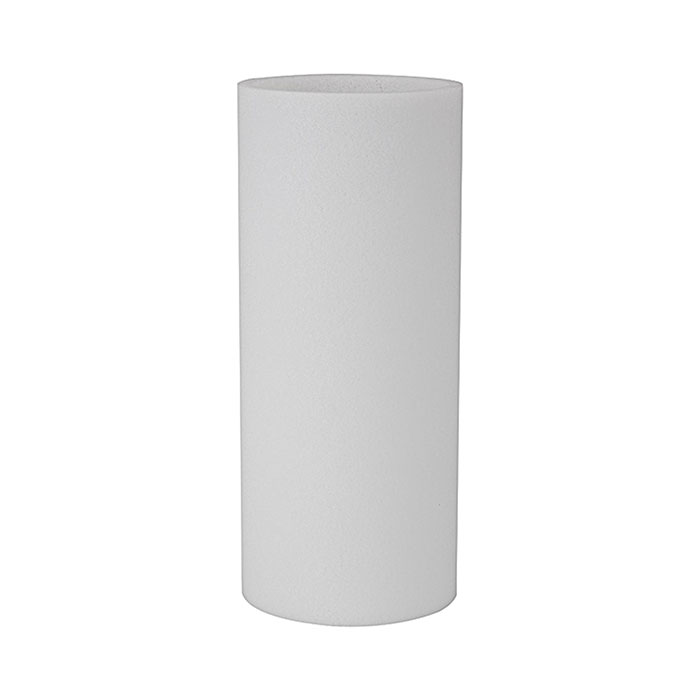

![[119623] RIEGLER Filter element 8 µm, Cellpor, filter »Standard«, Size 5](/web/image/product.template/202403/image_128/%5B119623%5D%20RIEGLER%20Filter%20element%208%20%C2%B5m%2C%20Cellpor%2C%20filter%20%C2%BBStandard%C2%AB%2C%20Size%205?unique=9f495d4)
|
Type number: 658.6.9008 |
112.93 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100985] RIEGLER Filter element 60 µm, Cellpor, for filter »Standard«, Size 5, G 2](/web/image/product.template/140421/image_128/%5B100985%5D%20RIEGLER%20Filter%20element%2060%20%C2%B5m%2C%20Cellpor%2C%20for%20filter%20%C2%BBStandard%C2%AB%2C%20Size%205%2C%20G%202?unique=ef302d7)
|
Type number: 658.6.9600 |
130.89 € | |

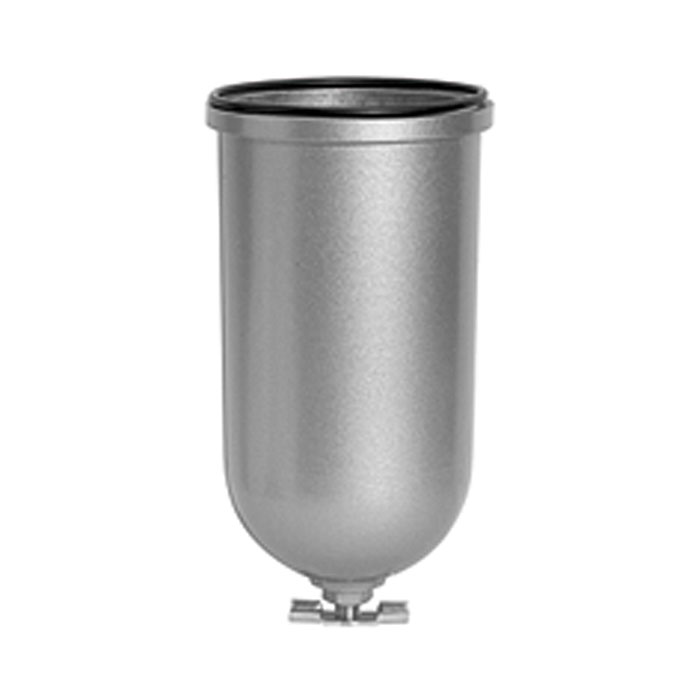

![[100951] RIEGLER Metal container, for filter regulator and filter »Standard«](/web/image/product.template/140387/image_128/%5B100951%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20and%20filter%20%C2%BBStandard%C2%AB?unique=5c2adc7)
|
Type number: 650/12 |
26.82 € | |
