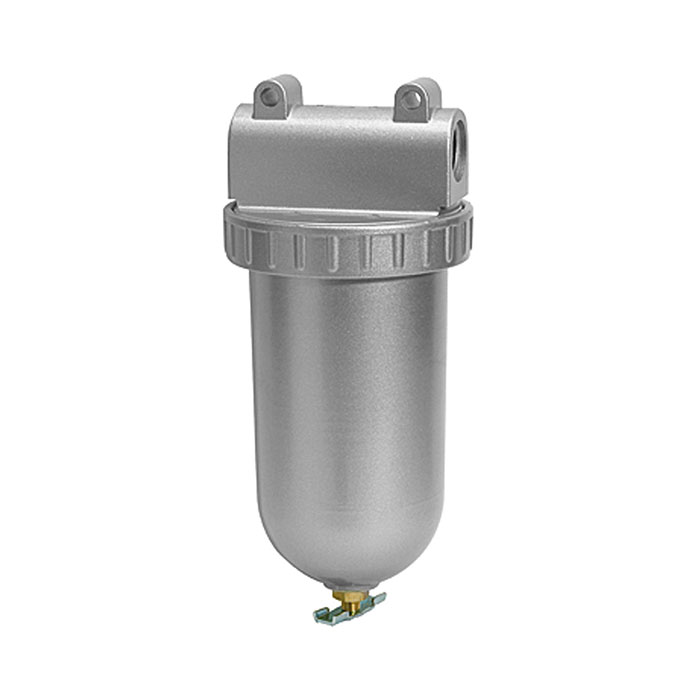

RIEGLER Special filter »Standard« Metal container, 0.01 µm, Size 3, G 1/2
Type number: 685 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Special filter "Standard" with metal container made of die-cast zinc, painted silver - Type 685 M
The RIEGLER special filter "Standard" with metal container, 0.01 µm, BG 3, G 1/2 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc, painted silver. The maximum inlet pressure is 25 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 1250 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 0.01 µm, container made of metal container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Filter fineness | 0.01 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 999.99 |
| Thread | G 1/2 |
| Flow rate | 1250 l/min |
| Condensate drain | manually |
| DN | 15 |
| BG | 3 |
| A | 79 mm |
| C | 18 mm |
| D | 171 mm |
| H | 50 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101000] RIEGLER Special filter »Standard« Metal container, 0.01 µm, Size 1, G 1/4](/web/image/product.template/140436/image_128/%5B101000%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%20Metal%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=b69c2c0)
|
Type number: 673 M |
47.52 € | |
![[101001] RIEGLER Special filter »Standard« Metal container, 0.01 µm, Size 1, G 3/8](/web/image/product.template/140437/image_128/%5B101001%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%20Metal%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=036333e)
|
Type number: 674 M |
55.30 € | |
![[101002] RIEGLER Special filter »Standard« Metal container, 0.01 µm, Size 2, G 3/8](/web/image/product.template/140438/image_128/%5B101002%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%20Metal%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%203-8?unique=c71926e)
|
Type number: 675 M |
67.10 € | |
![[101005] RIEGLER Special filter »Standard« Metal container, 0.01 µm, Size 4, G 1](/web/image/product.template/140441/image_128/%5B101005%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%20Metal%20container%2C%200.01%20%C2%B5m%2C%20Size%204%2C%20G%201?unique=a4536dc)
|
Type number: 696 M |
274.57 € | |
![[101004] RIEGLER Special filter »Standard« Metal container, 0.01 µm, Size 4, G 3/4](/web/image/product.template/140440/image_128/%5B101004%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%20Metal%20container%2C%200.01%20%C2%B5m%2C%20Size%204%2C%20G%203-4?unique=30691e3)
|
Type number: 695 M |
253.37 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100949] RIEGLER Protective cage, for series »Standard«, Size 3, G 1/2](/web/image/product.template/140385/image_128/%5B100949%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20G%201-2?unique=1859b8f)
|
Type number: SK 03 |
23.98 € | |
![[100950] RIEGLER Polycarbonate container, for filter regulator / filter »Standard«](/web/image/product.template/140386/image_128/%5B100950%5D%20RIEGLER%20Polycarbonate%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB?unique=08b98cf)
|
Type number: 650/2-HA |
18.58 € | |
![[100982] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140418/image_128/%5B100982%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=a463711)
|
Type number: H 801 |
4.80 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

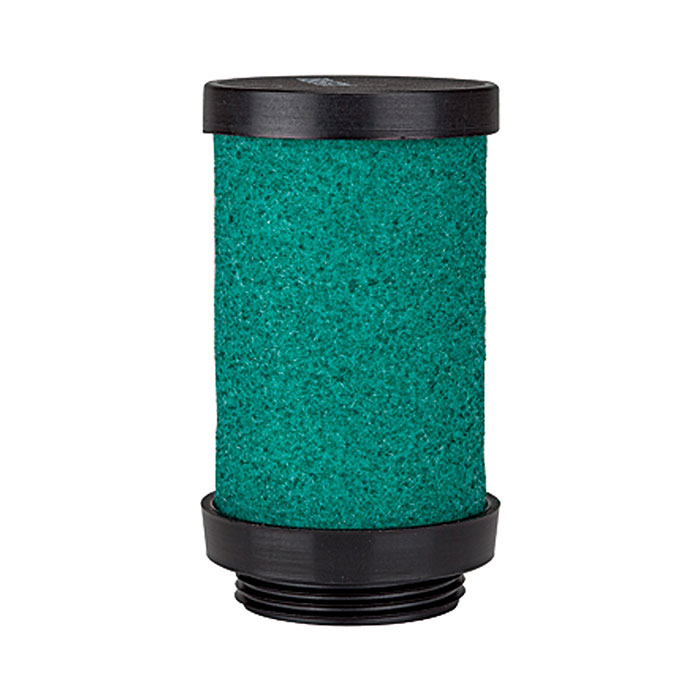

![[101008] RIEGLER Filter element 0.01 µm, Borosilicate-Aluminium](/web/image/product.template/140444/image_128/%5B101008%5D%20RIEGLER%20Filter%20element%200.01%20%C2%B5m%2C%20Borosilicate-Aluminium?unique=e2bf1d2)
|
