RIEGLER Special filter »Standard« Metal container, 0.01 µm, Size 4, G 3/4
Type number: 695 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Special filter "Standard" with metal container made of die-cast zinc, painted silver - Type 695 M
The RIEGLER special filter "Standard" with metal container, 0.01 µm, BG 4, G 3/4 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc, painted silver. The maximum inlet pressure is 25 bar. The permissible medium temperature is between 0 °C and 90 °C. Connection thread G 3/4 - suitable for common industry standards. The flow rate is 7000 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 0.01 µm, container made of metal container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Filter fineness | 0.01 µm |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 90 °C |
| Efficiency | 999.99 |
| Thread | G 3/4 |
| Flow rate | 7000 l/min |
| Condensate drain | manually |
| DN | 20 |
| BG | 4 |
| A | 133 mm |
| C | 36 mm |
| D | 206 mm |
| H | 134 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

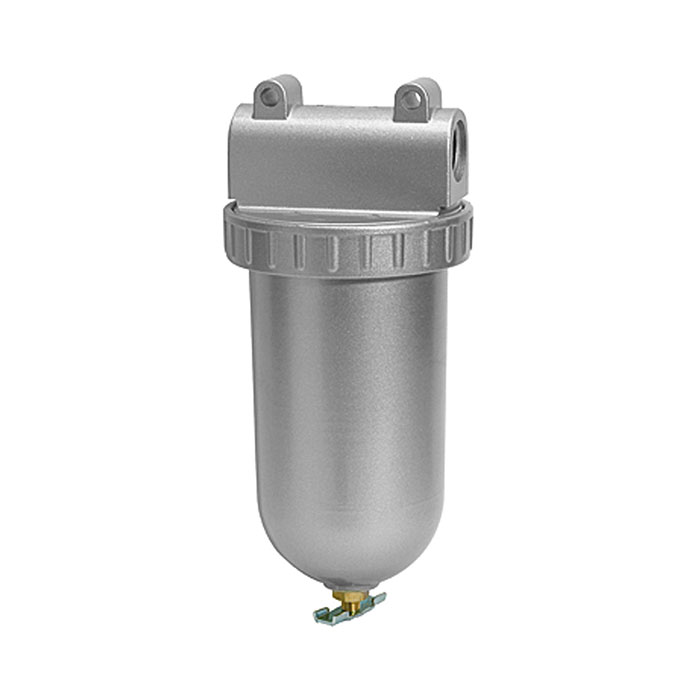

![[101003] RIEGLER Special filter »Standard« Metal container, 0.01 µm, Size 3, G 1/2](/web/image/product.template/140439/image_128/%5B101003%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%20Metal%20container%2C%200.01%20%C2%B5m%2C%20Size%203%2C%20G%201-2?unique=19c6622)
|
