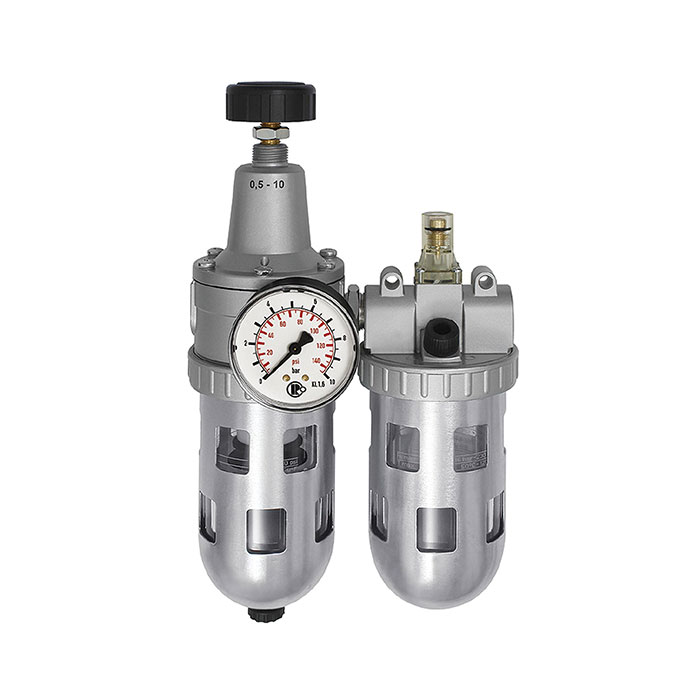

RIEGLER Service unit 2-part »Standard«, Protective cage, Size 3, G 1/2
Type number: 861 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2-piece "Standard" maintenance unit made of die-cast zinc / aluminum, painted silver - Type 861 S
The RIEGLER maintenance unit 2-piece "Standard", PC fitting, protective cage, BG3, G1/2 combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast zinc / aluminum, painted silver with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 2100 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, polycarbonate container with protective cage. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc / aluminum, painted silver |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Dropper attachment | PA |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/2 |
| Flow rate | 2100 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 15 |
| Pressure gauge Ø | 63 mm |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 3 |
| A | 175 mm |
| B | 299.4 mm |
| C | 130 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101052] RIEGLER Service unit 2-part »Standard«, Protective cage, Size 1, G 1/4](/web/image/product.template/140488/image_128/%5B101052%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-4?unique=8d06a12)
|
Type number: 825 S |
100.97 € | |
![[101053] RIEGLER Service unit 2-part »Standard«, Protective cage, Size 1, G 3/8](/web/image/product.template/140489/image_128/%5B101053%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8?unique=bc6f4e4)
|
Type number: 827 S |
100.97 € | |
![[101054] RIEGLER Service unit 2-part »Standard«, Protective cage, Size 2, G 3/8](/web/image/product.template/140490/image_128/%5B101054%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%202%2C%20G%203-8?unique=fdd0fdb)
|
Type number: 849 S |
164.71 € | |
![[174101] RIEGLER Service unit 2-part »Standard«, Protective cage, Size 4, G 1](/web/image/product.template/216312/image_128/%5B174101%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%204%2C%20G%201?unique=c0a6e84)
|
Typennummer: 866 S P |
351.34 € | |

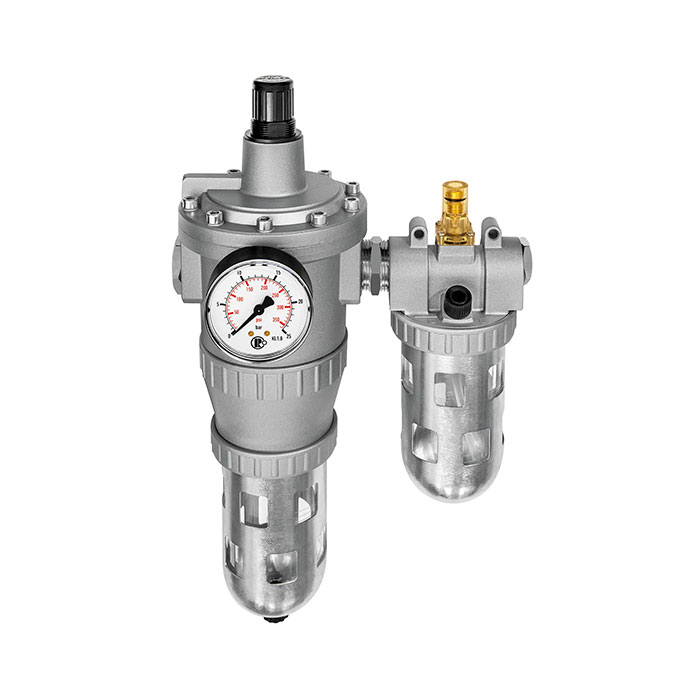

![[174100] RIEGLER Service unit 2-part »Standard«, Protective cage, Size 4, G 3/4](/web/image/product.template/216311/image_128/%5B174100%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%20Size%204%2C%20G%203-4?unique=2ea4f17)
|
Typennummer: 865 S P |
351.34 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=83510c9)
|
Type number: 32 |
34.09 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=16b9c4b)
|
Type number: 655.6.900 |
36.35 € | |
![[100795] RIEGLER Drip cap metal](/web/image/product.template/140231/image_128/%5B100795%5D%20RIEGLER%20Drip%20cap%20metal?unique=e986bd0)
|
Type number: 760.7.992 |
31.57 € | |
![[100796] RIEGLER Adapter for mounting metal drip cap](/web/image/product.template/140232/image_128/%5B100796%5D%20RIEGLER%20Adapter%20for%20mounting%20metal%20drip%20cap?unique=551b673)
|
Type number: 760.7.1135 |
10.95 € | |
![[100951] RIEGLER Metal container, for filter regulator and filter »Standard«](/web/image/product.template/140387/image_128/%5B100951%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20and%20filter%20%C2%BBStandard%C2%AB?unique=699fd89)
|
Type number: 650/12 |
26.56 € | |
![[100982] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140418/image_128/%5B100982%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=a463711)
|
Type number: H 801 |
4.80 € | |
![[101043] RIEGLER Metal container, incl. O-ring, for mist oiler »Standard«, Size 3](/web/image/product.template/140479/image_128/%5B101043%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%203?unique=6522d56)
|
Type number: 740/14 |
23.98 € | |

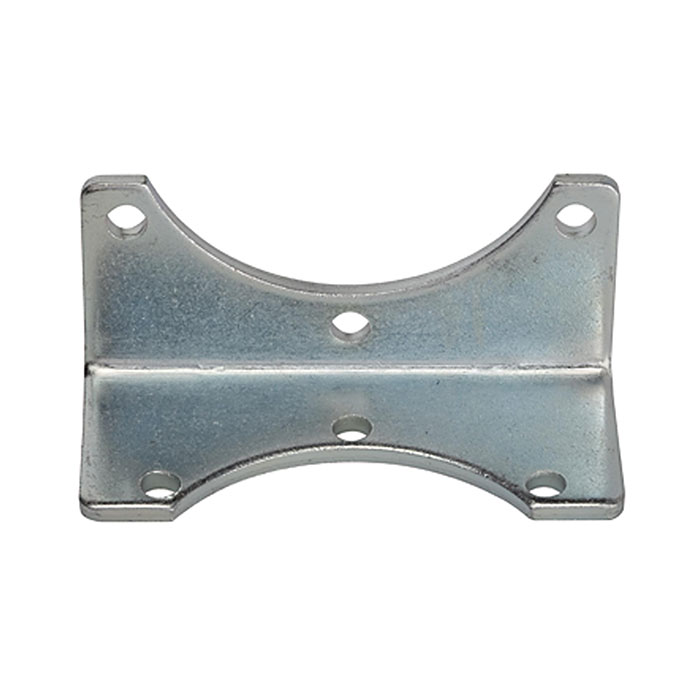

![[101233] RIEGLER Mounting set, mounting bracket, for »Standard«, Size 3, to G 1](/web/image/product.template/140668/image_128/%5B101233%5D%20RIEGLER%20Mounting%20set%2C%20mounting%20bracket%2C%20for%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20to%20G%201?unique=b41dc17)
|
Type number: H 84 |
7.03 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=3ba54a4)
|
Type number: 218-KD |
6.25 € | |
![[100794] RIEGLER Drip cap polycarbonate](/web/image/product.template/140230/image_128/%5B100794%5D%20RIEGLER%20Drip%20cap%20polycarbonate?unique=8f00408)
|
Type number: 760.7.990 |
7.03 € | |
![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=c07d854)
|
Type number: 633.6.905 |
13.89 € | |
![[101044] RIEGLER PC container, incl. O-ring, for mist oiler »Standard«, Size 3](/web/image/product.template/140480/image_128/%5B101044%5D%20RIEGLER%20PC%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%203?unique=51cfb3f)
|
Type number: 740/04 |
14.52 € | |

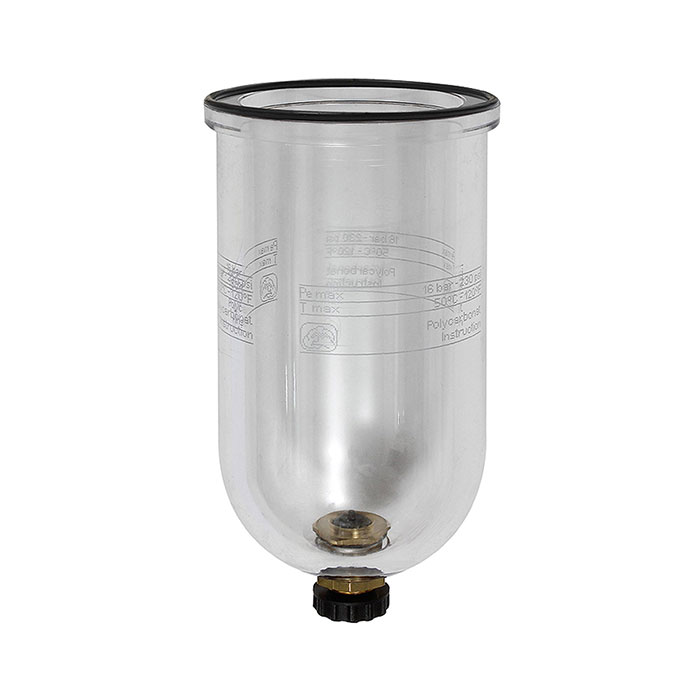

![[100950] RIEGLER Polycarbonate container, for filter regulator / filter »Standard«](/web/image/product.template/140386/image_128/%5B100950%5D%20RIEGLER%20Polycarbonate%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB?unique=08b98cf)
|
Type number: 650/2-HA |
18.58 € | |
![[100949] RIEGLER Protective cage, for series »Standard«, Size 3, G 1/2](/web/image/product.template/140385/image_128/%5B100949%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20G%201-2?unique=1859b8f)
|
Type number: SK 03 |
23.98 € | |

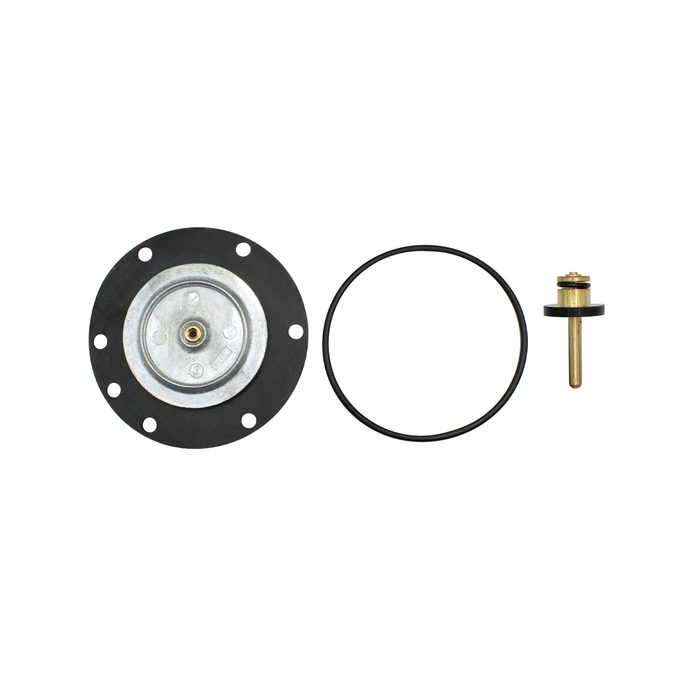

![[100952] RIEGLER Wear part set, for filter regulator »Standard«, Size 3, G 1/2](/web/image/product.template/140388/image_128/%5B100952%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20filter%20regulator%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20G%201-2?unique=c3854d1)
|
