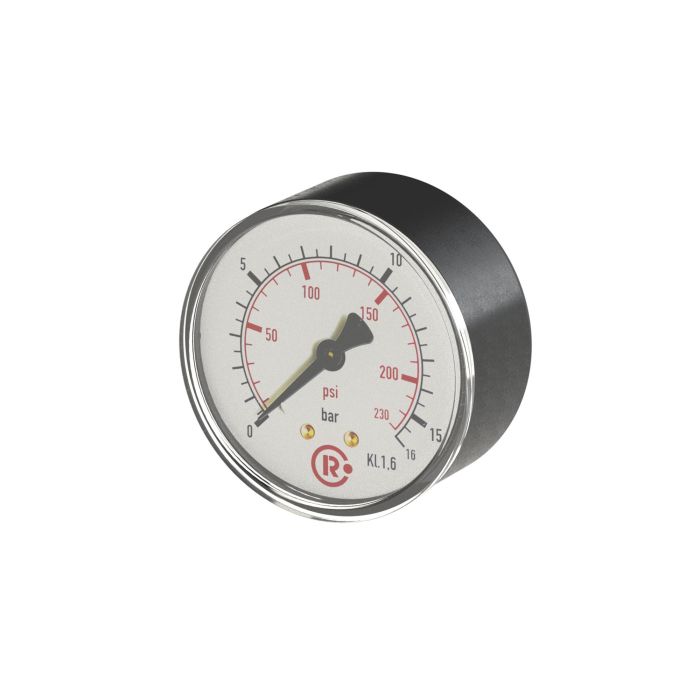

RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi
Type number: 218-KD
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Standard pressure gauge, plastic housing, double scale bar/psi, connection rear center, G 1/4, grade 1.6, measuring range 0-16.0 bar/230 psi, Ø 63
| Housing | Plastic |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Type | 111.12 |
| Measuring element | Copper alloy |
| Pointer movement | Copper alloy |
| Viewing window | Plastic crystal clear |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 16 |
| Measuring range min. psi | 0 |
| Diameter | 63 mm |
| Graduation value in the bar range | 0.5 bar |
| Description of the | Pressure gauge Ø 63 mm, G 1/4 AG, 0 - 16 bar/230 psi |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Measuring range max. psi | 230 |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Quality class | 45444 |
| Connection position | rear, centric |
| Class name | PLUS |
| Process connection material | Copper alloy |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101244] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/140679/image_128/%5B101244%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=242cf15)
|
Type number: 217-KD |
6.30 € | |
![[101462] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 25 bar/360 psi](/web/image/product.template/169436/image_128/%5B101462%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2025%20bar-360%20psi?unique=99054e2)
|
Type number: 219-KD |
6.30 € | |
![[101222] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 2.5 bar/36 psi](/web/image/product.template/140658/image_128/%5B101222%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%202.5%20bar-36%20psi?unique=05f0100)
|
Type number: 214-KD |
6.30 € | |
![[101223] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 4 bar/58 psi](/web/image/product.template/140659/image_128/%5B101223%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%204%20bar-58%20psi?unique=f5e1352)
|
Type number: 215-KD |
6.30 € | |
![[101224] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 6 bar/87 psi](/web/image/product.template/140660/image_128/%5B101224%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%206%20bar-87%20psi?unique=0cffff7)
|
Type number: 216-KD |
6.30 € | |
![[116896] RIEGLER Standard mano, plastic, G 1/4 rear, 0 - 10.0 bar/145 psi, Ø40](/web/image/product.template/274705/image_128/%5B116896%5D%20RIEGLER%20Standard%20mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%2010.0%20bar-145%20psi%2C%20%C3%9840?unique=60b95ac)
|
Type number: 110.03-KD |
5.82 € | |
![[116901] RIEGLER Standard mano, plastic, G 1/4 rear, 0 - 16.0 bar/230 psi, Ø40](/web/image/product.template/274706/image_128/%5B116901%5D%20RIEGLER%20Standard%20mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%2016.0%20bar-230%20psi%2C%20%C3%9840?unique=04566f4)
|
Type number: 110.04-KD |
5.82 € | |
![[142533] RIEGLER Standard Mano, plastic, G 1/4 rear, 0 - 1.6 bar/23 psi, Ø 50](/web/image/product.template/277781/image_128/%5B142533%5D%20RIEGLER%20Standard%20Mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%201.6%20bar-23%20psi%2C%20%C3%98%2050?unique=7238d17)
|
Type number: 202-KD |
6.30 € | |
![[149044] RIEGLER Standard mano, plastic, G 1/4 rear, 0 - 1.6 bar/23 psi, Ø 63](/web/image/product.template/276000/image_128/%5B149044%5D%20RIEGLER%20Standard%20mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%201.6%20bar-23%20psi%2C%20%C3%98%2063?unique=a677465)
|
Typennummer: 213-KD |
22.96 € | |
![[101677] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/169649/image_128/%5B101677%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=f2a1894)
|
Type number: 206-KD |
6.30 € | |
![[101678] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169650/image_128/%5B101678%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=1954b37)
|
Type number: 207-KD |
6.30 € | |
