RIEGLER Combi-service unit, Protective cage, Size 1, G 1/4, 0.5 - 10 bar
Type number: 810.03 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Combination maintenance unit with PC tank, protective cage and manual drain valve, BG 1, G 1/4, PE max. 16 bar, control range 0.5 - 10 bar
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 40 µm |
| Dropper attachment | PA |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 50 °C |
| Spring cover | PA |
| Thread | G 1/4 |
| Flow rate | 1520 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | Manual drain valve |
| BG | 1 |
| A | 67 mm |
| B | 217 mm |
| C | 68.5 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101102] RIEGLER Combi-service unit, Protective cage, Size 1, G 1/2, 0.5 - 10 bar](/web/image/product.template/140538/image_128/%5B101102%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=3d15bb3)
|
Type number: 810.07 S |
173.12 € | |
![[101103] RIEGLER Combi-service unit, Protective cage, Size 1, G 1/2, 0.5 - 16 bar](/web/image/product.template/140539/image_128/%5B101103%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-2%2C%200.5%20-%2016%20bar?unique=3d15bb3)
|
Type number: 810.08 S |
173.12 € | |
![[101099] RIEGLER Combi-service unit, Protective cage, Size 1, G 1/4, 0.5 - 16 bar](/web/image/product.template/140535/image_128/%5B101099%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2016%20bar?unique=3d15bb3)
|
Type number: 810.04 S |
174.54 € | |
![[101100] RIEGLER Combi-service unit, Protective cage, Size 1, G 3/8, 0.5 - 10 bar](/web/image/product.template/140536/image_128/%5B101100%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=3d15bb3)
|
Type number: 810.05 S |
174.25 € | |
![[101101] RIEGLER Combi-service unit, Protective cage, Size 1, G 3/8, 0.5 - 16 bar](/web/image/product.template/140537/image_128/%5B101101%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2016%20bar?unique=3d15bb3)
|
Type number: 810.06 S |
174.25 € | |

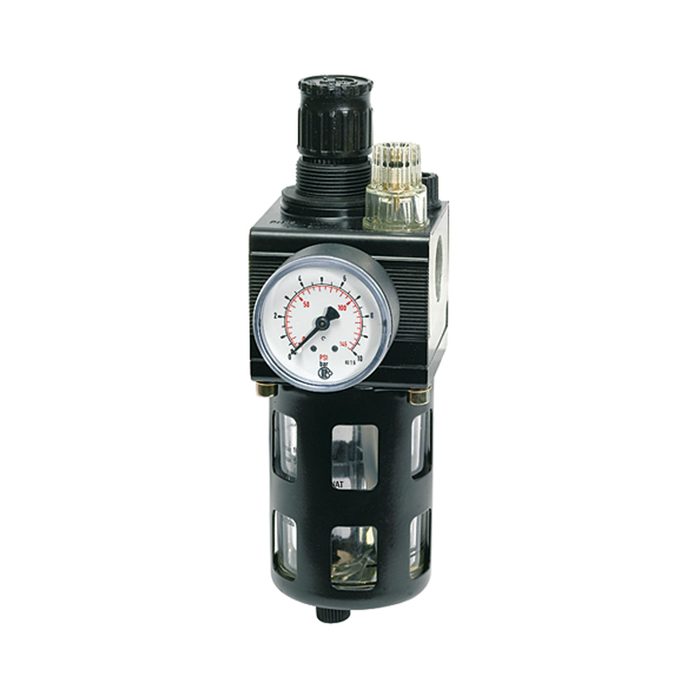

![[101107] RIEGLER Combi-service unit, Protective cage, Size 2, G 1, 0.5 - 16 bar](/web/image/product.template/140543/image_128/%5B101107%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%202%2C%20G%201%2C%200.5%20-%2016%20bar?unique=335a580)
|
Type number: 811.16 S |
267.17 € | |
![[101104] RIEGLER Combi-service unit, Protective cage, Size 2, G 3/4, 0.5 - 10 bar](/web/image/product.template/140540/image_128/%5B101104%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%202%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=3d15bb3)
|
Type number: 811.13 S |
182.49 € | |
![[101105] RIEGLER Combi-service unit, Protective cage, Size 2, G 3/4, 0.5 - 16 bar](/web/image/product.template/140541/image_128/%5B101105%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%202%2C%20G%203-4%2C%200.5%20-%2016%20bar?unique=f5fb09e)
|
Type number: 811.14 S |
246.34 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=9a5d71c)
|
Type number: 32 |
34.09 € | |
![[100677] RIEGLER Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1](/web/image/product.template/140112/image_128/%5B100677%5D%20RIEGLER%20Fully%20automated%20bleeder%20valve%20incl.%20adapter%20G%201-8%20i.%20x%20M14x1?unique=4e31e2a)
|
Type number: 65/0-N |
69.63 € | |
![[101110] RIEGLER Metal container with bleeder valve and O-ring](/web/image/product.template/140546/image_128/%5B101110%5D%20RIEGLER%20Metal%20container%20with%20bleeder%20valve%20and%20O-ring?unique=3d15bb3)
|
Type number: E 13810/24 M |
58.18 € | |

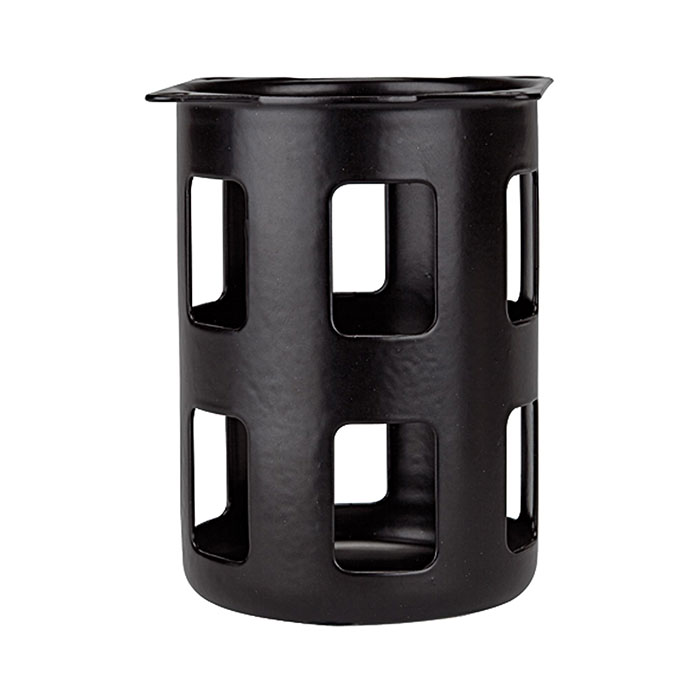

![[101111] RIEGLER Metal protective cage, for combi-service unit, Size 1](/web/image/product.template/140547/image_128/%5B101111%5D%20RIEGLER%20Metal%20protective%20cage%2C%20for%20combi-service%20unit%2C%20Size%201?unique=88c4bba)
|
Type number: SM 10 |
12.84 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

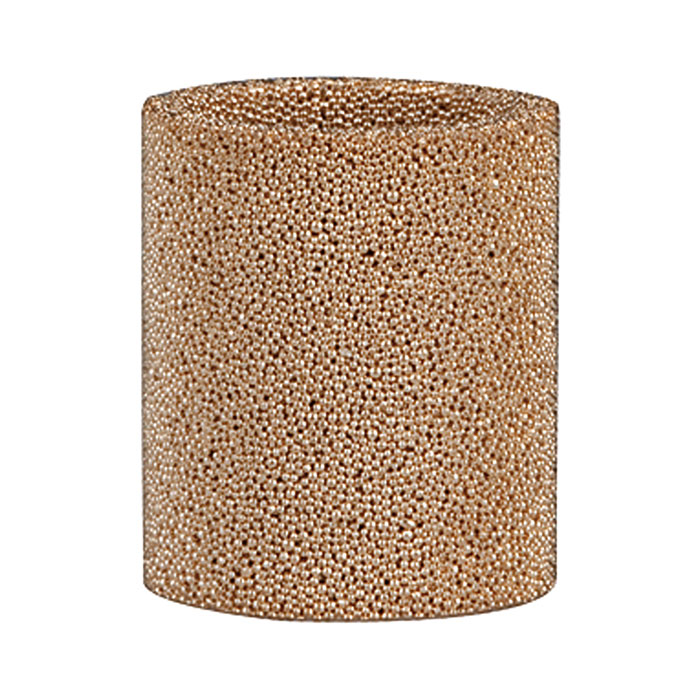

![[101114] RIEGLER Filter element 50 µm, Sintered bronze, combi-service unit, Size 1](/web/image/product.template/140550/image_128/%5B101114%5D%20RIEGLER%20Filter%20element%2050%20%C2%B5m%2C%20Sintered%20bronze%2C%20combi-service%20unit%2C%20Size%201?unique=d41df68)
|
Type number: 810.6.950 |
11.06 € | |

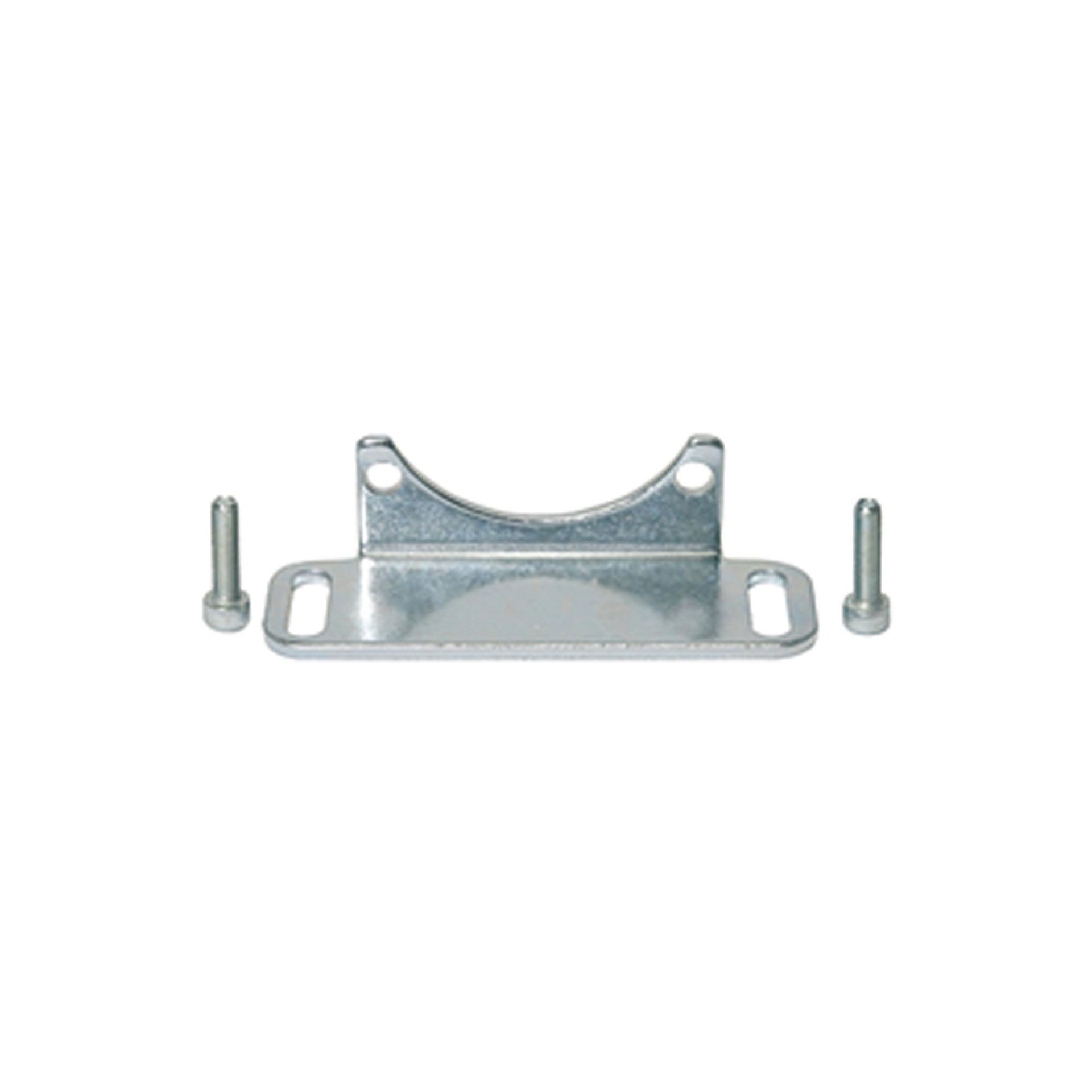

![[101108] RIEGLER Mounting set, for combi-service unit, Size 1, G 1/4, G 3/8, G 1/2](/web/image/product.template/140544/image_128/%5B101108%5D%20RIEGLER%20Mounting%20set%2C%20for%20combi-service%20unit%2C%20Size%201%2C%20G%201-4%2C%20G%203-8%2C%20G%201-2?unique=868ce67)
|
Type number: H 10 |
9.44 € | |

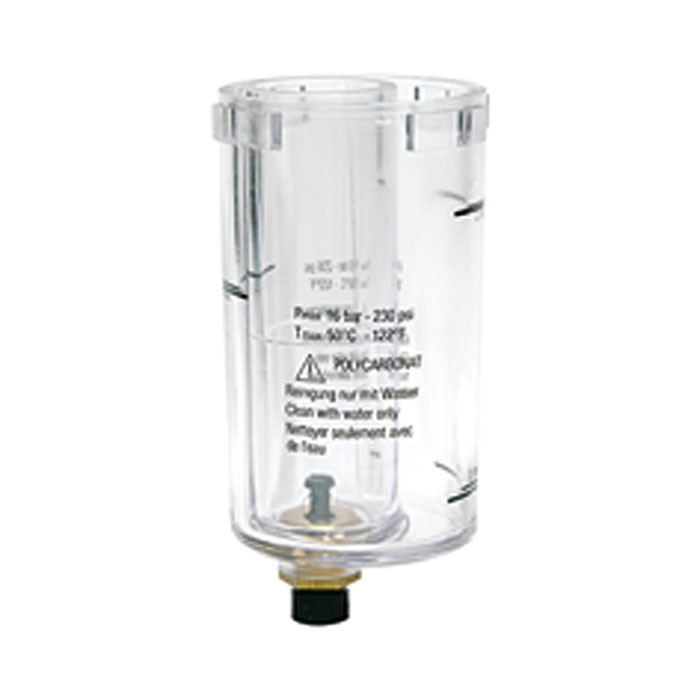

![[101109] RIEGLER Plastic container with bleeder valve and O-ring](/web/image/product.template/140545/image_128/%5B101109%5D%20RIEGLER%20Plastic%20container%20with%20bleeder%20valve%20and%20O-ring?unique=4daa7f1)
|
Type number: E 13810/24 |
27.27 € | |
![[101677] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/169649/image_128/%5B101677%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=3af80da)
|
Type number: 206-KD |
6.25 € | |

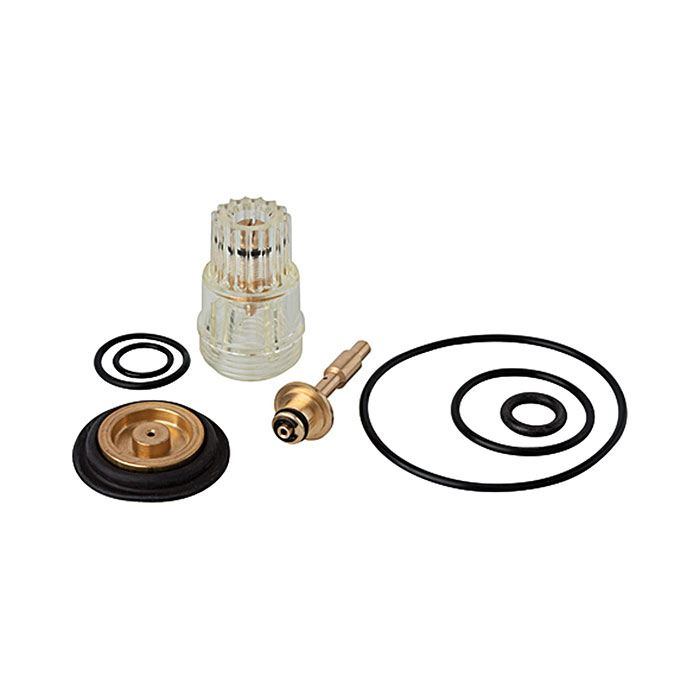

![[101112] RIEGLER Wear part set, for combi-service unit, Size 1](/web/image/product.template/140548/image_128/%5B101112%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20combi-service%20unit%2C%20Size%201?unique=75e89af)
|
