RIEGLER Combi-service unit, Protective cage, Size 2, G 3/4, 0.5 - 16 bar
Type number: 811.14 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Combination maintenance unit made of die-cast zinc, for compressed air preparation, 0.5 bar - Type 811.14 S
The RIEGLER combi maintenance unit, with protective cage, BG 2, G 3/4, 0.5 - 16 bar combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.5 bar to 16 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between 0 °C and 50 °C. Connection thread G 3/4 - suitable for common industry standards. The flow rate is 3700 l/min (at P1 = 10 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, polycarbonate container with protective cage. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 40 µm |
| Dropper attachment | PA |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 50 °C |
| Spring cover | PA |
| Thread | G 3/4 |
| Flow rate | 3700 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 16 bar |
| Condensate drain | Manual drain valve |
| BG | 2 |
| A | 97 mm |
| B | 296.5 mm |
| C | 96.5 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101102] RIEGLER Combi-service unit, Protective cage, Size 1, G 1/2, 0.5 - 10 bar](/web/image/product.template/140538/image_128/%5B101102%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=f910370)
|
Type number: 810.07 S |
173.12 € | |

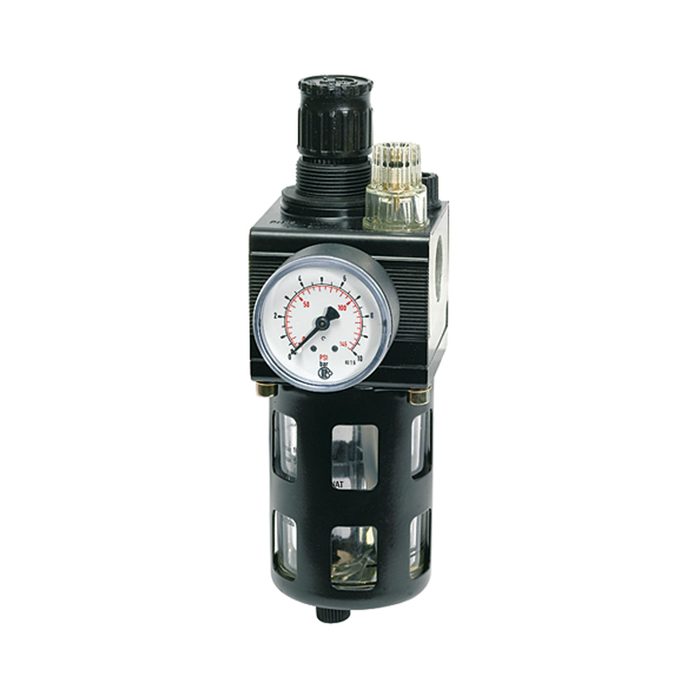

![[101103] RIEGLER Combi-service unit, Protective cage, Size 1, G 1/2, 0.5 - 16 bar](/web/image/product.template/140539/image_128/%5B101103%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-2%2C%200.5%20-%2016%20bar?unique=f910370)
|
Type number: 810.08 S |
173.12 € | |
![[101098] RIEGLER Combi-service unit, Protective cage, Size 1, G 1/4, 0.5 - 10 bar](/web/image/product.template/140534/image_128/%5B101098%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2010%20bar?unique=caf0b8f)
|
Type number: 810.03 S |
174.54 € | |
![[101099] RIEGLER Combi-service unit, Protective cage, Size 1, G 1/4, 0.5 - 16 bar](/web/image/product.template/140535/image_128/%5B101099%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2016%20bar?unique=f910370)
|
Type number: 810.04 S |
174.54 € | |
![[101100] RIEGLER Combi-service unit, Protective cage, Size 1, G 3/8, 0.5 - 10 bar](/web/image/product.template/140536/image_128/%5B101100%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=f910370)
|
Type number: 810.05 S |
174.25 € | |
![[101101] RIEGLER Combi-service unit, Protective cage, Size 1, G 3/8, 0.5 - 16 bar](/web/image/product.template/140537/image_128/%5B101101%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2016%20bar?unique=f910370)
|
Type number: 810.06 S |
174.25 € | |
![[101107] RIEGLER Combi-service unit, Protective cage, Size 2, G 1, 0.5 - 16 bar](/web/image/product.template/140543/image_128/%5B101107%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%202%2C%20G%201%2C%200.5%20-%2016%20bar?unique=b854d12)
|
Type number: 811.16 S |
267.17 € | |
![[101104] RIEGLER Combi-service unit, Protective cage, Size 2, G 3/4, 0.5 - 10 bar](/web/image/product.template/140540/image_128/%5B101104%5D%20RIEGLER%20Combi-service%20unit%2C%20Protective%20cage%2C%20Size%202%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=f910370)
|
Type number: 811.13 S |
182.49 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=83510c9)
|
Type number: 32 |
34.09 € | |

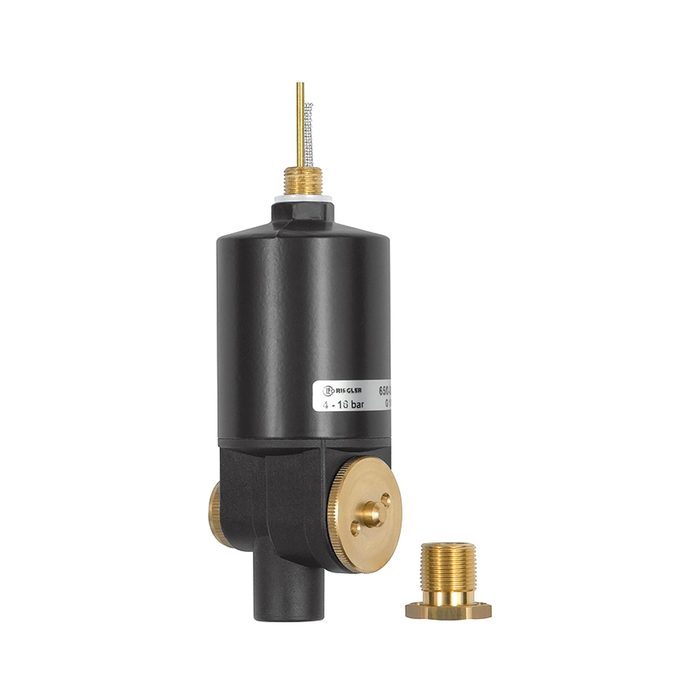

![[100677] RIEGLER Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1](/web/image/product.template/140112/image_128/%5B100677%5D%20RIEGLER%20Fully%20automated%20bleeder%20valve%20incl.%20adapter%20G%201-8%20i.%20x%20M14x1?unique=db32c1a)
|
Type number: 65/0-N |
69.63 € | |
![[100711] RIEGLER Drip cap made of metal](/web/image/product.template/140147/image_128/%5B100711%5D%20RIEGLER%20Drip%20cap%20made%20of%20metal?unique=6541d68)
|
Type number: 1412.7.909 |
23.66 € | |

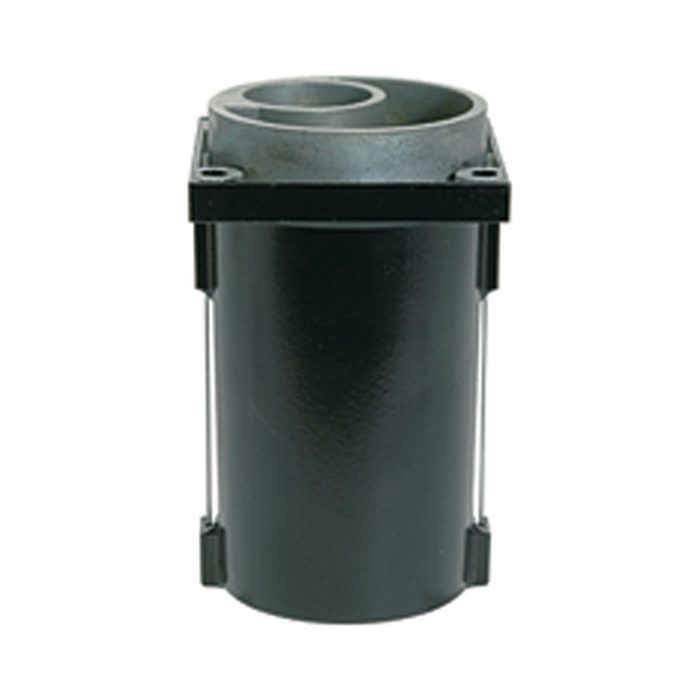

![[101118] RIEGLER Metal container with bleeder valve and O-ring](/web/image/product.template/140554/image_128/%5B101118%5D%20RIEGLER%20Metal%20container%20with%20bleeder%20valve%20and%20O-ring?unique=cdbaef9)
|
Type number: E 14811/24 M |
73.97 € | |

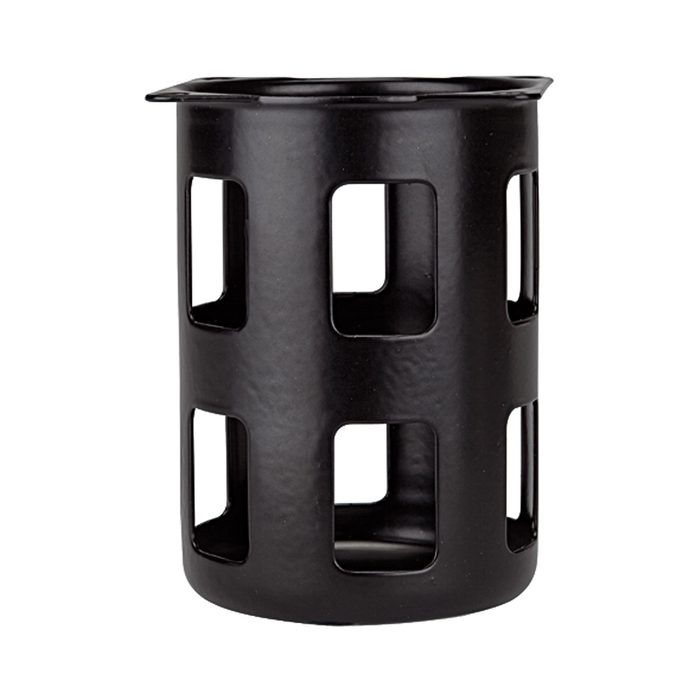

![[101119] RIEGLER Metal protective cage, for combi-service unit, Size 2, G 3/4, G 1](/web/image/product.template/140555/image_128/%5B101119%5D%20RIEGLER%20Metal%20protective%20cage%2C%20for%20combi-service%20unit%2C%20Size%202%2C%20G%203-4%2C%20G%201?unique=c6d1cab)
|
Type number: SM 11 |
21.90 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

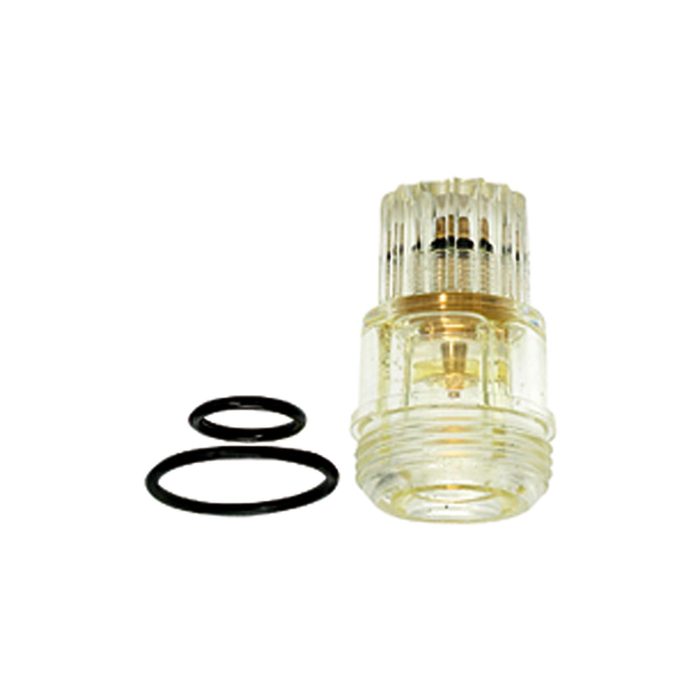

![[100709] RIEGLER Drip cap made of plastic, for mist oiler »variobloc«, Size 2](/web/image/product.template/140145/image_128/%5B100709%5D%20RIEGLER%20Drip%20cap%20made%20of%20plastic%2C%20for%20mist%20oiler%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=93b62ab)
|
Type number: VZ 722 |
10.13 € | |

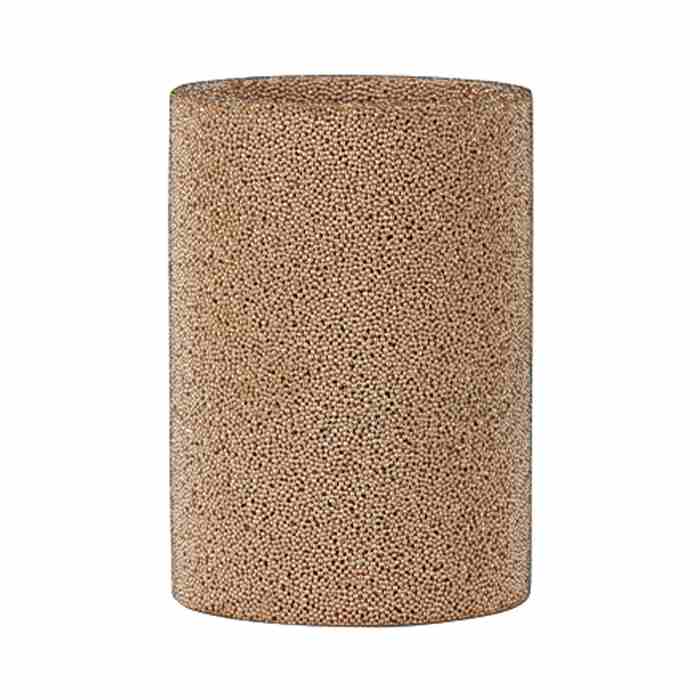

![[101121] RIEGLER Filter insert 40 µm, Sintered bronze](/web/image/product.template/140557/image_128/%5B101121%5D%20RIEGLER%20Filter%20insert%2040%20%C2%B5m%2C%20Sintered%20bronze?unique=e945359)
|
Type number: 811.6.950 |
10.66 € | |

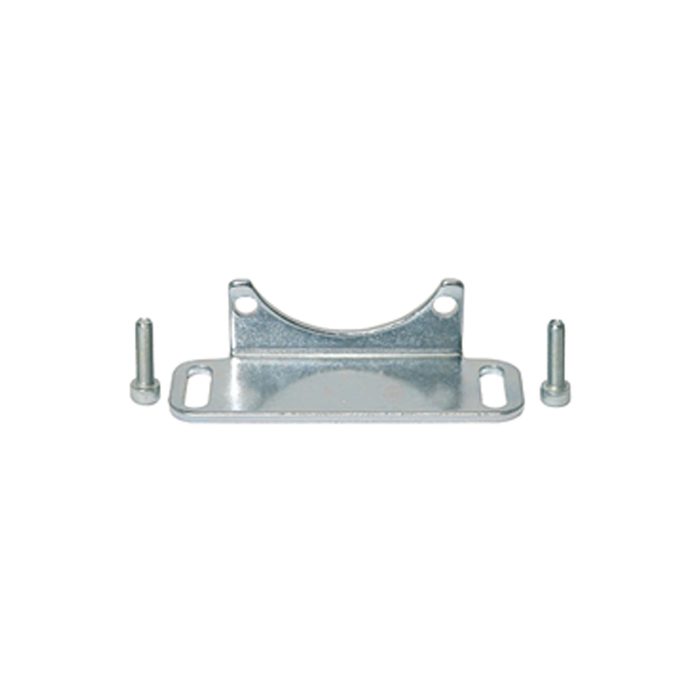

![[101116] RIEGLER Mounting set, for combi-service unit, Size 2, G 3/4 and G 1](/web/image/product.template/140552/image_128/%5B101116%5D%20RIEGLER%20Mounting%20set%2C%20for%20combi-service%20unit%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=ef44ad9)
|
Type number: H 11 |
9.67 € | |
![[101678] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169650/image_128/%5B101678%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=cda21d5)
|
Type number: 207-KD |
6.25 € | |

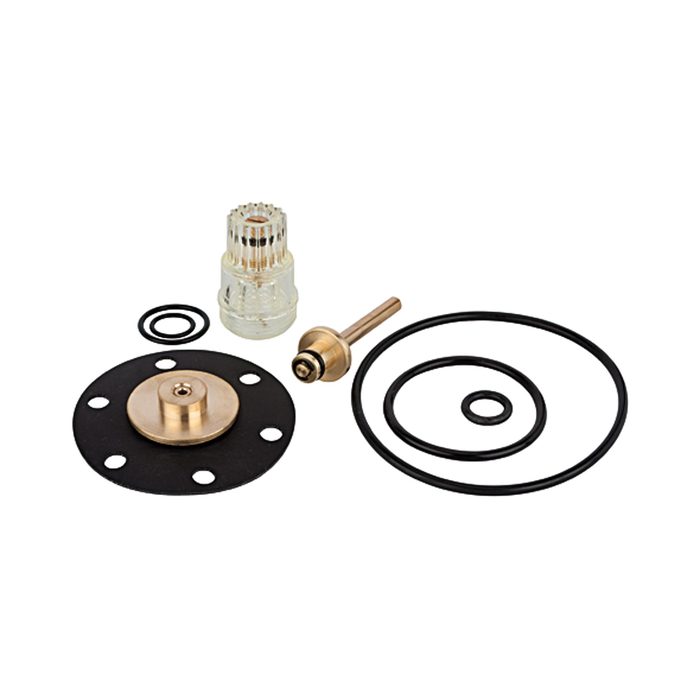

![[101120] RIEGLER Wear part set, for combi-service unit, Size 2, G 3/4 and G 1](/web/image/product.template/140556/image_128/%5B101120%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20combi-service%20unit%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=905e693)
|
