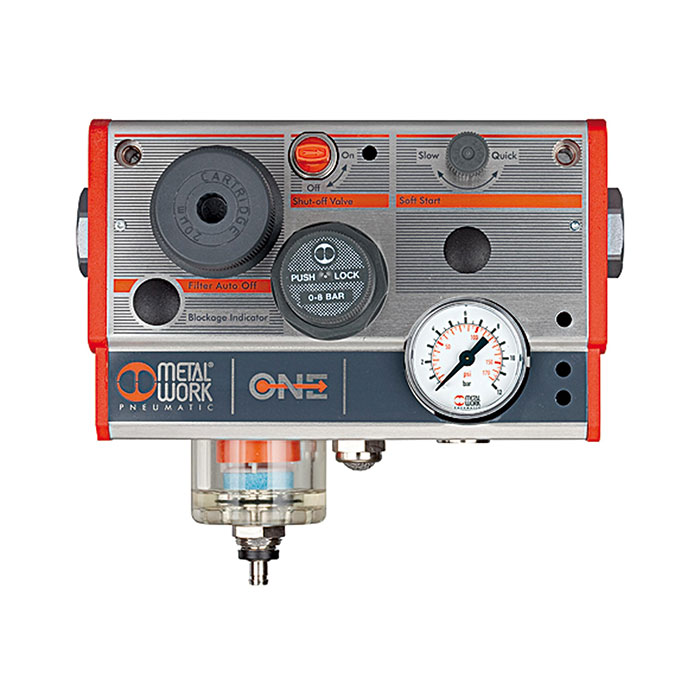

RIEGLER Service unit »ONE« without pressure switch, G 1/4
Type number: 533.301
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Maintenance unit "ONE" without pressure switch for compressed air preparation, 0.5 bar - Type 533.301
The RIEGLER maintenance unit "ONE" without pressure switch, G 1/4 combines compressed air filter, regulator and lubricator in one compact maintenance unit. The control range extends from 0.5 bar to 8 bar with a maximum inlet pressure of 10 bar. The temperature range is between -10 °C and 50 °C. G 1/4 connection thread - suitable for common industry standards. Suitable for compressed air. The flow rate is 2400 l/min (at P2 = 6.3 bar and pressure drop Δp = 1 bar). Operating voltage 24 V DC (for valves and pressure switches), protection class IP 65, filter fineness 20 µm. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air |
| Flow rate measurement | at P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | ONE |
| Filter fineness | 20 µm |
| Protection class | IP 65 |
| Operating voltage | 24 V DC (for valves and pressure switches) |
| Thread | G 1/4 |
| Flow rate | 2400 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| A | 165.5 mm |
| B | 144 mm |
| C | 35 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101124] RIEGLER Service unit »ONE« without pressure switch, G 1/2](/web/image/product.template/140560/image_128/%5B101124%5D%20RIEGLER%20Service%20unit%20%C2%BBONE%C2%AB%20without%20pressure%20switch%2C%20G%201-2?unique=0b6f95b)
|
Type number: 533.303 |
271.40 € | |
![[101123] RIEGLER Service unit »ONE« without pressure switch, G 3/8](/web/image/product.template/140559/image_128/%5B101123%5D%20RIEGLER%20Service%20unit%20%C2%BBONE%C2%AB%20without%20pressure%20switch%2C%20G%203-8?unique=9eaf809)
|
Type number: 533.302 |
267.07 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101128] RIEGLER Filter element 5 µm, for service unit »ONE«](/web/image/product.template/140564/image_128/%5B101128%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20for%20service%20unit%20%C2%BBONE%C2%AB?unique=b0df9f2)
|
Type number: 533.905 |
5.84 € | |
![[101131] RIEGLER Threaded connection G 3/8, for service unit »ONE«](/web/image/product.template/140567/image_128/%5B101131%5D%20RIEGLER%20Threaded%20connection%20G%203-8%2C%20for%20service%20unit%20%C2%BBONE%C2%AB?unique=74f25e2)
|
Type number: 533.3812 |
13.27 € | |

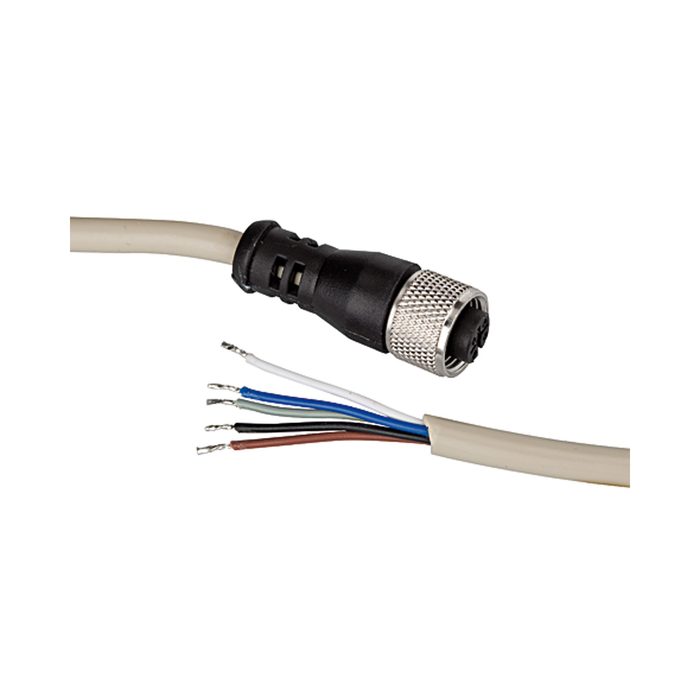

![[101132] RIEGLER Electrical connection cable, straight socket, 5 m cable, 5-wire](/web/image/product.template/140568/image_128/%5B101132%5D%20RIEGLER%20Electrical%20connection%20cable%2C%20straight%20socket%2C%205%20m%20cable%2C%205-wire?unique=be596ef)
|
Type number: 533.901 |
18.55 € | |

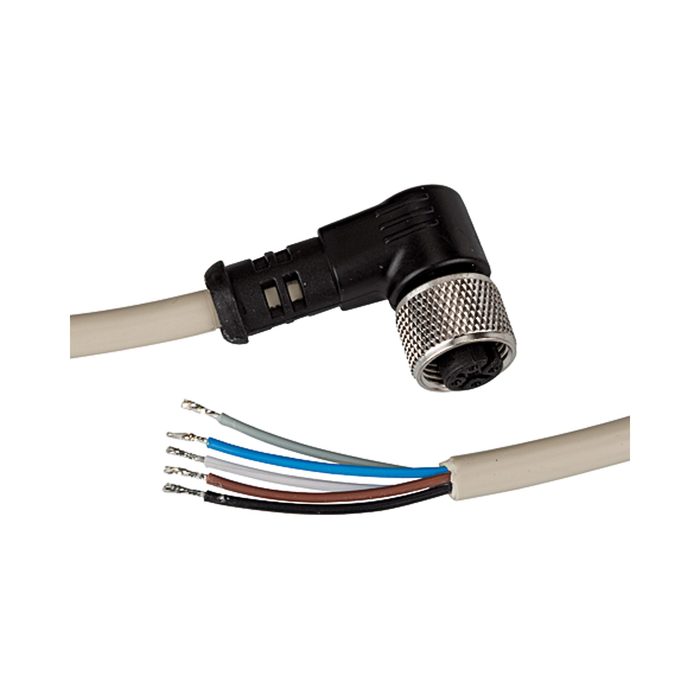

![[101133] RIEGLER Electrical connection cable, 90° angle socket, 5 m cable, 5-wire](/web/image/product.template/140569/image_128/%5B101133%5D%20RIEGLER%20Electrical%20connection%20cable%2C%2090%C2%B0%20angle%20socket%2C%205%20m%20cable%2C%205-wire?unique=f63a60e)
|
Type number: 533.902 |
18.55 € | |
![[101134] RIEGLER Mounting bracket incl. 2 screws, for service unit »ONE«](/web/image/product.template/140570/image_128/%5B101134%5D%20RIEGLER%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20service%20unit%20%C2%BBONE%C2%AB?unique=44d062e)
|
Type number: 533.906 |
22.76 € | |

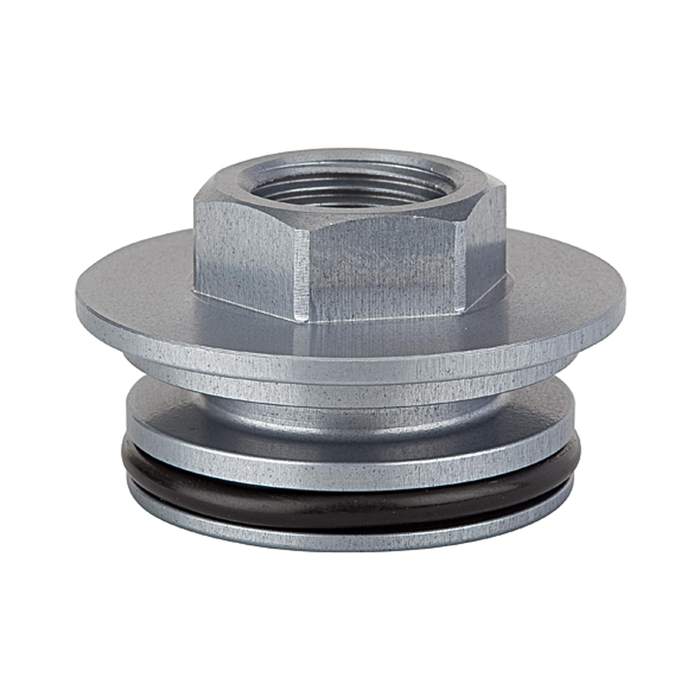

![[144944] RIEGLER Threaded connection G 1/2, for "ONE" maintenance unit](/web/image/product.template/280034/image_128/%5B144944%5D%20RIEGLER%20Threaded%20connection%20G%201-2%2C%20for%20%22ONE%22%20maintenance%20unit?unique=e7f42ad)
|
Type number: 533.1212 |
14.86 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101129] RIEGLER Filter element 20 µm, for service unit »ONE«](/web/image/product.template/140565/image_128/%5B101129%5D%20RIEGLER%20Filter%20element%2020%20%C2%B5m%2C%20for%20service%20unit%20%C2%BBONE%C2%AB?unique=44f44bd)
|
Type number: 533.900 |
5.84 € | |
