RIEGLER Service unit 3-part »variobloc«, Protective cage, Size 1, G 3/8

Price:

239.27 €

RIEGLER Service unit 3-part »variobloc«, Protective cage, Size 1, G 1/4
RIEGLER Service unit 3-part »variobloc«, Protective cage, Size 1, G 1/4
239.27 € 239.27 €
RIEGLER Service unit 3-part »variobloc«, Protective cage, Size 2, G 1
RIEGLER Service unit 3-part »variobloc«, Protective cage, Size 2, G 1
202.76 € 202.76 €

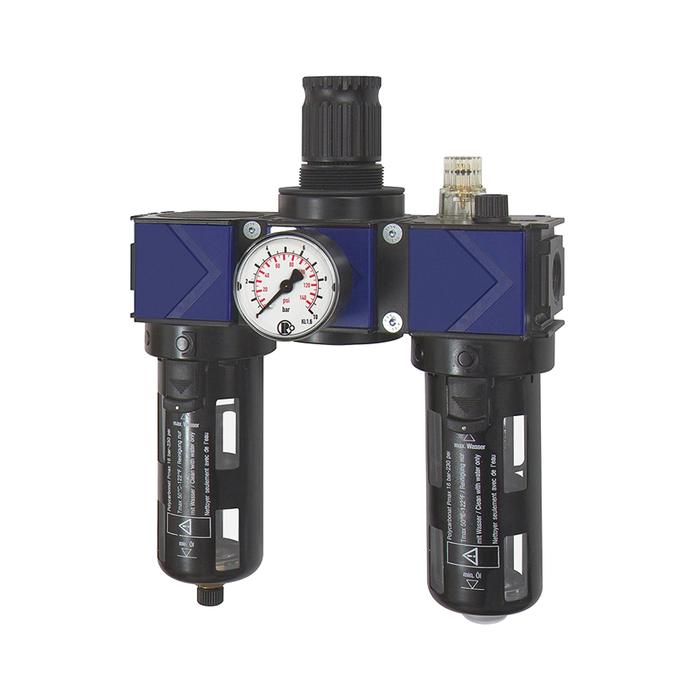

RIEGLER Service unit 3-part »variobloc«, Protective cage, Size 1, G 3/8

https://www.filcom-technik.de/web/image/product.template/202429/image_1920?unique=fde485d

Type number: VW 13 S

EAN: 4047322398374

239.27 € 239.27 EUR 239.27 € VAT Included

372.36 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

124856

EAN :

4047322398374

Weight :

0.10 kg

3-piece "variobloc" maintenance unit, polycarbonate container and protective cage, BG 1, G 3/8, PE max. 16 bar, max. med. ambient temp. 50 °C

Inlet pressure max. 16 bar
Housing Zinc die casting
Sealing material NBR
Membrane NBR
Flow rate measurement with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar
Series variobloc
Container Polycarbonate container with protective cage
Filter fineness 40 µm
Dropper attachment PA
Medium temperature max. 50 °C
Ambient temperature max. 50 °C
Spring cover POM
Thread G 3/8
Flow rate 1800 l/min
Control range min. 0.5 bar
Control range max. 10 bar
Condensate drain manually
Pressure gauge display min. 0 bar
Pressure gauge display max. 10 bar
BG 1
A 144 mm
B 201 mm
C 68 mm
Class name PLUS
