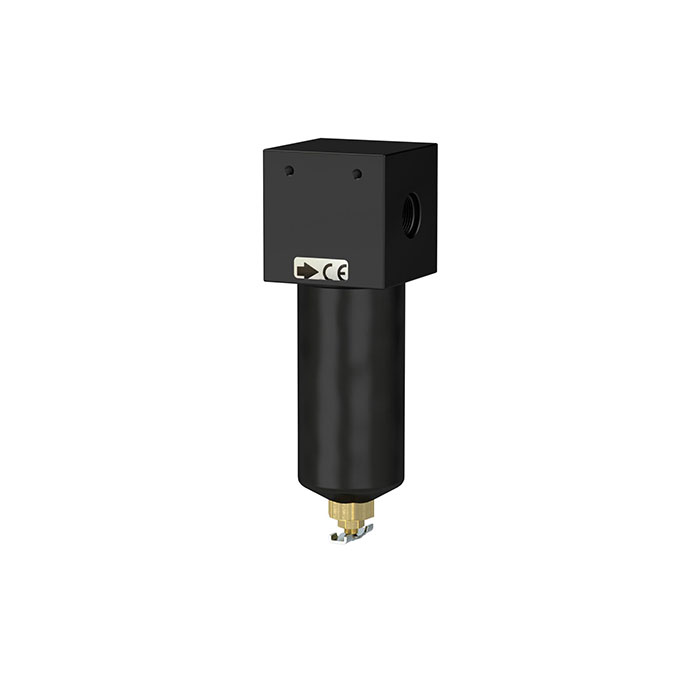

RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 3/8
Type number: 680.21
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter for high pressures up to 40 bar, with manual drain valve, 40 µm, G 3/8, brass condensate container, max. medium temp. 90 °C
| Inlet pressure max. | 40 bar |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Container | Brass |
| Filter fineness | 40 µm |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 90 °C |
| Thread | G 3/8 |
| Flow rate | 2650 l/min |
| Condensate drain | Manual drain valve |
| A | 73 mm |
| B | 194 mm |
| C | 32.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101163] RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 1](/web/image/product.template/140599/image_128/%5B101163%5D%20RIEGLER%20Filter%20for%20high%20pressures%20up%20to%2040%20bar%2C%2040%20%C2%B5m%2C%20G%201?unique=e4fa144)
|
Type number: 680.24 |
232.95 € | |
![[101164] RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 1 1/2](/web/image/product.template/140600/image_128/%5B101164%5D%20RIEGLER%20Filter%20for%20high%20pressures%20up%20to%2040%20bar%2C%2040%20%C2%B5m%2C%20G%201%201-2?unique=b867610)
|
Type number: 680.26 |
852.29 € | |
![[101161] RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 1/2](/web/image/product.template/140597/image_128/%5B101161%5D%20RIEGLER%20Filter%20for%20high%20pressures%20up%20to%2040%20bar%2C%2040%20%C2%B5m%2C%20G%201-2?unique=90313d4)
|
Type number: 680.22 |
197.39 € | |
![[101165] RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 2](/web/image/product.template/140601/image_128/%5B101165%5D%20RIEGLER%20Filter%20for%20high%20pressures%20up%20to%2040%20bar%2C%2040%20%C2%B5m%2C%20G%202?unique=7a34c8f)
|
Type number: 680.27 |
1,055.35 € | |
![[101162] RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 3/4](/web/image/product.template/140598/image_128/%5B101162%5D%20RIEGLER%20Filter%20for%20high%20pressures%20up%20to%2040%20bar%2C%2040%20%C2%B5m%2C%20G%203-4?unique=e5b5459)
|
Type number: 680.23 |
178.69 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101166] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140602/image_128/%5B101166%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=313c1e2)
|
Type number: ZW 68-1 |
10.78 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101121] RIEGLER Filter insert 40 µm, Sintered bronze](/web/image/product.template/140557/image_128/%5B101121%5D%20RIEGLER%20Filter%20insert%2040%20%C2%B5m%2C%20Sintered%20bronze?unique=31fb51a)
|
Type number: 811.6.950 |
10.81 € | |
![[101167] RIEGLER Metal container complete, with bleeder screw](/web/image/product.template/140603/image_128/%5B101167%5D%20RIEGLER%20Metal%20container%20complete%2C%20with%20bleeder%20screw?unique=40a8bd9)
|
Type number: 680/12 |
105.20 € | |
