RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 1
Type number: 680.24
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter for high pressures up to 40 bar made of aluminum, G 1 - Type 680.24
The RIEGLER filter for high pressures up to 40 bar, with manual drain valve, G 1 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of aluminum. The maximum inlet pressure is 40 bar. The permissible medium temperature is between 0 °C and 90 °C. Connection thread G 1 - suitable for common industry standards. The flow rate is 3350 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, brass bowl. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 40 bar |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Container | Brass |
| Filter fineness | 40 µm |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 90 °C |
| Thread | G 1 |
| Flow rate | 3350 l/min |
| Condensate drain | Manual drain valve |
| A | 80 mm |
| B | 205 mm |
| C | 40 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

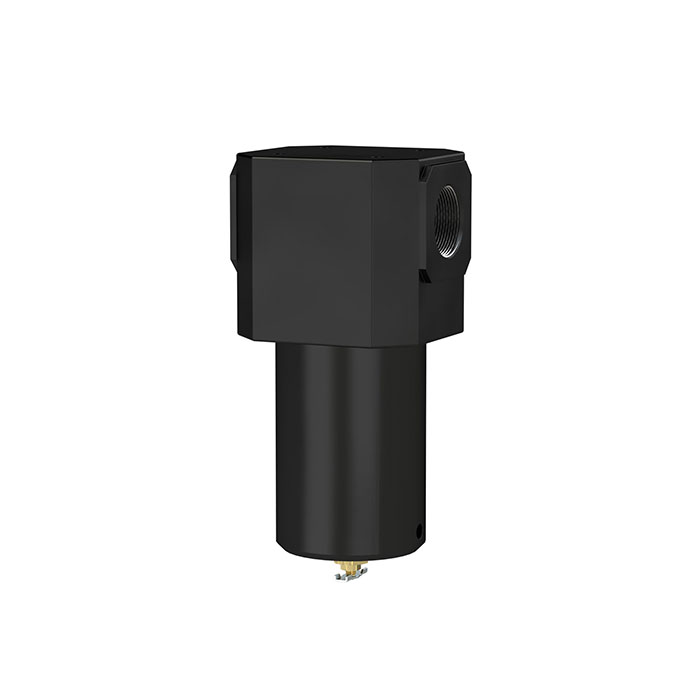

![[101164] RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 1 1/2](/web/image/product.template/140600/image_128/%5B101164%5D%20RIEGLER%20Filter%20for%20high%20pressures%20up%20to%2040%20bar%2C%2040%20%C2%B5m%2C%20G%201%201-2?unique=23064b7)
|
Type number: 680.26 |
838.32 € | |
![[101161] RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 1/2](/web/image/product.template/140597/image_128/%5B101161%5D%20RIEGLER%20Filter%20for%20high%20pressures%20up%20to%2040%20bar%2C%2040%20%C2%B5m%2C%20G%201-2?unique=b7f09e9)
|
Type number: 680.22 |
197.39 € | |
![[101165] RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 2](/web/image/product.template/140601/image_128/%5B101165%5D%20RIEGLER%20Filter%20for%20high%20pressures%20up%20to%2040%20bar%2C%2040%20%C2%B5m%2C%20G%202?unique=23064b7)
|
Type number: 680.27 |
703.56 € | |

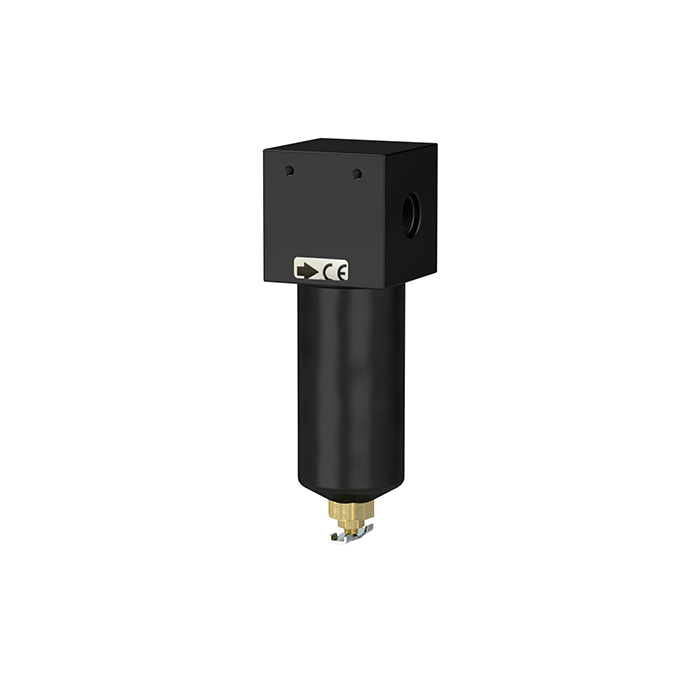

![[101162] RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 3/4](/web/image/product.template/140598/image_128/%5B101162%5D%20RIEGLER%20Filter%20for%20high%20pressures%20up%20to%2040%20bar%2C%2040%20%C2%B5m%2C%20G%203-4?unique=23064b7)
|
Type number: 680.23 |
175.77 € | |
![[101160] RIEGLER Filter for high pressures up to 40 bar, 40 µm, G 3/8](/web/image/product.template/140596/image_128/%5B101160%5D%20RIEGLER%20Filter%20for%20high%20pressures%20up%20to%2040%20bar%2C%2040%20%C2%B5m%2C%20G%203-8?unique=23064b7)
|
Type number: 680.21 |
165.21 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

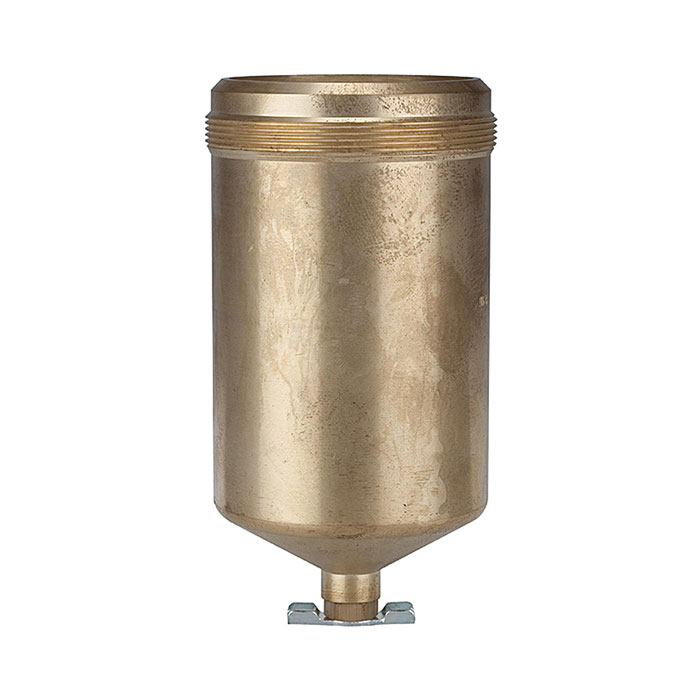

![[101169] RIEGLER Metal container complete, with manual bleeder valve](/web/image/product.template/140605/image_128/%5B101169%5D%20RIEGLER%20Metal%20container%20complete%2C%20with%20manual%20bleeder%20valve?unique=a43e6c1)
|
