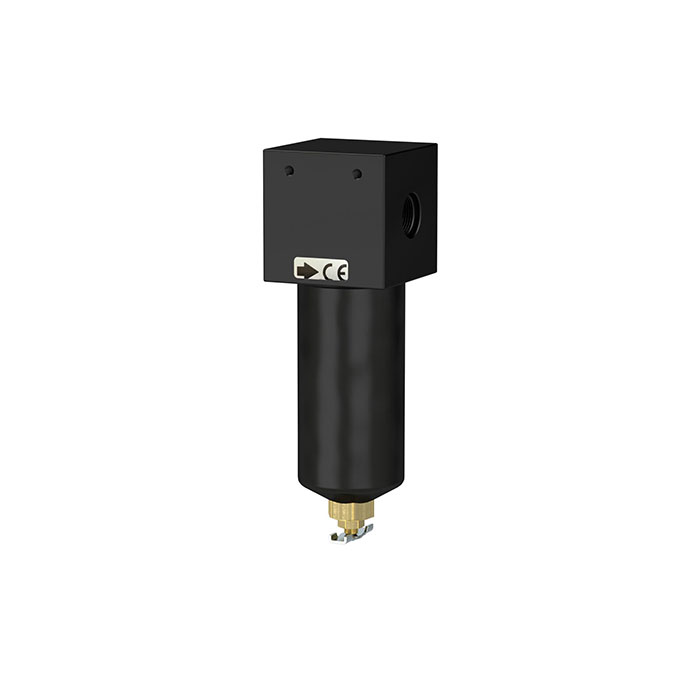

RIEGLER Filter for high pressures up to 60 bar, 40 µm, G 1/2
Type number: 680.32
EAN: 4047322270328
Filter for high pressures up to 60 bar, with manual drain valve, 40 µm, G 1/2, brass bowl, operating temperature 0 °C to 90 °C
| Inlet pressure max. | 60 bar |
| Housing | Aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop ˆ†<sub>p</sub> = 0.5 bar |
| Container | Brass |
| Filter fineness | 40 µm |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 90 °C |
| Thread | G 1/2 |
| Flow rate | 2660 l/min |
| Condensate drain | Manual drain valve |
| A | 65 mm |
| B | 187 mm |
| C | 25 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
