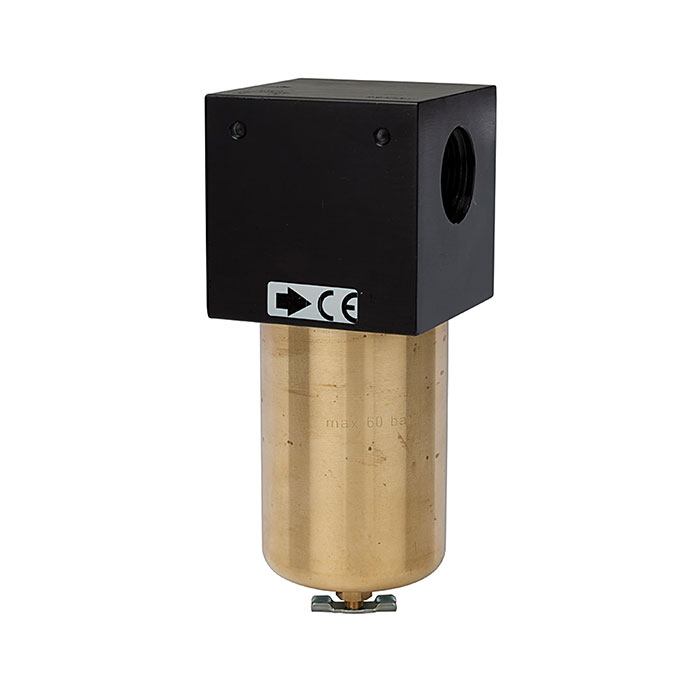

RIEGLER Microfilter for high pressures up to 60 bar, 0.01 µm, G 3/4
Type number: 680.43
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Microfilter for high pressures up to 60 bar made of aluminum, G 3/4 - Type 680.43
The RIEGLER microfilter for high pressures up to 60 bar, manual drain valve, G 3/4 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of aluminum with NBR seals. The maximum inlet pressure is 60 bar. The operating temperature is between 0 °C and 90 °C. Connection thread G 3/4 - suitable for common industry standards. The flow rate is 2300 l/min (at P2 = 6 bar and pressure drop Δp = 0.5 bar). Filter fineness 0.01 µm, brass bowl. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 60 bar |
| Housing | Aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop ˆ†<sub>p</sub> = 0.5 bar |
| Container | Brass |
| Filter element | Borosilicate microfiber fleece |
| Filter fineness | 0.01 µm |
| Efficiency | 9999.99 |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 90 °C |
| Thread | G 3/4 |
| Flow rate | 2300 l/min |
| A | 92 mm |
| B | 196 mm |
| C | 29 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
