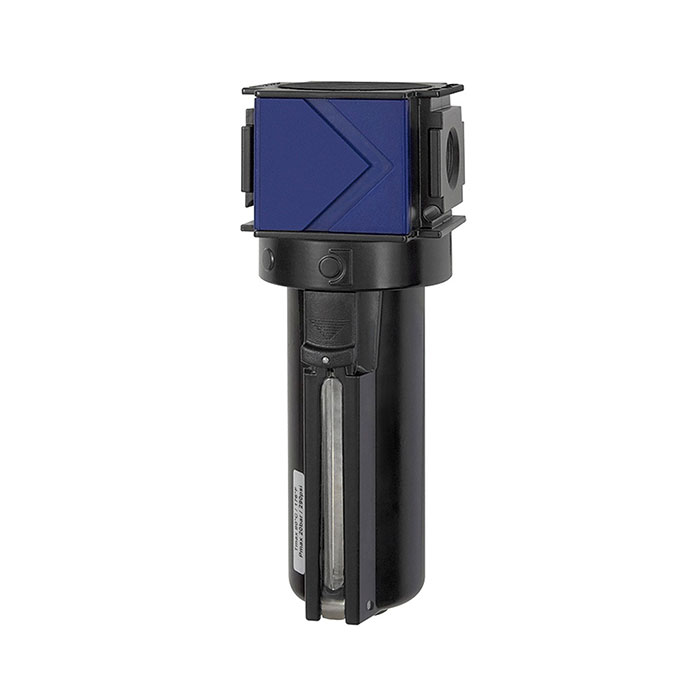

RIEGLER Active charcoal filter »variobloc« Metal container, Size 1, G 3/8
Type number: VAK 23 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Activated carbon filter "variobloc" for compressed air treatment, G 3/8 - type VAK 23 M
The RIEGLER activated carbon filter "variobloc", metal container, sight tube, BG 1, G 3/8 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The maximum inlet pressure is 20 bar. The permissible medium temperature is between -10 °C and 80 °C. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 1000 l/min (at P1 = 7 bar and pressure drop Δp = 0.2 bar). Metal container with sight tube. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 20 bar |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Residual oil content | 0.003 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 80 °C |
| Air quality according to ISO 8573.1 | Class 1 dirt, class 1 oil |
| Thread | G 3/8 |
| Flow rate | 1000 l/min |
| BG | 1 |
| A | 48 mm |
| B | 142 mm |
| C | 22 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

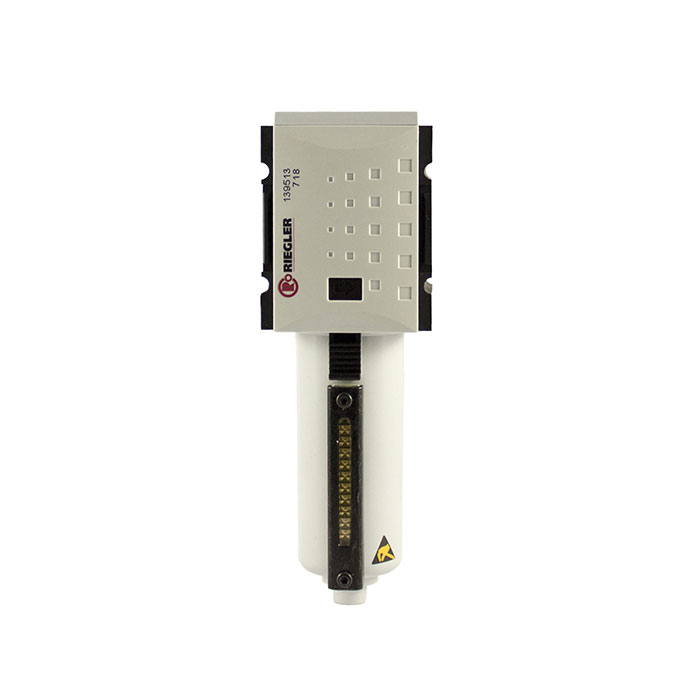

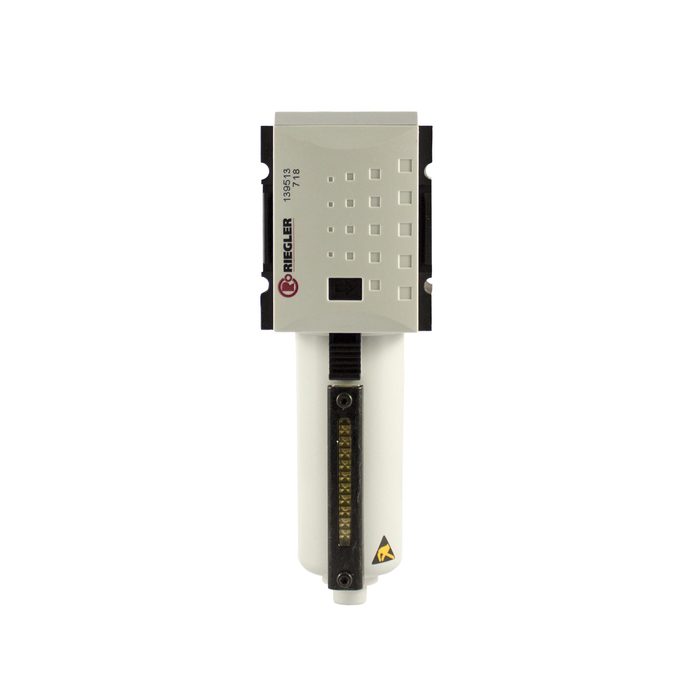

![[156647] RIEGLER Active charcoal filter »FUTURA«, Metal container, Size 1, G 3/8](/web/image/product.template/213383/image_128/%5B156647%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%203-8?unique=22705d8)
|
