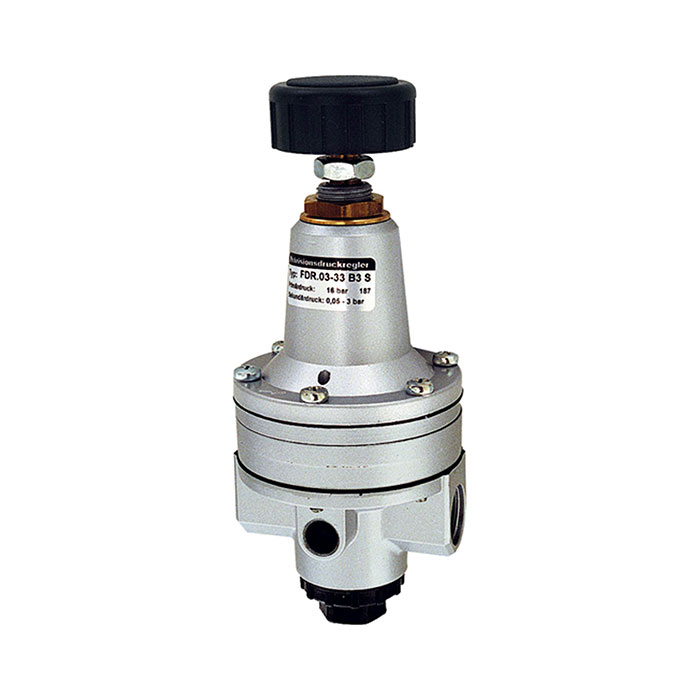

RIEGLER Precision pressure regulator, G 1/2, Control range 0.05 - 3 bar
Type number: 637.51
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Precision pressure regulator without mano made of die-cast zinc, for compressed air preparation - Type 637.51
The RIEGLER precision pressure regulator o. Mano, G 1/2, 0.05-3 bar, high flow rate reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.05 bar to 3 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -35 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. Suitable for ultra-fine filtered, non-lubricated compressed air (0.01 µm). The flow rate is 3000 l/min. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 16 bar |
| Medium | ultra-fine filtered, unlubricated compressed air (0.01 µm) |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Intrinsic air consumption max. | 1.5 - 6 l/min, depending on inlet pressure and control range |
| Medium temperature min. | -35 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -35 °C |
| Ambient temperature max. | 60 °C |
| Pressure gauge connection | G 1/4 |
| Thread | G 1/2 |
| Flow rate | 3000 l/min |
| Control range min. | 0.05 bar |
| Control range max. | 3 bar |
| A | 82 mm |
| B | 202.5 mm |
| C | 43.5 mm |
| D | 159 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Vent connection | G 3/8 (for silencer mounting) |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I. 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Intrinsic air consumption | Yes |
| Class name | FLEX |
