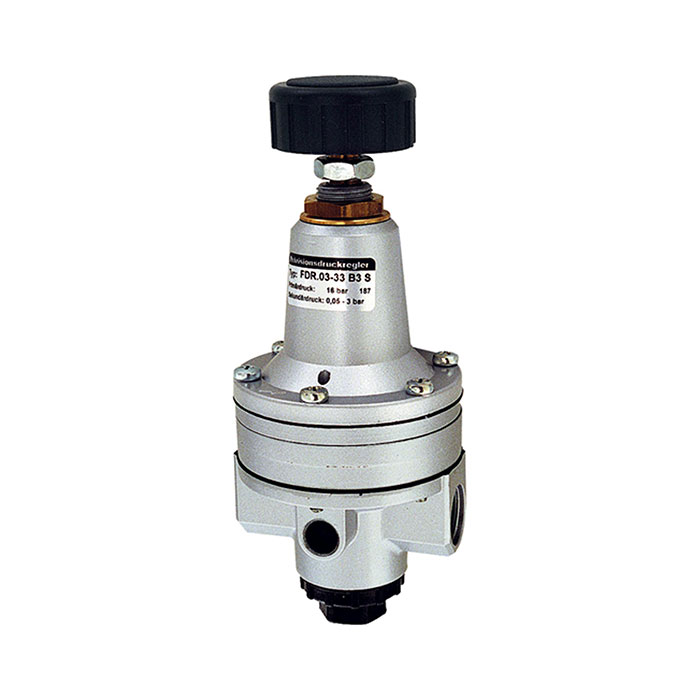

RIEGLER Precision pressure regulator, G 1/2, Control range 0.05 - 5 bar
Type number: 637.52
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Precision pressure regulator without mano made of die-cast zinc, for compressed air preparation - Type 637.52
The RIEGLER precision pressure regulator o. Mano, G 1/2, 0.05-5 bar, high flow rate reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.05 bar to 5 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -35 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. Suitable for ultra-fine filtered, non-lubricated compressed air (0.01 µm). The flow rate is 4500 l/min. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 16 bar |
| Medium | ultra-fine filtered, unlubricated compressed air (0.01 µm) |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Intrinsic air consumption max. | 1.5 - 6 l/min, depending on inlet pressure and control range |
| Medium temperature min. | -35 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -35 °C |
| Ambient temperature max. | 60 °C |
| Pressure gauge connection | G 1/4 |
| Thread | G 1/2 |
| Flow rate | 4500 l/min |
| Control range min. | 0.05 bar |
| Control range max. | 5 bar |
| A | 82 mm |
| B | 202.5 mm |
| C | 43.5 mm |
| D | 159 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Vent connection | G 3/8 (for silencer mounting) |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I. 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Intrinsic air consumption | Yes |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101238] RIEGLER Precision pressure regulator, G 1/2, Control range 0.05 - 3 bar](/web/image/product.template/140673/image_128/%5B101238%5D%20RIEGLER%20Precision%20pressure%20regulator%2C%20G%201-2%2C%20Control%20range%200.05%20-%203%20bar?unique=33f0e11)
|
Type number: 637.51 |
189.07 € | |
![[101240] RIEGLER Precision pressure regulator, G 1/2, Control range 0.05 - 7 bar](/web/image/product.template/140675/image_128/%5B101240%5D%20RIEGLER%20Precision%20pressure%20regulator%2C%20G%201-2%2C%20Control%20range%200.05%20-%207%20bar?unique=8d3d661)
|
Type number: 637.53 |
189.07 € | |
![[101234] RIEGLER Precision pressure regulator, G 1/4, Control range 0.05 - 3 bar](/web/image/product.template/140669/image_128/%5B101234%5D%20RIEGLER%20Precision%20pressure%20regulator%2C%20G%201-4%2C%20Control%20range%200.05%20-%203%20bar?unique=fcf1b0a)
|
Type number: 637.31 |
189.07 € | |
![[101235] RIEGLER Precision pressure regulator, G 1/4, Control range 0.05 - 7 bar](/web/image/product.template/140670/image_128/%5B101235%5D%20RIEGLER%20Precision%20pressure%20regulator%2C%20G%201-4%2C%20Control%20range%200.05%20-%207%20bar?unique=1353408)
|
Type number: 637.33 |
189.07 € | |
![[101236] RIEGLER Precision pressure regulator, G 3/8, Control range 0.05 - 3 bar](/web/image/product.template/140671/image_128/%5B101236%5D%20RIEGLER%20Precision%20pressure%20regulator%2C%20G%203-8%2C%20Control%20range%200.05%20-%203%20bar?unique=97a264c)
|
Type number: 637.41 |
189.07 € | |
![[101237] RIEGLER Precision pressure regulator, G 3/8, Control range 0.05 - 7 bar](/web/image/product.template/140672/image_128/%5B101237%5D%20RIEGLER%20Precision%20pressure%20regulator%2C%20G%203-8%2C%20Control%20range%200.05%20-%207%20bar?unique=f6bb030)
|
Type number: 637.43 |
189.07 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

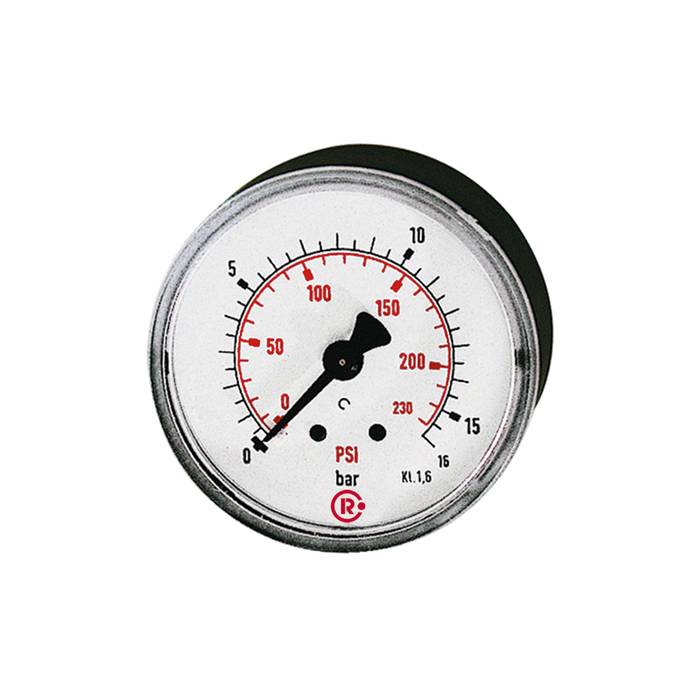

![[101224] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 6 bar/87 psi](/web/image/product.template/140660/image_128/%5B101224%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%206%20bar-87%20psi?unique=11d7546)
|
