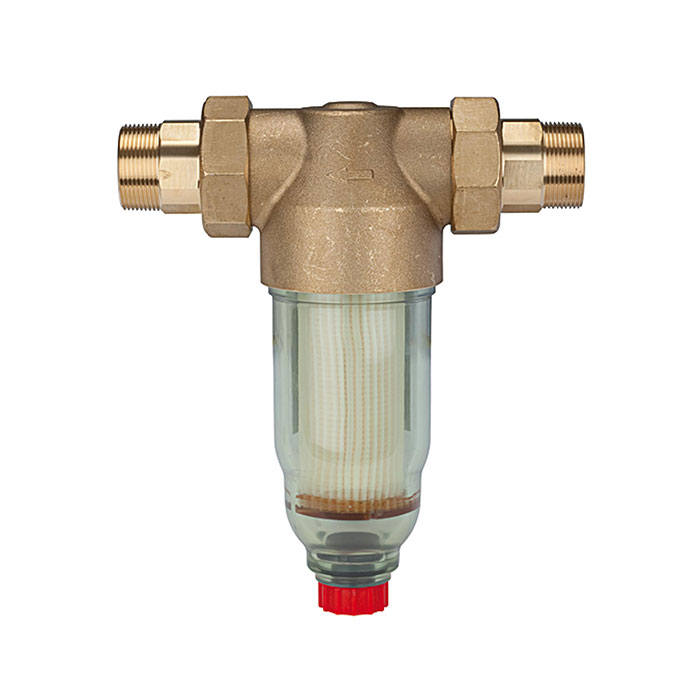

RIEGLER Fine filter »Bavaria«, potable water without DVGW, 90 µm, R 1 1/2
Typennummer: 100.65
EAN: 4047322011945
Feinfilter »Bavaria« für Trinkwasser, ohne DVGW, 90 µm, R 1 1/2, Eingangsdruck max. 16 bar, Wassertemperatur max. 30 °C
| Inlet pressure max. | 16 bar |
| Housing | Brass |
| Series | Bavaria |
| Filter fineness | 90 µm |
| Ambient temperature min. | 5 °C |
| Ambient temperature max. | 40 °C |
| Sieve cup | schlagfester Spezialkunststoff |
| Water temperature min. | 5 °C |
| Water temperature max. | 30 °C |
| Thread | R 1 1/2 |
| Flow rate kvs-value | 9 m³/h |
| DN | 40 |
| A | 140 mm |
| B | 254 mm |
| C | 290 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
