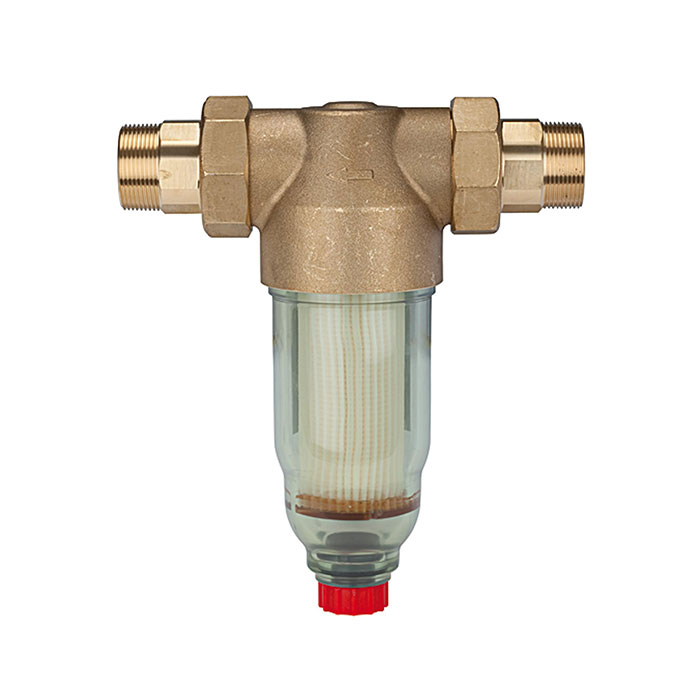

RIEGLER Fine filter »Bavaria«, potable water, without DVGW, 90 µm, R 2
Type number: 100.66
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Fine filter "Bavaria" for drinking water made of brass, R 2 - type 100.66
The RIEGLER "Bavaria" fine filter for drinking water, without DVGW, 90 µm, R 2 removes particles, oil and condensate from compressed air and protects sensitive pneumatic components. The housing is made of brass. The maximum inlet pressure is 16 bar. The ambient temperature is between 5 °C and 40 °C. Connection thread R 2 - suitable for common industry standards. Filter fineness 90 µm. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Brass |
| Series | Bavaria |
| Filter fineness | 90 µm |
| Ambient temperature min. | 5 °C |
| Ambient temperature max. | 40 °C |
| Sieve cup | impact-resistant special plastic |
| Water temperature min. | 5 °C |
| Water temperature max. | 30 °C |
| Thread | R 2 |
| Flow rate kvs-value | 12 m³/h |
| DN | 50 |
| A | 140 mm |
| B | 274 mm |
| C | 290 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101417] RIEGLER Fine filter »Bavaria«, potable water without DVGW, 90 µm, R 1 1/2](/web/image/product.template/169391/image_128/%5B101417%5D%20RIEGLER%20Fine%20filter%20%C2%BBBavaria%C2%AB%2C%20potable%20water%20without%20DVGW%2C%2090%20%C2%B5m%2C%20R%201%201-2?unique=700a221)
|
Type number: 100.65 |
502.66 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

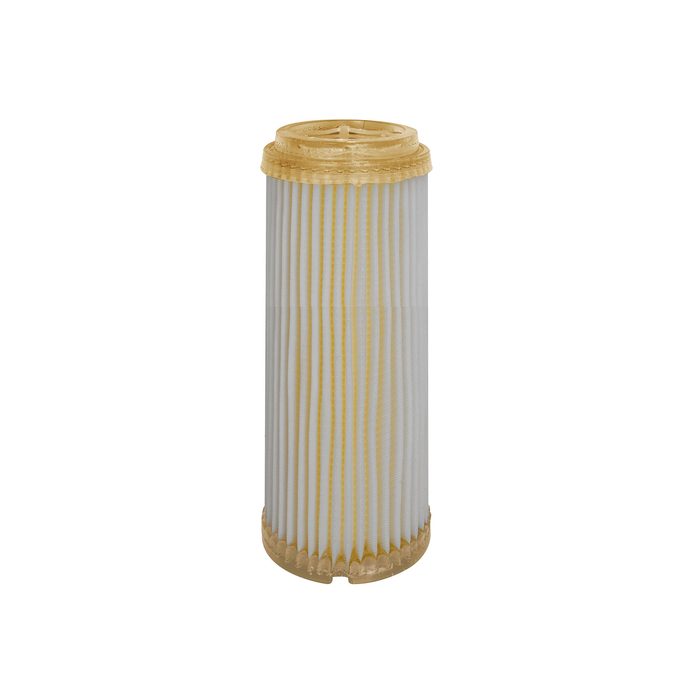

![[101420] RIEGLER Filter insert, for fine filter »Bavaria«, R 1 1/2 and R 2](/web/image/product.template/169394/image_128/%5B101420%5D%20RIEGLER%20Filter%20insert%2C%20for%20fine%20filter%20%C2%BBBavaria%C2%AB%2C%20R%201%201-2%20and%20R%202?unique=fa3fd9b)
|
Type number: 100/651 |
63.93 € | |
