RIEGLER Back flush filter with pressure regulator, DVGW tested, R 1
Type number: 100.53
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Backwash filter with pressure regulator, for drinking water, DVGW-tested, incl. pressure gauge, from 90 µm to 110 µm, R 1, PE max. 16 bar
| Inlet pressure max. | 16 bar |
| Housing | Brass |
| Flow rate measurement | with pressure drop ˆ†<sub>p</sub> = 0.2 bar |
| Ambient temperature min. | 5 °C |
| Ambient temperature max. | 40 °C |
| Sieve cup | impact-resistant plastic |
| Water temperature min. | 5 °C |
| Water temperature max. | 30 °C |
| Operating temperature max. | 0 °C |
| Lower passage width | 90 µm |
| Upper passage width | 110 µm |
| Thread | R 1 |
| Control range min. | 2 bar |
| Control range max. | 6 bar |
| Flow rate kvs-value | 3.5 m³/h |
| DN | 25 |
| A | 79.7 mm |
| B | 213 mm |
| C | 392.8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101425] RIEGLER Back flush filter with pressure regulator, DVGW tested, R 1 1/4](/web/image/product.template/169399/image_128/%5B101425%5D%20RIEGLER%20Back%20flush%20filter%20with%20pressure%20regulator%2C%20DVGW%20tested%2C%20R%201%201-4?unique=5c5779a)
|
Type number: 100.54 |
448.11 € | |

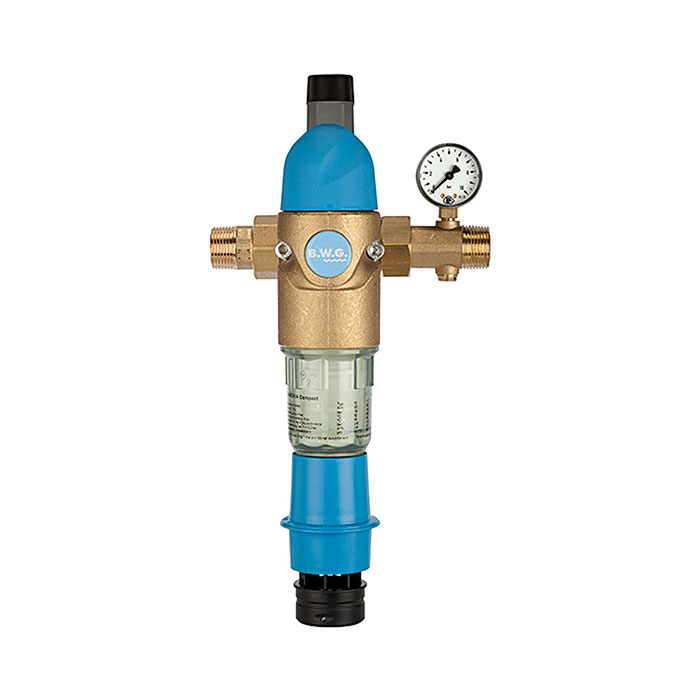

![[101423] RIEGLER Back flush filter with pressure regulator, DVGW tested, R 3/4](/web/image/product.template/169397/image_128/%5B101423%5D%20RIEGLER%20Back%20flush%20filter%20with%20pressure%20regulator%2C%20DVGW%20tested%2C%20R%203-4?unique=ce3ee2a)
|
