RIEGLER Back flush filter with pressure regulator, DVGW tested, R 1 1/4
Type number: 100.54
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Backwash filter with brass pressure regulator, for compressed air treatment, 2 bar - Type 100.54
The RIEGLER backwash filter with pressure regulator, DVGW-tested, R 1 1/4 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of brass. The control range extends from 2 bar to 6 bar with a maximum inlet pressure of 16 bar. The ambient temperature is between 5 °C and 40 °C. Connection thread R 1 1/4 - suitable for common industry standards. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Brass |
| Flow rate measurement | with pressure drop ˆ†<sub>p</sub> = 0.2 bar |
| Ambient temperature min. | 5 °C |
| Ambient temperature max. | 40 °C |
| Sieve cup | impact-resistant plastic |
| Water temperature min. | 5 °C |
| Water temperature max. | 30 °C |
| Operating temperature max. | 0 °C |
| Lower passage width | 90 µm |
| Upper passage width | 110 µm |
| Thread | R 1 1/4 |
| Control range min. | 2 bar |
| Control range max. | 6 bar |
| Flow rate kvs-value | 4 m³/h |
| DN | 32 |
| A | 79.7 mm |
| B | 213 mm |
| C | 392.8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101424] RIEGLER Back flush filter with pressure regulator, DVGW tested, R 1](/web/image/product.template/169398/image_128/%5B101424%5D%20RIEGLER%20Back%20flush%20filter%20with%20pressure%20regulator%2C%20DVGW%20tested%2C%20R%201?unique=f3a8a62)
|
Type number: 100.53 |
368.80 € | |

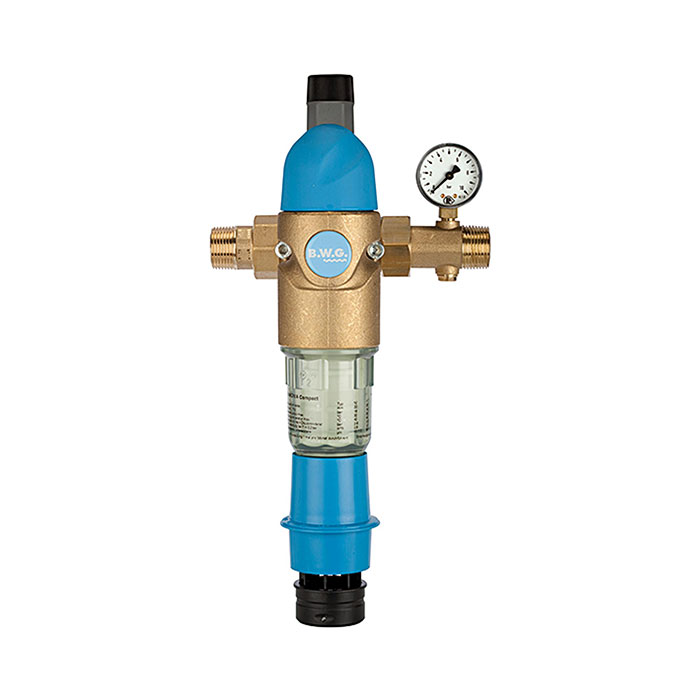

![[101423] RIEGLER Back flush filter with pressure regulator, DVGW tested, R 3/4](/web/image/product.template/169397/image_128/%5B101423%5D%20RIEGLER%20Back%20flush%20filter%20with%20pressure%20regulator%2C%20DVGW%20tested%2C%20R%203-4?unique=ce90b02)
|
Type number: 100.52 |
368.80 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

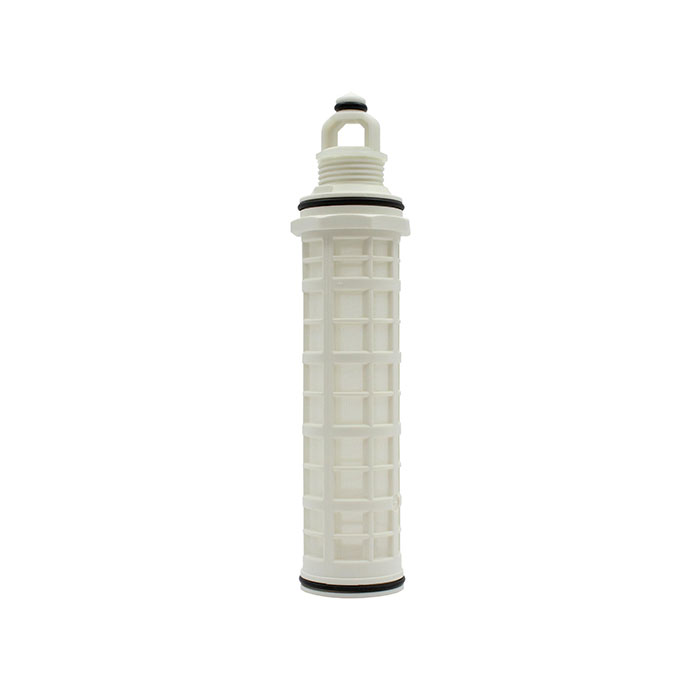

![[101412] RIEGLER Filter insert, for back flush filter, R 3/4, R 1 and R 1 1/4](/web/image/product.template/169386/image_128/%5B101412%5D%20RIEGLER%20Filter%20insert%2C%20for%20back%20flush%20filter%2C%20R%203-4%2C%20R%201%20and%20R%201%201-4?unique=5aac882)
|
Type number: 100/421 |
43.14 € | |

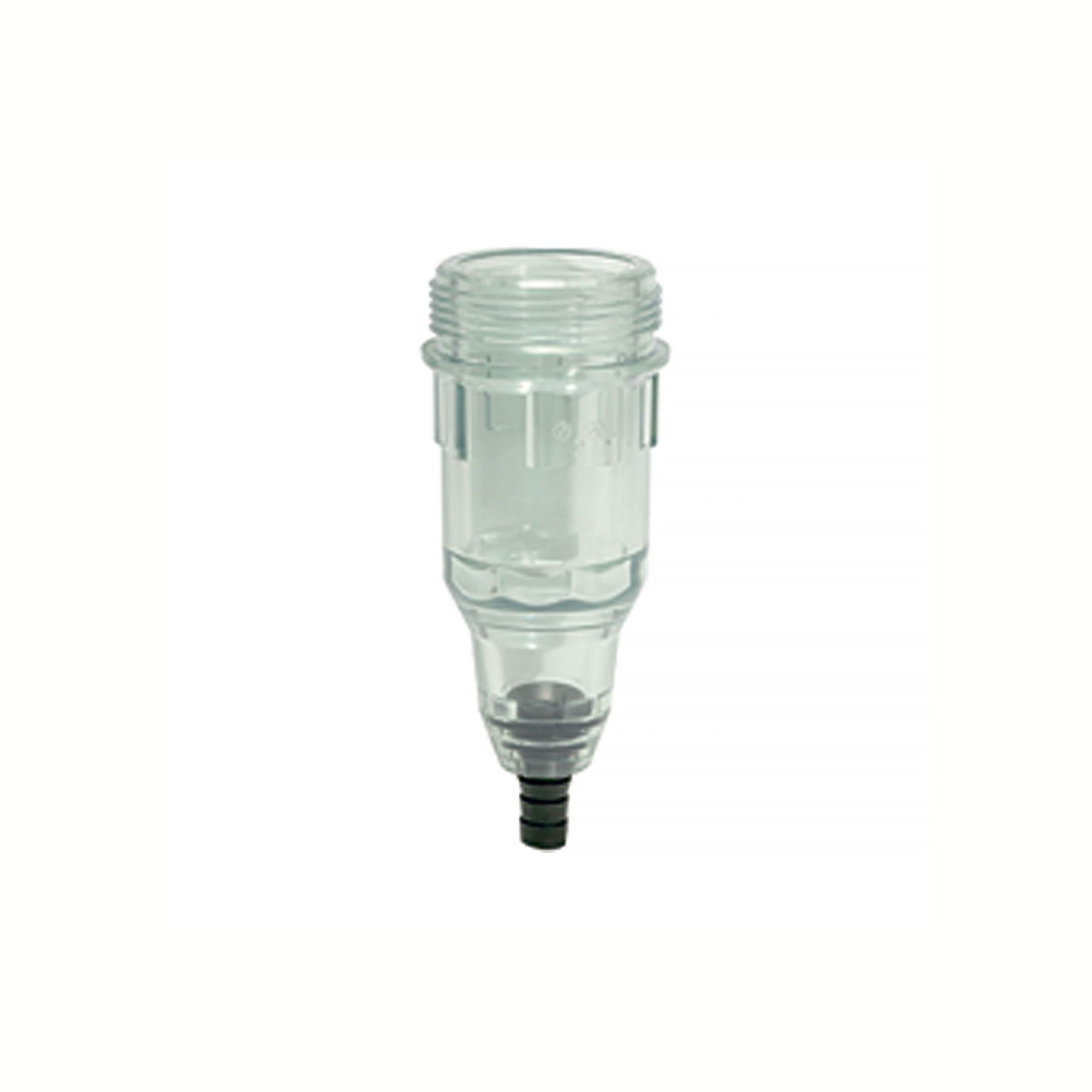

![[101413] RIEGLER Plastic container, for back flush filter, R 3/4, R 1 and R 1 1/4](/web/image/product.template/169387/image_128/%5B101413%5D%20RIEGLER%20Plastic%20container%2C%20for%20back%20flush%20filter%2C%20R%203-4%2C%20R%201%20and%20R%201%201-4?unique=07fc327)
|
Type number: 100/422 |
90.34 € | |

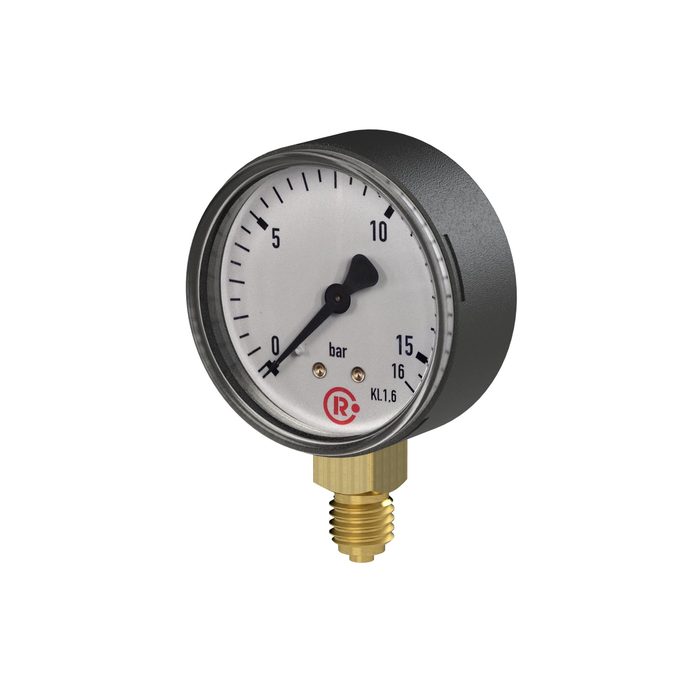

![[101408] RIEGLER Standard pressure gauge, radial bottom, G 1/4, 0 - 10 bar, Ø 50](/web/image/product.template/169382/image_128/%5B101408%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-4%2C%200%20-%2010%20bar%2C%20%C3%98%2050?unique=ba44d62)
|
Type number: 106 |
6.87 € | |
